107 - REAR BONNET

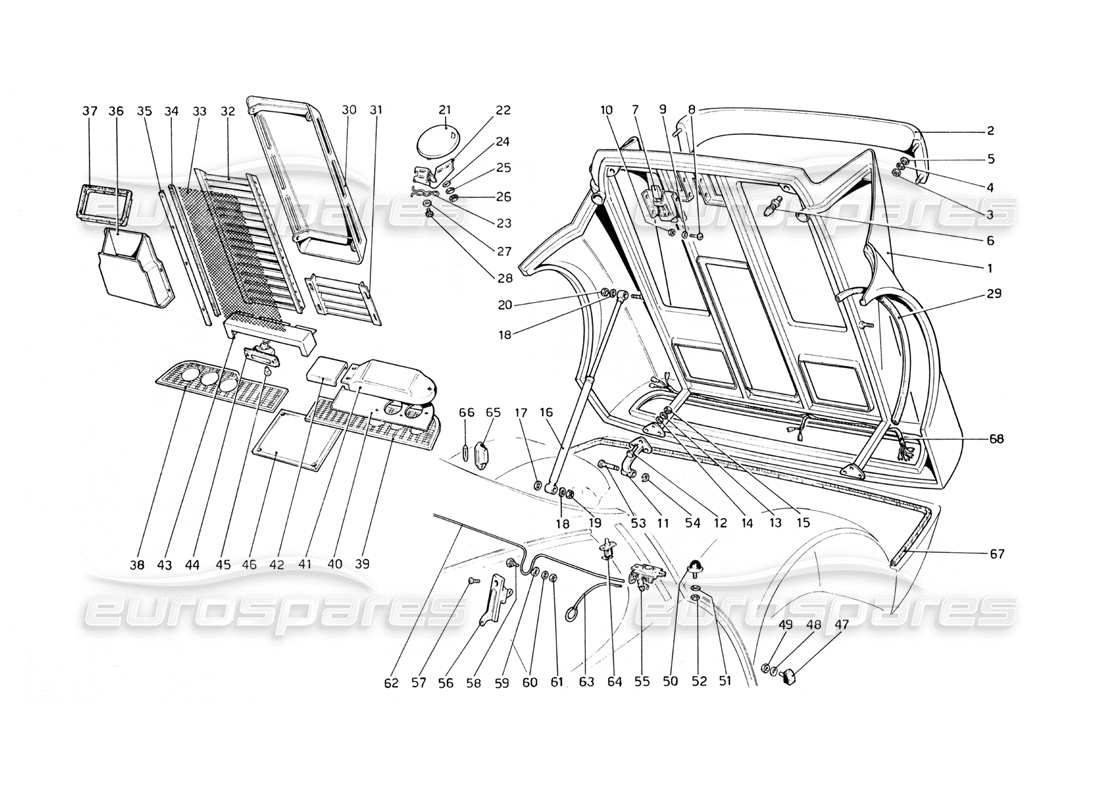

Ferrari 365 GT4 Berlinetta Boxer Rear Bonnet Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 500324
COFANO MOTORE
Vale f ino al N.247
# 001
MPN: 502034
COFANO MOTORE
Vale dal N. 248
# 002
MPN: 50048701
ALETTONE
Non vale per D
Supersession
Supersession
# 002
MPN: 501317
ALETTONE
Vale per D
# 003
MPN: 16100824
NUT
from £0.51
from £0.51
This part replaces part number 16100814 - and 1 more. Click to view details
# 004
MPN: 10615670
WASHER
from £0.47
from £0.47
# 005
MPN: 12642001
WASHER
from £0.47
from £0.47
# 006
MPN: 50035708
PIVOT
from £230.56
from £230.56
# 007
MPN: 501504
SECURITY LOCK
# 008
MPN: 1201482
SCREW
# 009
MPN: 10615370
WASHER
Supersession
Supersession
# 010
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 011
MPN: 500248
CERNIERA
# 012
MPN: 16043211
SCREW
from £0.47
from £0.47
# 013
MPN: 10519621
WASHER
Supersession
Supersession
# 014
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 015
MPN: 16100824
NUT
from £0.50
from £0.50
This part replaces part number 16100814 - and 1 more. Click to view details
# 016
MPN: 50014604/A
AMMORTIZZATORE
75 cm long
from £324.05
from £324.05
This part replaces part number 253-28-550-00
# 017
MPN: 1301662
WASHER
# 018
MPN: 1201491
WASHER
# 019
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 020
MPN: 104030
SELF LOCKING NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 021
MPN: 500856
COVER
# 022
MPN: 500855
CERNIERA
# 023
MPN: 500434
SPRING
# 024
MPN: 10519200
WASHER
# 025
MPN: 10615270
WASHER
Supersession
Supersession
# 026
MPN: 10794011
NUT
from £0.26
from £0.26
# 027
MPN: 10615370
WASHER
Supersession
Supersession
# 028
MPN: 10977526
SCREW
# 029
MPN: 500912
GASKET
# 030
MPN: 50301001
COVER
Supersession
Supersession
# 031
MPN: 500066
GRIGLIA DX
# 031
MPN: 500067
GRIGLIA SX
# 032
MPN: 50203900
Front Grill
from £921.13
from £921.13
# 033
MPN: 502042
NET FOR CENTRAL GRILLE
Vale dal N. 248
# 034
MPN: 502040
GASKET
Vale dal N. 248
# 035
MPN: 502043
ANGOLARE
Vale dal N. 248
# 036
MPN: 501502
RIGHT AIR DUCT WITH GASKET
# 036
MPN: 501503
CONDOTTO ARIA SX CON GUARNIZIONE
# 036
MPN: 501544
ENGINE BONNET WITH HINGES
Valid up to N.247
# 036
MPN: 502033
ENGINE BONNET WITH HINGES
Vale dal N. 248
# 037
MPN: 501500
GASKET
# 038
MPN: 50109305
Right rear grille
Non vale per D
from £566.82
from £566.82
This part replaces part number 50183201
# 038
MPN: 501832
Right rear grille
Vale per D
# 039
MPN: 50109404
GRIGLIA POSTERIORE SX
Non vale per D
from £595.17
from £595.17
# 039
MPN: 501833
GRIGLIA POSTERIORE SX
Vale per D
# 040
MPN: 50095504
RIGHT HEADLIGHT PROTECTION
Non vale per D
from £249.42
from £249.42
# 040
MPN: 50095603
PROTEZIONE SX FANALI
Non vale per D
from £205.00
from £205.00
# 040
MPN: 501834
RIGHT HEADLIGHT PROTECTION
Vale per D
# 040
MPN: 501835
PROTEZIONE SX FANALI
Vale per D
# 041
MPN: 50148303
THERMAL HEADLIGHT PROTECTION
Non vale per D
# 041
MPN: 501838
PROTEZIONE TERMICA DX FAFIALI
Vale per D
from £170.10
from £170.10
# 041
MPN: 501839
PROTEZIONE TERMICA SX FANALI
Vale per D
# 042
MPN: 501484
PROTEZIONE DX
Non vale per D
# 042
MPN: 501485
PROTEZIONE SX
Non vale per D
# 043
MPN: 50148204
LICENSE PLATE LIGHT PROTECTION
from £169.59
from £169.59
# 044
MPN: 186180
FANALE TARGA
from £24.09
from £24.09
This part replaces part number 175204 - and 3 more. Click to view details
# 045
MPN: 20083002
BULB 12V-5W
Supersession
Supersession
This part replaces part number 101524 - and 1 more. Click to view details
# 046
MPN: 501522
LICENSE PLATE PROTECTION
# 047
MPN: 500428
RUBBER PLUG
# 048
MPN: 12642801
WASHER
from £0.47
from £0.47
This part replaces part number 12642824
# 049
MPN: 10794011
NUT
from £0.26
from £0.26
# 050
MPN: 500516
TAMPONE
from £21.09
from £21.09
# 051
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 052
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 053
MPN: 500251
PIVOT
# 054
MPN: 11065675
SEEGER RING
Supersession
Supersession
# 055
MPN: 40068108
SERRATURA
Supersession
Supersession
# 056
MPN: 30195903
BOOT PULL ASSY
from £485.45
from £485.45
This part replaces part number 253-34-330-02
# 057
MPN: 13274006
SCREW
# 058
MPN: 50093509
PIVOT
from £5.98
from £5.98
# 059
MPN: 50093400
BUSH
from £2.95
from £2.95
# 060
MPN: 11196270
WASHER
# 061
MPN: 10794011
NUT
from £0.26
from £0.26
# 062
MPN: 50037308
CAVO
from £32.35
from £32.35
# 063
MPN: 500369
CAVO EMERGENZA
# 064
MPN: 20069605
BUTTON FOR CEILING LIGHT
from £45.00
from £45.00
# 065
MPN: 50018803
PLAFONIERA
from £156.64
from £156.64
# 066
MPN: 20083101
LAMP
from £1.49
from £1.49
This part replaces part number 401327
# 067
MPN: 501562
GASKET
# 068
MPN: 501506
REAR LIGHT CONNECTION CABLE
