029 - Steering Box and Linkage

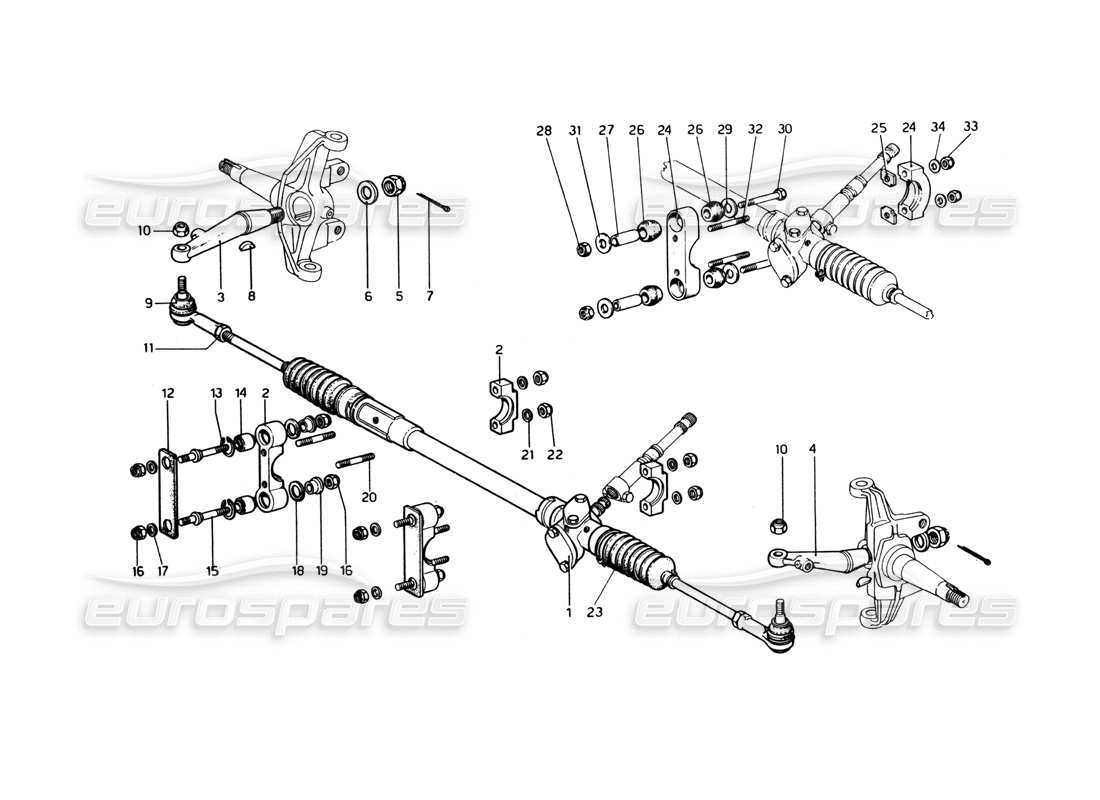

Ferrari 365 GT4 Berlinetta Boxer Steering Box and Linkage Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 106911
SUPPORT
Vale fino N. 18429
# 001
MPN: 131685
LHD STEERING RACK 113 CM LONG
from £1,220.34
from £1,220.34
This part replaces part number 102614 - and 1 more. Click to view details
# 001
MPN: 131686
RHD STEERING RACK
from £1,815.45
from £1,815.45
This part replaces part number 106434 which we have in stock - and 1 more. Click to view details
# 002
MPN: 103286
SUPPORT
Vale fino N. 18429
from £387.78
from £387.78
# 003
MPN: 103296
LEVER
Vale fino ad esaurimento

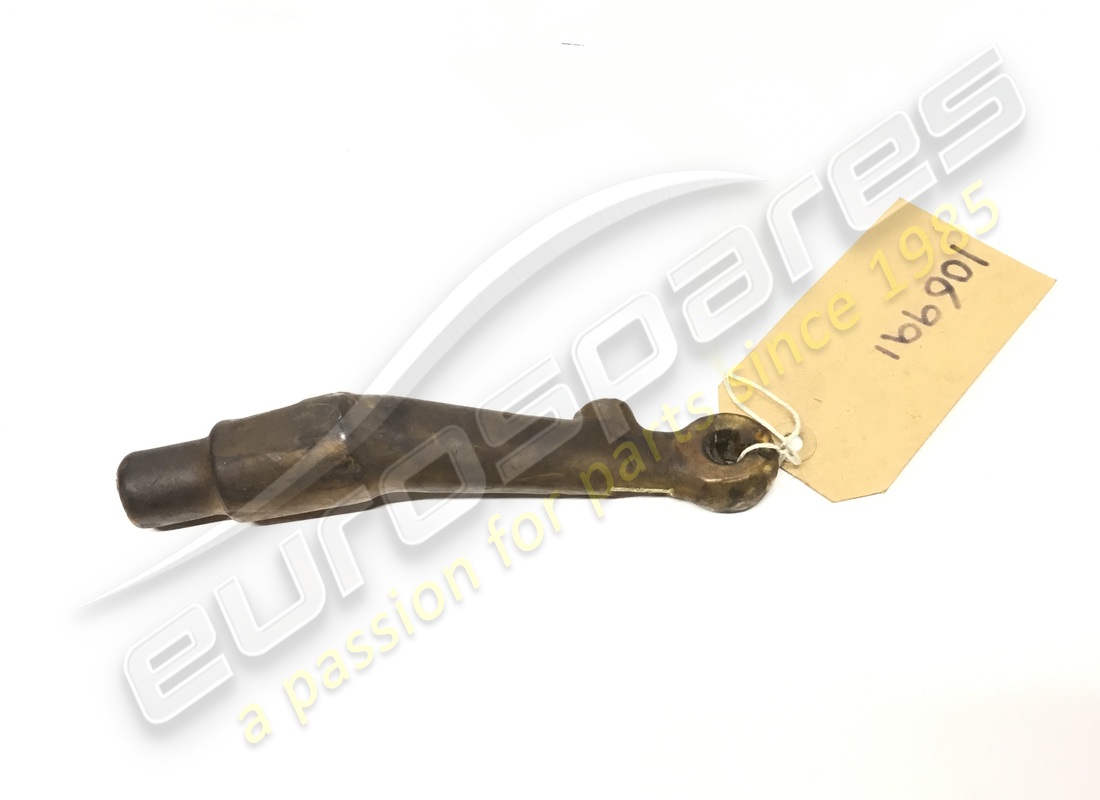

# 003
MPN: 106991
LEVER
Dopo esaurim.N. 103296
from £395.96
from £395.96
# 004
MPN: 103295
LEVER
Vale fino ad esaurimento
# 004
MPN: 106990
LEVER
Dopo esaurim.N. 103295
from £395.96
from £395.96
# 005
MPN: 104486
NUT
Serve per leve N. 103295 e 103296
from £8.49
from £8.49
# 005
MPN: 106957
NUT
Serve per leve N.1.06990 e 106991
from £9.42
from £9.42
# 006
MPN: 104485
WASHER
from £7.44
from £7.44
This part replaces part number 92302
# 007
MPN: 10734901
SPLIT PIN
Serve per leve N.103295 e 103296
from £0.48
from £0.48
# 008
MPN: 104484
Key
from £4.20
from £4.20
This part replaces part number 94629
# 009
MPN: 103592
BALL JOINT ASSEMBLY
from £21.00
from £21.00
# 010
-
NUT
# 011
-
NUT
# 012
MPN: 103288
DISTANZIALE ELASTICO
Vale fino N. 18429
from £12.28
from £12.28
This part replaces part number 740361
# 013
MPN: 11057873
SEEGER RING
Vale fino N. 18429
from £0.47
from £0.47
# 014
MPN: 103369
SNODO ELASTICO
Vale fino N. 18429
from £38.46
from £38.46
# 015
MPN: 103290
SUPPORT FIXING COLUMN
Vale fino N. 18429
from £61.90
from £61.90
This part replaces part number 740355
# 016
MPN: 104030
NUT
Vale fino N. 18429
from £0.51
from £0.51
This part replaces part number 16104125
# 017
MPN: 10519621
WASHER
Supersession
Supersession
# 018
MPN: 103287
DISTANZIALE ELASTICO
from £6.48
from £6.48
This part replaces part number 740360
# 019
MPN: 103289
DISTANZIALE PER SUPPORTO
Vale fino N. 18429
from £57.71
from £57.71
This part replaces part number 740356
# 020
MPN: 12429920
THREADED STUD
Vale fino N. 18429
from £0.68
from £0.68
# 021
MPN: 12625201
WASHER
Vale fino N. 18429
from £1.61
from £1.61
# 022
MPN: 104030
NUT
Vale fino N. 18429
from £0.53
from £0.53
This part replaces part number 16104125
# 023
MPN: 108793
SUPPORT
Vale dal N. 18431
# 024
MPN: 108241
SUPPORT
Vale dal N. 18431
from £40.01
from £40.01
# 025
MPN: 108293
DISTANZIALE - SPESSORE MM. 2, 9
Vale dal N. 18431
from £2.61
from £2.61
This part replaces part number 108584
# 025
MPN: 108584
DISTANZIALE - SPESSORE MM. 2, 7
Valid from No. 18431 - Of possible assembly
Supersession
Supersession
# 026
MPN: 107335
RUBBER GROMMET
from £11.22
from £11.22
# 027
MPN: 108294
TUBO DISTANZIALE
Vale dal N. 18431
from £55.54
from £55.54
This part replaces part number 107336 - and 1 more. Click to view details
# 028
MPN: 104030
NUT
Vale dal N. 18431
from £0.53
from £0.53
This part replaces part number 16104125
# 029
MPN: 108242
WASHER
Vale dal N. 18431
from £1.64
from £1.64
# 030
MPN: 16044321
SCREW
Vale dal N. 18431
from £0.29
from £0.29
# 031
MPN: 108292
WASHER
Vale dal N. 18431
from £5.03
from £5.03
# 032
MPN: 13543821
THREADED STUD
Vale dal N. 18431
from £2.78
from £2.78
This part replaces part number 210x1,25
# 033
MPN: 104030
NUT
Vale dal N. 18431
from £0.53
from £0.53
This part replaces part number 16104125
# 034
MPN: 10519621
WASHER
Vale dal N. 18431
Supersession
Supersession
