019 - Gearbox - Mountings and Covers

Ferrari 365 GT4 Berlinetta Boxer Gearbox - Mountings and Covers Parts Diagram

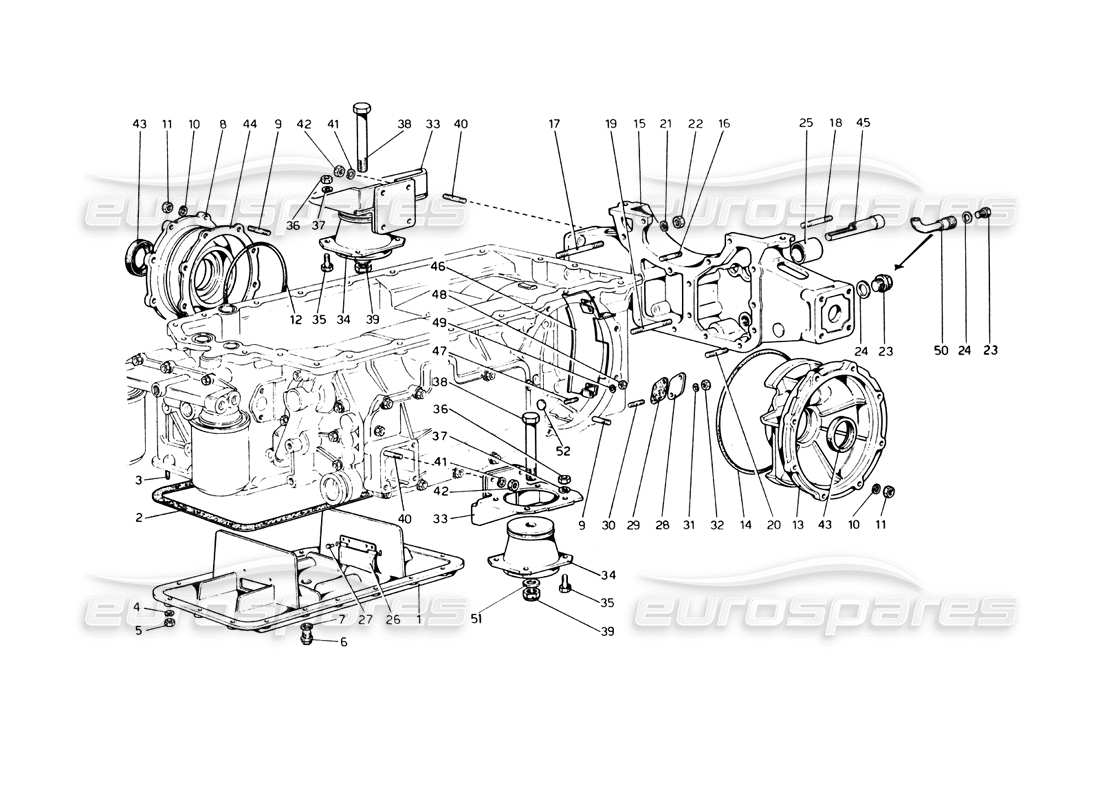

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 104751
                                                                        COVER
                                                                        from £914.55
                                                                        from £914.55
                                                                        # 002
                                                                        MPN: 146189
                                                                        GASKET
                                                                        from £15.16
                                                                        from £15.16
                                                                        This part replaces part number 104674
                                                                        # 003
                                                                        MPN: 11500321
                                                                        THREADED STUD
                                                                        Supersession
                                                                        Supersession
                                                                        # 004
                                                                        MPN: 12601271
                                                                        WASHER
                                                                        Supersession
                                                                        Supersession
                                                                        This part replaces part number 103372 - and 1 more. Click to view details
                                                                        # 005
                                                                        MPN: 15896211
                                                                        NUT
                                                                        Supersession
                                                                        Supersession
                                                                        This part replaces part number 15896210
                                                                        # 006
                                                                        MPN: 103974
                                                                        ENGINE OIL DRAIN PLUG
                                                                        from £25.70
                                                                        from £25.70
                                                                        This part replaces part number 101477 - and 1 more. Click to view details
                                                                        # 007
                                                                        MPN: 10257060
                                                                        GASKET
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 10253060 - and 2 more. Click to view details
                                                                        # 008
                                                                        MPN: 102652
                                                                        COVER
                                                                        from £483.73
                                                                        from £483.73
                                                                        # 009
                                                                        MPN: 13546521
                                                                        THREADED STUD
                                                                        Supersession
                                                                        Supersession
                                                                        # 010
                                                                        MPN: 12601471
                                                                        WASHER
                                                                        Supersession
                                                                        Supersession
                                                                        # 011
                                                                        MPN: 12164721
                                                                        NUT
                                                                        from £0.61
                                                                        from £0.61
                                                                        # 012
                                                                        MPN: 103017
                                                                        SEALING RING
                                                                        from £13.23
                                                                        from £13.23
                                                                        # 013
                                                                        MPN: 104602
                                                                        COVER
                                                                        Vale fino N. 18787
                                                                        Supersession
                                                                        Supersession

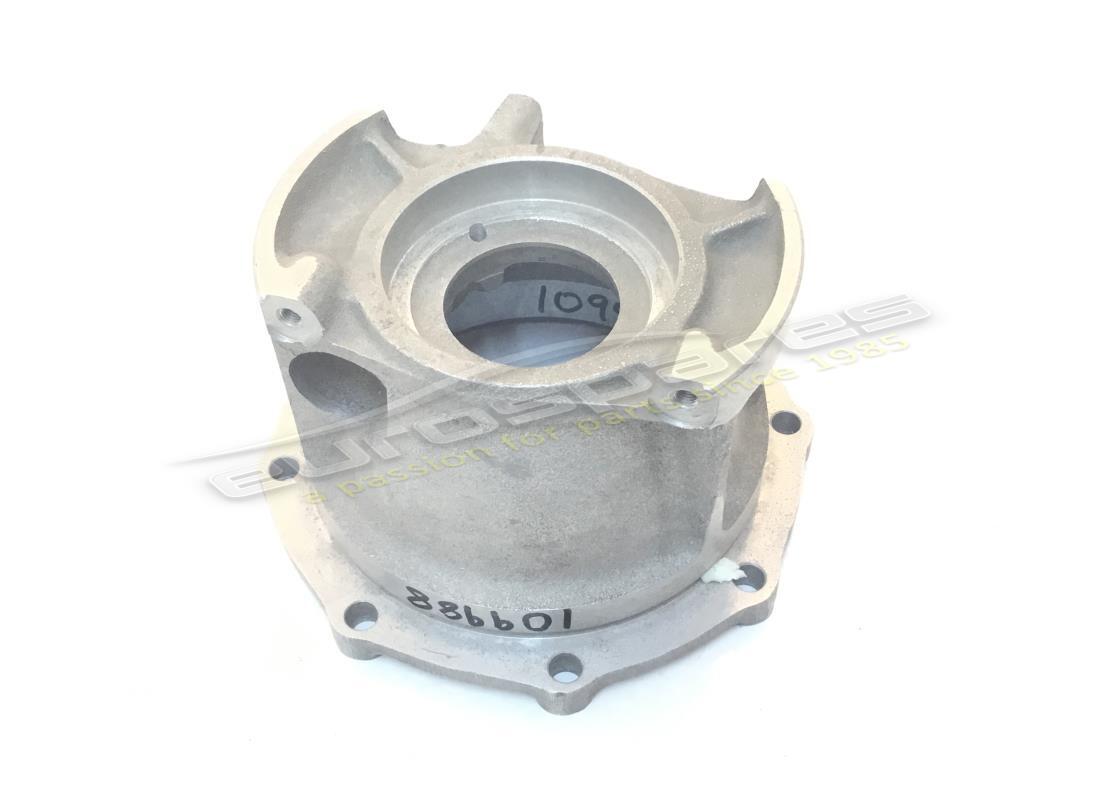

                                                                        # 013
                                                                        MPN: 109988
                                                                        COVER
                                                                        Vale dal N. 18955
                                                                        from £721.93
                                                                        from £721.93
                                                                        # 014
                                                                        MPN: 10-30-19
                                                                        SEALING RING
                                                                        Vale flno N. 18787
                                                                        from £36.20
                                                                        from £36.20
                                                                        # 014
                                                                        MPN: 109640
                                                                        RING
                                                                        Vale dal N. 18955
                                                                        from £8.23
                                                                        from £8.23
                                                                        # 015
                                                                        MPN: 104661
                                                                        CORPO INTERMEDIO
                                                                        Vale fino N. 18787
                                                                        from £758.98
                                                                        from £758.98
                                                                        # 015
                                                                        MPN: 109603
                                                                        CORPO INTERMEDIO
                                                                        Vale dal N. 18955
                                                                        from £190.50
                                                                        from £190.50
                                                                        # 016
                                                                        MPN: 13616821
                                                                        SHORT THREADED STUD
                                                                        Dal N. 18955 q = 5
                                                                        # 017
                                                                        MPN: 13518521
                                                                        LONG THREADED STUD
                                                                        Dal N. 18955 q = 2
                                                                        # 018
                                                                        MPN: 13517421
                                                                        THREADED STUD
                                                                        Dal N. 18955 q = 2
                                                                        from £53.42
                                                                        from £53.42
                                                                        This part replaces part number 13517420
                                                                        # 019
                                                                        MPN: 13518021
                                                                        THREADED STUD
                                                                        Dal N. 18955 q = 3
                                                                        from £4.35
                                                                        from £4.35
                                                                        # 020
                                                                        MPN: 13517221
                                                                        STUD
                                                                        Supersession
                                                                        Supersession
                                                                        # 021
                                                                        MPN: 12601371
                                                                        WASHER
                                                                        Supersession
                                                                        Supersession
                                                                        # 022
                                                                        MPN: 16100824
                                                                        NUT
                                                                        from £0.48
                                                                        from £0.48
                                                                        This part replaces part number 16100814 - and 1 more. Click to view details
                                                                        # 023
                                                                        MPN: 10275011
                                                                        TAPPO LIVELLO OLIO
                                                                        Dopo es. N. 10305171
                                                                        from £1.05
                                                                        from £1.05
                                                                        This part replaces part number 10275001 - and 3 more. Click to view details
                                                                        # 023
                                                                        MPN: 10305171
                                                                        TAPPO LIVELLO OLIO
                                                                        Valid from N. 18169 and up to e.g.
                                                                        Supersession
                                                                        Supersession
                                                                        # 023
                                                                        MPN: 107514
                                                                        TAPPO LIVELLO OLIO
                                                                        Vale fino N. 18167
                                                                        from £38.86
                                                                        from £38.86
                                                                        # 024
                                                                        MPN: 10263460
                                                                        GASKET
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 95119
                                                                        # 025
                                                                        MPN: 104755
                                                                        BUSH
                                                                        from £173.70
                                                                        from £173.70
                                                                        # 026
                                                                        MPN: 100024
                                                                        BULKHEAD ON THE SUMP COVER
                                                                        Vale fino N. 17535
                                                                        from £16.81
                                                                        from £16.81
                                                                        This part replaces part number 9111346
                                                                        # 026
                                                                        MPN: 107589
                                                                        SHIELD
                                                                        from £39.56
                                                                        from £39.56
                                                                        This part replaces part number 10-42-07 - and 1 more. Click to view details
                                                                        # 027
                                                                        MPN: 100033
                                                                        RIBATTINO
                                                                        # 028
                                                                        MPN: 104772
                                                                        OIL HOLES CLOSING FLANGE
                                                                        from £7.78
                                                                        from £7.78
                                                                        # 029
                                                                        MPN: 146190
                                                                        GASKET
                                                                        from £1.36
                                                                        from £1.36
                                                                        This part replaces part number 104773
                                                                        # 030
                                                                        MPN: 11500121
                                                                        THREADED STUD
                                                                        Supersession
                                                                        Supersession
                                                                        This part replaces part number 13540820
                                                                        # 031
                                                                        MPN: 10516471
                                                                        WASHER
                                                                        Supersession
                                                                        Supersession
                                                                        # 032
                                                                        MPN: 15896211
                                                                        NUT
                                                                        Supersession
                                                                        Supersession
                                                                        This part replaces part number 15896210
                                                                        # 033
                                                                        MPN: 106642
                                                                        SUPPORT
                                                                        from £176.99
                                                                        from £176.99
                                                                        This part replaces part number 50189307
                                                                        # 034
                                                                        MPN: 155454
                                                                        ELASTIC BUFFER
                                                                        from £117.66
                                                                        from £117.66
                                                                        This part replaces part number 132353 - and 2 more. Click to view details
                                                                        # 036
                                                                        MPN: 12164711
                                                                        NUT
                                                                        Supersession
                                                                        Supersession
                                                                        This part replaces part number 12164712
                                                                        # 036
                                                                        MPN: 15970621
                                                                        BOLT
                                                                        Supersession
                                                                        Supersession
                                                                        # 037
                                                                        MPN: 10616871
                                                                        WASHER
                                                                        # 038
                                                                        MPN: 11369634
                                                                        BOLT
                                                                        from £1.86
                                                                        from £1.86
                                                                        This part replaces part number 11369624 - and 1 more. Click to view details
                                                                        # 039
                                                                        MPN: 12575911
                                                                        NUT
                                                                        Supersession
                                                                        Supersession
                                                                        # 040
                                                                        MPN: 13449521
                                                                        THREADED STUD
                                                                        from £9.25
                                                                        from £9.25
                                                                        # 041
                                                                        MPN: 10616871
                                                                        WASHER
                                                                        # 042
                                                                        MPN: 12164711
                                                                        NUT
                                                                        Supersession
                                                                        Supersession
                                                                        This part replaces part number 12164712
                                                                        # 043
                                                                        MPN: 133628
                                                                        OIL SEAL
                                                                        from £29.85
                                                                        from £29.85
                                                                        This part replaces part number 125077 - and 1 more. Click to view details
                                                                        # 044
                                                                        MPN: 103427
                                                                        IDEM SPESSORE MM. 1,2
                                                                        from £189.51
                                                                        from £189.51
                                                                        # 044
                                                                        MPN: 103428
                                                                        IDEM SPESSORE MM. 1,4
                                                                        from £130.99
                                                                        from £130.99
                                                                        # 044
                                                                        MPN: 103429
                                                                        SPACER ON THE RIGHT SIDE COVER - THICKNESS MM. 1,638
                                                                        from £168.45
                                                                        from £168.45
                                                                        This part replaces part number 103232
                                                                        # 044
                                                                        MPN: 103429
                                                                        IDEM SPESSORE MM. 1,6
                                                                        from £168.45
                                                                        from £168.45
                                                                        This part replaces part number 103232
                                                                        # 044
                                                                        MPN: 103430
                                                                        IDEM SPESSORE MM. 1,8
                                                                        from £170.48
                                                                        from £170.48
                                                                        # 044
                                                                        MPN: 110431
                                                                        IDEM SPESSORE MM. 2,00
                                                                        # 046
                                                                        MPN: 104746
                                                                        OIL PASSAGE PIPE
                                                                        from £7.25
                                                                        from £7.25
                                                                        # 046
                                                                        MPN: 104963
                                                                        CONVOGHATORE OLIO
                                                                        Vale fino N. 18787
                                                                        from £23.72
                                                                        from £23.72
                                                                        # 047
                                                                        MPN: 103677
                                                                        STUD
                                                                        Vale fino N. 18787
                                                                        # 048
                                                                        MPN: 15896211
                                                                        NUT
                                                                        Vale fino N. 18787
                                                                        Supersession
                                                                        Supersession
                                                                        This part replaces part number 15896210
                                                                        # 049
                                                                        MPN: 10516471
                                                                        WASHER
                                                                        Vale fino N. 18787
                                                                        Supersession
                                                                        Supersession
                                                                        # 050
                                                                        MPN: 107511
                                                                        OIL LEVEL PIPE ASSEMBLY
                                                                        Vale fino N. 18221
                                                                        from £71.78
                                                                        from £71.78
                                                                        # 051
                                                                        MPN: 10620221
                                                                        WASHER
                                                                        # 062
                                                                        MPN: 10158600
                                                                        ROD HOLE CLOSING CAP 1th REV SPEED
                                                                        Vale dal N. 18069 al N. 18787
                                                                        Supersession
                                                                        Supersession
