018 - Gearbox Transmission

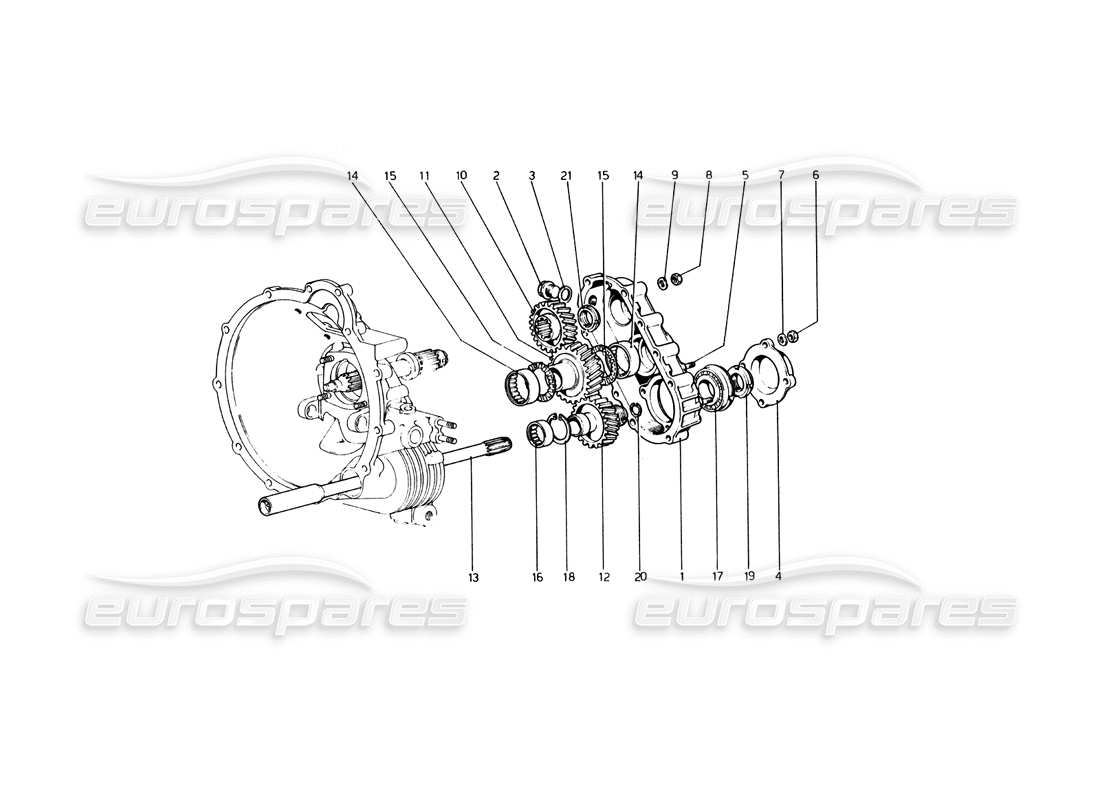

Ferrari 365 GT4 Berlinetta Boxer Gearbox Transmission Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 106908
                                    COVER
                                    from £619.04
                                    from £619.04
                                    # 002
                                    MPN: 10275011
                                    OIL CAP
                                    Dopo esaurim. N. 10305171
                                    from £1.05
                                    from £1.05
                                    This part replaces part number 10275001 - and 3 more. Click to view details
                                    # 002
                                    MPN: 10305171
                                    OIL CAP
                                    Vale fino ad esaurimento
                                    Supersession
                                    Supersession
                                    # 003
                                    MPN: 10263460
                                    GASKET
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 95119
                                    # 004
                                    MPN: 102808
                                    COPERCHIETTO
                                    Supersession
                                    Supersession
                                    # 005
                                    MPN: 16100814
                                    THREADED STUD
                                    from £0.71
                                    from £0.71
                                    This part replaces part number 16100811 - and 1 more. Click to view details
                                    # 006
                                    MPN: 16100821
                                    NUT
                                    from £0.71
                                    from £0.71
                                    This part replaces part number 16100825 which we have in stock
                                    # 007
                                    MPN: 12601371
                                    WASHER
                                    Supersession
                                    Supersession
                                    # 008
                                    MPN: 16100824
                                    NUT
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 16100814 - and 1 more. Click to view details
                                    # 009
                                    MPN: 12601371
                                    WASHER
                                    Supersession
                                    Supersession
                                    # 010
                                    MPN: 105447
                                    DRIVE GEAR ON THE CLUTCH SHAFT
                                    from £206.62
                                    from £206.62
                                    # 011
                                    MPN: 105448
                                    INGRANAGGIO INTERMEDIO
                                    from £318.57
                                    from £318.57
                                    # 012
                                    MPN: 105449
                                    DRIVEN GEAR
                                    from £389.39
                                    from £389.39
                                    # 013
                                    MPN: 103090
                                    ALBERO DI TRASMISSIONE
                                    Vale fino N. 17535
                                    from £604.76
                                    from £604.76
                                    # 013
                                    MPN: 106763
                                    ALBERO DI TRASMISSIONE
                                    Valid from N. 17543 and up to e.g.
                                    Supersession
                                    Supersession
                                    # 013
                                    MPN: 109425
                                    ALBERO DI TRASMISSIONE
                                    Dopo esaurim. N. 105763
                                    from £563.06
                                    from £563.06
                                    This part replaces part number 105763
                                    # 014
                                    MPN: 104840
                                    CUSCINETTO A RULLINI
                                    from £41.13
                                    from £41.13
                                    # 015
                                    MPN: 104841
                                    CUSCINETTO ASSIALE A RULLINI
                                    from £6.95
                                    from £6.95
                                    # 016
                                    MPN: 103096
                                    CUSCINETTO A RULLINI
                                    from £1.47
                                    from £1.47
                                    This part replaces part number 104835
                                    # 016
                                    MPN: 103096
                                    SEEGER RING
                                    from £1.47
                                    from £1.47
                                    This part replaces part number 104835
                                    # 017
                                    MPN: 126223
                                    BEARING
                                    from £260.07
                                    from £260.07
                                    This part replaces part number 116063 - and 5 more. Click to view details
                                    # 019
                                    MPN: 153068
                                    RING NUT
                                    from £70.35
                                    from £70.35
                                    This part replaces part number 100729 - and 1 more. Click to view details
                                    # 020
                                    MPN: 11068276
                                    SEEGER RING
                                    # 021
                                    MPN: 106095
                                    RING NUT
                                    Vale fino ad esaurimento
                                    from £43.30
                                    from £43.30
                                    This part replaces part number 103091 - and 1 more. Click to view details
                                    # 021
                                    MPN: 106096
                                    RING NUT
                                    Dopo esaurim. N. 103091
