015 - Water Pump and Pipes

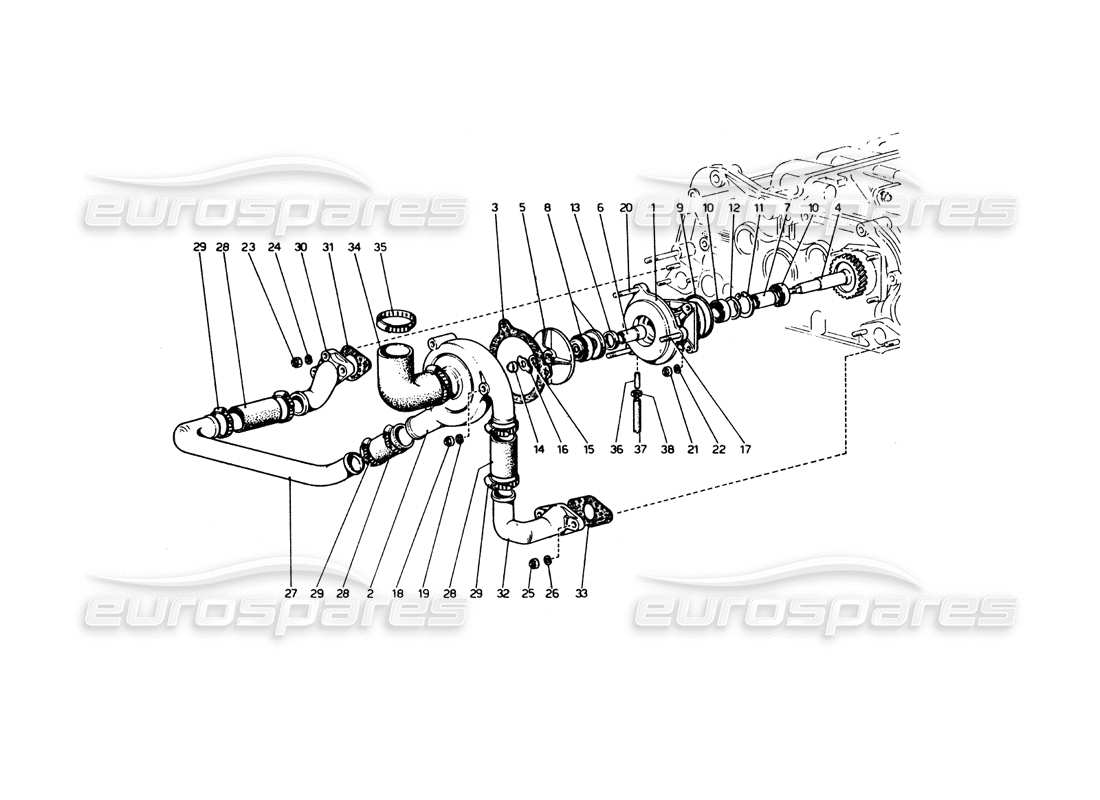

Ferrari 365 GT4 Berlinetta Boxer Water Pump and Pipes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 106562
WATER PUMP BODY
from £1,543.07
from £1,543.07
This part replaces part number 104507
# 001
MPN: 106662
CORPO POMPA ACQUA COMPLETO
# 002
MPN: 102328
COVER
from £163.04
from £163.04
# 003
MPN: 152481
GASKET
from £6.94
from £6.94
This part replaces part number 102906
# 003
MPN: 152481
GASKET
from £6.94
from £6.94
This part replaces part number 102906
# 004
MPN: 102766
GEAR WITH PUMP CONTROL SHAFT
from £413.24
from £413.24
# 005
MPN: 100430
GIRANTE
from £170.50
from £170.50
This part replaces part number 26614 - and 1 more. Click to view details
# 006
MPN: 102768
SPACER
from £46.04
from £46.04
# 007
MPN: 102767
SPACER
from £39.56
from £39.56
# 008
MPN: 100433
ANELTO DI TENUTA FRONTALE
from £69.95
from £69.95
This part replaces part number 114410
# 009
MPN: 101615
SEALING RING
from £2.32
from £2.32
# 010
MPN: 101603
BEARING
from £12.99
from £12.99
This part replaces part number 114763 - and 1 more. Click to view details
# 011
MPN: 11059075
SEEGER RING
Supersession
Supersession
# 012
MPN: 102784
RBNDELLA
# 013
MPN: 105548
SEALING RING
from £17.92
from £17.92
# 014
MPN: 100436
NUT
from £7.64
from £7.64
This part replaces part number 92896
# 015
MPN: 10730321
RONDETLA
from £0.66
from £0.66
This part replaces part number 10730301 - and 2 more. Click to view details
# 016
MPN: 100434
PLATE
from £7.26
from £7.26
This part replaces part number 92361 - and 1 more. Click to view details
# 017
MPN: 13517521
SHORT THREADED STUD
from £6.77
from £6.77
# 018
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 019
MPN: 12601371
WASHER
Supersession
Supersession
# 020
MPN: 104517
LONG THREADED STUD
from £6.78
from £6.78
# 021
MPN: 101139
NUT
from £0.53
from £0.53
This part replaces part number 16104425
# 022
MPN: 12601371
WASHER
Supersession
Supersession
# 023
MPN: 102741
NUT
from £0.52
from £0.52
This part replaces part number 12575411 - and 1 more. Click to view details
# 024
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 025
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 026
MPN: 12601371
WASHER
Supersession
Supersession
# 027
MPN: 106588
HOSE CONNECTING WATER PUMP AND RIGHT CRANKCASE
# 028
MPN: 105396
SLEEVE
from £20.46
from £20.46
# 029
MPN: 12173090
JUBILEE CLIP
Supersession
Supersession
This part replaces part number 105672
# 030
MPN: 102628
UNION
Vale fino N. 17845
from £59.78
from £59.78
# 030
MPN: 106766
UNION
Vale dal N. 17847
# 031
MPN: 105395
GASKET
Vale fino N. 17845
from £115.37
from £115.37
# 031
MPN: 147699
GASKET
from £3.25
from £3.25
This part replaces part number 106767
# 032
MPN: 105395
UNION
from £115.37
from £115.37
# 033
MPN: 152352
GASKET
from £1.44
from £1.44
This part replaces part number 104509
# 034
MPN: 102966
SLEEVE
Vale fino N. 17845
# 034
MPN: 121258
SLEEVE
from £19.23
from £19.23
This part replaces part number 10147087 - and 4 more. Click to view details
# 035
MPN: 106303
JUBILEE CLIP
# 036
MPN: 104516
UNION
from £18.30
from £18.30
# 037
MPN: 106587
DRAIN PIPE
Supersession
Supersession
# 038
MPN: 102721
JUBILEE CLIP
Supersession
Supersession
