ferrari 365 gt4 2+2 coachwork external trims & finishings parts diagram

014 - External trims & Finishings

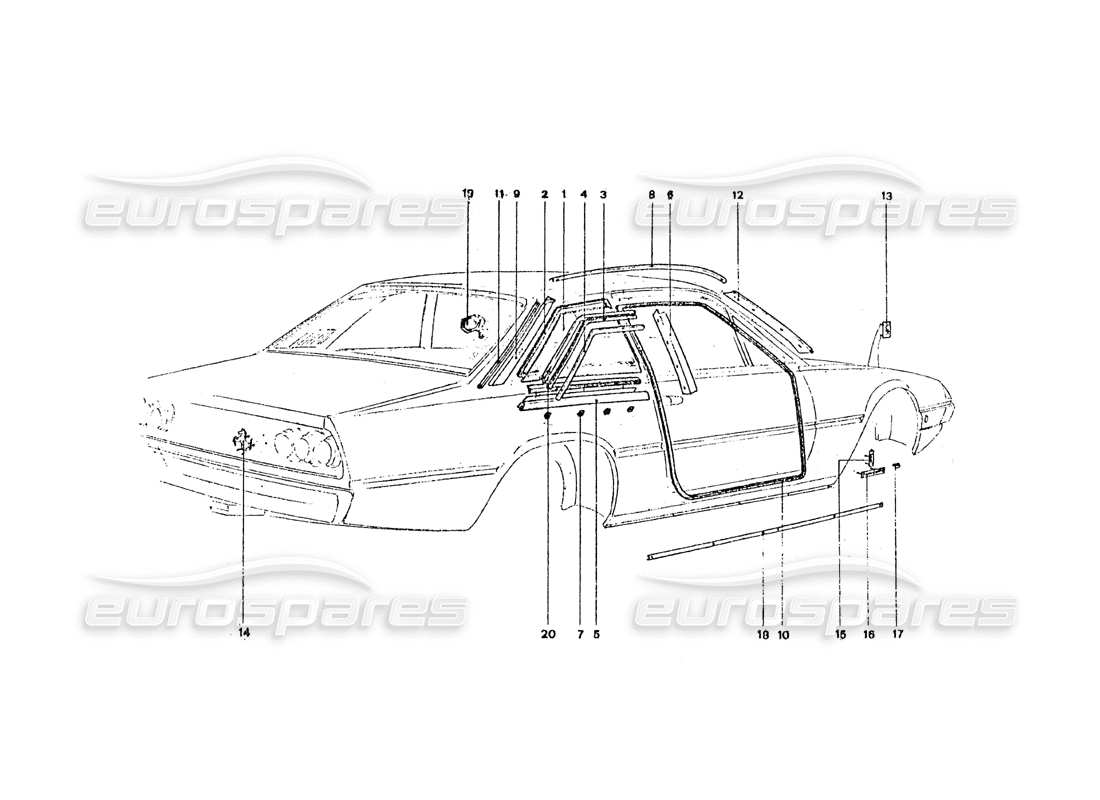

Ferrari 365 GT4 2+2 Coachwork External trims & Finishings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 255-42-528-00
                                CRISTALLO LUOI LATERALI POSTERIORI D.
                                from £115.50
                                from £115.50
                                # 001
                                MPN: 255-42-529-00
                                CRISTALLO LUOI LATERALI POSTERIORI S.
                                from £115.50
                                from £115.50
                                # 002
                                MPN: 152-40-020-00
                                COLLANTE PER CRISTALLO LUCE LAT.POAT.
                                NON FORIIIBILE DI RICAMBIO
                                # 003
                                MPN: 255-42-534-00
                                COLLANTE PER MOLURE LAT.POET.
                                NOT SUPPLIABLE AS SPARE PARTS
                                # 004
                                MPN: 255-42-570-08
                                MOLURA OONTORNO CRIST.LUOI LAT.POET.
                                from £35.07
                                from £35.07
                                # 004
                                MPN: 255-42-571-08
                                MOLURA OONTORNO CRIST.LUOI LAT.POET.
                                from £24.93
                                from £24.93
                                # 005
                                MPN: 255-42-580-08
                                MOLURA INF.CRISTALLO LUCI LAT.POST.D.
                                from £56.97
                                from £56.97
                                # 005
                                MPN: 255-42-581-08
                                MOLURA INF.ORISTALLO LUCI LAT.POST.S.
                                from £56.97
                                from £56.97
                                # 006
                                MPN: 255-42-600-08
                                MOLURA SU MONTANTINO CENTRALE TOTTO
                                from £23.01
                                from £23.01
                                # 006
                                MPN: 255-42-601-08
                                MOLURA SU MONTANTINO CENTRALE TOTTO
                                from £23.01
                                from £23.01
                                # 007
                                MPN: 253-42-588-00
                                NDOLLETTA FINN.MOLURA INF.ORIST.LAT.POST.
                                Supersession
                                Supersession
                                This part replaces part number 63117300
                                # 008
                                MPN: 255-44-002-08
                                GOCCIOLATOIO LATERALS D. TOTTO
                                from £62.07
                                from £62.07
                                # 008
                                MPN: 255-44-003-08
                                GOCCIOLATOIO LATERALS S. TOTTO
                                from £34.87
                                from £34.87
                                # 009
                                MPN: 255-44-022-08
                                GOOCIOLATOIO SU MONTANTO POST.TETTO
                                from £86.67
                                from £86.67
                                # 009
                                MPN: 255-44-023-08
                                GOOCIOLATOIO SU MONTANTO POST.TETTO
                                from £91.01
                                from £91.01
                                # 010
                                MPN: 255-44-056-00
                                RUBBER BEAT ON DOOR COMPARTMENT
                                Supersession
                                Supersession
                                This part replaces part number 255-45-056-00 - and 1 more. Click to view details
                                # 011
                                MPN: 0-241-74-590-00
                                GUARNIZ.P.GOOCIOLATOIO MONTANTE POST. TETTO
                                Supersession
                                Supersession
                                # 012
                                MPN: 255-44-220-08
                                DRIP TRACK ON WINDSHIELD pillar
                                from £92.83
                                from £92.83
                                # 012
                                MPN: 255-44-221-08
                                L. DRIP TRACK ON WINDSHIELD pillar
                                from £168.78
                                from £168.78
                                # 013
                                MPN: 60795400
                                FRONT ORNAMENT
                                Two pin type.
                                from £123.60
                                from £123.60
                                This part replaces part number 60043007
                                # 014
                                MPN: 60032109
                                MEDIUM CHROME HORSE
                                from £22.39
                                from £22.39
                                This part replaces part number 253-44-302-02 which we have in stock - and 7 more. Click to view details
                                # 015
                                MPN: 802-44-320-02
                                Early Pininfarina Crown Motif
                                from £52.43
                                from £52.43
                                # 016
                                MPN: 400-76-332-10
                                DICITURA PININFARINA RIVESTIMENTO LATJANT.
                                from £116.43
                                from £116.43
                                # 017
                                MPN: 0-184-8-003-0
                                CLIP
                                # 018
                                MPN: 255-44-640-06
                                MODANATURA SOTTO LONGHERONE D/
                                from £81.27
                                from £81.27
                                # 018
                                MPN: 255-44-641-06
                                MODANATURA SOTTO LONGHERONE S/
                                from £85.34
                                from £85.34
                                # 019
                                MPN: 148-44-382-02
                                SPECCHIO RETROVISORE ESTERNO (FRANCIA–BENELUX - ITALIA - AUSTRIA)
                                FVN. 448 - FRANCIA -BENEUX
                                # 019
                                MPN: 213-44-360-02
                                SPECCHIO RETROVISORE ESTERNO (INCRILTERRA - IRLANDA - BRASILE - SUD - AFRICA - GERMANIA - SVIZZERA)
                                # 019
                                MPN: 253-44-360-02
                                SPECCHIO RETROVISORE ESTERNO (AUSTRALIA)
                                FVN. 385 - POI ANNULLATO
                                from £37.18
                                from £37.18
                                # 019
                                MPN: 255-44-380-02
                                SPECCHIO RETROVISORE ESTERNO - SOLO FRANCIA E BENELUX
                                DVN. 449
                                # 020
                                MPN: 0-243-800-60
                                RETAINER FOR FIXING COAT OF ARMS F
                                PREVISTO E MAI MONTATO - DVN.276
                                from £0.71
                                from £0.71
                                This part replaces part number 243-80-006-00
                                # 020
                                MPN: 154-44-326-00
                                GUERNIZIONE PER STEMMA. F - SOLO GERMANIA
                                DVN.432
                                # 020
                                MPN: 255-42-574-00
                                GUERNIZIONE CONTORNO SUP. LUCE LAT. POSTERIORE
                                from £12.34
                                from £12.34
