Ferrari 330 GT 2+2 (Coachwork) Inner Heating vents (edition 1) Parts Diagram

031 - Inner Heating vents (edition 1)

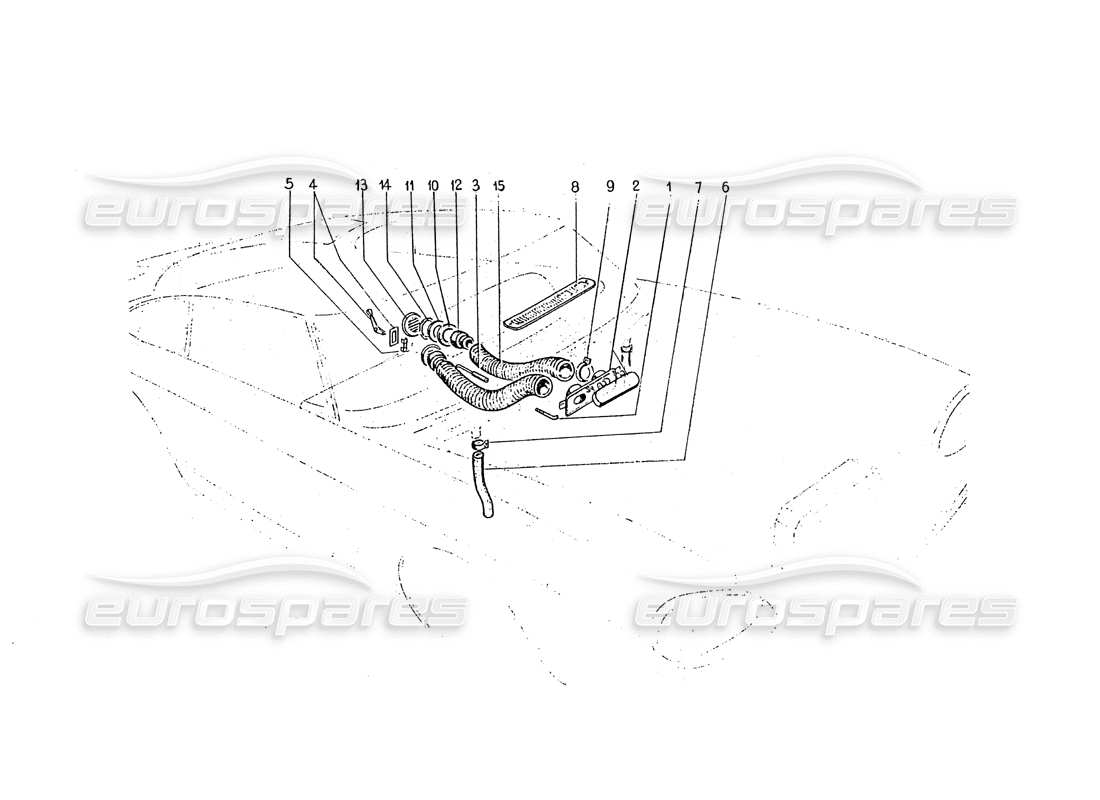

Ferrari 330 GT 2+2 (Coachwork) Inner Heating vents (edition 1) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 242-86-166-00
                ASTA FISSA COMANDO FARFALLA SCATOLA SOTTO PARABREZZA
                # 002
                MPN: 242-86-150-07
                SCATOLA PRESS ARIA SOTTO PARABREZZA - COMPLESSIVO
                F.V.N. 675-75
                # 002
                MPN: 242-86-150-17
                SCATOLA PRESS ARIA SOTTO PARABREZZA CPL.
                D.V.N. 676-76
                # 003
                MPN: 242-86-168-07
                ASTA REGOLABILE COMPLETA DI MANICOTTO
                # 004
                MPN: 242-86-202-02
                DISPOSITIVO COM. A LAVA PER AROAZIONE
                F.V.N.675-75
                from £114.39
                from £114.39
                This part replaces part number 10-48-08
                # 005
                MPN: 242-86-206-07
                BRACKET / SUPPORT
                F.V.N.675-76
                # 006
                MPN: 242-86-330-00
                TUBO SCARICO ACQUA PER SCATOLA SOTTO PARABREZZA
                # 007
                MPN: 241-86-130-00
                STAFFETTE FISS.TUBO SCARICO ACQUA
                # 008
                MPN: 242-86-500-08
                GRIGLIA PER PRESA ARIA SOTTO PARABREZZA
                # 009
                MPN: 241-86-552-00
                FASCETTA SERRATUBI (TIPO GRANGE LUNGH.MM.390)
                # 010
                MPN: 242-86-566-00
                GUERNIZIONE PER GHIERA RIT. TUBO CONTENITORE BOCCHETTE
                # 011
                MPN: 242-86-568-01
                CHIERA RITEGNO TUBO CONTEINITORI BOCCHETTE
                F.V.N.675-75
                # 012
                MPN: 242-86-570-02
                TUBA CONTENITORE BOCCHETTE VENTILAZIONE SU PLANCIA
                F.V.N.675-75
                from £21.51
                from £21.51
                # 013
                MPN: 241-86-578-02
                BOCCHETTE VENTILAZIONE SU PARTE CENTR.PLANCIA
                F.V.N.675-75
                # 014
                MPN: 241-86-580-04
                SEMIANELLO PER ARRENTO BOCCHETTE VENTILAZIONE SU PLANCIA
                F.V.N.675-75
                # 015
                MPN: 242-86-590-00
                TUBO CORVOGLIATORE PER PRESA ARIA SOTTO PARABREZZA
                F.V.N.675-75
                # 015
                MPN: 242-86-590-10
                TUBO CONVOGLIATORE PER PRESA ARIA SOTTO PARABR.
                D.V.N. 676-76
