Ferrari 330 GT 2+2 (Coachwork) Front Grill Parts Diagram

016 - Front Grill

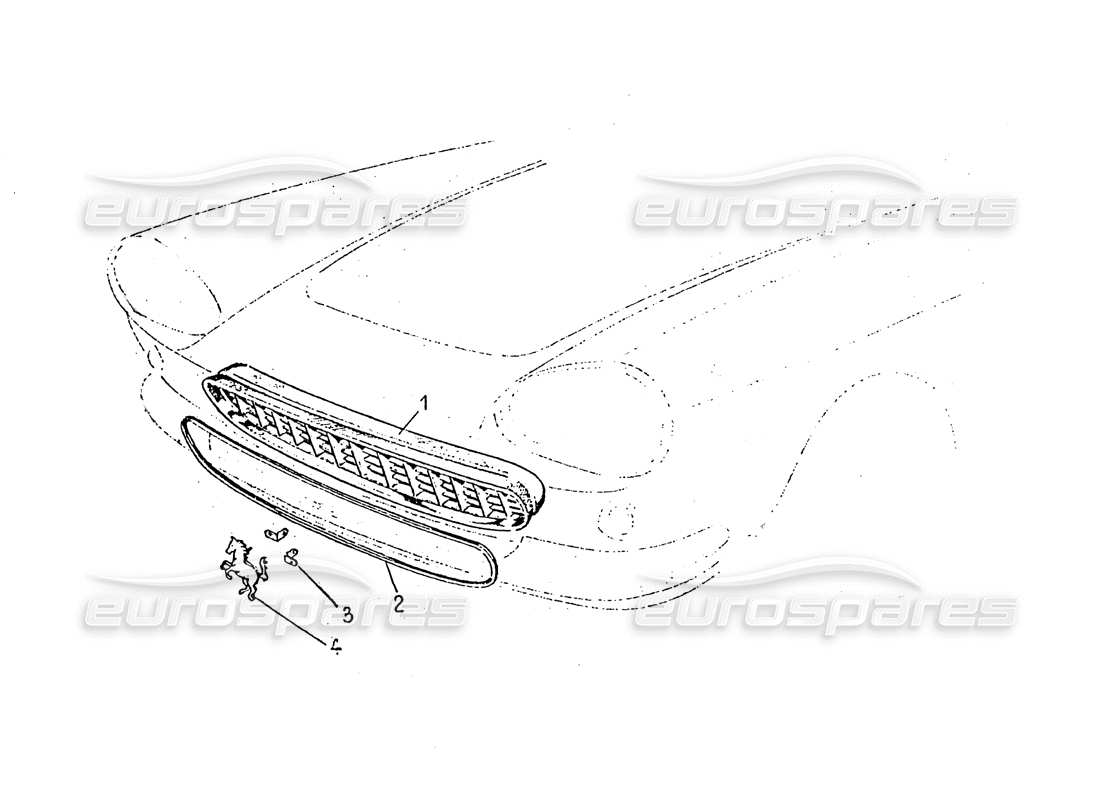

Ferrari 330 GT 2+2 (Coachwork) Front Grill Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 242-38-002-08

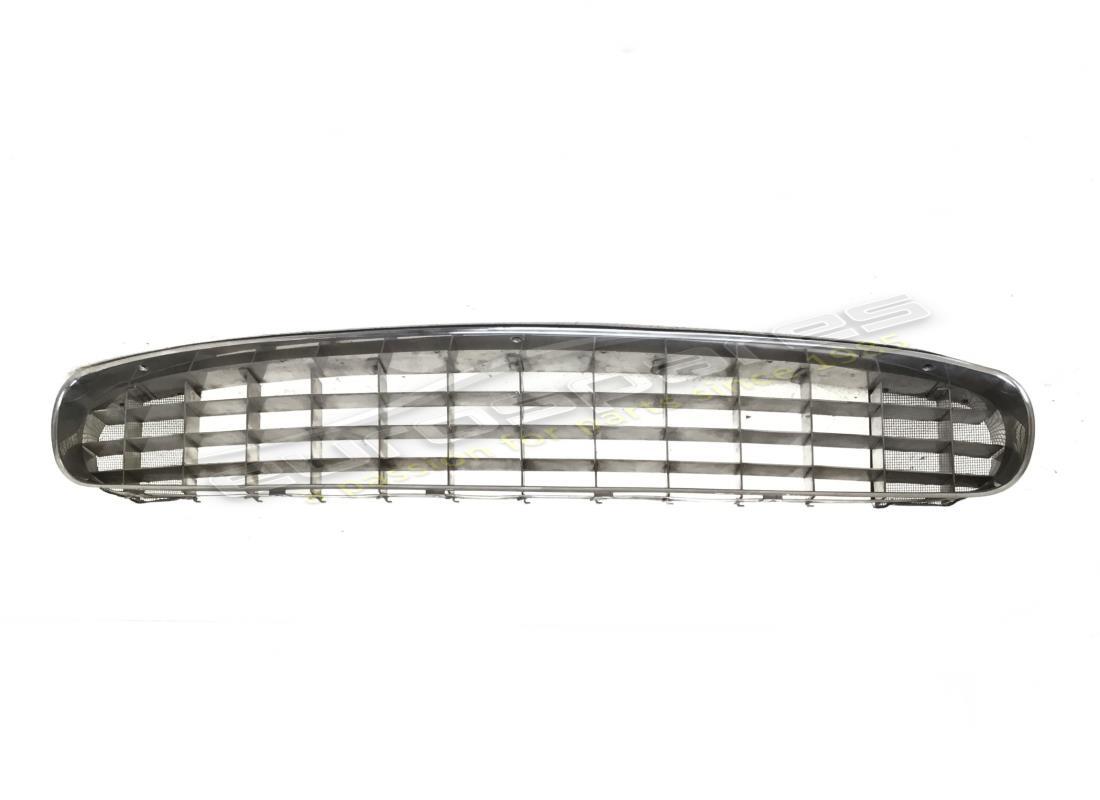

    MASCHERA RADIATORE - COMPLESSIVO
    F.V.N. 566 G.S. - 59 G.D.
    from £729.75
    from £729.75
    # 001
    MPN: 242-38-002-18
    MASCHERA RADIATORE COMPLESSIVO
    D.V.N. 567 G.S. - 60 G.D.
    from £1,103.91
    from £1,103.91
    # 002
    MPN: 242-38-800-00
    GOMMA CONTORNO CORNICE MASCH.RADIATORE (MT.2,40)
    F.V.N. 566 G.S. - 59 G.D.
    from £23.55
    from £23.55
    # 002
    MPN: 243-38-800-00
    GUERNIZIONE GOMMA PER MASCHERA RADIATORE
    D.V.N. 567 G.S. - 60 G.D.
    # 003
    MPN: 242-38-730-01
    SQUADRETTA FISSAGGIO STEMMA MASCHORA RADIATORE
    from £2.51
    from £2.51
    # 004
    MPN: 61180900
    STEMMA CAVALLINO RAMPANTE PER MASCH.RADIATORE
    CHROME
    Supersession
    Supersession
    This part replaces part number 242-38-720-00
