ferrari 330 gt 2+2 (coachwork) rear bumper series 2 (per g.s. d.v.n. 567 - per g.d. d.v.n. 60) parts diagram

015 - Rear bumper series 2 (Per G.S. D.V.N. 567 - Per G.D. D.V.N. 60)

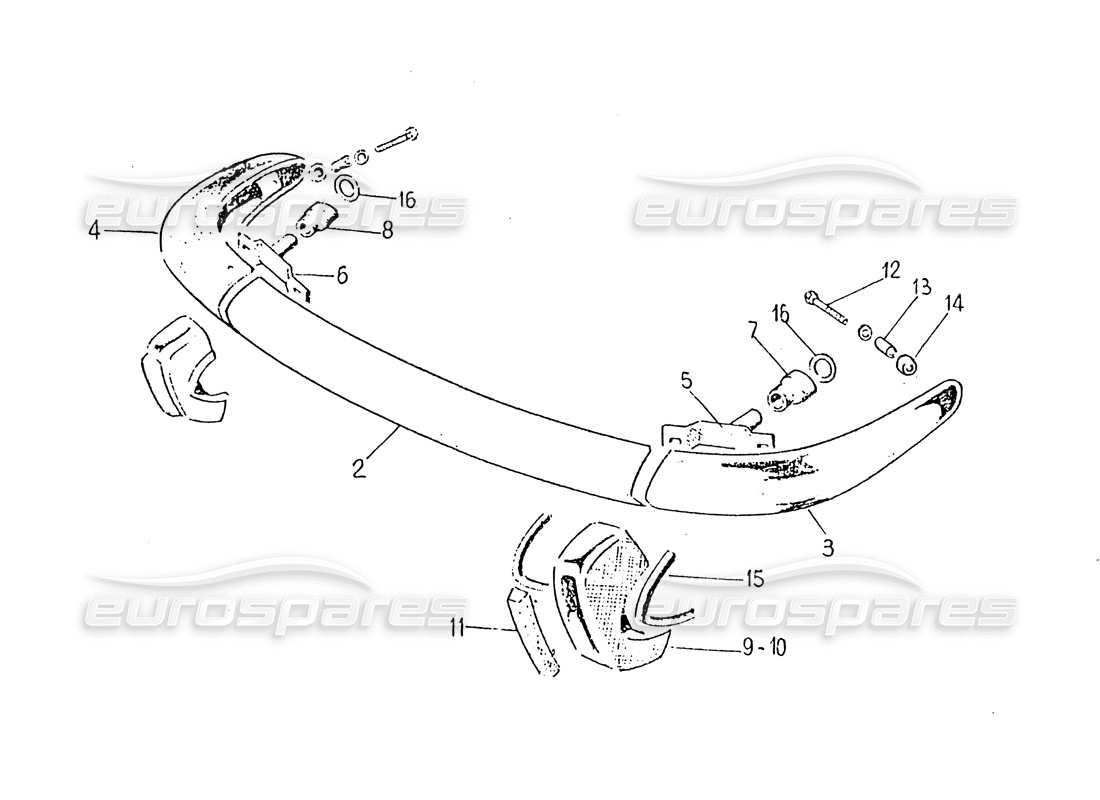

Ferrari 330 GT 2+2 (Coachwork) Rear bumper series 2 (Per G.S. D.V.N. 567 - Per G.D. D.V.N. 60) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 242-36-502-12
                                PARAURTO POSTERIORE COR.PLESSIVO
                                Composto dalle voci 2-3-4-9-10-11-15
                                # 002
                                MPN: 242-36-506-02
                                CLEMENTO CENTRALE PARAURTO POST. CPL.
                                # 003
                                MPN: 242-36-510-02
                                ELEMENTO LATERALE D. PARAURTO POET.
                                from £520.32
                                from £520.32
                                # 004
                                MPN: 242-36-511-02
                                ELEMENTO LATERALE S PARAURTO POST.
                                from £379.50
                                from £379.50
                                # 005
                                MPN: 242-36-602-01
                                BRACKET / SUPPORT
                                # 006
                                MPN: 242-36-603-01
                                BRACKET / SUPPORT
                                # 007
                                MPN: 242-36-752-02
                                MANICOTTO DI GUARNIZIONE PER ETAFFA FISSAGGIO CENTR. PARAURTO POSTERIORE D.
                                # 008
                                MPN: 242-36-753-02
                                MANICOTTO DI GUERNIZIONE PER ETAFFA FISSAGGIO CENTR.PARAURTO POSTERIORE S.
                                # 009
                                MPN: 242-36-850-02
                                FREGIO PER PARAURTO POSTERIORE D.
                                from £278.25
                                from £278.25
                                # 010
                                MPN: 242-36-851-02
                                FREGIO PER PARAURTO POSTERIORE S.
                                # 011
                                MPN: 242-36-920-00
                                PARACOLPO,PER FREGIO SU PARAURTO POST.
                                from £176.39
                                from £176.39
                                This part replaces part number 95403721/P
                                # 012
                                MPN: 0-100-1-131-1
                                VITA TE 8X1, 25X60 PER FISS .LATER. PAR.
                                # 013
                                MPN: 243-36-192-01
                                DISTANZIALE FISSAG. LATERALE PARAURTO
                                # 014
                                MPN: 400-36-190-00
                                TASSELLO GOMINA PER PARTE LATER.PARAURTO
                                from £50.21
                                from £50.21
                                # 015
                                MPN: 241-74-590-00
                                GUERNI. PLASTICA PER FREGI (MT. 0,19)
                                from £32.91
                                from £32.91
                                This part replaces part number 0-241-74-590-00
                                # 016
                                MPN: 241-74-590-00
                                GUERNI. PLASTICA PER MANIUCOTTI (MT. 0,17)
                                from £32.91
                                from £32.91
                                This part replaces part number 0-241-74-590-00
