Ferrari 330 GT 2+2 (Coachwork) Boot carpet (edition 1) Parts Diagram

011 - Boot carpet (edition 1)

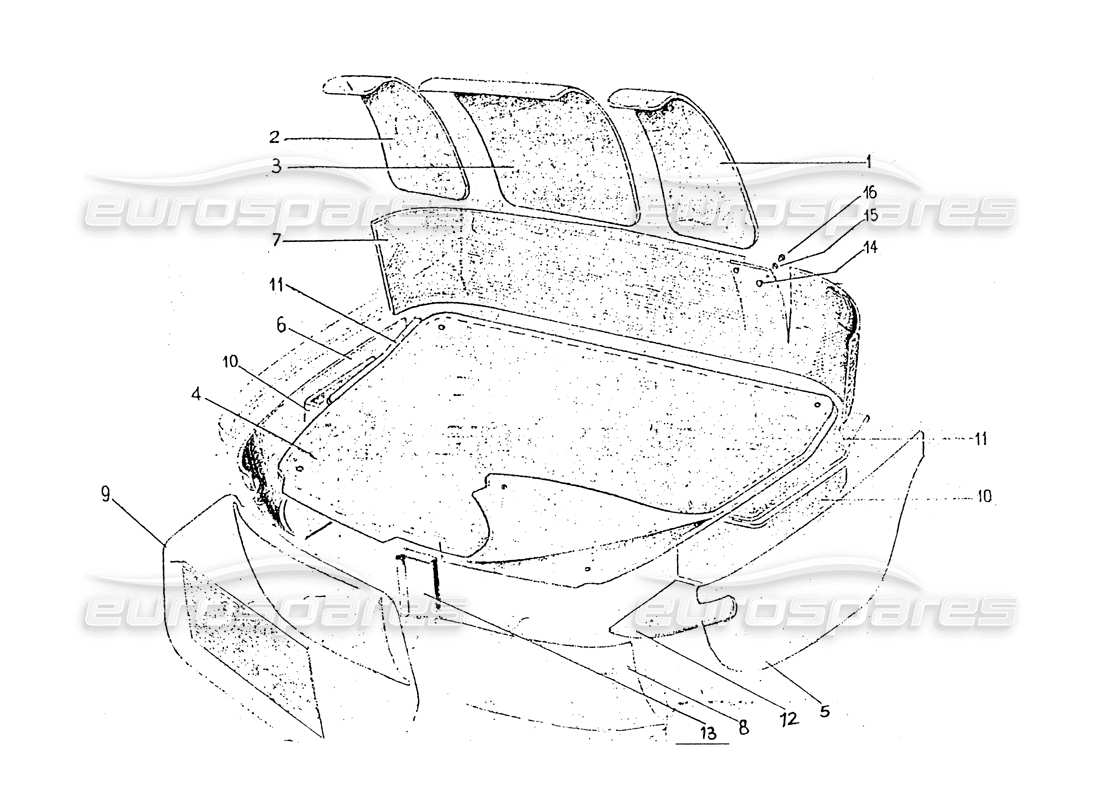

Ferrari 330 GT 2+2 (Coachwork) Boot carpet (edition 1) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 242-34-794-00
                              TAPPETO LATER.D. SOTTO SPORTELLO BAULE
                              # 002
                              MPN: 242-34-795-00
                              TAPPETO LATER.S. SOTTO SPORTELLO BAULE
                              # 003
                              MPN: 242-34-798-00
                              TAPPETO CENTRALE SOTTO SPORTELLO BAULE
                              # 004
                              MPN: 242-34-800-00
                              TAPPETO PER FONDO BAULE
                              F.V.N.675-75
                              # 005
                              MPN: 242-34-804-00
                              TAPPETO PER PARAFANGO POCTERIORE DESTRO
                              # 006
                              MPN: 242-34-805-00
                              TAPPETO PER PARAFANGO POSTERIORS SINISTRO
                              # 007
                              MPN: 242-34-806-00
                              TAPPOTO PER PARETE DIVIEIONALE BAULE.
                              F.V.N.566-59
                              # 008
                              MPN: 242-34-816-00
                              TAPPETO COLLEGAMENTO DA PIANO BAGAGLI A RIVESTIRNENTO POSTERIORE DESTRO
                              # 009
                              MPN: 242-34-817-00
                              TAPPETO COLLEGAMENTO DA PIANO BAGAGLI A RIVESTIMENTO POSTERIORE SINISTRO
                              # 010
                              MPN: 242-34-952-00
                              FELTRO BITUMATO PER PARTE ESTERNA TRAVERSA COLLEGAMENTO FONDO BAULE
                              # 011
                              MPN: 242-34-954-00
                              FELTRO BITUMATO PER PARTE SUPERIORE TRAVERSA COLLEGAMENTO FONDO BAULE
                              # 012
                              MPN: 242-34-958-00
                              FELTRO BITUMATO PER RIPARO ACQUA FONDO LATERALE BAULE
                              # 013
                              MPN: 242-34-812-00
                              RIVESTIMENTO SOTTO SCONTRINO SORRATURA BAULE
                              # 014
                              MPN: 0-228-4-002-2
                              BOTTONE A SCATTO - TESTA
                              # 015
                              MPN: 0-228-4-021-2
                              BOTTONE A SCATTO - PARTE FEMMINA
                              # 016
                              MPN: 0-228-4-011-2
                              BOTTONE A SCATTO - PARTE MASCHIO
