009.2 - Inner door trims (edition 1 + 2 + 3)

Ferrari 330 GT 2+2 (Coachwork) Inner door trims (edition 1 + 2 + 3) Parts Diagram

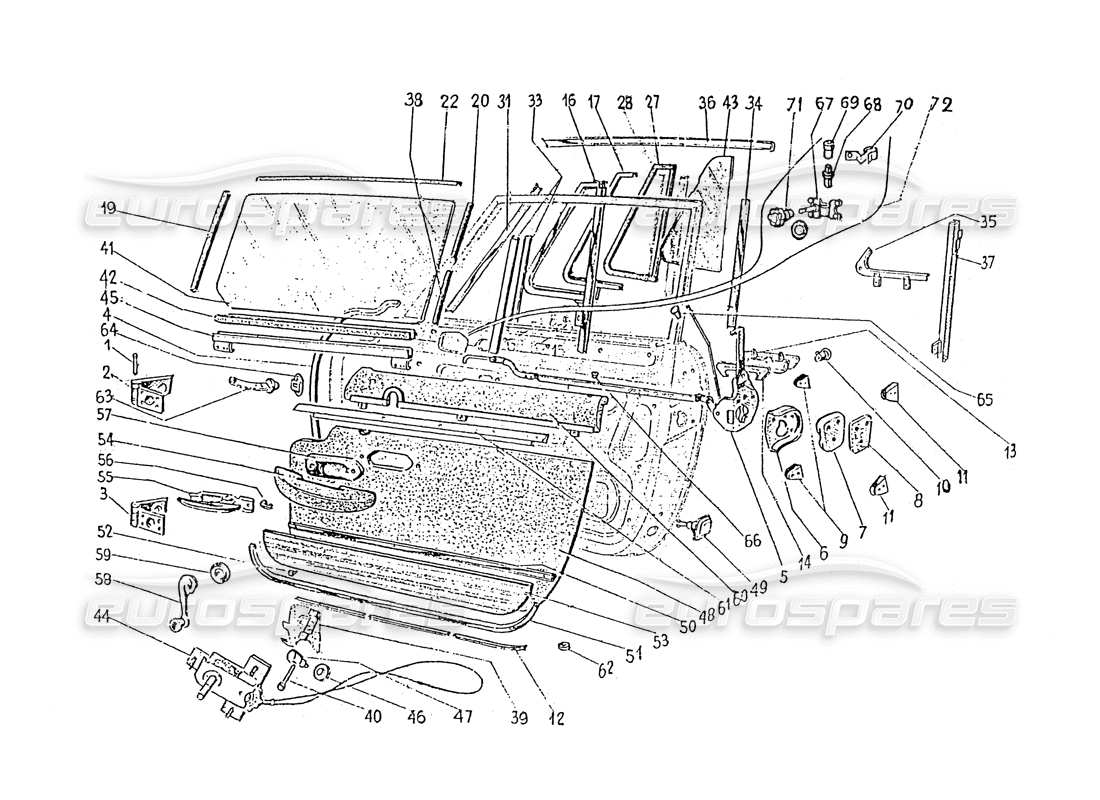

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 001
                                                                                                    MPN: 241-30-068-00
                                                                                                    PIVOT
                                                                                                    from £25.52
                                                                                                    from £25.52
                                                                                                    # 002
                                                                                                    MPN: 242-30-070-00
                                                                                                    CERNIERA-SUPER.D. PORTA COMPLETA DI PERNO
                                                                                                    # 002
                                                                                                    MPN: 242-30-071-00
                                                                                                    CERNIERA SUPER. S. PORTS COMPLETA DI PERNO
                                                                                                    # 003
                                                                                                    MPN: 242-30-080-00
                                                                                                    CERNIERA INFER.D. PORTA COMPLETA DI PERNO
                                                                                                    # 003
                                                                                                    MPN: 242-30-081-00
                                                                                                    CERNIERA INFER.S. PORTA COMPLETA DI PERNO
                                                                                                    # 004
                                                                                                    MPN: 242-30-168-00
                                                                                                    PROFILATO GONNA TONUTA ACQUA PIANTONS ANTERIORE PORTA (MM.670)
                                                                                                    # 005
                                                                                                    MPN: 242-30-170-01
                                                                                                    SERRATURA PORTA D. COMPLETA DI RIMANDO E TIRANTE
                                                                                                    from £143.25
                                                                                                    from £143.25
                                                                                                    # 005
                                                                                                    MPN: 242-30-171-01
                                                                                                    SERRATURA PORTA S. COMPLETA DI RIMANDO E TIRANTE
                                                                                                    from £202.04
                                                                                                    from £202.04
                                                                                                    # 006
                                                                                                    MPN: 242-30-174-01
                                                                                                    PIASTRA D. PER SCONTRINO SERRATURA PORTA
                                                                                                    from £30.14
                                                                                                    from £30.14
                                                                                                    # 006
                                                                                                    MPN: 242-30-175-01
                                                                                                    PIASTRA S. PER SCONTRINO SERRATURA PORTA
                                                                                                    from £28.70
                                                                                                    from £28.70
                                                                                                    # 007
                                                                                                    MPN: 242-30-210-01
                                                                                                    SCONTRINO D. PER SERRATURA PORTA
                                                                                                    from £33.26
                                                                                                    from £33.26
                                                                                                    # 007
                                                                                                    MPN: 242-30-211-01
                                                                                                    SCONTRINO S. PER SERRATURA PORTA
                                                                                                    from £19.62
                                                                                                    from £19.62
                                                                                                    # 008
                                                                                                    MPN: 242-30-216-00
                                                                                                    GUORNIZIONE SOTTO SCONTRINO SERRAT.PORTA
                                                                                                    from £8.33
                                                                                                    from £8.33
                                                                                                    # 009
                                                                                                    MPN: 691-30-240-00
                                                                                                    TASCOLLO D. GONNA CENTRAGGIO PORTA
                                                                                                    from £19.62
                                                                                                    from £19.62
                                                                                                    # 009
                                                                                                    MPN: 691-30-241-00
                                                                                                    TASSELLO GOMMA S. CENTRAGGIO PORTA
                                                                                                    from £19.62
                                                                                                    from £19.62
                                                                                                    # 010
                                                                                                    MPN: 242-30-260-02
                                                                                                    BLOCCHETTO D. PER SERRATURA PORTA
                                                                                                    from £53.80
                                                                                                    from £53.80
                                                                                                    # 010
                                                                                                    MPN: 242-30-261-02
                                                                                                    BLOCCHETTO S. PER SERRATURA PORTA
                                                                                                    from £43.72
                                                                                                    from £43.72
                                                                                                    # 011
                                                                                                    MPN: 239-30-266-08
                                                                                                    SCODELLINO D. TASSELLO GOMMA PORTS
                                                                                                    from £25.50
                                                                                                    from £25.50
                                                                                                    # 011
                                                                                                    MPN: 239-30-267-08
                                                                                                    SCODELLINO S. TASSELLO GOMMA PORTA
                                                                                                    from £25.57
                                                                                                    from £25.57
                                                                                                    # 012
                                                                                                    MPN: 242-30-162-00
                                                                                                    COMMA INFERIORE RIPARO ARIA (MM.443)
                                                                                                    from £50.21
                                                                                                    from £50.21
                                                                                                    # 013
                                                                                                    MPN: 242-30-280-02

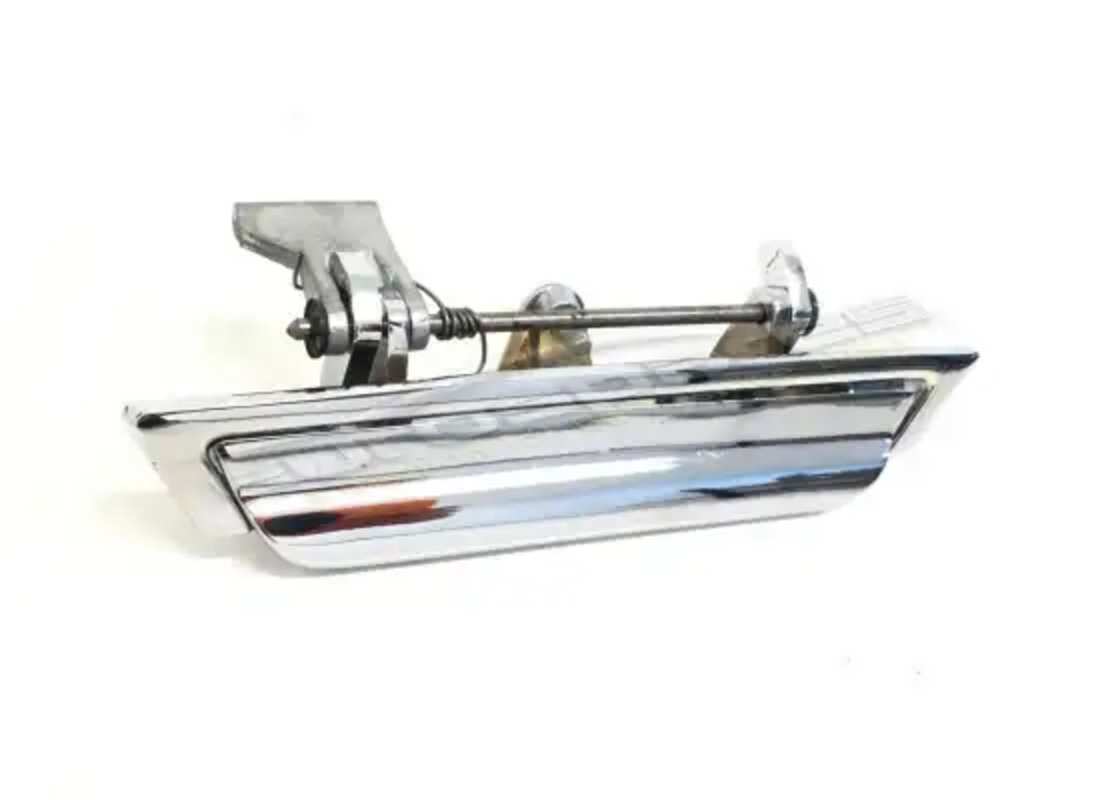

                                                                                                    RH OUTER HANDLE
                                                                                                    from £589.74
                                                                                                    from £589.74
                                                                                                    # 013
                                                                                                    MPN: 242-30-281-02

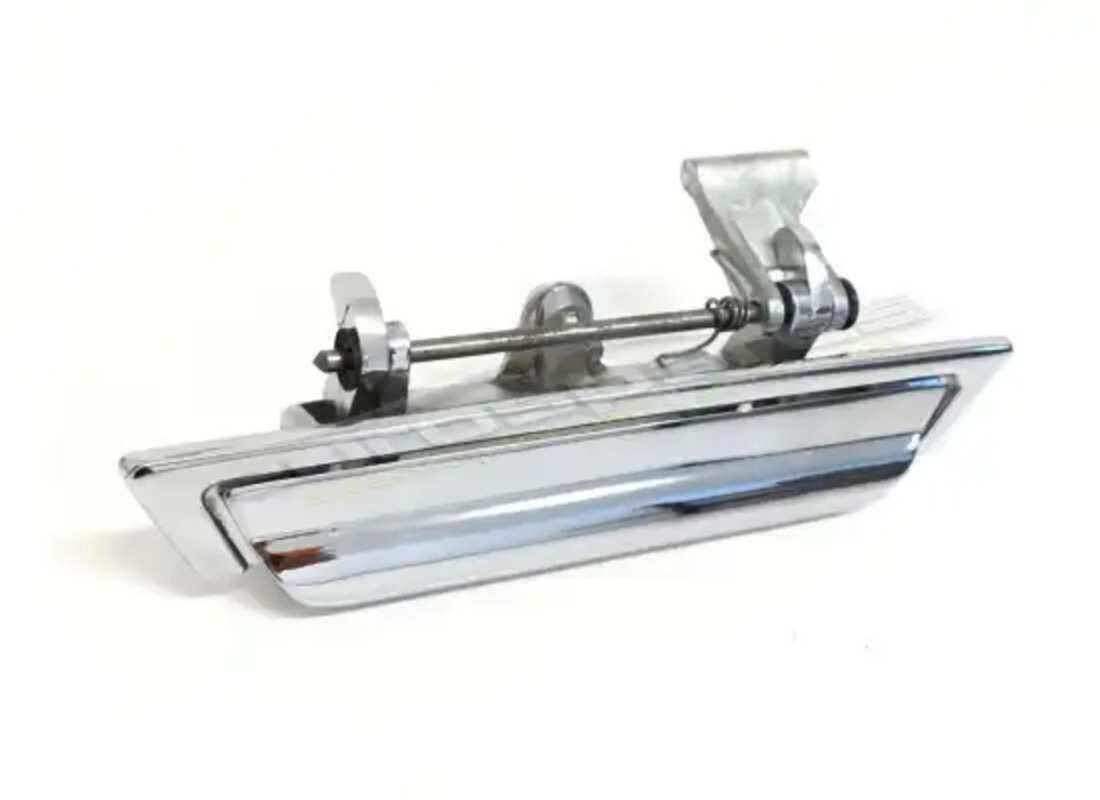

                                                                                                    LH OUTER HANDLE
                                                                                                    from £589.74
                                                                                                    from £589.74
                                                                                                    # 014
                                                                                                    MPN: 242-30-284-00
                                                                                                    CUERNIZIONE SOTTO MOSTRINA MANIGLIA ESTER.
                                                                                                    from £45.24
                                                                                                    from £45.24
                                                                                                    # 015
                                                                                                    MPN: 242-30-322-04
                                                                                                    CORPO FRIZIONE VOLETTO D. PORTA
                                                                                                    F.V.N. 560
                                                                                                    from £13.02
                                                                                                    from £13.02
                                                                                                    # 015
                                                                                                    MPN: 242-30-323-04
                                                                                                    CORPO GRIZIONE VOLETTO S. PORTA
                                                                                                    F.V.N. 560
                                                                                                    from £7.54
                                                                                                    from £7.54
                                                                                                    # 016
                                                                                                    MPN: 242-30-330-28
                                                                                                    TELARINO VOLETTO FISEO D
                                                                                                    D.V.N.676-76
                                                                                                    # 016
                                                                                                    MPN: 242-30-331-28
                                                                                                    TELARINO VOLETTO FISEO S
                                                                                                    D.V.N.676-76
                                                                                                    # 017
                                                                                                    MPN: 242-30-334-28
                                                                                                    TELARINO VOLETTO MOBILE
                                                                                                    D.V.N.676-76
                                                                                                    # 018
                                                                                                    MPN: 400-30-348-02
                                                                                                    ITISCONTRO PER ARRESTO VOLETTO D.
                                                                                                    F.V.N.675-75
                                                                                                    # 018
                                                                                                    MPN: 400-30-349-02
                                                                                                    RISCONTRO PER ARRESTO VOLETTO S.
                                                                                                    F.V.N.675-75
                                                                                                    from £9.14
                                                                                                    from £9.14
                                                                                                    # 019
                                                                                                    MPN: 242-30-354-00
                                                                                                    CANALINO VELLUTATO PER SCORRIMENTO ORIATALLO PARTO ANTERIORE PORTA
                                                                                                    # 020
                                                                                                    MPN: 242-30-356-00
                                                                                                    CANALINO VELLUTATO PER SCORRIMENTO PARTO CUPERIORO POSTORIORE PORTA
                                                                                                    # 021
                                                                                                    MPN: 242-30-358-08
                                                                                                    LAMIERINO TENUTA GOMMA BATTUTA CRISTALLO VOLETTO D.
                                                                                                    F.V.N. 560
                                                                                                    # 021
                                                                                                    MPN: 242-30-359-08
                                                                                                    LAMIERINO TENUTA GAMMA BATTUTA CRISTALLO VOLETTO S.
                                                                                                    F.V.N. 560
                                                                                                    # 022
                                                                                                    MPN: 242-30-360-00
                                                                                                    CANALINO VOLLUTATO PER SCORRIMENTO CRISTALLO PARTE SUPERIORE PORTA
                                                                                                    # 023
                                                                                                    MPN: 690-30-362-02
                                                                                                    MANIGLIA PER CHIUSURA VOLETTO D.
                                                                                                    F.V.N.675-75
                                                                                                    # 023
                                                                                                    MPN: 690-30-363-02
                                                                                                    MANIGLIA PER CHIUSURA VOLETTO S.
                                                                                                    F.V.N.675–75
                                                                                                    # 024
                                                                                                    MPN: 212-30-364-02
                                                                                                    SOPPORTO MANIGLIA CHIUSURA VOLETTO
                                                                                                    F.V.N.560
                                                                                                    # 025
                                                                                                    MPN: 690-30-367-02
                                                                                                    VITO SPECIALE RITEENO MANIGLIA CHIUS.VOLETTO
                                                                                                    F.V.N.675-75
                                                                                                    # 026
                                                                                                    MPN: 400-30-366-04
                                                                                                    SPRING
                                                                                                    F.V.N.675-75
                                                                                                    # 027
                                                                                                    MPN: 242-30-372-00
                                                                                                    RH FRONT QTR. GLASS RUBBER
                                                                                                    from £308.07
                                                                                                    from £308.07
                                                                                                    # 028
                                                                                                    MPN: 242-30-374-00
                                                                                                    COMMA BATTUTA POSTERIORE CRISTALLO VOLETTO D.
                                                                                                    from £323.35
                                                                                                    from £323.35
                                                                                                    # 028
                                                                                                    MPN: 242-30-375-00
                                                                                                    COMMA BATTUTA ,POSTERIORE CRISTALLO VOLETTO S.
                                                                                                    from £166.78
                                                                                                    from £166.78
                                                                                                    # 029
                                                                                                    MPN: 400-30-380-02
                                                                                                    ROSONE FISSAGGIO SOPPORTO MANIGLIA VOLETTO
                                                                                                    F.V.N.675-75
                                                                                                    # 030
                                                                                                    MPN: 242-30-454-01
                                                                                                    DISTANZIALE INTERNO CHIUSURA VOLETTO
                                                                                                    F.V.N.560
                                                                                                    from £0.56
                                                                                                    from £0.56
                                                                                                    # 031
                                                                                                    MPN: 242-30-406-08
                                                                                                    RICOPIMENTO PER ELEMENTO ANTERIORE TELARINO PORTA D.
                                                                                                    # 031
                                                                                                    MPN: 242-30-407-08
                                                                                                    RICOPRIMENTO PER ELEL ONTO ANTERIORE TELARINO PORTA S.
                                                                                                    # 032
                                                                                                    MPN: 242-30-108-08
                                                                                                    ELEMENTO INFER.ANTER MODANATURA CINTARA PORTA D.
                                                                                                    # 032
                                                                                                    MPN: 242-30-409-08
                                                                                                    ELEMENTO INFER.ANTER. MODANATURA CINTURA PORTA S.
                                                                                                    # 032
                                                                                                    MPN: 242-30-486-00
                                                                                                    CANALINO VELLUTATO SCORRIMENTO CRISTALLO PARTE INFERIORS POSTERIORE
                                                                                                    # 033
                                                                                                    MPN: 242-30-410-08
                                                                                                    RICOPRIMENTO PARTS ESTERNA VOLETTO D. E PARTE INTERNA VOLETTO S.
                                                                                                    from £1.51
                                                                                                    from £1.51
                                                                                                    # 033
                                                                                                    MPN: 242-30-411-08
                                                                                                    RICOPRICIENTO LUCIDO PER PARTE ESTERNA VOLETTO S. E.PARTE INTERNA VOLETTO D.
                                                                                                    from £31.84
                                                                                                    from £31.84
                                                                                                    # 034
                                                                                                    MPN: 242-30-412-08
                                                                                                    ELEMENTO POSTER.RICOPRIMENTO TELARINO D.
                                                                                                    # 034
                                                                                                    MPN: 242-30-413-08
                                                                                                    ELEMENTO POSTER.RICOPRIMENTO TELARINO S.
                                                                                                    # 035
                                                                                                    MPN: 242-30-422-18
                                                                                                    MOLURA SU CINTURA PARTE ANT.PORTA D
                                                                                                    D.V.N.676-76
                                                                                                    # 035
                                                                                                    MPN: 242-30-423-18
                                                                                                    MOLURA SU CINTURA PARTE ANT.PORTA S
                                                                                                    D.V.N.676-76
                                                                                                    # 036
                                                                                                    MPN: 242-30-434-08
                                                                                                    RICOPRIMENTOELEMENTO SUPER.TELARINO PORTA D.
                                                                                                    # 036
                                                                                                    MPN: 242-30-435-08
                                                                                                    RICOPRIMENTO ELEMENTO SUPER.TELARINO PORTA S.
                                                                                                    # 037
                                                                                                    MPN: 242-30-476-01
                                                                                                    GUIDA POSTER.CRISTALLO PORTA D.
                                                                                                    from £48.14
                                                                                                    from £48.14
                                                                                                    # 037
                                                                                                    MPN: 242-30-477-01
                                                                                                    GUIDA POSTER.CRISTALLO PORTA S.
                                                                                                    from £50.55
                                                                                                    from £50.55
                                                                                                    # 039
                                                                                                    MPN: 242-30-502-01
                                                                                                    BRACKET / SUPPORT
                                                                                                    # 040
                                                                                                    MPN: 0-918-1-079-1
                                                                                                    VITO OPECIALE PER TENDIFUNO
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 041
                                                                                                    MPN: 242-30-510-00
                                                                                                    CRISTALLO SCENDENTE PORTA
                                                                                                    from £272.05
                                                                                                    from £272.05
                                                                                                    # 042
                                                                                                    MPN: 242-30-512-00
                                                                                                    GOMMA PER BASE CRISTALLO
                                                                                                    # 043
                                                                                                    MPN: 242-30-528-20
                                                                                                    CRIETALLO VOLETTO PORTA
                                                                                                    D.V.N.676-76
                                                                                                    # 044
                                                                                                    MPN: 242-30-540-03
                                                                                                    MACCHINETTA ALZACRISTALLO D. COMPLESSIVO
                                                                                                    from £170.10
                                                                                                    from £170.10
                                                                                                    # 044
                                                                                                    MPN: 242-30-541-03
                                                                                                    MACCHINETTA ALZACRIATALLO S. COMPLOSSIVO
                                                                                                    from £76.95
                                                                                                    from £76.95
                                                                                                    # 045
                                                                                                    MPN: 242-30-544-01
                                                                                                    BASE CRISTALLO D.
                                                                                                    # 045
                                                                                                    MPN: 242-30-545-01
                                                                                                    BASE CRISTALLO S.
                                                                                                    # 046
                                                                                                    MPN: 135-30-576-01
                                                                                                    CARRUCOLA PER TUNE HIZACRISTALLO
                                                                                                    from £5.03
                                                                                                    from £5.03
                                                                                                    # 047
                                                                                                    MPN: 400-30-588-01
                                                                                                    PIVOT
                                                                                                    # 048
                                                                                                    MPN: 242-30-592-10
                                                                                                    PANNELLO RIVEST.INT.PORTA D
                                                                                                    D.V.N.676-76
                                                                                                    # 048
                                                                                                    MPN: 242-30-593-10
                                                                                                    PANNELLO RIVEST.INT.PORTA S
                                                                                                    D.V.N.676-76
                                                                                                    # 049
                                                                                                    MPN: 242-30-634-02
                                                                                                    FANALO INDIOATORE APORTURA PORTA .
                                                                                                    # 050
                                                                                                    MPN: 242-30-660-08
                                                                                                    MOLURA SUPER PIASTRA PARACOLPO PANNELLO INTERNO PORTA D.
                                                                                                    # 050
                                                                                                    MPN: 242-30-661-08
                                                                                                    MOLURA SUPER.PIASTRA PARACOLPO PANNELLO INTERNO PORTA S.
                                                                                                    # 051
                                                                                                    MPN: 242-30-662-08
                                                                                                    MOLURA PERIMETRALE INFER.PIASTRA PARACOLPO D.
                                                                                                    from £41.01
                                                                                                    from £41.01
                                                                                                    # 051
                                                                                                    MPN: 242-30-663-08
                                                                                                    MOLURA PERINETRALE INFER.PIASTRA PARACOLPO S.
                                                                                                    from £41.27
                                                                                                    from £41.27
                                                                                                    # 052
                                                                                                    MPN: 400-30-668-01
                                                                                                    LAMIORINO FISSAGGIO COLURE
                                                                                                    from £0.71
                                                                                                    from £0.71
                                                                                                    # 053
                                                                                                    MPN: 242-30-674-01
                                                                                                    PIASTRA PARACOLPO PER PANNELLO INTERNO PORTA D.
                                                                                                    from £239.80
                                                                                                    from £239.80
                                                                                                    # 053
                                                                                                    MPN: 242-30-675-01
                                                                                                    PIASTRA PARACOLPO PER PANNELLO INTERNO PORTA S.
                                                                                                    from £239.80
                                                                                                    from £239.80
                                                                                                    # 054
                                                                                                    MPN: 242-30-701-10
                                                                                                    APPOGGIABRACCIA LAT.ANT.S
                                                                                                    D.V.N.676 G.S.
                                                                                                    # 054
                                                                                                    MPN: 244-30-700-00
                                                                                                    APPOGGIABRACCIA LAT.ANT.D
                                                                                                    D.V.N.76 G.D.
                                                                                                    # 055
                                                                                                    MPN: 242-30-813-02
                                                                                                    MANIGLIA INTERNA APERT.PORTA
                                                                                                    from £1,042.20
                                                                                                    from £1,042.20
                                                                                                    This part replaces part number 242-30-812-02 - and 2 more. Click to view details
                                                                                                    # 056
                                                                                                    MPN: 242-28-414-01
                                                                                                    CLIP
                                                                                                    # 056
                                                                                                    MPN: 242-28-415-01
                                                                                                    CLIP
                                                                                                    # 057
                                                                                                    MPN: 242-30-830-02
                                                                                                    MOSTRINA PER.MANIGLIA INTERNA APERTURA PORTA
                                                                                                    from £168.00
                                                                                                    from £168.00
                                                                                                    # 058
                                                                                                    MPN: 242-30-850-02
                                                                                                    MANIGLIA ALZACRISTAILO D.
                                                                                                    from £16.16
                                                                                                    from £16.16
                                                                                                    # 058
                                                                                                    MPN: 242-30-851-02
                                                                                                    MANIGLIA ALZACRISTALLO S.
                                                                                                    from £41.98
                                                                                                    from £41.98
                                                                                                    # 059
                                                                                                    MPN: 242-30-852-02
                                                                                                    RESONE PER MANIGLIA ALZACRIATALLO
                                                                                                    from £3.45
                                                                                                    from £3.45
                                                                                                    # 060
                                                                                                    MPN: 242-30-889-10
                                                                                                    EBANIETORIA SU FILO CINTURE PORTA S CNL.
                                                                                                    D.V.N.676-76
                                                                                                    # 060
                                                                                                    MPN: 242-30-898-10
                                                                                                    EBANIETERIA SU FILO CINTURA PORTA D CPL.
                                                                                                    D.V.N.676-76
                                                                                                    # 061
                                                                                                    MPN: 242-30-916-08
                                                                                                    MODANATURA CINTURA PORTA D.
                                                                                                    # 061
                                                                                                    MPN: 242-30-917-08
                                                                                                    MODANATURA CINTURA PORTA S.
                                                                                                    # 062
                                                                                                    MPN: 400-30-946-00
                                                                                                    TAPPO PER CHIVAURA FORI REGISTRAZIONO ALZACRISTALLO
                                                                                                    # 063
                                                                                                    MPN: 691-30-962-01
                                                                                                    TIE ROD
                                                                                                    from £80.54
                                                                                                    from £80.54
                                                                                                    # 064
                                                                                                    MPN: 242-30-978-01
                                                                                                    ARRESTO PORTA
                                                                                                    # 065
                                                                                                    MPN: 242-30-198-00
                                                                                                    POMELLO COMANDO SICUREZZA INT.PORTA
                                                                                                    from £60.90
                                                                                                    from £60.90
                                                                                                    # 066
                                                                                                    MPN: 242-30-192-08
                                                                                                    MOSTRINA PER POMELLO
                                                                                                    # 067
                                                                                                    MPN: 241-30-420-00
                                                                                                    GRUPPO COMANDO ROTAZIONE VOLETTO .
                                                                                                    D.V.N.676-76
                                                                                                    # 068
                                                                                                    MPN: 242-30-426-07
                                                                                                    CODOLO COMANDO ROTAZIONE VOLETTO D
                                                                                                    D.V.N.676
                                                                                                    # 068
                                                                                                    MPN: 242-30-427-07
                                                                                                    CODOLO COMANDO ROTAZIONE VOLETTO S
                                                                                                    D.V.N.676
                                                                                                    # 068
                                                                                                    MPN: 244-30-426-07
                                                                                                    CODOLO COMANDO ROTAZIONE VOLETTO
                                                                                                    D.V.N.76
                                                                                                    # 069
                                                                                                    MPN: 241-30-430-00
                                                                                                    BUSH
                                                                                                    D.V.N.676-76
                                                                                                    from £5.03
                                                                                                    from £5.03
                                                                                                    # 070
                                                                                                    MPN: 242-30-432-01
                                                                                                    MOREETTO PER COMANDO VOLETTO
                                                                                                    D.V.N.676-76
                                                                                                    # 071
                                                                                                    MPN: 246-30-362-00
                                                                                                    POMELLO COMANDO APERTURA VOLETTO
                                                                                                    D.V.N.676-76
                                                                                                    # 072
                                                                                                    MPN: 242-30-368-08
                                                                                                    GUERNIZ.PER POMELLO COMANDO VOLETTO
                                                                                                    D.V.N.676-76
