006 - Rear End Panels (Per G.S. D.V.N. - Per G.D. D.V.N. 60)

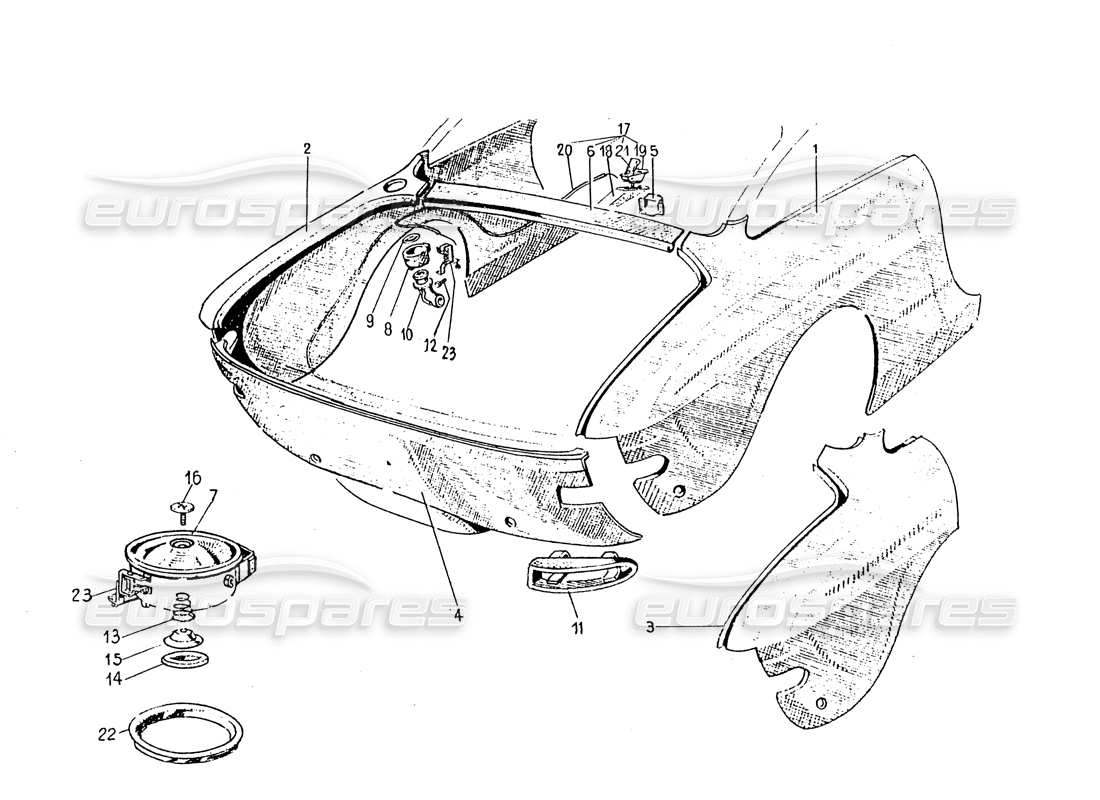

Ferrari 330 GT 2+2 (Coachwork) Rear End Panels (Per G.S. D.V.N. - Per G.D. D.V.N. 60) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 242-20-040-17
RIVESTITAENTO LAT.POST.D.
PER G.D. D.V.N. 60
from £2,047.50
from £2,047.50
# 002
MPN: 242-20-041-17
RIVESTIMENTO LAT.POST.S.
PER G.S. D.V.N. 567
from £2,047.50
from £2,047.50

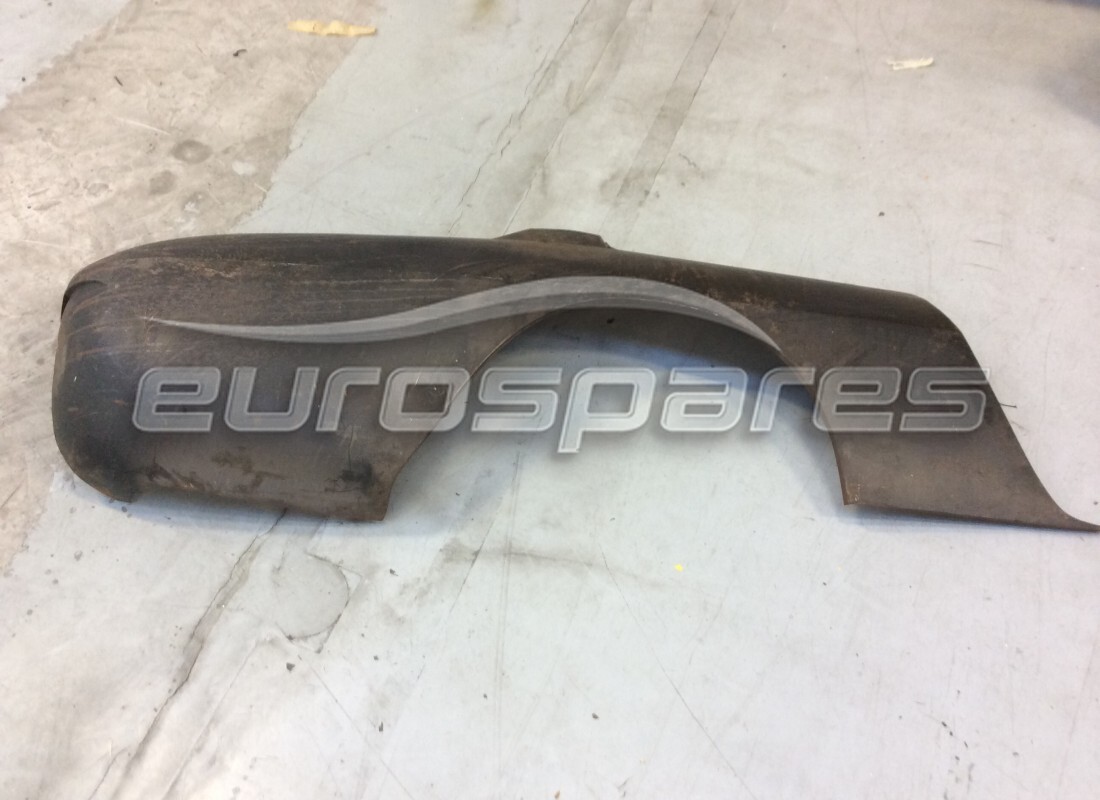

# 003
MPN: 242-20-044-17
SEMIRIVESTIM.LAT.POSTER.D.
PER G.D. D.V.N. 60
from £806.72
from £806.72
# 003
MPN: 242-20-045-17
SEMIRIVESTIM.LAT.POSTER.S.
PER G.S. D.V.N. 567
from £806.72
from £806.72
# 004
MPN: 242-20-056-17
ELEMENTO POSTER. INF. RIVEST. POST.
from £279.06
from £279.06
# 005
MPN: 242-20-104-07
SCATOLA RIPARO ATTACCO CERNIERA SPORT. BAULE DESTRO
# 005
MPN: 242-20-105-07
SCATOLA RIPARO ATTACCO CERNIERA SPORT. BAULE DESTRO

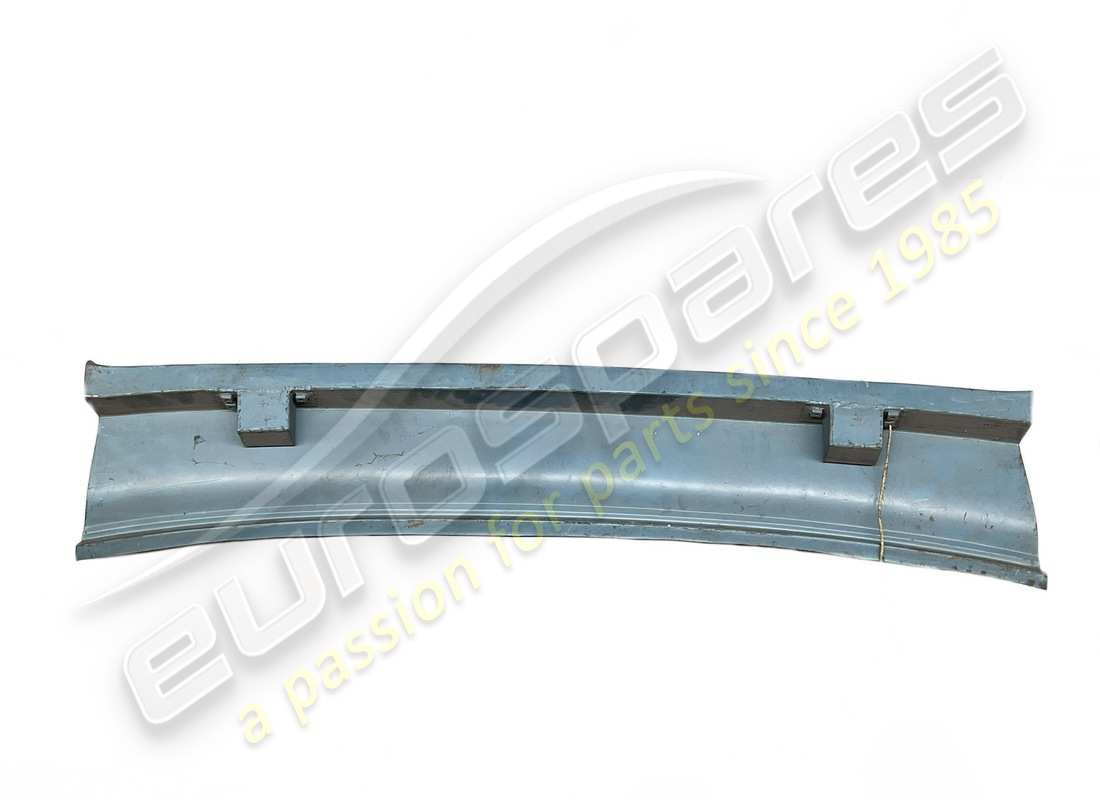

# 006
MPN: 242-20-150-07
ELEMENTO CONTRALE SUPERIORE RIVESTIM. POSTERIORE
from £441.00
from £441.00
# 007
MPN: 242-20-150-07
SPORTELLO CARBURANTE - COMPLESSIVO
PER G.S. D.V.N. 567 - FNVN 885 - PER G.D. D.V.N. 60 - F.V.N. 89
from £441.00
from £441.00
# 007
MPN: 246-20-504-02
SPORTELLO BOCCHETTONE CARBURANTE CPL.
PER G.S. D.V.N. 886 - PER D.V.N. 90
from £72.61
from £72.61
# 008
MPN: 242-20-530-27
VASCHETTA BOCCHETTONE CARBURANTO
PER G.S. D.V.N. 567 - FNVN 885 - PER G.D. D.V.N. 60 - F.V.N. 89
# 009
MPN: 242-20-600-00
GASKET OR SEAL
from £58.83
from £58.83
# 010
MPN: 242-20-606-07
TUBO. INTRODUZ. CARBURANTE
from £153.24
from £153.24
# 011
MPN: 242-20-630-07
RING
PER G.D. D.V.N. 60
from £56.33
from £56.33
# 011
MPN: 242-20-631-07
RING
PER G.S. D.V.N. 567
# 012
MPN: 134-28-346-01
SCREW
D.V.N.567-60
# 013
MPN: 242-20-544-00
SPRING
D.V.N.567-60
# 014
MPN: 242-20-556-00
GUERNIZ.GOMMA PER CHIUSURA SPORT.CARB.
D.V.N.567-60
# 015
MPN: 242-20-598-00
DISCO FISSAGGIO GUERNIZ.
D.V.N.567-60

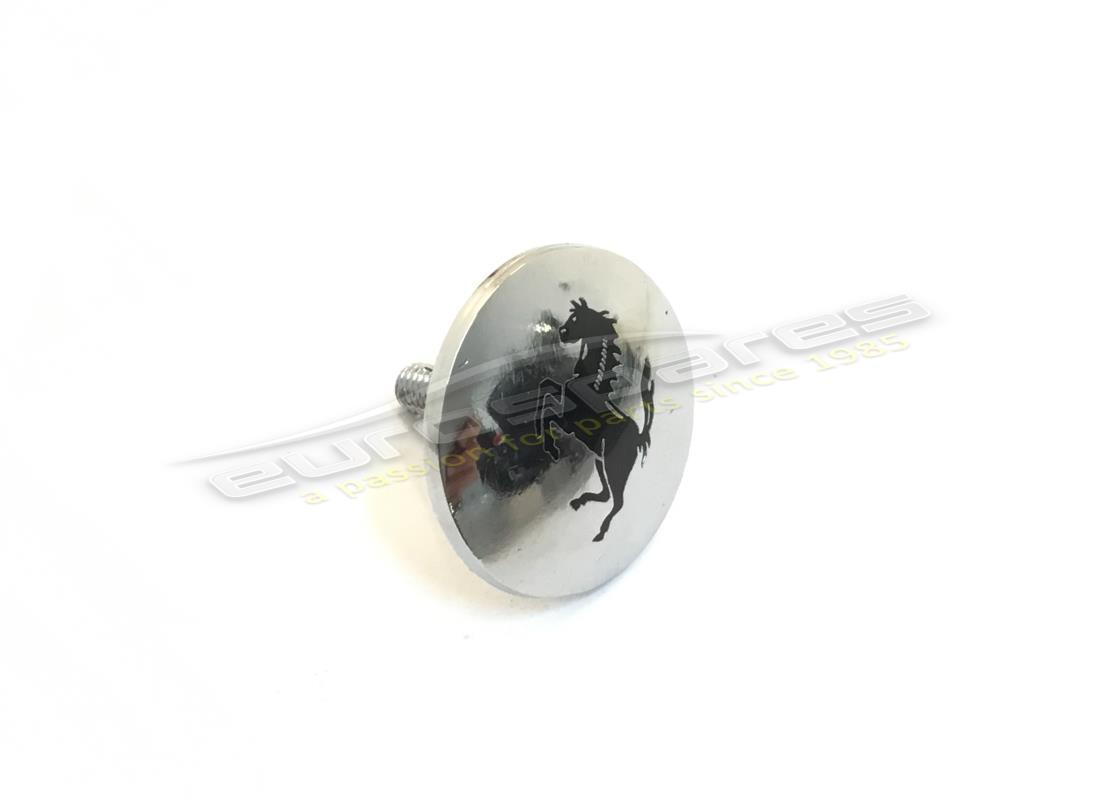

# 016
MPN: 242-20-520-02
FUEL FILLER DOOR LOCK
from £99.75
from £99.75
# 017
MPN: 242-62-420-00
COMANDO APERTURA EPORT.CARBURANTE CPL.
D.V.N.567-60
# 018
MPN: 242-62-410-00
SOPPORTO COMANDO APERTURA SPORT.CARB.
D.V.N.567-60
# 019
MPN: 242-62-278-00
PONTICELLO FISSAGGIO MANIGLIA COMANDO APERTURA SPORTELLO CARBURANTE
D.V.N.567-60
# 020
MPN: 242-62-446-00
CAVO PER APERTURA SPORTELLO CARBURANTE
D.V.N.567-60
# 021
MPN: 242-62-430-02
MANIGLIA APERTURA APORTELLO CARBURANTE
D.V.N.567-60
# 022
MPN: 242-20-586-08
GUERNIZ. INOX PER VANO SPORT.CARB.
D.V.N.567-60
from £56.01
from £56.01
# 023
MPN: 242-20-560-01
SERRATURA SPORTELLO CARBURANTE
D.V.N.567-60
