028 - Front Wheel Suspension Upper Arms

Ferrari 330 GT 2+2 Front Wheel Suspension Upper Arms Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 64953 D
                                                                                  FUSO A SNODO DESTRO
                                                                                  # 001
                                                                                  MPN: 64954 S
                                                                                  FUSO A SNODO SINISTRO
                                                                                  # 002
                                                                                  MPN: 76338 D
                                                                                  LEVER
                                                                                  # 002
                                                                                  MPN: 76339 S
                                                                                  LEVER
                                                                                  # 003
                                                                                  MPN: 94629
                                                                                  Key
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 004
                                                                                  MPN: 94313
                                                                                  NUT
                                                                                  from £14.33
                                                                                  from £14.33
                                                                                  # 005
                                                                                  MPN: 94314
                                                                                  WASHER
                                                                                  from £4.97
                                                                                  from £4.97
                                                                                  # 006
                                                                                  MPN: C1
                                                                                  COPIGLIA PER DETTO
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 007
                                                                                  MPN: 92429
                                                                                  NUT
                                                                                  from £35.94
                                                                                  from £35.94
                                                                                  This part replaces part number 10724621
                                                                                  # 007
                                                                                  MPN: 92431
                                                                                  NUT
                                                                                  from £26.15
                                                                                  from £26.15
                                                                                  This part replaces part number 11638021
                                                                                  # 008
                                                                                  MPN: 94314
                                                                                  WASHER
                                                                                  from £4.97
                                                                                  from £4.97
                                                                                  # 009
                                                                                  MPN: C l
                                                                                  COPIGLIA PER DETTO
                                                                                  # 010
                                                                                  MPN: 64220
                                                                                  SCODELLINO RIPARO RALLE PER FUSO
                                                                                  from £60.05
                                                                                  from £60.05
                                                                                  # 011
                                                                                  MPN: 64548
                                                                                  RALLA SUPERIORE SUL FUSO A SNODO
                                                                                  from £51.45
                                                                                  from £51.45
                                                                                  # 012
                                                                                  MPN: 64549
                                                                                  RALLA INFERIORE SUL FUSO A SNODO
                                                                                  from £57.21
                                                                                  from £57.21
                                                                                  # 013
                                                                                  MPN: OR 136
                                                                                  ANELLINO PER TENUTA TAMPONE INTERNO AMMORTIZZATORE
                                                                                  # 014
                                                                                  MPN: OR 138
                                                                                  ANELLINO PER TENUTA TAMPONE INTERNO AMMORTIZZATORE
                                                                                  # 015
                                                                                  MPN: 64831
                                                                                  LEVER
                                                                                  from £545.66
                                                                                  from £545.66
                                                                                  # 016
                                                                                  MPN: 64836
                                                                                  PIVOT
                                                                                  from £276.79
                                                                                  from £276.79
                                                                                  # 018
                                                                                  MPN: 64838
                                                                                  BUSSOLA PER PERNI LEVE SUPERIORI
                                                                                  from £98.66
                                                                                  from £98.66
                                                                                  # 019
                                                                                  MPN: 64841
                                                                                  WASHER
                                                                                  not as spare part - use part number: 64841/1 or 64841/2 or 64841/3
                                                                                  # 019
                                                                                  MPN: 64841/1
                                                                                  WASHER
                                                                                  (2.70mm)
                                                                                  from £71.09
                                                                                  from £71.09
                                                                                  # 019
                                                                                  MPN: 64841/2
                                                                                  WASHER
                                                                                  (2.85mm)
                                                                                  from £71.09
                                                                                  from £71.09
                                                                                  # 019
                                                                                  MPN: 64841/3
                                                                                  WASHER
                                                                                  (3.00mm)
                                                                                  from £71.09
                                                                                  from £71.09
                                                                                  # 020
                                                                                  MPN: 94438
                                                                                  BULLONI FISSAGGIO LEVE AI PERNI SUL TELAIO
                                                                                  from £39.22
                                                                                  from £39.22
                                                                                  # 021
                                                                                  MPN: 94439
                                                                                  NUT
                                                                                  from £17.20
                                                                                  from £17.20
                                                                                  # 022
                                                                                  MPN: C l
                                                                                  COPIGLIA PER DETTO
                                                                                  # 023
                                                                                  MPN: 640788
                                                                                  PIVOT
                                                                                  from £202.48
                                                                                  from £202.48
                                                                                  This part replaces part number 64537
                                                                                  # 024
                                                                                  MPN: 64598
                                                                                  WASHER
                                                                                  not as spare part - use part number: 64598/1 > 64598/10
                                                                                  # 024
                                                                                  MPN: 64598/1
                                                                                  WASHER
                                                                                  (2.75mm)
                                                                                  from £65.58
                                                                                  from £65.58
                                                                                  # 024
                                                                                  MPN: 64598/10
                                                                                  WASHER
                                                                                  (3.85mm)
                                                                                  from £68.86
                                                                                  from £68.86
                                                                                  # 024
                                                                                  MPN: 64598/2
                                                                                  WASHER
                                                                                  (2.85mm)
                                                                                  from £68.86
                                                                                  from £68.86
                                                                                  # 024
                                                                                  MPN: 64598/3
                                                                                  WASHER
                                                                                  (3.05mm)
                                                                                  from £68.86
                                                                                  from £68.86
                                                                                  # 024
                                                                                  MPN: 64598/4
                                                                                  WASHER
                                                                                  (3.15mm)
                                                                                  from £68.86
                                                                                  from £68.86
                                                                                  # 024
                                                                                  MPN: 64598/5
                                                                                  WASHER
                                                                                  (3.35mm)
                                                                                  from £68.86
                                                                                  from £68.86
                                                                                  # 024
                                                                                  MPN: 64598/6
                                                                                  WASHER
                                                                                  (3.45mm)
                                                                                  from £68.86
                                                                                  from £68.86
                                                                                  # 024
                                                                                  MPN: 64598/7
                                                                                  WASHER
                                                                                  (3.55mm)
                                                                                  from £65.58
                                                                                  from £65.58
                                                                                  # 024
                                                                                  MPN: 64598/8
                                                                                  WASHER
                                                                                  (3.65mm)
                                                                                  from £68.86
                                                                                  from £68.86
                                                                                  # 024
                                                                                  MPN: 64598/9
                                                                                  WASHER
                                                                                  (3.75mm)
                                                                                  from £68.86
                                                                                  from £68.86
                                                                                  # 025
                                                                                  MPN: 65143
                                                                                  BUSSOLA PER PERNI ATTACCO LEVE AL FUSO A SNODO
                                                                                  from £40.92
                                                                                  from £40.92
                                                                                  # 027
                                                                                  MPN: 93362
                                                                                  NUT
                                                                                  from £1.76
                                                                                  from £1.76
                                                                                  # 028
                                                                                  MPN: C I
                                                                                  COPIGLIA PER DETTO
                                                                                  # 029
                                                                                  MPN: 65203
                                                                                  NODO APPOGGIO TAMPONE SINISTRO
                                                                                  from £2,987.15
                                                                                  from £2,987.15
                                                                                  # 029
                                                                                  MPN: 65204
                                                                                  NODO APPOGGIO TAMPONE DESTRO
                                                                                  from £2,527.92
                                                                                  from £2,527.92
                                                                                  # 030
                                                                                  MPN: 94076
                                                                                  WASHER
                                                                                  from £0.75
                                                                                  from £0.75
                                                                                  # 031
                                                                                  MPN: 92449
                                                                                  INGRASSATORE SUL NODO
                                                                                  from £8.85
                                                                                  from £8.85
                                                                                  # 032
                                                                                  MPN: 92449
                                                                                  INGRASSATORE SUL FUSO A SNODO
                                                                                  from £8.85
                                                                                  from £8.85
                                                                                  # 033
                                                                                  MPN: 61429
                                                                                  TAMPONE ARRESTO SCUOTIMENTO SUPERIORE
                                                                                  from £155.02
                                                                                  from £155.02
                                                                                  # 034
                                                                                  MPN: B2
                                                                                  BOLT
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 035

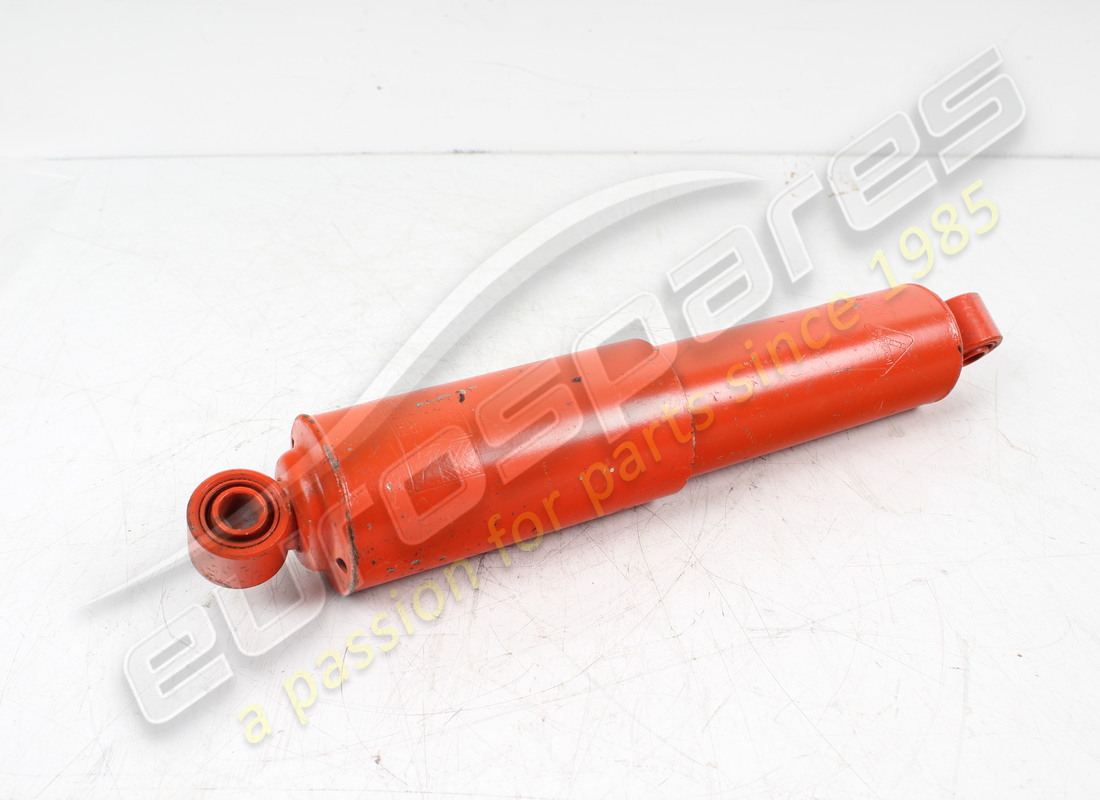

                                                                                  MPN: 640238
                                                                                  AMMORTIZZATORE TELESCOPICO KONI
                                                                                  (exchange required)
                                                                                  from £1,500.00
                                                                                  from £1,500.00
                                                                                  # 036
                                                                                  MPN: 65185
                                                                                  TAMPONE FINE CORSA AMMORTIZZATORE KONI
                                                                                  from £14.75
                                                                                  from £14.75
                                                                                  # 038
                                                                                  MPN: 94678
                                                                                  SILENTBLOK PER AMMORTIZZATORI ANTERIORI KONI
                                                                                  from £17.94
                                                                                  from £17.94
                                                                                  # 040
                                                                                  MPN: 94784
                                                                                  WASHER
                                                                                  from £10.37
                                                                                  from £10.37
                                                                                  # 041
                                                                                  MPN: UNI 187
                                                                                  BULLONI FISSAGGIO TAMPONE SCUOTIMENTO
                                                                                  # 042
                                                                                  MPN: 127496
                                                                                  WASHER
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                  # 043
                                                                                  MPN: 15896211
                                                                                  NUT
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 15896210
