ferrari 330 gtc coupe front suspension - wishbones parts diagram

024 - Front Suspension - Wishbones

Ferrari 330 GTC Coupe Front Suspension - Wishbones Parts Diagram

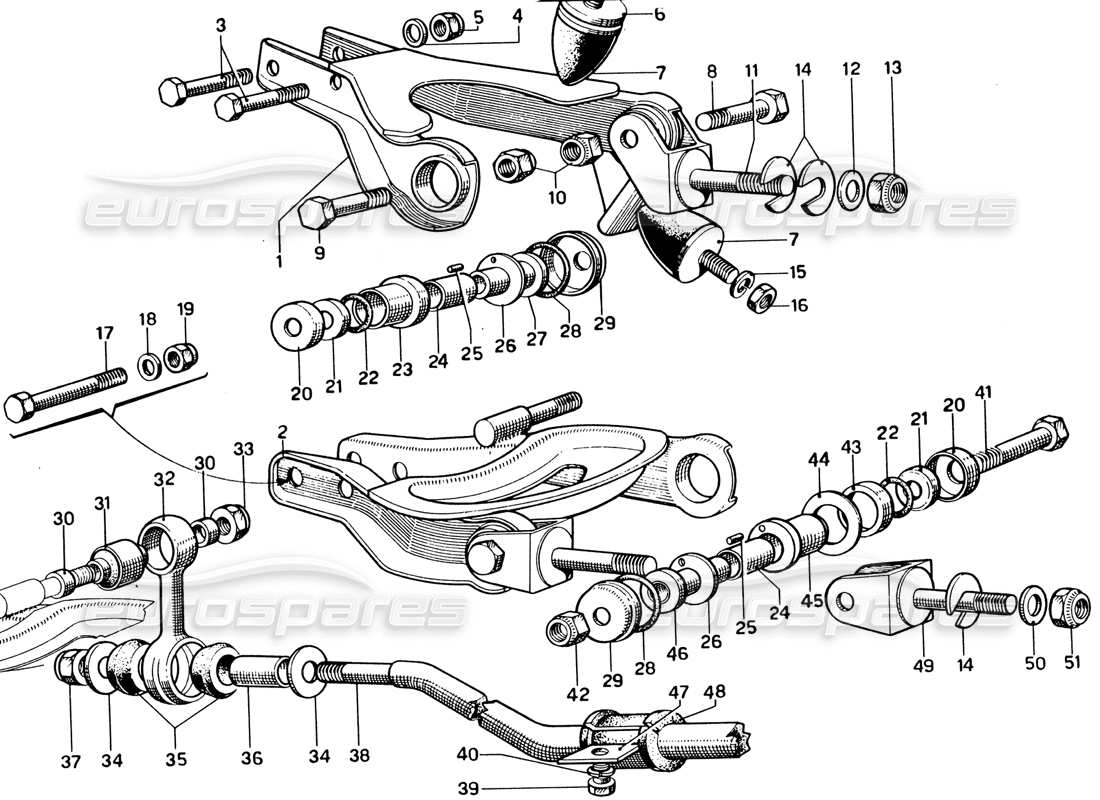

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                #
                                                                                                Part number
                                                                                                Description
                                                                                                Price
                                                                                                # 001
                                                                                                MPN: 640581/D
                                                                                                RH LEVER
                                                                                                from £209.90
                                                                                                from £209.90
                                                                                                # 001
                                                                                                MPN: 640581/S
                                                                                                LH LEVER
                                                                                                from £193.46
                                                                                                from £193.46
                                                                                                # 002
                                                                                                MPN: 640584/D
                                                                                                RH LOWER LEVER
                                                                                                from £244.29
                                                                                                from £244.29
                                                                                                # 002
                                                                                                MPN: 640584/S
                                                                                                LH LOWER LEVER
                                                                                                from £792.75
                                                                                                from £792.75
                                                                                                # 003
                                                                                                MPN: M 10x75 UNI 1184
                                                                                                BOLT
                                                                                                # 004
                                                                                                MPN: 10R1
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 006
                                                                                                MPN: 620821
                                                                                                SPESSORE TAMPONE (ELIM.)
                                                                                                from £3.08
                                                                                                from £3.08
                                                                                                # 007
                                                                                                MPN: 640694

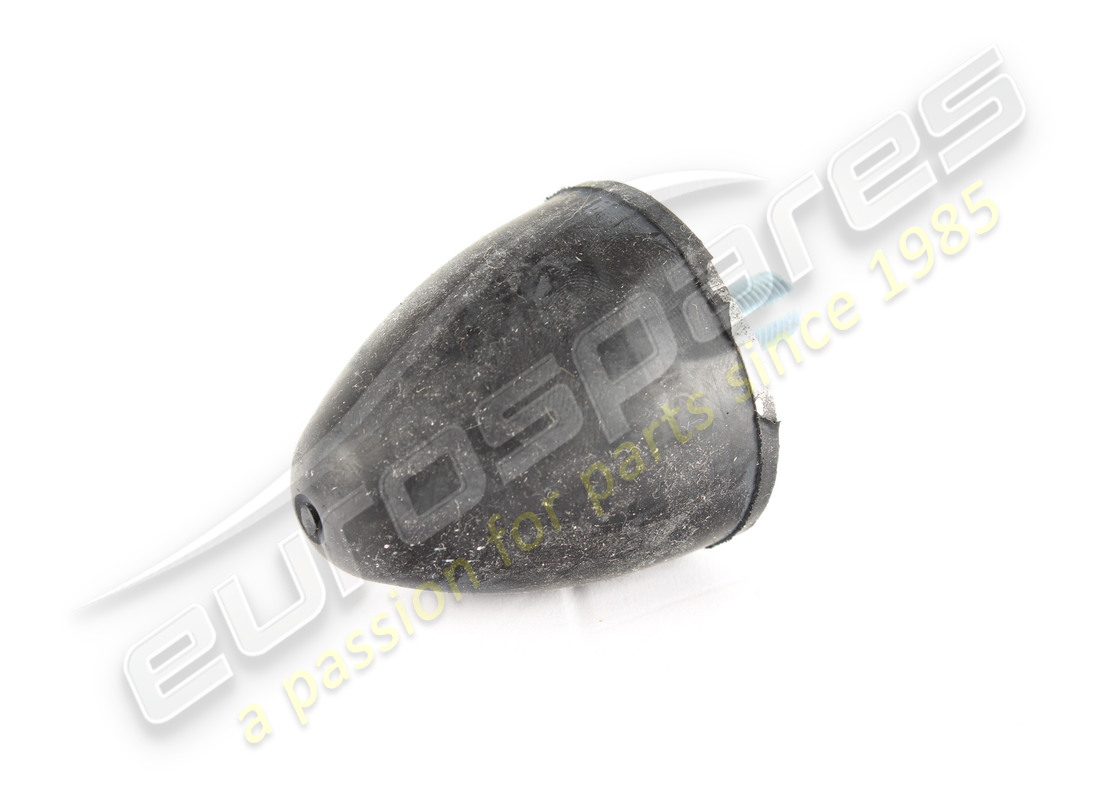

                                                                                                SUSPENSION BUMP STOP
                                                                                                from £74.63
                                                                                                from £74.63
                                                                                                # 008
                                                                                                MPN: M 12x80 UNI 184
                                                                                                BOLT
                                                                                                # 009
                                                                                                MPN: M 12x65 UNI 184
                                                                                                BOLT
                                                                                                # 011
                                                                                                MPN: 640578
                                                                                                FORK
                                                                                                from £91.40
                                                                                                from £91.40
                                                                                                # 013
                                                                                                MPN: 95900611
                                                                                                NUT
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 016
                                                                                                MPN: 1 D 10-UNI 209
                                                                                                NUT
                                                                                                # 017
                                                                                                MPN: 10x100-UNI 184
                                                                                                BOLT
                                                                                                # 018
                                                                                                MPN: 10R1
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 020
                                                                                                MPN: 101011
                                                                                                SCODELLINO PARA ACQUA
                                                                                                from £8.41
                                                                                                from £8.41
                                                                                                # 021
                                                                                                MPN: 101016
                                                                                                WASHER
                                                                                                from £8.24
                                                                                                from £8.24
                                                                                                This part replaces part number 10730721 - and 1 more. Click to view details
                                                                                                # 022
                                                                                                MPN: 101043
                                                                                                RING
                                                                                                (replaces: OR 4106)
                                                                                                from £1.04
                                                                                                from £1.04
                                                                                                This part replaces part number 4106
                                                                                                # 022
                                                                                                MPN: 101043
                                                                                                RING
                                                                                                from £1.04
                                                                                                from £1.04
                                                                                                This part replaces part number 4106

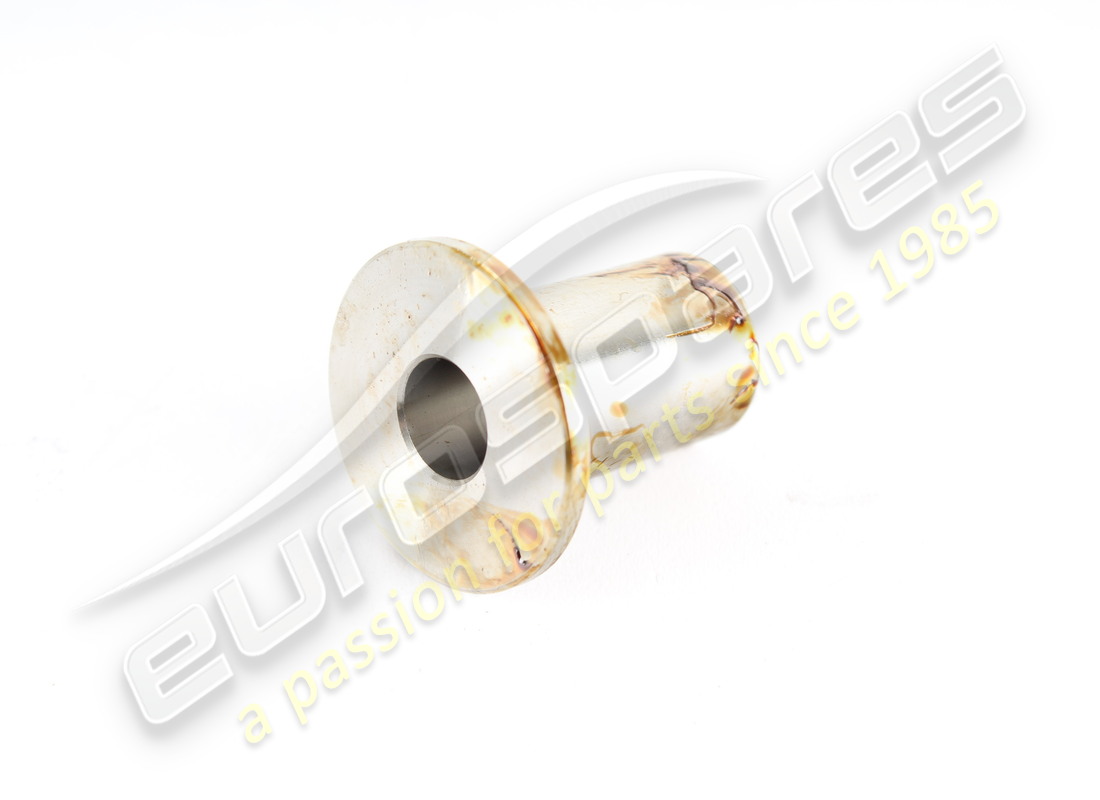

                                                                                                # 023
                                                                                                MPN: 640332
                                                                                                BUSH
                                                                                                from £47.90
                                                                                                from £47.90
                                                                                                # 024
                                                                                                MPN: 600786
                                                                                                BUSH
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 025
                                                                                                MPN: 100796
                                                                                                DOWEL
                                                                                                from £2.43
                                                                                                from £2.43
                                                                                                This part replaces part number 94943
                                                                                                # 026
                                                                                                MPN: 101009
                                                                                                WASHER
                                                                                                from £6.74
                                                                                                from £6.74
                                                                                                This part replaces part number 600771
                                                                                                # 027
                                                                                                MPN: 101008
                                                                                                BUSH
                                                                                                from £44.82
                                                                                                from £44.82
                                                                                                This part replaces part number 640331 - and 1 more. Click to view details
                                                                                                # 028
                                                                                                MPN: 101044
                                                                                                SEALING RING
                                                                                                (replaces: OR 3150)
                                                                                                from £0.71
                                                                                                from £0.71
                                                                                                This part replaces part number 3150
                                                                                                # 028
                                                                                                MPN: 101044
                                                                                                SEALING RING
                                                                                                from £0.71
                                                                                                from £0.71
                                                                                                This part replaces part number 3150
                                                                                                # 029
                                                                                                MPN: 101014
                                                                                                SUSPENSION BUSH DUST COVER
                                                                                                from £5.84
                                                                                                from £5.84
                                                                                                This part replaces part number 600957
                                                                                                # 030
                                                                                                MPN: 100771
                                                                                                SPACER
                                                                                                from £33.42
                                                                                                from £33.42
                                                                                                This part replaces part number 64544
                                                                                                # 031
                                                                                                MPN: 100773
                                                                                                SILENTBLOC
                                                                                                from £19.62
                                                                                                from £19.62
                                                                                                This part replaces part number 60220 - and 1 more. Click to view details
                                                                                                # 032
                                                                                                MPN: 640024
                                                                                                BISCOTTINO PER BARRA
                                                                                                from £423.66
                                                                                                from £423.66
                                                                                                # 034
                                                                                                MPN: 640025
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 035
                                                                                                MPN: 100984
                                                                                                GOMMINO PER BISCOTTINO
                                                                                                from £6.48
                                                                                                from £6.48
                                                                                                This part replaces part number 126097 - and 1 more. Click to view details
                                                                                                # 036
                                                                                                MPN: 100985
                                                                                                TUBO DISTANZIALE
                                                                                                from £21.06
                                                                                                from £21.06
                                                                                                This part replaces part number 64431
                                                                                                # 038
                                                                                                MPN: 640582
                                                                                                ANTI - ROLL BAR
                                                                                                from £401.33
                                                                                                from £401.33
                                                                                                # 039
                                                                                                MPN: 8 x 15 UNI 188
                                                                                                BOLT
                                                                                                # 040
                                                                                                MPN: 8R4
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 041
                                                                                                MPN: M 12 x 70 UNI 184
                                                                                                BOLT
                                                                                                # 043
                                                                                                MPN: 640587
                                                                                                SPACER
                                                                                                from £5.69
                                                                                                from £5.69
                                                                                                # 044
                                                                                                MPN: 95088
                                                                                                WASHER
                                                                                                from £1.49
                                                                                                from £1.49
                                                                                                # 045
                                                                                                MPN: 600783
                                                                                                BUSH
                                                                                                from £36.62
                                                                                                from £36.62
                                                                                                # 046
                                                                                                MPN: 101005
                                                                                                REAR INNER PIN
                                                                                                from £59.01
                                                                                                from £59.01
                                                                                                This part replaces part number 600782 - and 1 more. Click to view details
                                                                                                # 046
                                                                                                MPN: 600782
                                                                                                REAR INNER PIN
                                                                                                not as spare part - use part number: 101005
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 047
                                                                                                MPN: 640008
                                                                                                BRACKET / SUPPORT
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 048
                                                                                                MPN: 108744

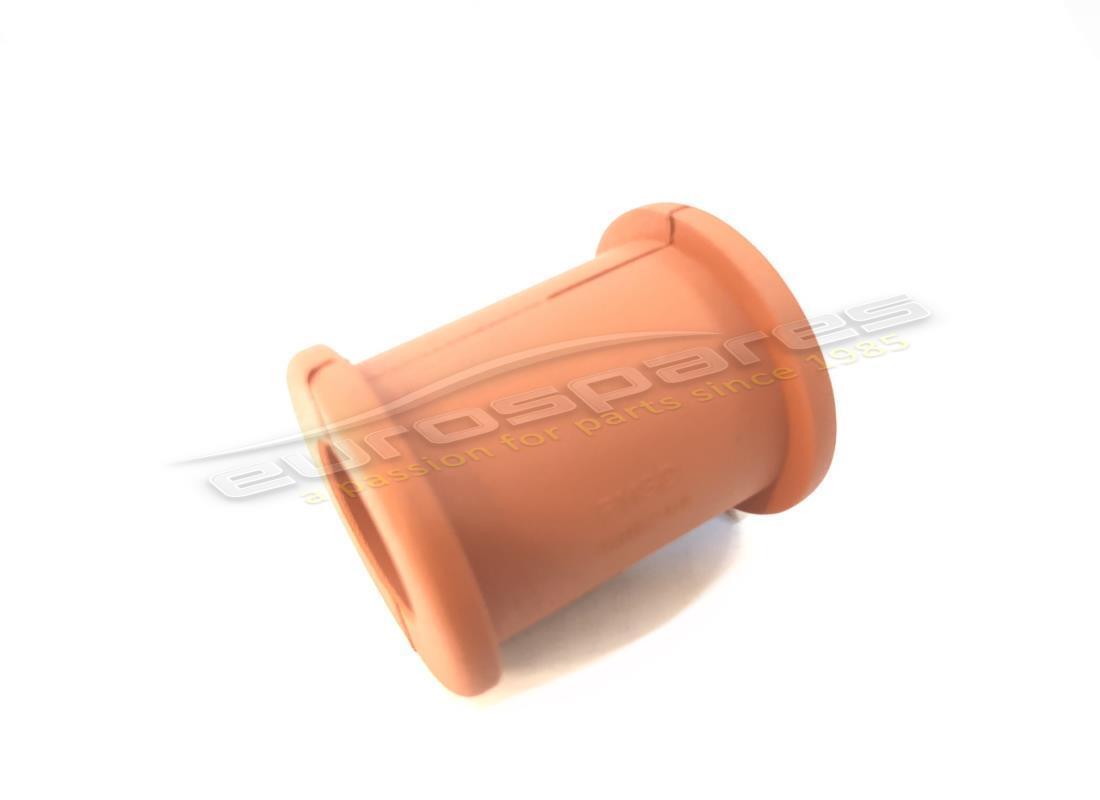

                                                                                                ROLL BAR BUSH
                                                                                                (replaces: 640335)
                                                                                                from £19.25
                                                                                                from £19.25
                                                                                                This part replaces part number 101047 - and 2 more. Click to view details
                                                                                                # 048
                                                                                                MPN: 108744
                                                                                                PLUG
                                                                                                not as spare part - use part number: 108744
                                                                                                from £19.25
                                                                                                from £19.25
                                                                                                This part replaces part number 101047 - and 2 more. Click to view details
                                                                                                # 049
                                                                                                MPN: 640577
                                                                                                FORK
                                                                                                from £100.59
                                                                                                from £100.59
                                                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
