ferrari 330 gtc coupe oil pump and filters parts diagram

012 - Oil Pump and Filters

Ferrari 330 GTC Coupe Oil Pump and Filters Parts Diagram

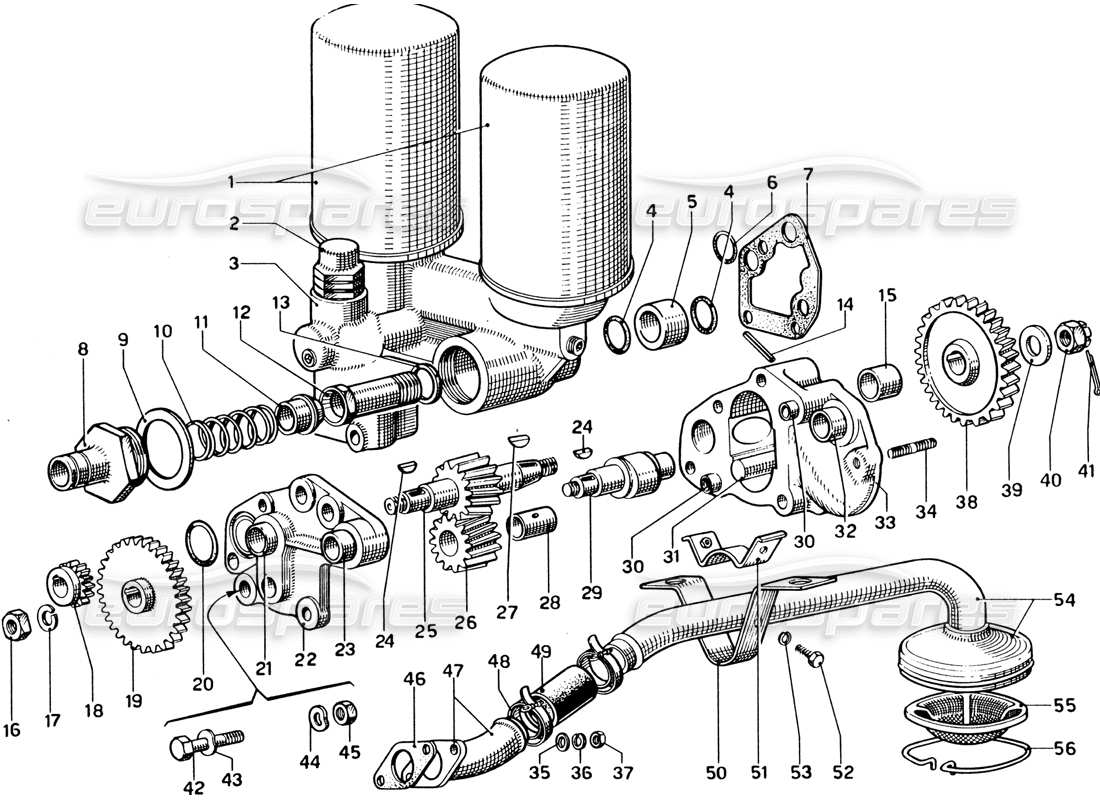

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 100325/OE
OIL FILTER (FULL FLOW)
(full flow)
from £46.95
from £46.95
# 001
MPN: MC1975/10
OIL FILTER (BY-PASS)
Orange - 14.5 mm hole
from £69.59
from £69.59
# 002
MPN: 37024000
OIL PRESSURE VALVE
# 003
MPN: 240128 / 37.106.00
BASE FOR OIL FILTER
# 004
MPN: 95860065
SEALING RING
from £1.59
from £1.59
# 004
MPN: OR 3081
SEALING RING
not as spare part - use part number: 95860065
# 005
MPN: 240129
SPACER
from £20.06
from £20.06
# 006
MPN: 95860044
SEAL
(replaces: OR 2081)
from £1.18
from £1.18
# 006
MPN: OR 2081
SEAL
not as spare part - use part number: 95860044
# 007
MPN: 240131
GASKET
from £7.00
from £7.00
# 009
MPN: 94983
GASKET
from £6.12
from £6.12
# 011
MPN: 22918
VALVOLA BY-PASS
from £78.75
from £78.75
# 012
MPN: 9220021/A
COLONNETTA
from £29.67
from £29.67
# 013
MPN: 10257460
GASKET
(replaces: 94702)
from £0.47
from £0.47
This part replaces part number 94702
# 013
MPN: 94702
GASKET
not as spare part - use part number: 10257460
Supersession
Supersession
# 014
MPN: 3 x 20
PIN
# 015
MPN: 24673
GEAR BUSH
# 016
MPN: 1 D 8-UNI-210
NUT
# 017
MPN: 8R4
WASHER
Supersession
Supersession
# 018
MPN: 34332
INGRANAGGIO DI COMANDO
from £144.59
from £144.59
# 019
MPN: 34370
DRIVEN GEAR
from £127.93
from £127.93
# 021
MPN: 24712
CENTERING DOWEL
# 022
MPN: 24841
COVER
from £74.17
from £74.17

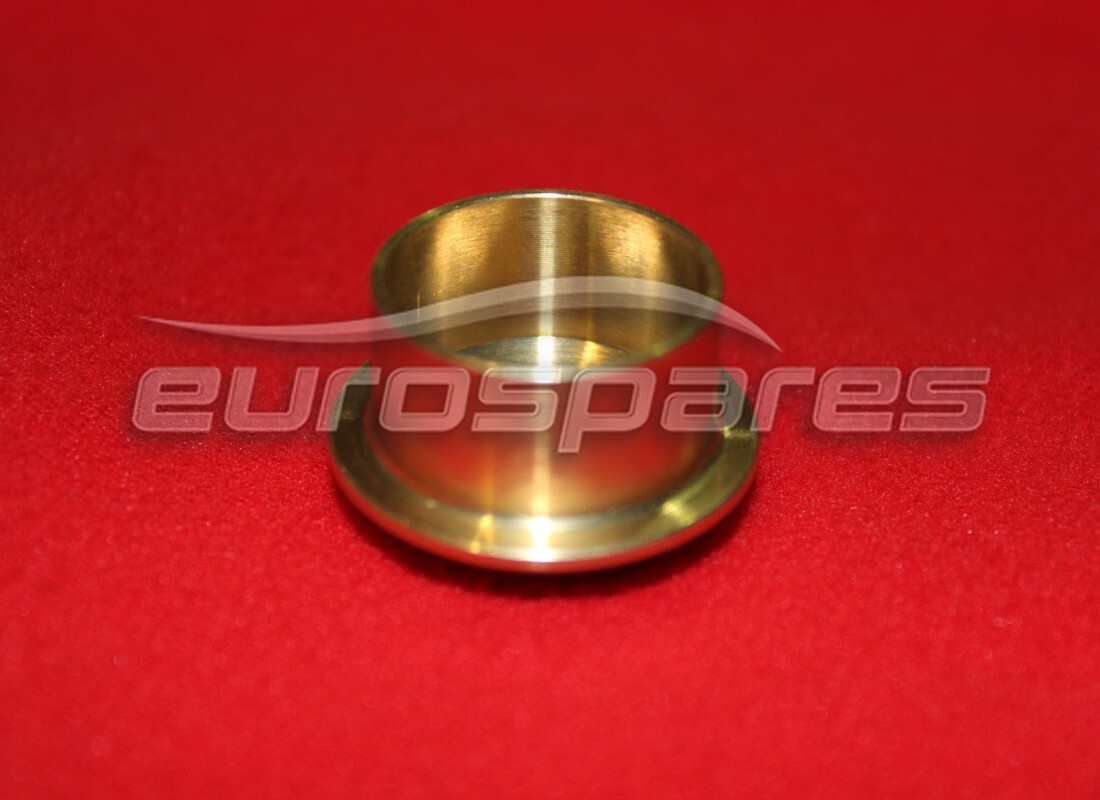

# 023
MPN: 34368
SHAFT BUSH
from £21.95
from £21.95
# 025
MPN: 240090
DRIVING GEAR
from £599.69
from £599.69
# 026
MPN: 240091
DRIVEN GEAR
from £246.19
from £246.19
# 027
MPN: 3 x 5
Key
# 028
MPN: 24111
GEAR BUSH
from £56.08
from £56.08
# 029
MPN: 34369
SHAFT WITH CAM
from £84.20
from £84.20
# 030
MPN: 100041
CENTERING DOWEL
from £3.82
from £3.82
# 032
MPN: 34367
SHAFT BUSH
from £14.86
from £14.86
# 033
MPN: 240097
Corpo pompa olio
# 034
MPN: P1
STUD
Supersession
Supersession
# 035
MPN: 103044
WASHER
from £5.19
from £5.19
# 036
MPN: 61141
WASHER
# 037
MPN: I D 6-UNI 207
NUT
# 038
MPN: 24644
INGRANAGGIO DI COMANDO
# 039
MPN: RO 024
WASHER
# 040
MPN: 94217
NUT
from £2.20
from £2.20
# 041
MPN: C1
SPLIT PIN
Supersession
Supersession
# 042
MPN: 8 x 50 UNI 186
BOLT
# 043
MPN: 8R 5
WASHER
Supersession
Supersession
# 044
MPN: 8 R2
WASHER
# 045
MPN: I D 8-UNI 208
NUT
# 046
MPN: 24557
GASKET
from £3.20
from £3.20
# 047
MPN: 24857
PIPE AND FLANGE ASSEMBLY
# 048
MPN: 13000190
JUBILEE CLIP
from £0.53
from £0.53
This part replaces part number 12178990 - and 1 more. Click to view details
# 049
MPN: 24559
SLEEVE
from £16.73
from £16.73
This part replaces part number 240299
# 050
MPN: 24859
BRACKET / SUPPORT
# 051
MPN: 24860
CAVALLOTTO PER STAFFA
# 052
MPN: 5x8 UNI 187
BOLT
# 053
MPN: 5R4
WASHER
# 054
MPN: 24858
ASSIEME TUBO E SUCCHERUOLA
# 055
MPN: 100332
SUMP FILTER
from £9.19
from £9.19
This part replaces part number 240387 - and 9 more. Click to view details
# 056
MPN: 24124
SEEGER RING
Supersession
Supersession
