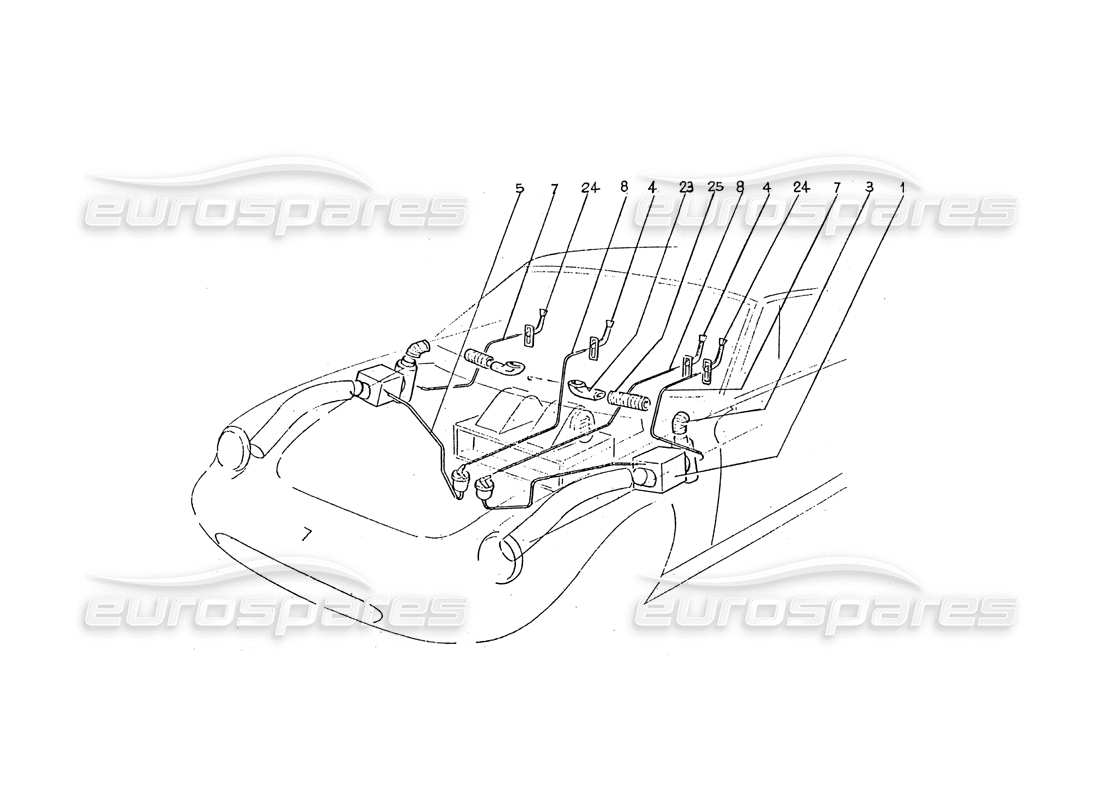

025.1 - Heating boxes (246+)
Ferrari 330 GTC / 365 GTC (Coachwork) Heating boxes (246+) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 251-86-002-3-06
APPARECCHIO RISCALDATORE D/S CPL.
# 003
MPN: 246-86-120-00
FLEXIBLE PIPE
# 004
MPN: 251-86-200-02
LEVER CONTROL DEVICE FOR HEATER
from £9.43
from £9.43
# 005
MPN: 243-86-312-00
TUBO GOMMA COLLEGAMENTO RISCALDATORE A RUBINETTO (MM.3300)
# 007
MPN: 243-86-638-10
HEATER BOX DEFLECTOR OPENING CONTROL CABLE
Interchangeable with.0
# 008
MPN: 251-86-638-10
HEATER WATER INLET TAP CONTROL CABLE
# 023
MPN: 243-86-102-00
AIR CONVEYOR VENTS ON THE DASHBOARD
# 024
MPN: 251-86-240-02
HEATER CONTROL DEVICE
from £9.43
from £9.43
# 025
MPN: 246-86-526-00
AIR DELIVERY PIPE FOR CENTRAL VENTS
