ferrari 328 (1988) front suspension - wishbones (up to car no. 76625) parts diagram

044 - Front Suspension - Wishbones (Up To Car No. 76625)

Ferrari 328 (1988) Front Suspension - Wishbones (Up To Car No. 76625) Parts Diagram

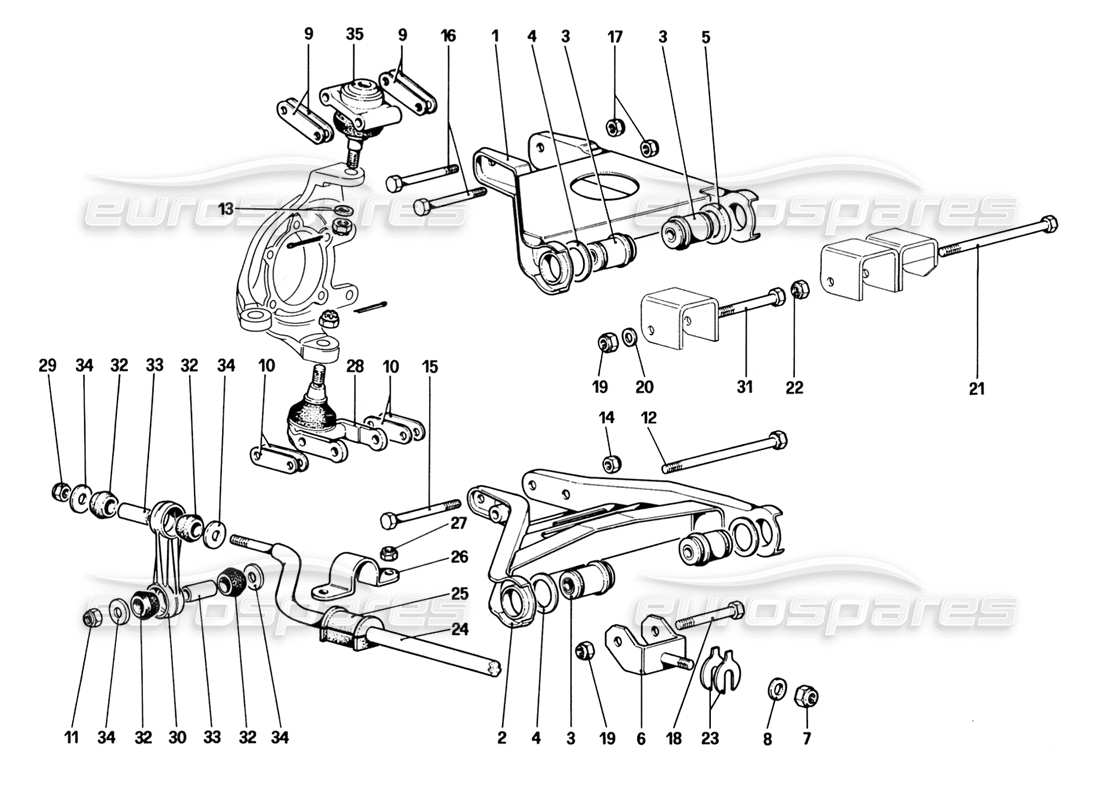

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 104393
                                                                    UPPER LEVER, LEFT
                                                                    from £295.00
                                                                    from £295.00
                                                                    # 002
                                                                    MPN: 10-44-01
                                                                    LOWER LEVER, RIGHT
                                                                    from £1,041.89
                                                                    from £1,041.89
                                                                    This part replaces part number 641274 - and 3 more. Click to view details
                                                                    # 002
                                                                    MPN: 104402
                                                                    LOWER LEVER, LEFT
                                                                    from £906.83
                                                                    from £906.83
                                                                    This part replaces part number 641565 - and 4 more. Click to view details
                                                                    # 003
                                                                    MPN: 163038
                                                                    BUSHES
                                                                    from £38.54
                                                                    from £38.54
                                                                    This part replaces part number 157701
                                                                    # 004
                                                                    MPN: 104399
                                                                    SPACER WASHER
                                                                    from £15.10
                                                                    from £15.10
                                                                    This part replaces part number 641272
                                                                    # 005
                                                                    MPN: 104400
                                                                    SPACER FOR REAR UPPER WISHBONES
                                                                    from £16.44
                                                                    from £16.44
                                                                    # 006
                                                                    MPN: 134929
                                                                    LOWER FORK - AFTER EXHAUSTION USE NO. 134929
                                                                    from £107.21
                                                                    from £107.21
                                                                    This part replaces part number 104409 - and 9 more. Click to view details
                                                                    # 007
                                                                    MPN: 150238
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 12575821 - and 2 more. Click to view details
                                                                    # 008
                                                                    MPN: 101041
                                                                    WASHER
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 10730821
                                                                    # 009
                                                                    MPN: 103256
                                                                    UPPER ADJUSTING PLATE
                                                                    from £3.15
                                                                    from £3.15
                                                                    This part replaces part number 641276
                                                                    # 010
                                                                    MPN: 101022
                                                                    LOWER ADJUSTING PLATE
                                                                    from £1.22
                                                                    from £1.22
                                                                    This part replaces part number 153963
                                                                    # 011
                                                                    MPN: 148020
                                                                    NUT
                                                                    from £2.48
                                                                    from £2.48
                                                                    This part replaces part number 102825 - and 3 more. Click to view details
                                                                    # 012
                                                                    MPN: 105344
                                                                    BOLT
                                                                    from £41.15
                                                                    from £41.15
                                                                    # 013
                                                                    MPN: 101445
                                                                    WASHER
                                                                    from £0.59
                                                                    from £0.59
                                                                    # 014
                                                                    MPN: 12574521
                                                                    NUT
                                                                    from £0.56
                                                                    from £0.56
                                                                    This part replaces part number 104114 which we have in stock - and 1 more. Click to view details
                                                                    # 015
                                                                    MPN: 15971621
                                                                    BOLT
                                                                    from £7.94
                                                                    from £7.94
                                                                    This part replaces part number 104519
                                                                    # 016
                                                                    MPN: 15971421
                                                                    BOLT
                                                                    # 017
                                                                    MPN: 12574521
                                                                    NUT
                                                                    from £0.55
                                                                    from £0.55
                                                                    This part replaces part number 104114 which we have in stock - and 1 more. Click to view details
                                                                    # 018
                                                                    MPN: 106419
                                                                    BOLT- FOR FORK NO. 134929
                                                                    from £10.77
                                                                    from £10.77
                                                                    This part replaces part number 100808 - and 11 more. Click to view details
                                                                    # 018
                                                                    MPN: 121693
                                                                    BOLT - FOR FORK NO 127636
                                                                    from £79.23
                                                                    from £79.23
                                                                    This part replaces part number 127849
                                                                    # 019
                                                                    MPN: 148020
                                                                    NUT
                                                                    from £2.34
                                                                    from £2.34
                                                                    This part replaces part number 102825 - and 3 more. Click to view details
                                                                    # 020
                                                                    MPN: 106426
                                                                    WASHER FOR UPPER WISHBONE
                                                                    from £2.50
                                                                    from £2.50
                                                                    # 021
                                                                    MPN: 105901
                                                                    BOLT
                                                                    from £17.72
                                                                    from £17.72
                                                                    # 022
                                                                    MPN: 148020
                                                                    NUT
                                                                    from £2.48
                                                                    from £2.48
                                                                    This part replaces part number 102825 - and 3 more. Click to view details
                                                                    # 023
                                                                    MPN: 107025
                                                                    SHIM FOR LOWER FORK, THICKNESS 1 MM.
                                                                    Possible fitting
                                                                    Supersession
                                                                    Supersession
                                                                    # 023
                                                                    MPN: 107338
                                                                    DITTO THICKNESS 1 ,5 MM.
                                                                    from £12.76
                                                                    from £12.76
                                                                    This part replaces part number 107418
                                                                    # 023
                                                                    MPN: 107339
                                                                    DITTO THICKNESS 2 MM.
                                                                    from £1.42
                                                                    from £1.42
                                                                    This part replaces part number 107419
                                                                    # 023
                                                                    MPN: 107340
                                                                    DITTO THICKNESS 2,5 -MM.
                                                                    from £1.51
                                                                    from £1.51
                                                                    This part replaces part number 107420
                                                                    # 023
                                                                    MPN: 107341
                                                                    DITTO THICKNESS 3 MM.
                                                                    from £2.84
                                                                    from £2.84
                                                                    This part replaces part number 107421
                                                                    # 023
                                                                    MPN: 107422
                                                                    DITTO THICKNESS 3,25 MM.
                                                                    Supersession
                                                                    Supersession
                                                                    # 024
                                                                    MPN: 125111
                                                                    STABILIZER ROD
                                                                    from £282.97
                                                                    from £282.97
                                                                    This part replaces part number 105053 which we have in stock - and 5 more. Click to view details
                                                                    # 025
                                                                    MPN: 108746
                                                                    FRONT ANTI ROLL BAR BUSH
                                                                    GTB only (GTS use 108748)
                                                                    from £24.36
                                                                    from £24.36
                                                                    # 026
                                                                    MPN: 106577
                                                                    PAD FOR ROD
                                                                    from £11.97
                                                                    from £11.97
                                                                    # 027
                                                                    MPN: 12575621
                                                                    NUT
                                                                    from £1.31
                                                                    from £1.31
                                                                    # 028
                                                                    MPN: 133944
                                                                    LOWER BALL JOINT
                                                                    from £52.50
                                                                    from £52.50
                                                                    This part replaces part number 114462 - and 13 more. Click to view details
                                                                    # 029
                                                                    MPN: 148020
                                                                    NUT
                                                                    from £2.48
                                                                    from £2.48
                                                                    This part replaces part number 102825 - and 3 more. Click to view details
                                                                    # 030
                                                                    MPN: 127809
                                                                    ROD LINK
                                                                    from £126.80
                                                                    from £126.80
                                                                    # 031
                                                                    MPN: 121693
                                                                    BOLT
                                                                    from £79.23
                                                                    from £79.23
                                                                    This part replaces part number 127849
                                                                    # 032
                                                                    MPN: 100984
                                                                    GROMMET FOR STABILIZER ROD
                                                                    from £6.48
                                                                    from £6.48
                                                                    This part replaces part number 126097 - and 1 more. Click to view details
                                                                    # 033
                                                                    MPN: 108998
                                                                    SPACER TUBE
                                                                    from £28.89
                                                                    from £28.89
                                                                    # 034
                                                                    MPN: 117730
                                                                    WASHER
                                                                    from £7.88
                                                                    from £7.88
                                                                    # 035
                                                                    MPN: 116280
                                                                    UPPER BALL JOINT
                                                                    from £40.00
                                                                    from £40.00
                                                                    This part replaces part number 101441 - and 17 more. Click to view details
