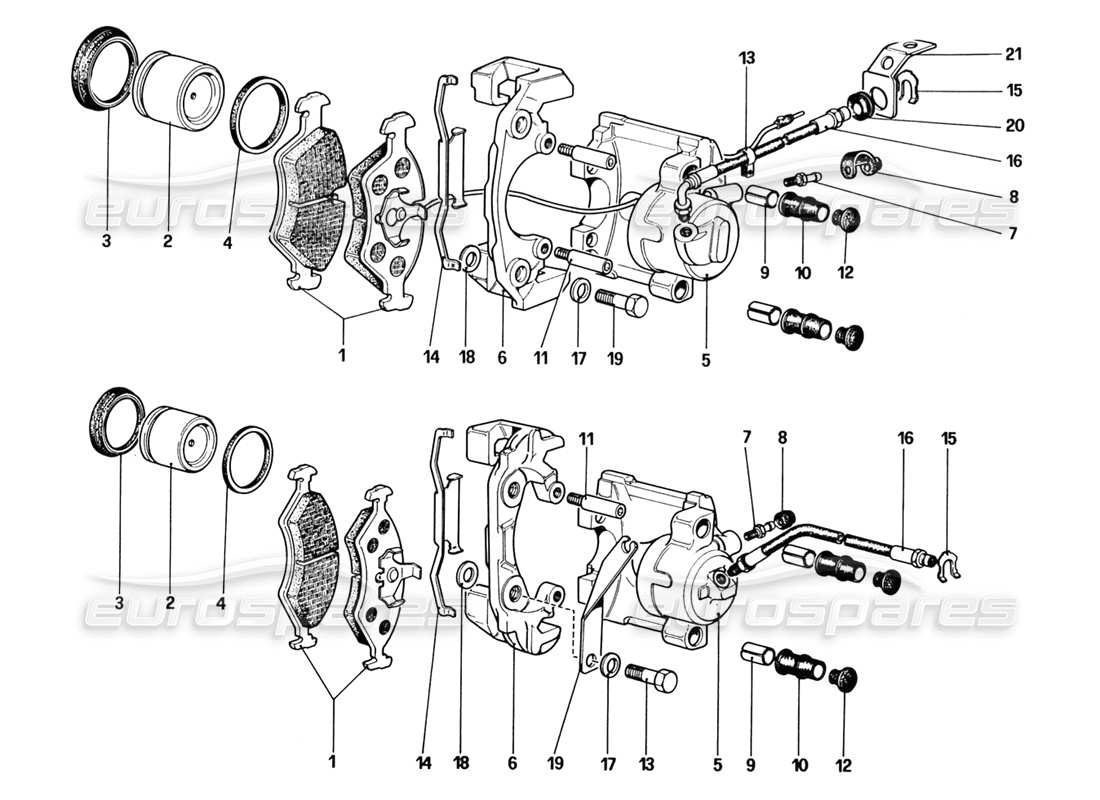

038 - Calipers for Front and Rear Brakes
Ferrari 328 (1988) Calipers for Front and Rear Brakes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 00
MPN: 116928
OVERHAUL KIT FOR REAR CALIPERS
per caliper
from £57.08
from £57.08
# 000
MPN: 116927
OVERHAUL KIT FOR FRONT CALIPERS
per caliper
from £50.40
from £50.40
# 001
MPN: 118588
FRONT BRAKE PADS
from £49.95
from £49.95
This part replaces part number 135704
# 001
MPN: 118589
REAR BRAKE PADS
from £57.75
from £57.75
# 001
MPN: 135704
FRONT PADS
Supersession
Supersession
# 001
MPN: 135705
REAR BRAKE PADS
Supersession
Supersession
This part replaces part number 118589
# 002
MPN: ATE
BRAKE CYLINDER
Not supplied as spare parts but only with units 117181 abd 117182 - 136600 and 136601
# 002
MPN: ATE
BRAKE CYLINDER
Not supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603
# 003
MPN: ATE
SEALING RING - WITH KIT NO. 116927
# 003
MPN: ATE
SEALING RING - WITH KIT NO. 116927
# 004
MPN: ATE
STOP RING
Not supplied as spare parts but only with units 117181 abd 117182 - 136600 and 136601
# 004
MPN: ATE
STOP RING
Not supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603
# 005
MPN: 117182
RIGHT FRONT CALIPER UNIT
from £162.45
from £162.45
# 005
MPN: 136600
RIGHT FRONT CALIPER UNIT
from £317.79
from £317.79
This part replaces part number 117181 - and 2 more. Click to view details
# 005
MPN: 136601
LEFT FRONT CALIPER UNIT
from £170.72
from £170.72
This part replaces part number 117182 which we have in stock - and 4 more. Click to view details
# 005
MPN: 136601
LEFT FRONT CALIPER UNIT
from £170.72
from £170.72
This part replaces part number 117182 which we have in stock - and 4 more. Click to view details
# 005
MPN: 136603
RIGHT REAR CALIPER UNIT
from £196.81
from £196.81
This part replaces part number 117184 - and 4 more. Click to view details
# 005
MPN: 136603
RIGHT REAR CALIPER UNIT
from £196.81
from £196.81
This part replaces part number 117184 - and 4 more. Click to view details
# 006
MPN: ATE
SUPPORT FOR CALIPER
Not supplied as spare parts but only with units 117181 abd 117182 - 136600 and 136601
# 006
MPN: ATE
SUPPORT FOR CALIPER
Not supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603
# 007
MPN: ATE
BLEEDER
Not supplied as spare parts but only with units 117181 abd 117182 - 136600 and 136601
# 007
MPN: ATE
BLEEDER
Not supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603
# 008
MPN: ATE
BLEEDER CAP
# 008
MPN: ATE
BLEEDER CAP
Not supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603
# 009
MPN: ATE
GUIDE BUSH - WITH KIT NO. 116727
# 009
MPN: ATE
GUIDE BUSH - WITH KIT NO. 116928
# 010
MPN: ATE
DUST PROTECTION RING - COL KIT NO. 116927
# 010
MPN: ATE
DUST PROTECTION RING - WITH KIT NO. 116928
# 011
MPN: 95691540
THREADED PIN
from £23.48
from £23.48
# 011
MPN: 95691540
THREADED PIN
from £23.48
from £23.48
# 012
MPN: ATE
CAP - WITH KIT NO. 116927
# 012
MPN: ATE
CAP - WITH KIT NO. 116928
# 013
MPN: 117194
CALIPERS FIXING SCREW
from £14.01
from £14.01
# 013
MPN: 401354020
CLAMP FOR PAD CABLE
# 014
MPN: 95691541
CLIP FOR CALIPER
from £47.82
from £47.82
# 014
MPN: 95691542
CLIP FOR CALIPER
from £7.41
from £7.41
# 015
MPN: 116374
CLAMP FOR HOSE
from £1.15
from £1.15
# 015
MPN: 116374
CLAMP FOR HOSE
from £1.15
from £1.15
# 016
MPN: 118101
FRONT BRAKE HOSE
from £135.00
from £135.00
# 016
MPN: 271712
REAR BRAKE HOSE
from £14.70
from £14.70
This part replaces part number 118100 which we have in stock
# 017
MPN: 106854
WASHER
Supersession
Supersession
# 017
MPN: 11198371
WASHER
from £0.47
from £0.47
# 018
MPN: 107835
DITTO, THICKNESS 1MM
from £7.82
from £7.82
# 018
MPN: 108283
DITTO, THICKNESS 0,4 MM.
from £0.79
from £0.79
# 018
MPN: 108922
DITTO, THICKNESS 0,7 MM.
Supersession
Supersession
# 018
MPN: 117084
SHIM BETWEEN CALIPER AND HUB HOLDER - 0,2 MM. THICKNESS
from £0.47
from £0.47
# 018
MPN: 117085
DITTO, THICKNESS 0,3 MM.
from £0.47
from £0.47
# 018
MPN: 117086
DITTO, THICKNESS 0,5 MM.
from £0.88
from £0.88
# 018
MPN: 156260
SHIM BETWEEN CALIPER AND STUB AXLE, 0,2 MM. THICKNESS
from £0.84
from £0.84
This part replaces part number 108918
# 018
MPN: 156261
DITTO, THICKNESS 0,3 MM.
from £2.97
from £2.97
This part replaces part number 108919
# 018
MPN: 156262
DITTO, THICKNESS 0,5 MM.
from £0.84
from £0.84
This part replaces part number 108920
# 018
MPN: 156263
DITTO, THICKNESS 0,6 MM.
from £0.86
from £0.86
This part replaces part number 108921
# 018
MPN: 156265
DITTO, THICKNESS 0,8 MM.
from £1.56
from £1.56
This part replaces part number 108923
# 018
MPN: 156266
DITTO, THICKNESS 1 MM.
from £0.84
from £0.84
This part replaces part number 108924
# 019
MPN: 117193
SCREW FIXING CALIPER TO STUB AXLE
from £28.94
from £28.94
# 019
MPN: 131869
RIGHT BRACKET
from £3.00
from £3.00
# 019
MPN: 131870
LEFT BRACKET
from £3.00
from £3.00
# 020
MPN: 10397680
FAIR-LEAD
from £0.59
from £0.59
# 021
MPN: 127839
LEFT BRAKET FOR HOSE
from £16.31
from £16.31
# 021
MPN: 127847
RIGHT BRAKET FOR HOSE
from £7.08
from £7.08
# 021
MPN: 136602
LEFT REAR CALIPER UNIT
from £178.51
from £178.51
This part replaces part number 117183 - and 3 more. Click to view details
-part-diagram-039.webp "FERRARI 328 (1988) HAND - BRAKE CONTROLL PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 328 (1988) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 328 (1988) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 328 (1988) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UP TO CAR NO. 76625) PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 328 (1988) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (STARTING FROM CAR NO. 76626) PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 328 (1988) FRONT SUSPENSION - WISHBONES (UP TO CAR NO. 76625) PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 328 (1988) FRONT SUSPENSION - WISHBONES (STARTING FROM CAR NO. 76626) PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 328 (1988) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UP TO CAR NO. 76625) PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 328 (1988) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (STARTING FROM CAR NO. 76626) PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 328 (1988) REAR SUSPENSION - WISHBONES (UP TO CAR NO. 76625) PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 328 (1988) REAR SUSPENSION - WISHBONES (STARTING FROM CAR NO. 76626) PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI 328 (1988) WHEELS (UP TO CAR NO. 76625) PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI 328 (1988) WHEELS (STARTING FROM CAR NO. 76626) PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI 328 (1988) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI 328 (1988) ELECTRIC GENERATING SYSTEM PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI 328 (1988) AIR CONDITIONING COMPRESSOR AND CONTROLS (NOT FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI 328 (1988) AIR CONDITIONING COMPRESSOR AND CONTROLS (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI 328 (1988) TOOL KIT & CAR COVER PARTS DIAGRAM")
-part-diagram-057.webp "FERRARI 328 (1988) THROTTLE CONTROLL (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-058.webp "FERRARI 328 (1988) PEDAL BOARD - CLUTCH CONTROLL (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-059.webp "FERRARI 328 (1988) PEDAL BOARD - CLUTCH CONTROLL (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-060.webp "FERRARI 328 (1988) BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-061.webp "FERRARI 328 (1988) BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 328 (1988) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 328 (1988) FRONT BUMPERS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 328 (1988) REAR BUMPERS PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 328 (1988) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 328 (1988) BODY SHELL - INNER ELEMENTS (NOT FOR AUS - US - SA - J - CH87 - CH88) PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 328 (1988) BODY SHELL - INNER ELEMENTS (FOR AUS AND CH87 AND CH88) PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 328 (1988) BODY SHELL - INNER ELEMENTS (FOR US - SA - J) PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 328 (1988) LUGGAGE AND PASSENGER COMPARTMENT INSULATION (UNTILL CAR NO. 66965 - NOT FOR US - AUS - CH87 - SA - J) PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 328 (1988) LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FROM CAR NO. 66967 - NOT FOR US - AUS - CH87 - SA - J) PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 328 (1988) LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FOR US - AUS - SA - J) PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 328 (1988) LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FOR CH87 - CH88) PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI 328 (1988) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 328 (1988) REAR BONNET AND LUGGAGE COMPARTMENT COVERING PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 328 (1988) DOORS (UNTILL CAR NO. 71595) PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI 328 (1988) DOORS (FROM CAR NO. 71597) PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI 328 (1988) DOORS (FROM CAR NO. 71597) PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 328 (1988) DOORS (FROM CAR NO. 75929) PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 328 (1988) GLASSES PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 328 (1988) INTERIOR TRIM, ACCESSORIES AND SEATS PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 328 (1988) SEAT PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 328 (1988) TUNNEL AND ROOF PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI 328 (1988) INSTRUMENTS PANEL (UNTILL CAR NO. 71595) PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI 328 (1988) INSTRUMENTS PANEL (FROM CAR NO. 71597) PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI 328 (1988) INSTRUMENTS AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI 328 (1988) ELECTRICAL SYSTEM - CABLES PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI 328 (1988) ELECRRICAL BOARDS PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI 328 (1988) EXTERNAL LIGHTS AND MOULDING PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI 328 (1988) LIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI 328 (1988) WINDSHIELD WIPER, WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI 328 (1988) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI 328 (1988) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 328 (1988) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 328 (1988) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 328 (1988) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 328 (1988) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 328 (1988) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 328 (1988) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 328 (1988) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 328 (1988) TIMING SYSTER - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 328 (1988) AIR INJECTION (FOR CH86 AND CH87 VERSION) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 328 (1988) AIR INJECTION (FOR USA AND CH88 VERSION) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 328 (1988) ANTIEVAPORATIVE EMISSION CONTROLL SYSTEM (FOR USA - SA AND CH88 VERSION) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 328 (1988) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 328 (1988) FUEL DISTRIBUTORS LINES (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 328 (1988) FUEL DISTRIBUTORS LINES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 328 (1988) FUEL DISTRIBUTORS LINES (FOR CH88 VERSION) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 328 (1988) AIR INTAKE AND MANIFOLDS PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 328 (1988) THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 328 (1988) EXHAUST SYSTEM (NOT FOR US - SA - CH87 AND CH88 VERSION) PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 328 (1988) EXHAUST SYSTEM (FOR US - SA - CH87 AND CH88 VERSION) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 328 (1988) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 328 (1988) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 328 (1988) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 328 (1988) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 328 (1988) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 328 (1988) CLUTCH RELEASE CONTROL (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 328 (1988) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 328 (1988) GEARBOX - DIFFERENTIAL HOUSING AND OIL PUMP PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 328 (1988) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 328 (1988) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 328 (1988) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 328 (1988) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 328 (1988) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 328 (1988) PEDAL BOARD - BRAKE AND CLUTCH CONTROLS (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 328 (1988) CLUTCH HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 328 (1988) HYDRAULIC SYSTEM FOR ANTISKID PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 328 (1988) BRAKE SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 328 (1988) ANTI SKID SYSTEM PARTS DIAGRAM")
