ferrari 328 (1988) cooling system parts diagram

022 - Cooling System

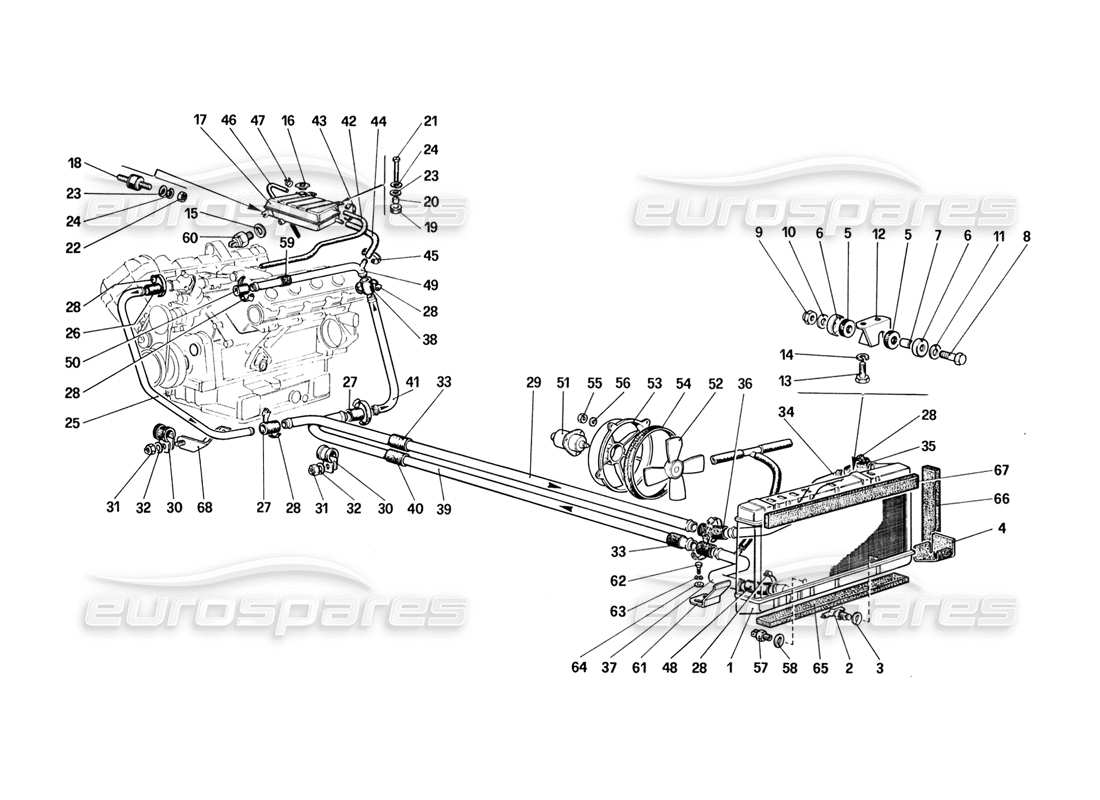

Ferrari 328 (1988) Cooling System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                              #
                                                                                                                              Part number
                                                                                                                              Description
                                                                                                                              Price
                                                                                                                              # 001
                                                                                                                              MPN: 126879
                                                                                                                              WATER RADIATOR
                                                                                                                              from £2,531.56
                                                                                                                              from £2,531.56
                                                                                                                              # 002
                                                                                                                              MPN: 101488
                                                                                                                              RADIATOR DRAIN TAP
                                                                                                                              from £123.28
                                                                                                                              from £123.28
                                                                                                                              # 003
                                                                                                                              MPN: 101496
                                                                                                                              GASKET
                                                                                                                              from £3.20
                                                                                                                              from £3.20
                                                                                                                              # 004
                                                                                                                              MPN: 117994
                                                                                                                              RUBBER SHIM, VIBRATION DAMPING
                                                                                                                              from £29.67
                                                                                                                              from £29.67
                                                                                                                              # 005
                                                                                                                              MPN: 107978
                                                                                                                              PAD
                                                                                                                              from £1.07
                                                                                                                              from £1.07
                                                                                                                              # 006
                                                                                                                              MPN: 107979
                                                                                                                              CAP
                                                                                                                              from £1.07
                                                                                                                              from £1.07
                                                                                                                              # 007
                                                                                                                              MPN: 107980
                                                                                                                              SPACER
                                                                                                                              from £1.54
                                                                                                                              from £1.54
                                                                                                                              # 008
                                                                                                                              MPN: 16043821
                                                                                                                              SCREW
                                                                                                                              from £0.71
                                                                                                                              from £0.71
                                                                                                                              # 011
                                                                                                                              MPN: 108292
                                                                                                                              WASHER
                                                                                                                              from £5.03
                                                                                                                              from £5.03
                                                                                                                              # 012
                                                                                                                              MPN: 117995
                                                                                                                              BRACKET
                                                                                                                              from £21.47
                                                                                                                              from £21.47
                                                                                                                              # 013
                                                                                                                              MPN: 16043021
                                                                                                                              SCREW
                                                                                                                              from £0.51
                                                                                                                              from £0.51
                                                                                                                              # 014
                                                                                                                              MPN: 11194071
                                                                                                                              WASHER
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              # 015
                                                                                                                              MPN: 10260060
                                                                                                                              GASKET - FOR US
                                                                                                                              from £0.79
                                                                                                                              from £0.79
                                                                                                                              # 016
                                                                                                                              MPN: 101499
                                                                                                                              RADIATOR PRESSURE CAP
                                                                                                                              Round cap 0.9 Bar
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 149165
                                                                                                                              # 017
                                                                                                                              MPN: 120273

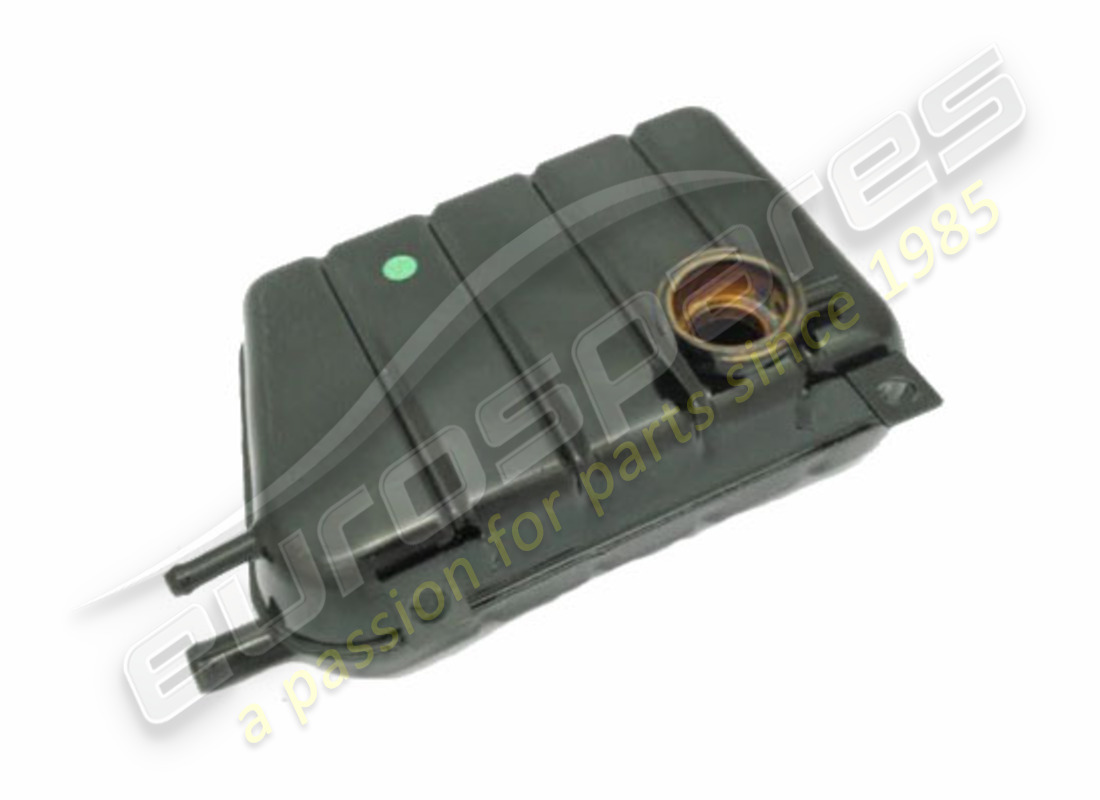

                                                                                                                              EXPANSION TANK
                                                                                                                              from £540.00
                                                                                                                              from £540.00
                                                                                                                              This part replaces part number 116589
                                                                                                                              # 017
                                                                                                                              MPN: 121647
                                                                                                                              EXPANSION TANK
                                                                                                                              For U.S.& Australian Version
                                                                                                                              from £427.19
                                                                                                                              from £427.19
                                                                                                                              # 017
                                                                                                                              MPN: 130641
                                                                                                                              EXPANSION TANK - (SWISS SPEC.)
                                                                                                                              from £376.63
                                                                                                                              from £376.63
                                                                                                                              # 018
                                                                                                                              MPN: 102947
                                                                                                                              VIBRATION - DAMPING SUPPORT
                                                                                                                              from £6.17
                                                                                                                              from £6.17
                                                                                                                              This part replaces part number 102007 - and 14 more. Click to view details
                                                                                                                              # 019
                                                                                                                              MPN: 103549
                                                                                                                              RUBBER BUSH
                                                                                                                              from £0.68
                                                                                                                              from £0.68
                                                                                                                              # 020
                                                                                                                              MPN: 103550
                                                                                                                              SPACER
                                                                                                                              from £1.92
                                                                                                                              from £1.92
                                                                                                                              This part replaces part number 4130913
                                                                                                                              # 021
                                                                                                                              MPN: 10902421
                                                                                                                              SCREW
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              # 022
                                                                                                                              MPN: 15896211
                                                                                                                              NUT
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 15896210
                                                                                                                              # 023
                                                                                                                              MPN: 12643701
                                                                                                                              WASHER
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                                              # 024
                                                                                                                              MPN: 106850
                                                                                                                              WASHER
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                                                              # 025
                                                                                                                              MPN: 106691
                                                                                                                              REAR PIPE, RH - FOR RHD USE NO. 108053
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              # 026
                                                                                                                              MPN: 122817
                                                                                                                              SLEEVE
                                                                                                                              For RHD use no. 102956
                                                                                                                              from £21.76
                                                                                                                              from £21.76
                                                                                                                              This part replaces part number 121259
                                                                                                                              # 027
                                                                                                                              MPN: 105190
                                                                                                                              SLEEVE
                                                                                                                              from £16.64
                                                                                                                              from £16.64
                                                                                                                              This part replaces part number 106364
                                                                                                                              # 028
                                                                                                                              MPN: 296782
                                                                                                                              CLAMP
                                                                                                                              from £4.89
                                                                                                                              from £4.89
                                                                                                                              This part replaces part number 12174090
                                                                                                                              # 029

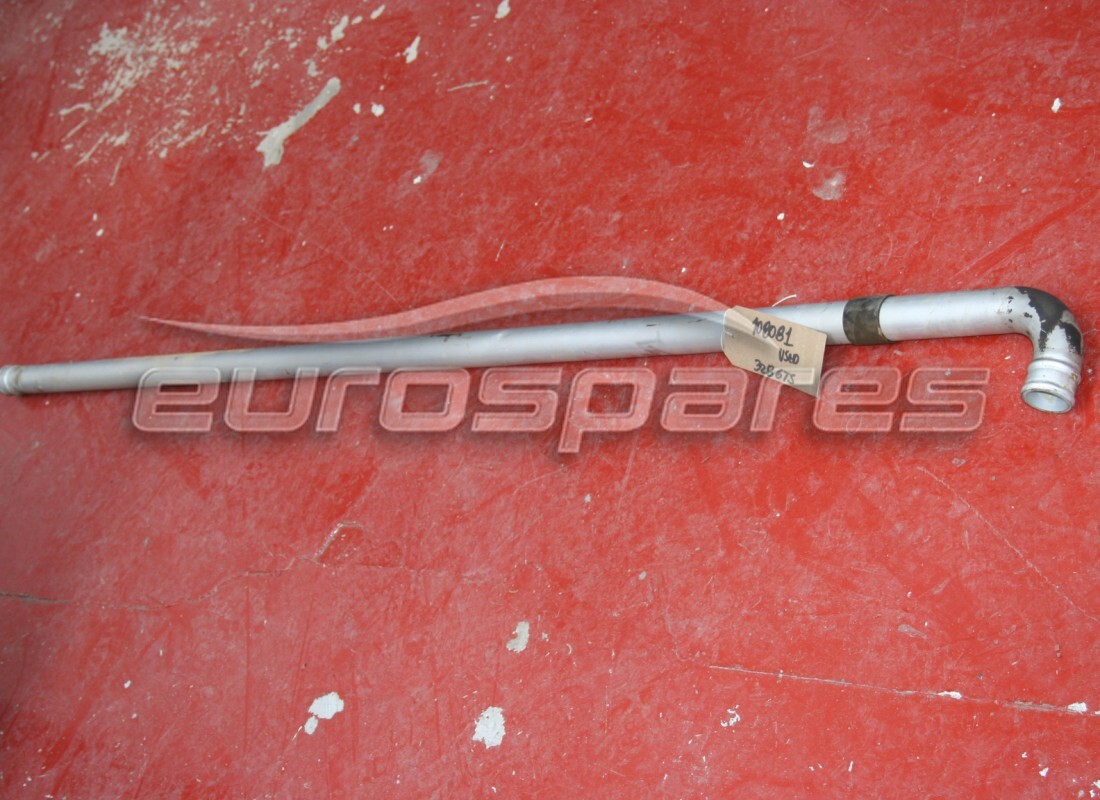

                                                                                                                              MPN: 108081
                                                                                                                              CENTRAL PIPE DELIVERY TO RADIATOR - FOR RHD USE NO. 108082
                                                                                                                              from £201.11
                                                                                                                              from £201.11
                                                                                                                              # 030
                                                                                                                              MPN: 107002
                                                                                                                              CLAMP
                                                                                                                              from £7.32
                                                                                                                              from £7.32
                                                                                                                              # 031
                                                                                                                              MPN: 12574211
                                                                                                                              NUT
                                                                                                                              from £0.71
                                                                                                                              from £0.71
                                                                                                                              # 032
                                                                                                                              MPN: 12643701
                                                                                                                              WASHER
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                                              # 033
                                                                                                                              MPN: 105385
                                                                                                                              VIBRATION DAMPING SLEEVE
                                                                                                                              from £28.33
                                                                                                                              from £28.33

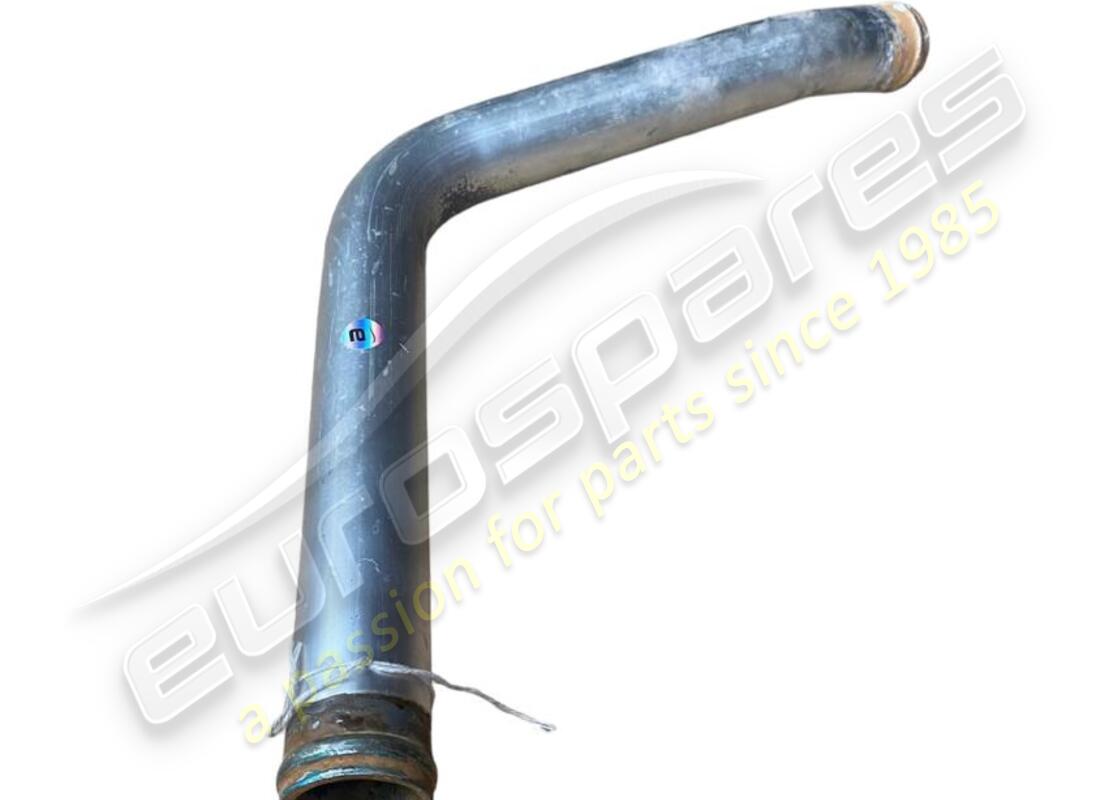

                                                                                                                              # 034
                                                                                                                              MPN: 127393
                                                                                                                              FRONT PIPE DELIVERY TO RADIATOR - AFTER EXHAUSTION USE NO. 137962 - FOR RHD USE NO. 137963
                                                                                                                              from £119.88
                                                                                                                              from £119.88
                                                                                                                              # 035
                                                                                                                              MPN: 122817
                                                                                                                              SLEEVE
                                                                                                                              For RHD use no. 102956
                                                                                                                              from £21.76
                                                                                                                              from £21.76
                                                                                                                              This part replaces part number 121259
                                                                                                                              # 036
                                                                                                                              MPN: 121258
                                                                                                                              SLEEVE
                                                                                                                              from £19.23
                                                                                                                              from £19.23
                                                                                                                              This part replaces part number 10147087 - and 4 more. Click to view details
                                                                                                                              # 037
                                                                                                                              MPN: 118636
                                                                                                                              RETURN PIPE, FRONT - FOR RHD USE NO. 109504
                                                                                                                              from £96.27
                                                                                                                              from £96.27
                                                                                                                              # 038
                                                                                                                              MPN: 121258
                                                                                                                              SLEEVE
                                                                                                                              from £19.23
                                                                                                                              from £19.23
                                                                                                                              This part replaces part number 10147087 - and 4 more. Click to view details
                                                                                                                              # 039
                                                                                                                              MPN: 108082
                                                                                                                              RETURN PIPE, CENTRAL
                                                                                                                              from £151.52
                                                                                                                              from £151.52
                                                                                                                              # 040
                                                                                                                              MPN: 107465
                                                                                                                              VIBRATION DAMPING SLEEVE
                                                                                                                              from £27.42
                                                                                                                              from £27.42
                                                                                                                              # 041
                                                                                                                              MPN: 118795
                                                                                                                              REAR PIPE, LH - FOR RHD USE NO. 120497
                                                                                                                              from £29.30
                                                                                                                              from £29.30
                                                                                                                              # 042
                                                                                                                              MPN: 122218
                                                                                                                              BREATHER PIPE, ENGINE TO WATER RESERVOIR
                                                                                                                              from £24.97
                                                                                                                              from £24.97
                                                                                                                              This part replaces part number 103471 - and 1 more. Click to view details
                                                                                                                              # 043
                                                                                                                              MPN: 13000190
                                                                                                                              CLAMP
                                                                                                                              from £0.53
                                                                                                                              from £0.53
                                                                                                                              This part replaces part number 12178990 - and 1 more. Click to view details
                                                                                                                              # 044
                                                                                                                              MPN: 122221
                                                                                                                              FEEDING PIPE, EXPANSION TANK TO ENGINE
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 115637
                                                                                                                              # 045
                                                                                                                              MPN: 13000490
                                                                                                                              CLAMP
                                                                                                                              from £0.53
                                                                                                                              from £0.53
                                                                                                                              This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                                                              # 046
                                                                                                                              MPN: 126292
                                                                                                                              BREATHER PIPE
                                                                                                                              from £90.98
                                                                                                                              from £90.98
                                                                                                                              # 047
                                                                                                                              MPN: 13423379
                                                                                                                              CLAMP
                                                                                                                              from £0.71
                                                                                                                              from £0.71
                                                                                                                              # 048
                                                                                                                              MPN: 122817
                                                                                                                              SLEEVE
                                                                                                                              For RHD use no. 102956
                                                                                                                              from £21.76
                                                                                                                              from £21.76
                                                                                                                              This part replaces part number 121259
                                                                                                                              # 049
                                                                                                                              MPN: 115136
                                                                                                                              PIPE BETWEEN HEADS
                                                                                                                              from £129.52
                                                                                                                              from £129.52
                                                                                                                              # 050
                                                                                                                              MPN: 122817
                                                                                                                              SLEEVE
                                                                                                                              from £21.76
                                                                                                                              from £21.76
                                                                                                                              This part replaces part number 121259
                                                                                                                              # 051
                                                                                                                              MPN: 117546
                                                                                                                              ELECTRIC FAN MOTOR
                                                                                                                              from £815.97
                                                                                                                              from £815.97
                                                                                                                              # 052
                                                                                                                              MPN: 122953
                                                                                                                              FAN
                                                                                                                              from £42.27
                                                                                                                              from £42.27
                                                                                                                              # 053
                                                                                                                              MPN: 60870300
                                                                                                                              CONVEYOR
                                                                                                                              from £159.46
                                                                                                                              from £159.46
                                                                                                                              # 054
                                                                                                                              MPN: 126883
                                                                                                                              GASKET
                                                                                                                              from £10.83
                                                                                                                              from £10.83
                                                                                                                              # 055
                                                                                                                              MPN: 12574211
                                                                                                                              NUT
                                                                                                                              from £0.71
                                                                                                                              from £0.71
                                                                                                                              # 056
                                                                                                                              MPN: 12643701
                                                                                                                              WASHER
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                                              # 057
                                                                                                                              MPN: 168008
                                                                                                                              THERMOCONTACT
                                                                                                                              from £28.44
                                                                                                                              from £28.44
                                                                                                                              This part replaces part number 101507 - and 1 more. Click to view details
                                                                                                                              # 058
                                                                                                                              MPN: 101508
                                                                                                                              GASKET
                                                                                                                              from £0.69
                                                                                                                              from £0.69
                                                                                                                              This part replaces part number 94706
                                                                                                                              # 059
                                                                                                                              MPN: 105385
                                                                                                                              SLEEVE
                                                                                                                              from £28.33
                                                                                                                              from £28.33
                                                                                                                              # 060
                                                                                                                              MPN: 121777
                                                                                                                              THERMOSTAT - FOR US
                                                                                                                              from £168.47
                                                                                                                              from £168.47

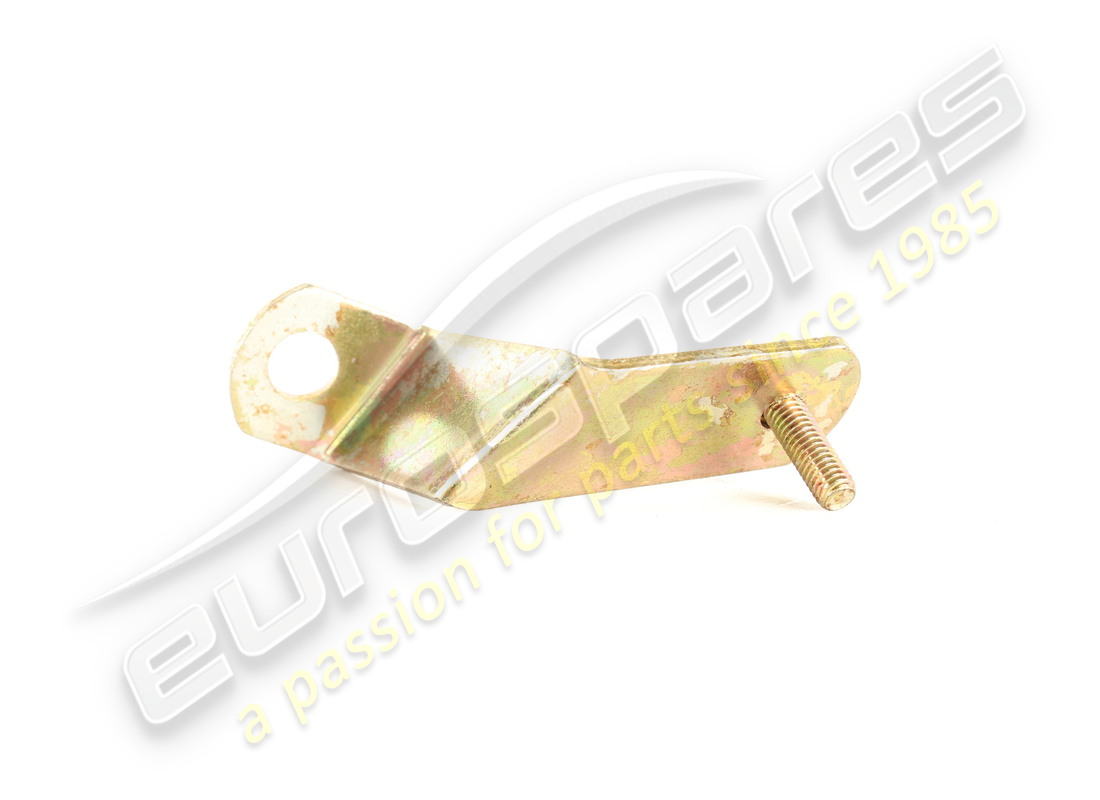

                                                                                                                              # 061
                                                                                                                              MPN: 130113
                                                                                                                              BRACKET
                                                                                                                              from £17.31
                                                                                                                              from £17.31
                                                                                                                              # 062
                                                                                                                              MPN: 10902211
                                                                                                                              SCREW
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              # 063
                                                                                                                              MPN: 12646701
                                                                                                                              WASHER
                                                                                                                              from £0.53
                                                                                                                              from £0.53
                                                                                                                              # 064
                                                                                                                              MPN: 127494
                                                                                                                              WASHER
                                                                                                                              (minimum order quantity = 20)
                                                                                                                              from £0.53
                                                                                                                              from £0.53
                                                                                                                              This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                              # 065
                                                                                                                              MPN: 60773400
                                                                                                                              GASKET
                                                                                                                              from £192.41
                                                                                                                              from £192.41
                                                                                                                              This part replaces part number 40231805 - and 1 more. Click to view details
                                                                                                                              # 066
                                                                                                                              MPN: 61980300
                                                                                                                              GASKET
                                                                                                                              from £18.19
                                                                                                                              from £18.19
                                                                                                                              # 067
                                                                                                                              MPN: 62369000
                                                                                                                              GASKET
                                                                                                                              from £41.21
                                                                                                                              from £41.21
                                                                                                                              # 068
                                                                                                                              MPN: 129642
                                                                                                                              BRACKET - FOR US
                                                                                                                              from £63.00
                                                                                                                              from £63.00
