ferrari 328 (1985) heating system parts diagram

120 - Heating System

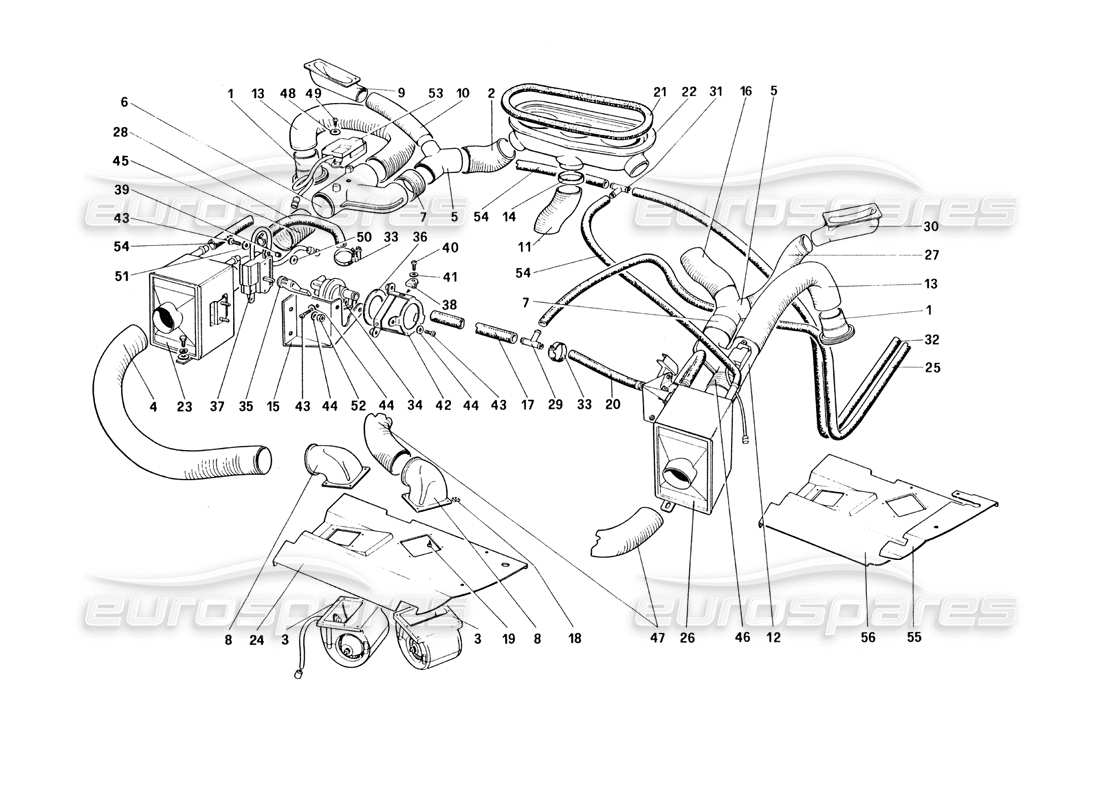

Ferrari 328 (1985) Heating System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 66654499

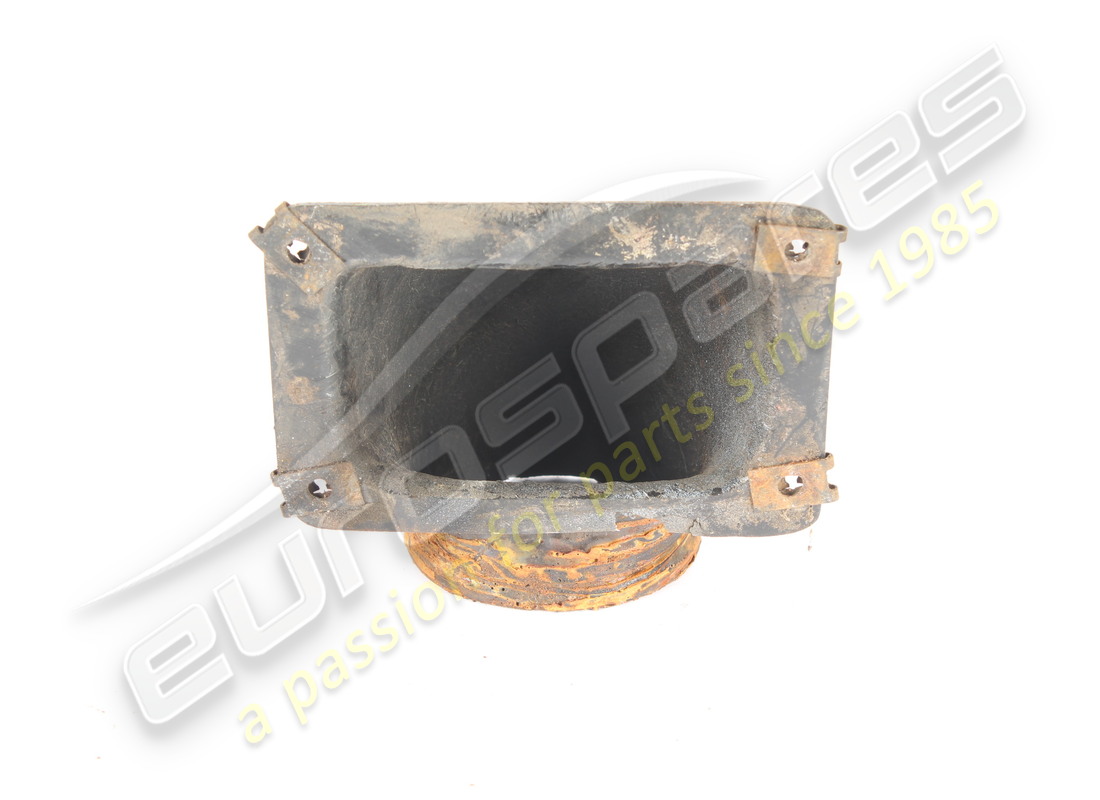

                                                                                                            UNDER AIR OUTLET
                                                                                                            from £157.00
                                                                                                            from £157.00
                                                                                                            # 002
                                                                                                            MPN: 61790999

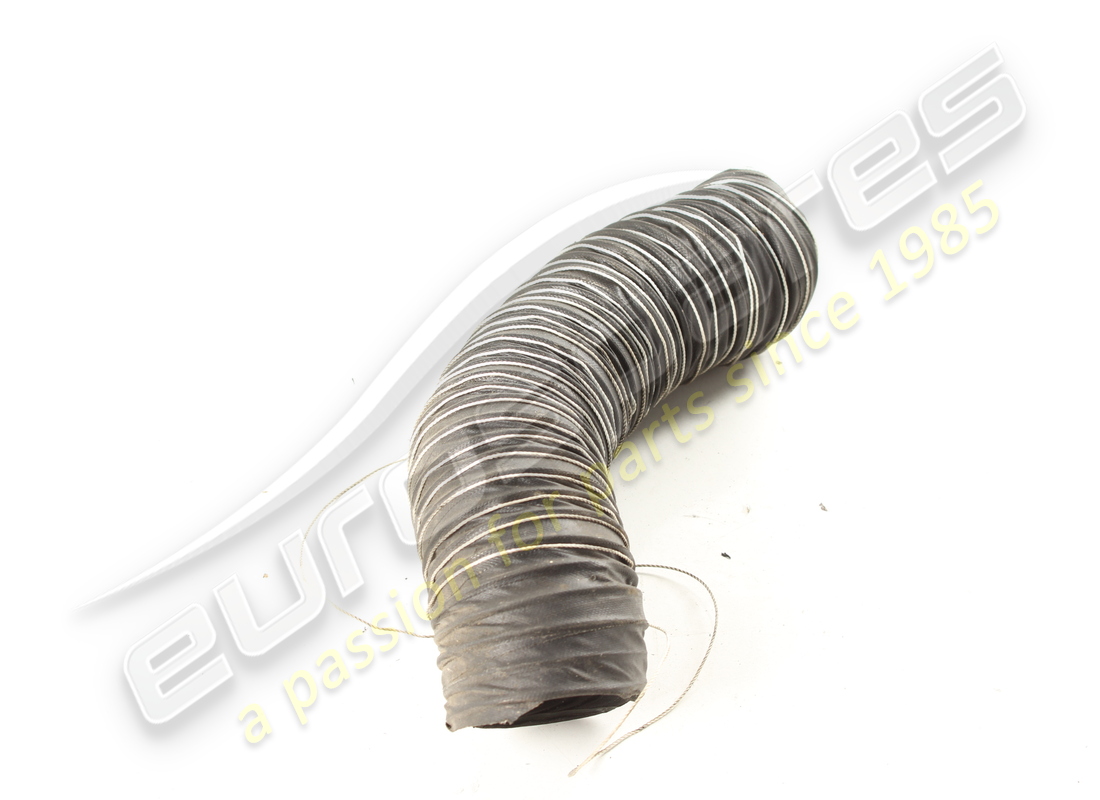

                                                                                                            AIR DUCT
                                                                                                            # 003
                                                                                                            MPN: 61990000
                                                                                                            ELECTRO FAN
                                                                                                            from £179.19
                                                                                                            from £179.19
                                                                                                            This part replaces part number 61738700 - and 1 more. Click to view details
                                                                                                            # 004
                                                                                                            MPN: 61799209
                                                                                                            RH AIR DUCT
                                                                                                            # 005
                                                                                                            MPN: 60153608

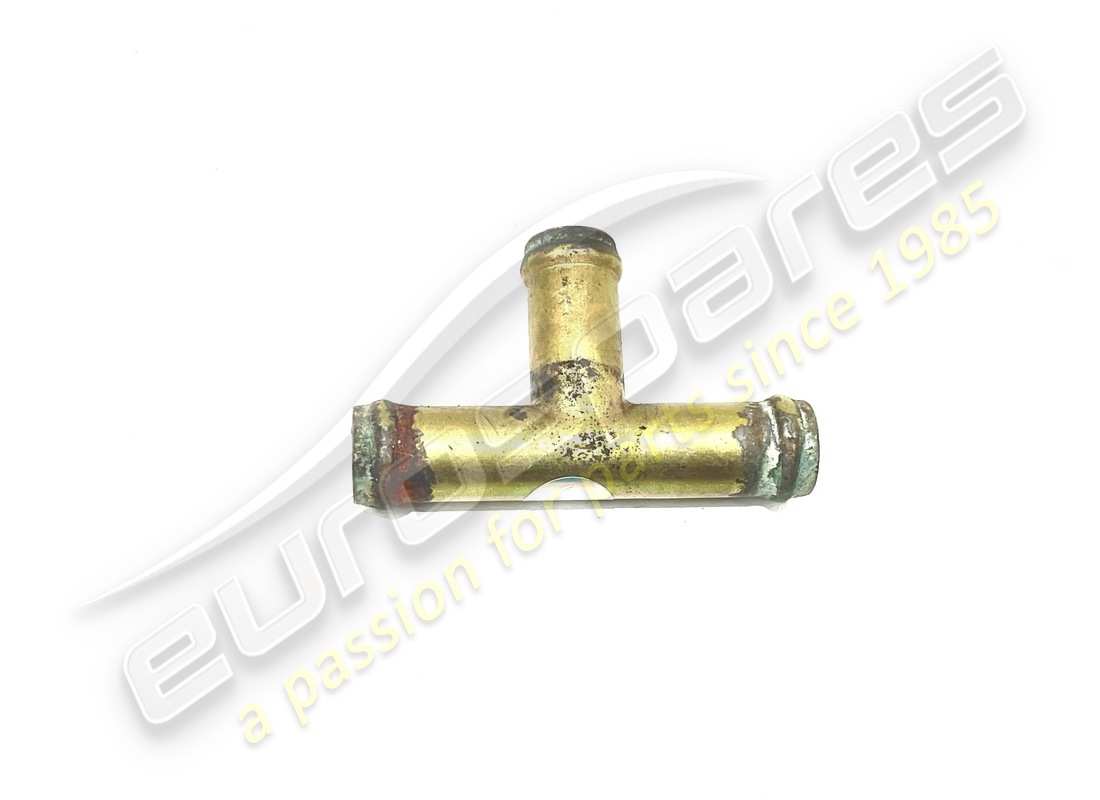

                                                                                                            3 WAY FITTING
                                                                                                            from £7.16
                                                                                                            from £7.16
                                                                                                            This part replaces part number 50022003 - and 3 more. Click to view details
                                                                                                            # 006
                                                                                                            MPN: 61738900
                                                                                                            RH SWITCH
                                                                                                            from £58.27
                                                                                                            from £58.27
                                                                                                            # 007
                                                                                                            MPN: 61790800

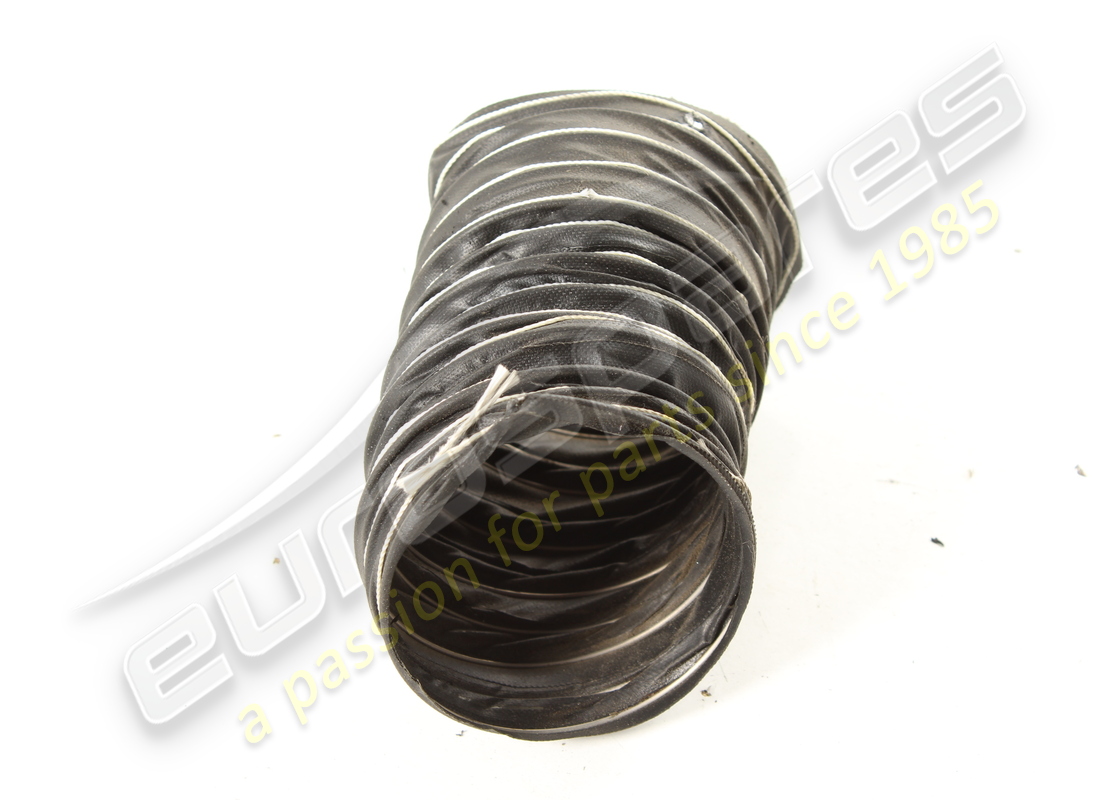

                                                                                                            AIR DUCT
                                                                                                            from £15.87
                                                                                                            from £15.87
                                                                                                            # 008
                                                                                                            MPN: 61770100
                                                                                                            UNION
                                                                                                            from £124.51
                                                                                                            from £124.51
                                                                                                            # 009
                                                                                                            MPN: 60055407
                                                                                                            RH AIF OUTLET FOR LH D.
                                                                                                            from £35.15
                                                                                                            from £35.15
                                                                                                            # 009
                                                                                                            MPN: 60199495
                                                                                                            RH AIR OUTLET FOR RH D.
                                                                                                            # 010
                                                                                                            MPN: 61791100

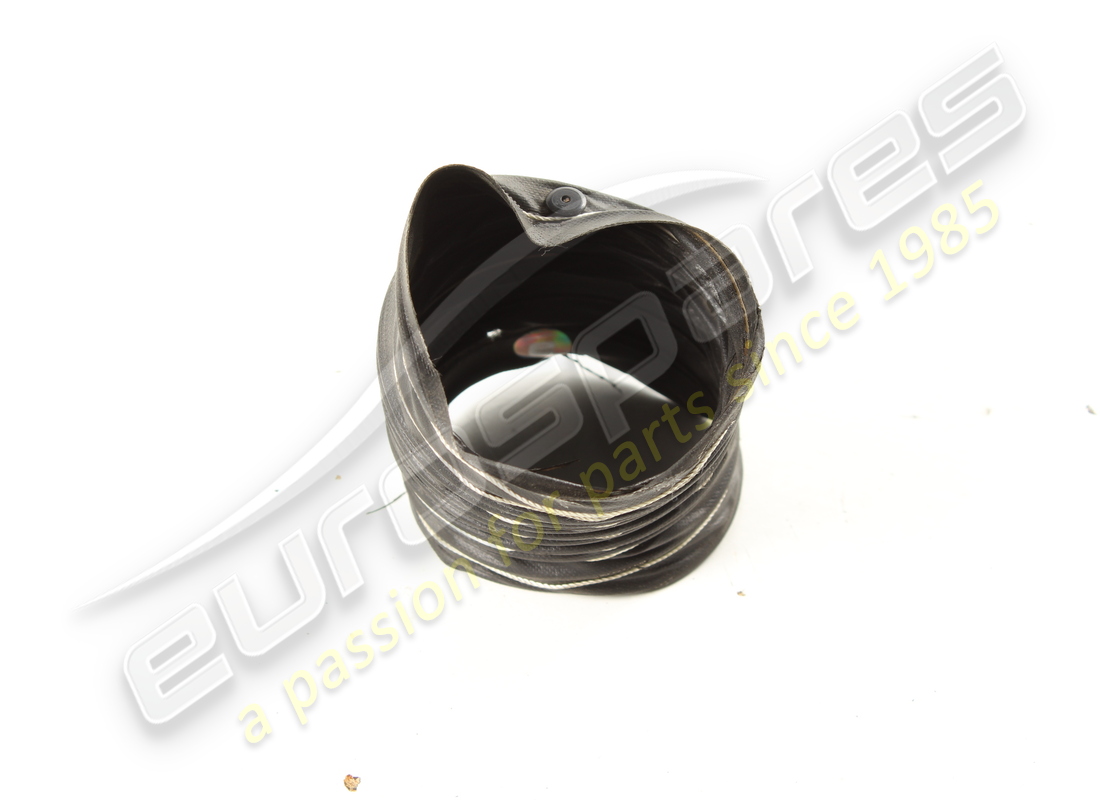

                                                                                                            AIR DUCT
                                                                                                            from £25.90
                                                                                                            from £25.90
                                                                                                            # 011
                                                                                                            MPN: 61791300
                                                                                                            AIR CONDITIONING DUCT
                                                                                                            from £25.04
                                                                                                            from £25.04
                                                                                                            # 012
                                                                                                            MPN: 61739009
                                                                                                            LH SWITCH
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 013
                                                                                                            MPN: 61790600
                                                                                                            AIR DUCT
                                                                                                            from £44.93
                                                                                                            from £44.93
                                                                                                            # 014
                                                                                                            MPN: 20143202
                                                                                                            PLUG
                                                                                                            from £12.85
                                                                                                            from £12.85
                                                                                                            # 015
                                                                                                            MPN: 126323
                                                                                                            HEATER VALVE BRACKET
                                                                                                            from £8.43
                                                                                                            from £8.43
                                                                                                            # 016
                                                                                                            MPN: 61791000
                                                                                                            AIR DUCT
                                                                                                            from £50.88
                                                                                                            from £50.88
                                                                                                            # 017
                                                                                                            MPN: 127173
                                                                                                            HOSE FROM 3 WAY TO RH WATER VALVE LH D.
                                                                                                            from £11.86
                                                                                                            from £11.86
                                                                                                            # 017
                                                                                                            MPN: 61914300
                                                                                                            HOSE FROM 3 WAY TO RH WATER VALVE RH D.
                                                                                                            from £2.69
                                                                                                            from £2.69
                                                                                                            # 018
                                                                                                            MPN: 60674700
                                                                                                            SPRING
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 019
                                                                                                            MPN: 15644101
                                                                                                            SCREW
                                                                                                            from £0.74
                                                                                                            from £0.74
                                                                                                            # 020
                                                                                                            MPN: 127174
                                                                                                            HOSE FROM 3 WAY TO LH WATER VALVE-LH D.
                                                                                                            from £13.14
                                                                                                            from £13.14
                                                                                                            # 020
                                                                                                            MPN: 61914400
                                                                                                            HOSE FROM 3 WAY TO LH WATER VALVE RH D.
                                                                                                            from £5.78
                                                                                                            from £5.78
                                                                                                            # 021
                                                                                                            MPN: 50091503
                                                                                                            GASKET
                                                                                                            from £23.42
                                                                                                            from £23.42
                                                                                                            # 022
                                                                                                            MPN: 20142709
                                                                                                            DIVERTER
                                                                                                            from £971.46
                                                                                                            from £971.46
                                                                                                            This part replaces part number 50022805 - and 1 more. Click to view details
                                                                                                            DIVERTER Genuine Ferrari Part - Used In stock
                                                                                                            Some small cracks to plastic around rivet holes.
                                                                                                            # 023
                                                                                                            MPN: 61761400
                                                                                                            RH HEATER
                                                                                                            # 024
                                                                                                            MPN: 61937000
                                                                                                            PLATE FOR ELECTRO FAN
                                                                                                            Not for SA and U.S. Version
                                                                                                            from £153.00
                                                                                                            from £153.00
                                                                                                            This part replaces part number 61770000 - and 1 more. Click to view details
                                                                                                            # 025
                                                                                                            MPN: 109750
                                                                                                            HOSE MOTOR - 3 WAY OF DELIVERY RH D.
                                                                                                            # 025
                                                                                                            MPN: 127172
                                                                                                            HOSE MOTOR - 3 WAY OF DELIVERY LH D.
                                                                                                            # 026
                                                                                                            MPN: 61761300
                                                                                                            LH HEATER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 027
                                                                                                            MPN: 61791200
                                                                                                            AIR DUCT
                                                                                                            from £36.68
                                                                                                            from £36.68
                                                                                                            # 028
                                                                                                            MPN: 127168
                                                                                                            HOSE TAP - HEATER
                                                                                                            from £41.23
                                                                                                            from £41.23
                                                                                                            # 029
                                                                                                            MPN: 127295
                                                                                                            3 WAY FITTING
                                                                                                            from £13.36
                                                                                                            from £13.36
                                                                                                            # 030
                                                                                                            MPN: 60055407
                                                                                                            LH AIR OUTLET FOR RH D.
                                                                                                            from £35.15
                                                                                                            from £35.15
                                                                                                            # 030
                                                                                                            MPN: 60055506
                                                                                                            LH AIR OUTLET FOR LH D.
                                                                                                            from £38.41
                                                                                                            from £38.41
                                                                                                            # 031
                                                                                                            MPN: 104303
                                                                                                            3 WAY OF BACK FLOW
                                                                                                            from £24.33
                                                                                                            from £24.33
                                                                                                            This part replaces part number 401575
                                                                                                            # 032
                                                                                                            MPN: 109755
                                                                                                            HOSE 3 WAY- MOTOR
                                                                                                            from £151.19
                                                                                                            from £151.19
                                                                                                            # 033
                                                                                                            MPN: 12179599
                                                                                                            CLAMF
                                                                                                            # 034
                                                                                                            MPN: 126324

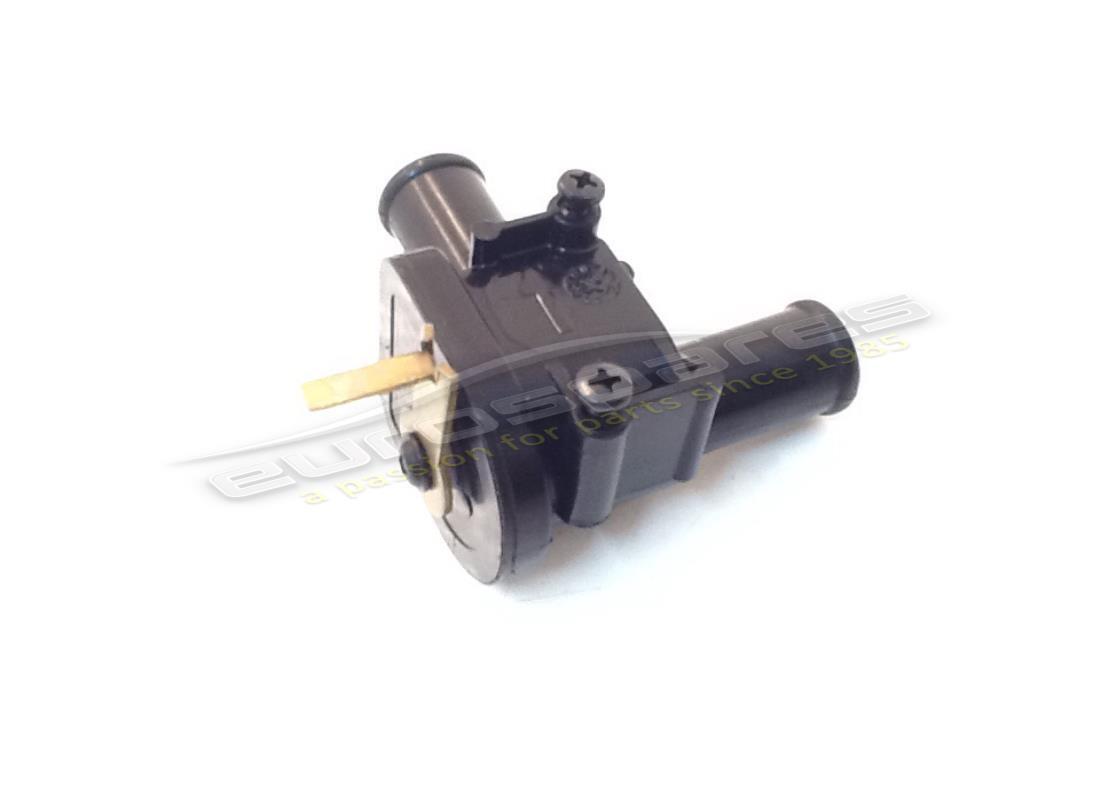

                                                                                                            HEATER VALVE
                                                                                                            This part replaces part number 120308
                                                                                                            # 035
                                                                                                            MPN: 126322
                                                                                                            COUPLING TAP - MOTOR
                                                                                                            from £2.84
                                                                                                            from £2.84
                                                                                                            # 036
                                                                                                            MPN: 126326
                                                                                                            GASKET
                                                                                                            from £5.61
                                                                                                            from £5.61
                                                                                                            # 037
                                                                                                            MPN: 126325
                                                                                                            CONTROL MOTOR FOR HEATER VALVE
                                                                                                            from £395.00
                                                                                                            from £395.00
                                                                                                            # 038
                                                                                                            MPN: 61325200

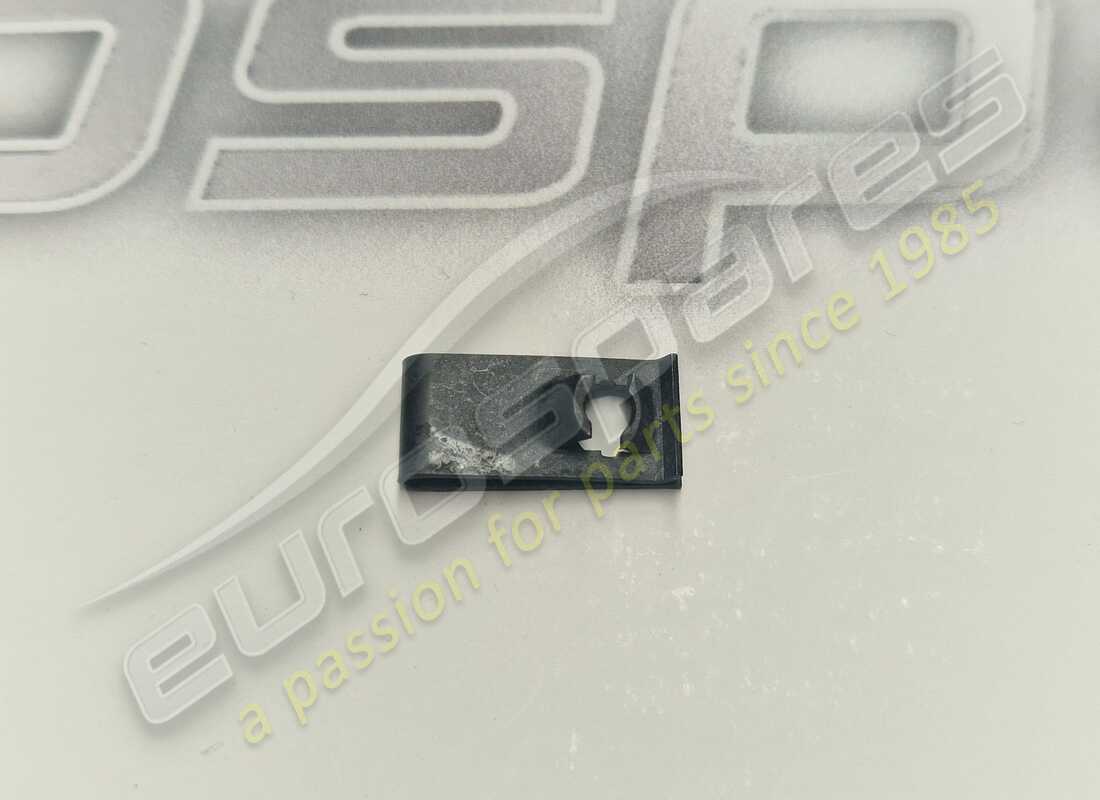

                                                                                                            BRACKET
                                                                                                            from £0.99
                                                                                                            from £0.99
                                                                                                            # 039
                                                                                                            MPN: 126995
                                                                                                            BUSHING
                                                                                                            from £3.98
                                                                                                            from £3.98
                                                                                                            # 040
                                                                                                            MPN: 15902601
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 15642501
                                                                                                            # 041
                                                                                                            MPN: 14498501
                                                                                                            WASHER
                                                                                                            from £0.51
                                                                                                            from £0.51
                                                                                                            This part replaces part number 14498521 which we have in stock
                                                                                                            # 042
                                                                                                            MPN: 126299
                                                                                                            HEATER VALVE BRACKET
                                                                                                            from £14.94
                                                                                                            from £14.94
                                                                                                            # 043
                                                                                                            MPN: 13273911
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 044
                                                                                                            MPN: 106850
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                                            # 045
                                                                                                            MPN: 61790500
                                                                                                            RH AIR DUCT
                                                                                                            from £11.13
                                                                                                            from £11.13
                                                                                                            This part replaces part number 61790400 - and 1 more. Click to view details
                                                                                                            # 046
                                                                                                            MPN: 61790500
                                                                                                            LH AIR DUCT
                                                                                                            from £11.13
                                                                                                            from £11.13
                                                                                                            This part replaces part number 61790400 - and 1 more. Click to view details
                                                                                                            # 047
                                                                                                            MPN: 61790300
                                                                                                            LH AIR DUCT
                                                                                                            from £114.47
                                                                                                            from £114.47
                                                                                                            # 048
                                                                                                            MPN: 14498501
                                                                                                            WASHER
                                                                                                            from £0.51
                                                                                                            from £0.51
                                                                                                            This part replaces part number 14498521 which we have in stock
                                                                                                            # 049
                                                                                                            MPN: 15901508
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 050
                                                                                                            MPN: 10519301
                                                                                                            WASHER
                                                                                                            from £12.68
                                                                                                            from £12.68
                                                                                                            This part replaces part number 10517377 - and 2 more. Click to view details
                                                                                                            # 051
                                                                                                            MPN: 12601179
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 12601171 which we have in stock - and 1 more. Click to view details
                                                                                                            # 052
                                                                                                            MPN: 15896211
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 15896210
                                                                                                            # 053
                                                                                                            MPN: 11790000
                                                                                                            MOTOR
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 054
                                                                                                            MPN: 122225
                                                                                                            HOSE HEATER - 3 WAY OF BACKFIOW
                                                                                                            from £338.18
                                                                                                            from £338.18
                                                                                                            This part replaces part number 109752
                                                                                                            # 055
                                                                                                            MPN: 61184100
                                                                                                            ADDITION FOR PLATE
                                                                                                            SA - U.S. Version
                                                                                                            from £52.50
                                                                                                            from £52.50
                                                                                                            # 056
                                                                                                            MPN: 61869800
                                                                                                            PLATE FOR ELECTRO FANS
                                                                                                            S A - U.S. Version
                                                                                                            from £150.77
                                                                                                            from £150.77
