ferrari 328 (1985) steering box and linkage parts diagram

035 - Steering Box and Linkage

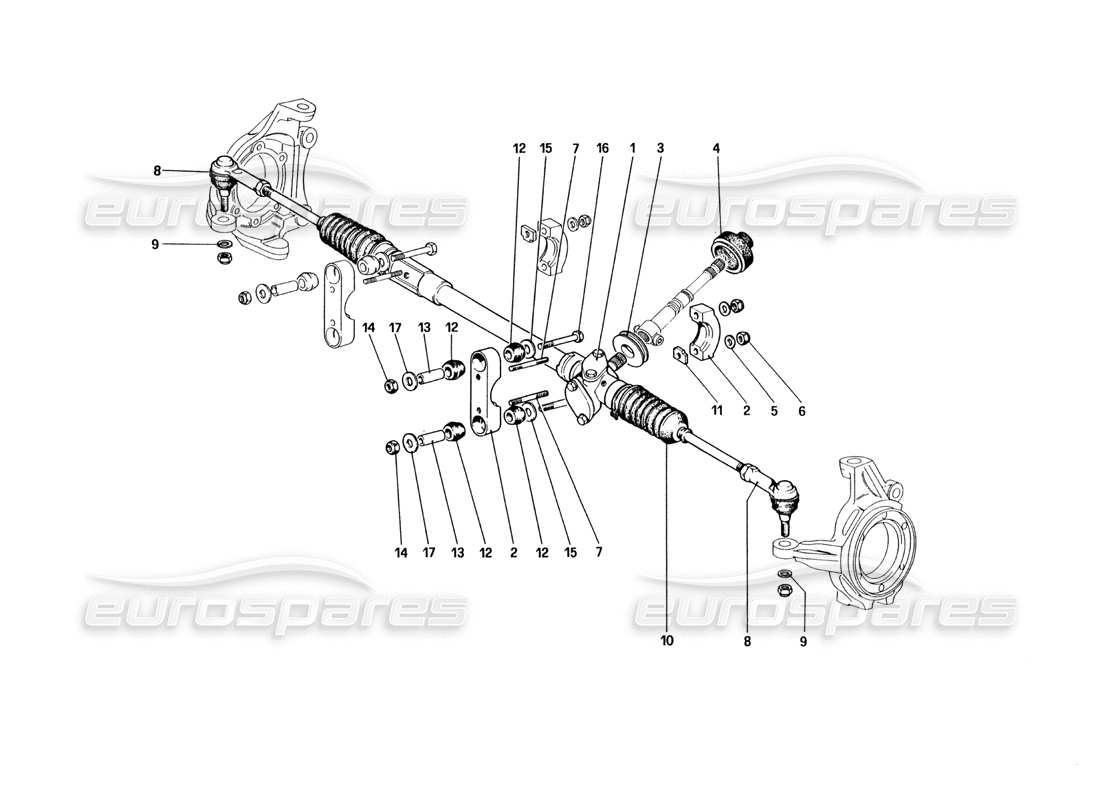

Ferrari 328 (1985) Steering Box and Linkage Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 131685

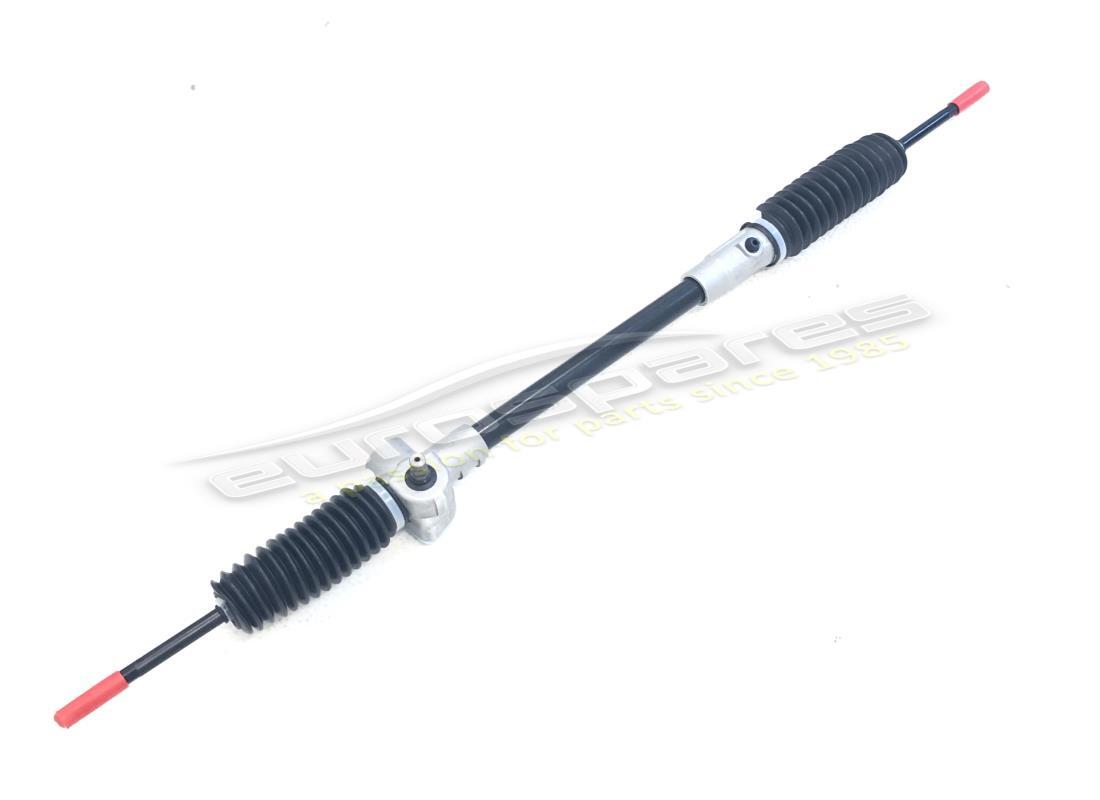

                                  LHD STEERING RACK - 113 CM LONG
                                  (up to chassis n. 76626)
                                  from £1,225.56
                                  from £1,225.56
                                  This part replaces part number 102614 - and 1 more. Click to view details
                                  # 001
                                  MPN: 135964
                                  LHD STEERING RACK 130 CM LONG
                                  (from chassis n. 76627)
                                  Supersession
                                  Supersession
                                  # 002
                                  MPN: 108241
                                  SUPPORT
                                  from £40.01
                                  from £40.01
                                  # 003
                                  MPN: 127285
                                  RING FOR COVER
                                  from £2.27
                                  from £2.27
                                  # 004
                                  MPN: 127284
                                  EXTENSION COVER
                                  from £17.77
                                  from £17.77
                                  # 005
                                  MPN: 10519621
                                  WASHER
                                  Supersession
                                  Supersession
                                  # 006
                                  MPN: 104030
                                  NUT
                                  from £0.47
                                  from £0.47
                                  This part replaces part number 16104125
                                  # 007
                                  MPN: 13543821
                                  STUD
                                  from £1.21
                                  from £1.21
                                  This part replaces part number 210x1,25
                                  # 008
                                  MPN: 103592

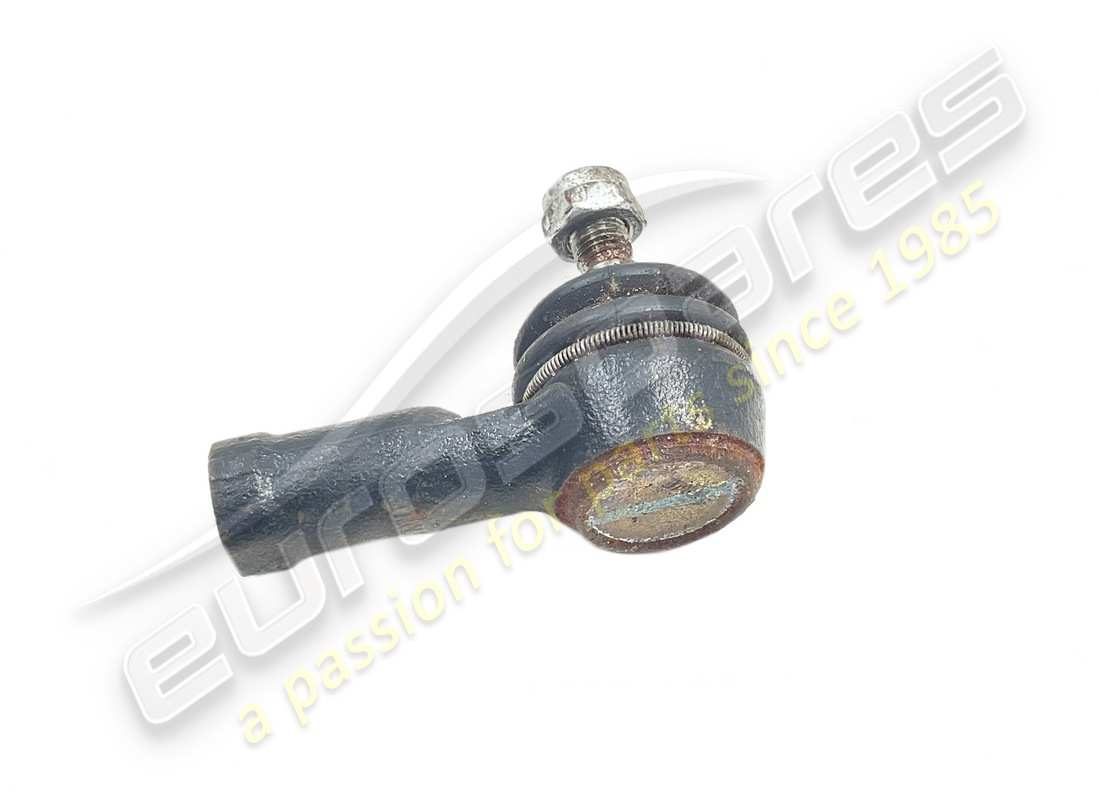

                                  BALL JOINT
                                  from £21.00
                                  from £21.00
                                  # 009
                                  MPN: 100100
                                  WASHER
                                  from £1.52
                                  from £1.52
                                  This part replaces part number 95242
                                  # 010
                                  MPN: 95860403

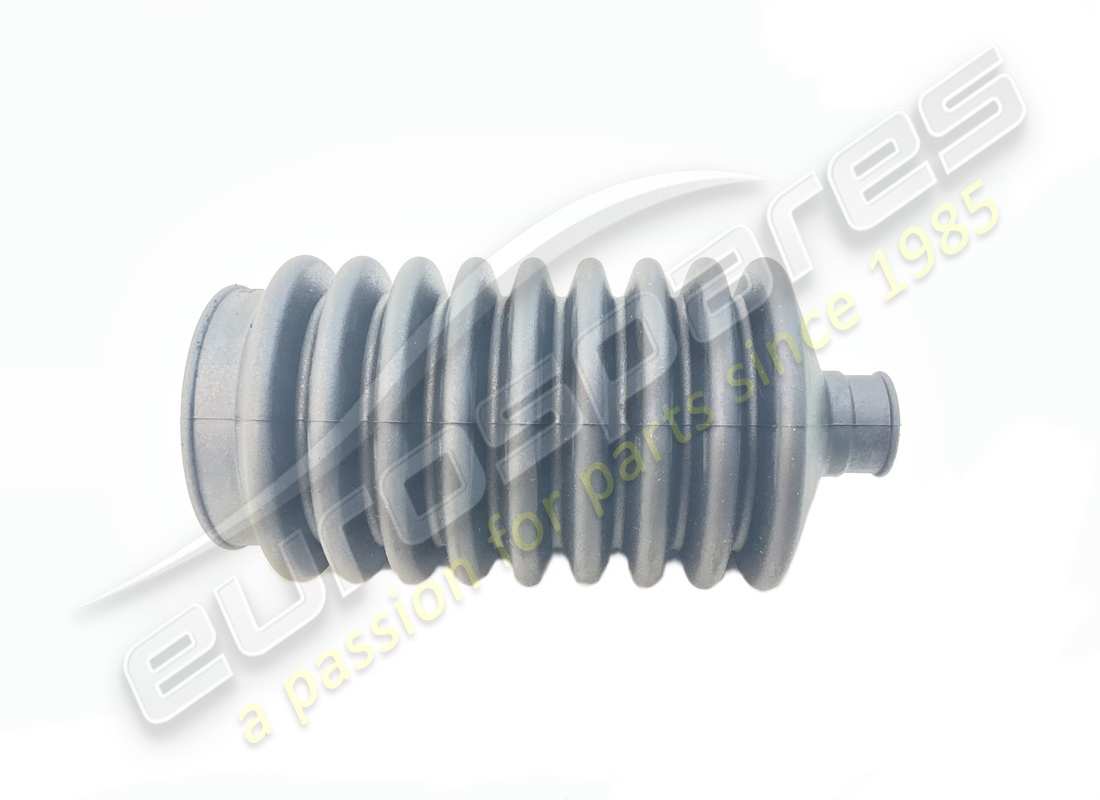

                                  STEERING RACK GAITER
                                  from £25.54
                                  from £25.54
                                  # 011
                                  MPN: 108293
                                  SPACER
                                  from £2.61
                                  from £2.61
                                  This part replaces part number 108584
                                  # 012
                                  MPN: 107335
                                  GROMMET
                                  from £11.22
                                  from £11.22
                                  # 013
                                  MPN: 108294
                                  SPACER PIPE
                                  from £45.53
                                  from £45.53
                                  This part replaces part number 107336 - and 1 more. Click to view details
                                  # 014
                                  MPN: 104030
                                  NUT
                                  from £0.47
                                  from £0.47
                                  This part replaces part number 16104125
                                  # 015
                                  MPN: 108242
                                  WASHER
                                  from £1.64
                                  from £1.64
                                  # 016
                                  MPN: 10644321
                                  SCREW
                                  # 017
                                  MPN: 108292
                                  WASHER
                                  from £5.03
                                  from £5.03
