ferrari 328 (1985) crankshaft - connecting rods and pistons parts diagram

003 - crankshaft - connecting rods and pistons

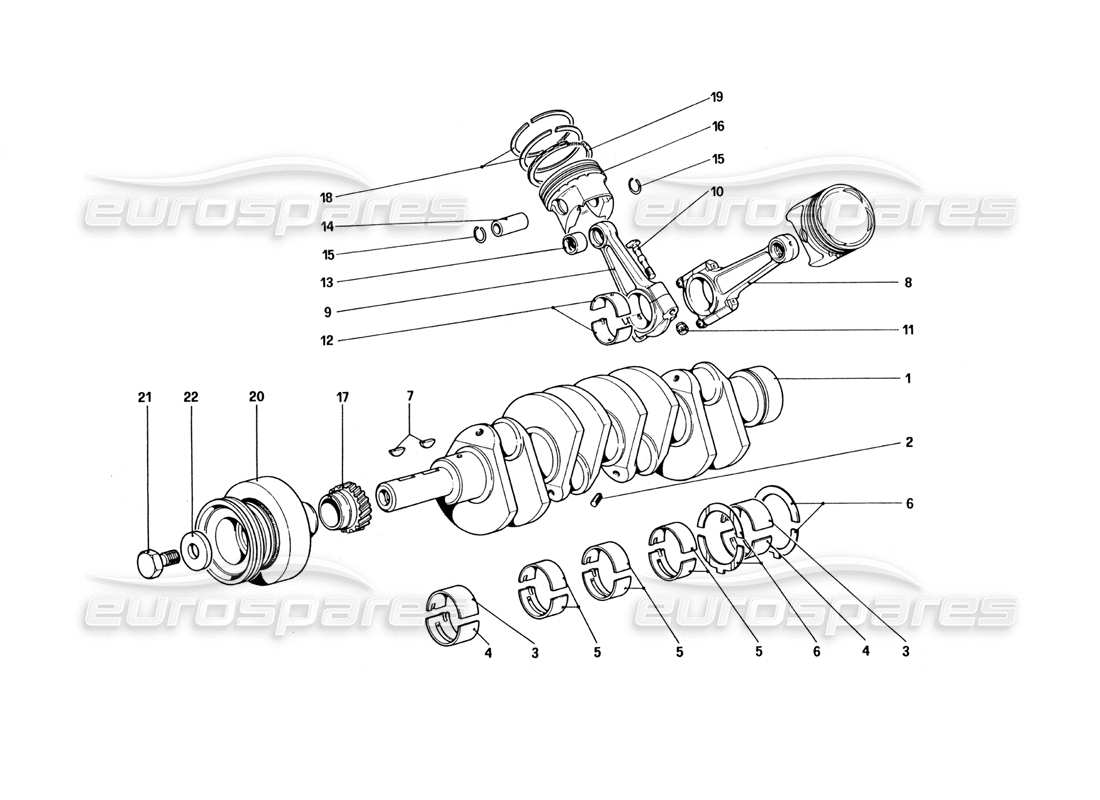

Ferrari 328 (1985) Crankshaft - Connecting Rods and Pistons Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 116961
                                    crankshaft
                                    from £5,668.76
                                    from £5,668.76
                                    # 002
                                    -
                                    HALF BEARING, FRONT AND REAR
                                    # 002
                                    MPN: 14326150
                                    THREADED PLUG
                                    from £0.48
                                    from £0.48
                                    This part replaces part number 12326150
                                    # 003
                                    MPN: 100118
                                    UPPER MAIN HALF BEARING SHELL STANDARD
                                    from £42.25
                                    from £42.25
                                    This part replaces part number 9100035
                                    # 003
                                    MPN: 100119
                                    UPPER MAIN HALF BEARING SHELL 1ST UNDERSIZE 0.254MM
                                    from £75.69
                                    from £75.69
                                    # 003
                                    MPN: 100120
                                    UPPER MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM
                                    from £27.04
                                    from £27.04
                                    # 004
                                    -
                                    HALF BEARING, CENTRAL AND INTERMEDIATE
                                    # 004
                                    MPN: 100122
                                    LOWER MAIN HALF BEARING SHELL STANDARD
                                    from £34.08
                                    from £34.08
                                    This part replaces part number 9100602
                                    # 004
                                    MPN: 100123
                                    LOWER MAIN HALF BEARING SHELL 1ST UNDERSIZE 0.254MM
                                    from £71.09
                                    from £71.09
                                    # 004
                                    MPN: 100124
                                    LOWER MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM
                                    from £34.49
                                    from £34.49
                                    # 005
                                    -
                                    SHIM
                                    # 005
                                    MPN: 104023
                                    MAIN HALF BEARING SHELL STANDARD
                                    from £29.30
                                    from £29.30
                                    This part replaces part number 108876 - and 2 more. Click to view details
                                    # 005
                                    MPN: 104024
                                    MAIN HALF BEARING SHELL 1ST UNDERSIZE 0.254MM
                                    from £33.48
                                    from £33.48
                                    # 005
                                    MPN: 104025
                                    MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM
                                    from £32.83
                                    from £32.83
                                    # 006
                                    MPN: 100146
                                    THRUST WASHERS SET STD
                                    sold in pairs -
                                    from £22.29
                                    from £22.29
                                    This part replaces part number 10345 - and 1 more. Click to view details
                                    # 006
                                    MPN: 100147
                                    THRUST WASHERS (2ND OVERSIZE)
                                    from £14.60
                                    from £14.60
                                    This part replaces part number 4153187/C
                                    # 006
                                    MPN: 113984
                                    1ST OVERSIZE 0,127 MM.
                                    from £48.52
                                    from £48.52
                                    # 007
                                    MPN: 10206020
                                    TONGUE
                                    from £1.52
                                    from £1.52
                                    # 008
                                    MPN: 109738/U
                                    CON ROD
                                    from £230.00
                                    from £230.00
                                    # 009
                                    MPN: 109738/U
                                    CON ROD
                                    from £230.00
                                    from £230.00
                                    # 010
                                    MPN: 100156
                                    BOLT SECURING CONNECTING ROD
                                    from £16.69
                                    from £16.69
                                    This part replaces part number 140020 - and 1 more. Click to view details
                                    # 011
                                    MPN: 104011
                                    NUT FOR CONNECTING ROD BOLT
                                    from £9.62
                                    from £9.62
                                    This part replaces part number 14511 which we have in stock - and 2 more. Click to view details
                                    # 012
                                    MPN: 100151
                                    CON ROD BEARING +10
                                    (1st Undersize mm 0,254)
                                    from £45.26
                                    from £45.26
                                    This part replaces part number 106184
                                    # 012
                                    MPN: 100152
                                    CON ROD BEARING +20
                                    (2nd Undersize mm 0,508)
                                    from £61.09
                                    from £61.09
                                    This part replaces part number 106185
                                    # 012
                                    MPN: 106183
                                    CON ROD BEARING
                                    STANDARD
                                    from £19.40
                                    from £19.40
                                    This part replaces part number 100150
                                    # 013
                                    MPN: 107100
                                    SMALL END BUSH
                                    from £25.36
                                    from £25.36
                                    This part replaces part number 100155 - and 2 more. Click to view details
                                    # 014
                                    MPN: 119537
                                    GUDGEON PIN
                                    from £34.44
                                    from £34.44
                                    # 015
                                    MPN: 100174
                                    GUDGEON PIN CIRCLIP
                                    from £3.47
                                    from £3.47
                                    This part replaces part number 14594
                                    # 016
                                    MPN: 126580

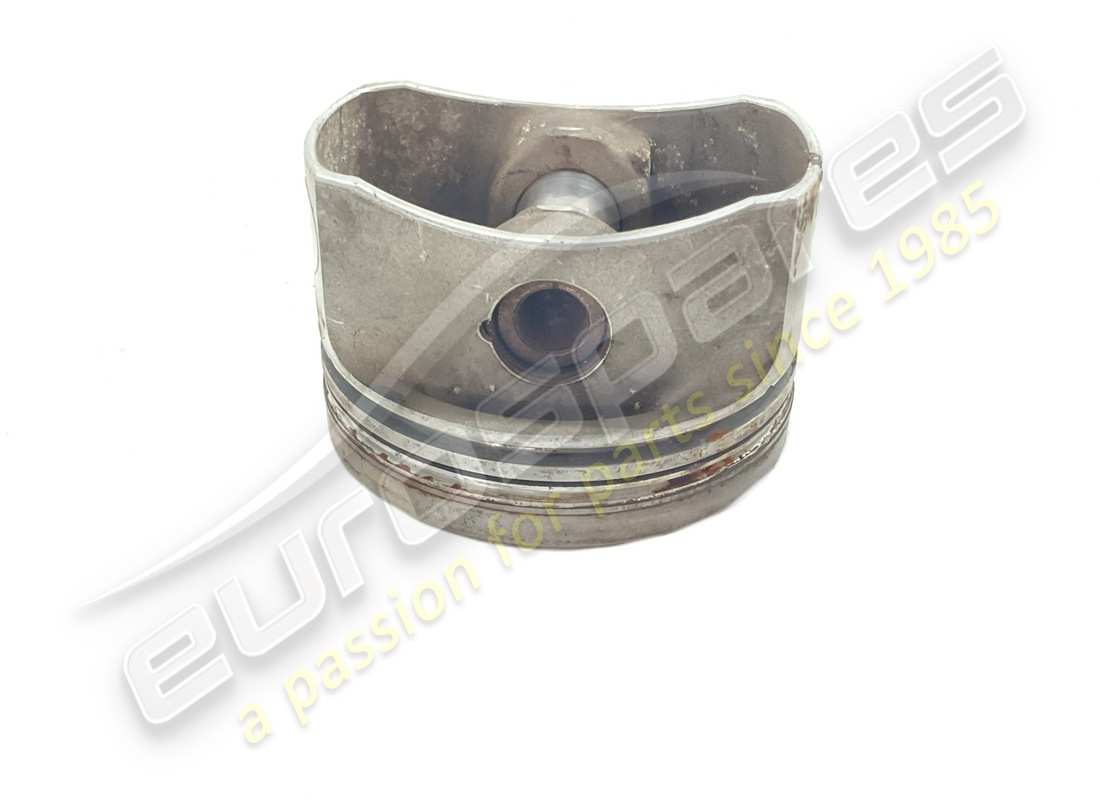

                                    PISTON WITH PISTON RING
                                    Not for U.S. Version
                                    from £195.00
                                    from £195.00
                                    # 016
                                    MPN: 126754
                                    PISTON WITH PISTON RING
                                    For U.S. Version
                                    from £622.40
                                    from £622.40
                                    # 017
                                    MPN: 117655
                                    DRIVING SPROCKET FOR TIMING SYSTEM
                                    from £495.00
                                    from £495.00
                                    # 017
                                    MPN: 126582

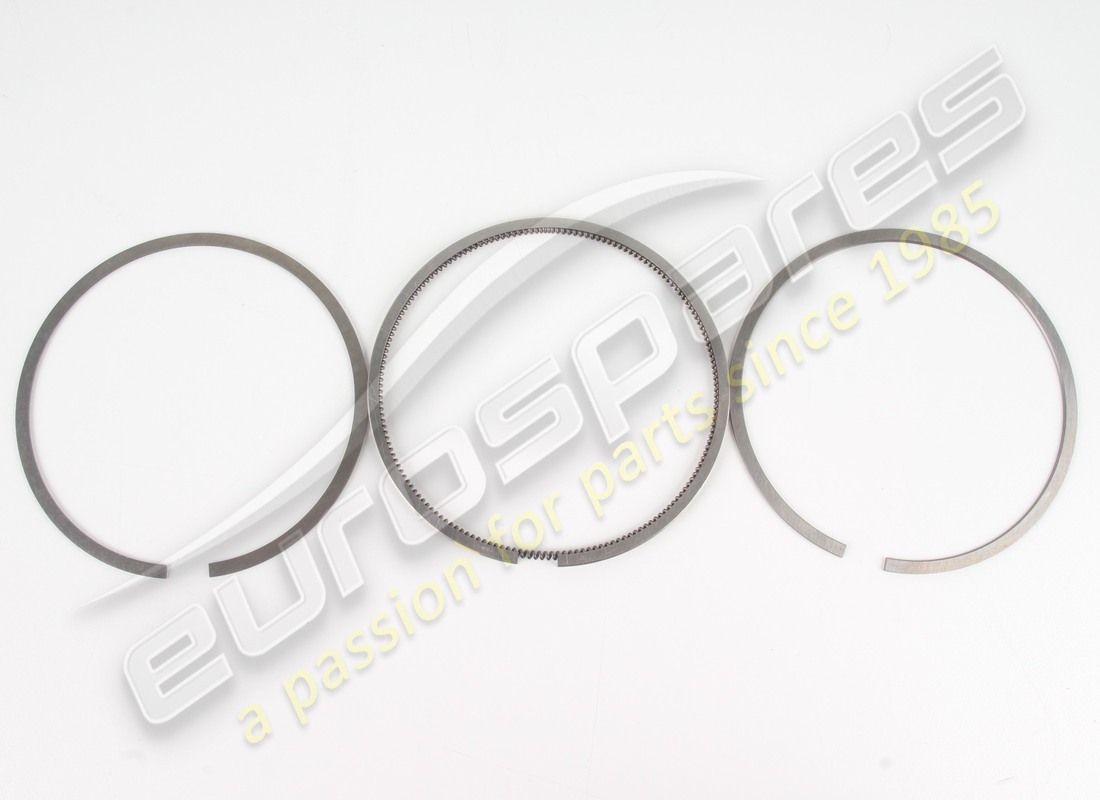

                                    SET OF PISTONS RINGS
                                    from £130.59
                                    from £130.59
                                    This part replaces part number 126583
                                    # 018
                                    MPN: 126583
                                    AC TORSION SEAL RING
                                    1st- 2nd groove - With complete set no 126582
                                    Supersession
                                    Supersession
                                    # 019
                                    MPN: 119851
                                    ROF SCRAPER RING WITH SPRING
                                    3td groove - With complete set no 126582
                                    # 020
                                    MPN: 126189
                                    TORSION DAMPER WITH PULLEY
                                    from £3,070.97
                                    from £3,070.97
                                    # 021
                                    MPN: 138793
                                    SCREW
                                    from £44.61
                                    from £44.61
                                    This part replaces part number 100476 - and 5 more. Click to view details
                                    SCREW Genuine Ferrari Part - Used In stock
                                    removed from 355 5.2 Engine Number 48537
                                    # 022
                                    MPN: 102775
                                    WASHER
                                    from £1.21
                                    from £1.21
