029 - Hand - Brake Control

Ferrari 308 Quattrovalvole (1985) Hand - Brake Control Parts Diagram

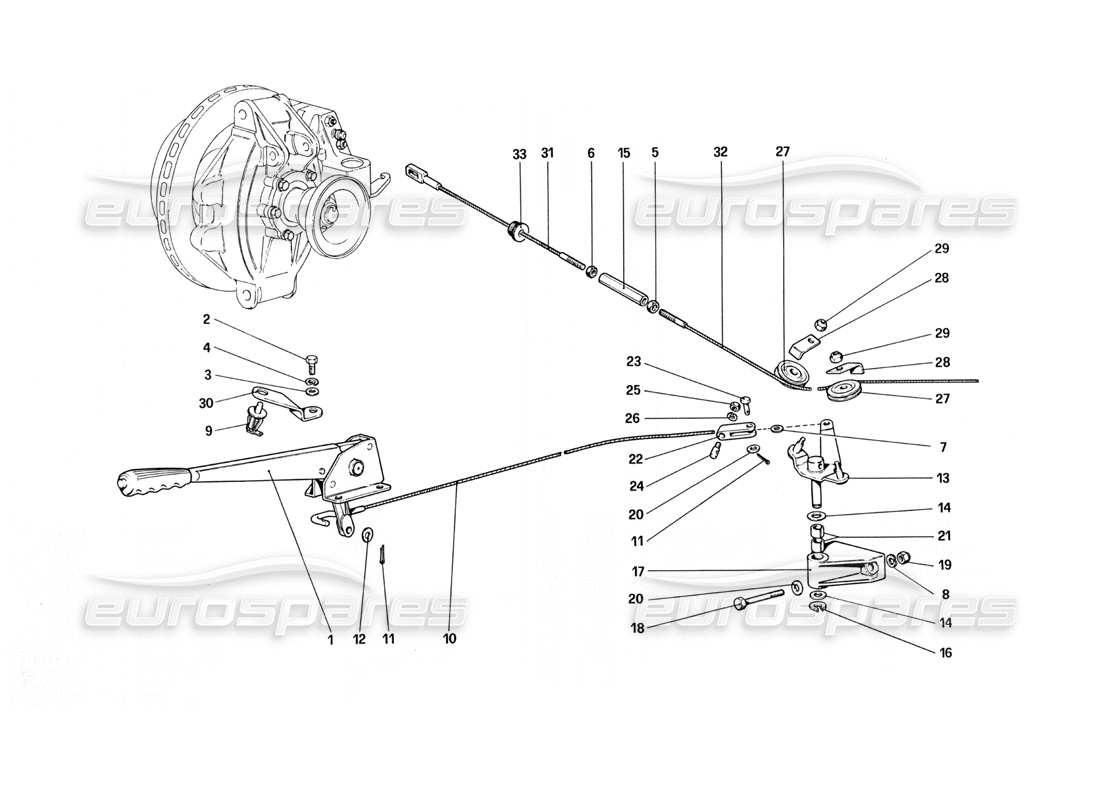

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 108965
                                                                    HAND BRAKE LEVER
                                                                    Supersession
                                                                    Supersession

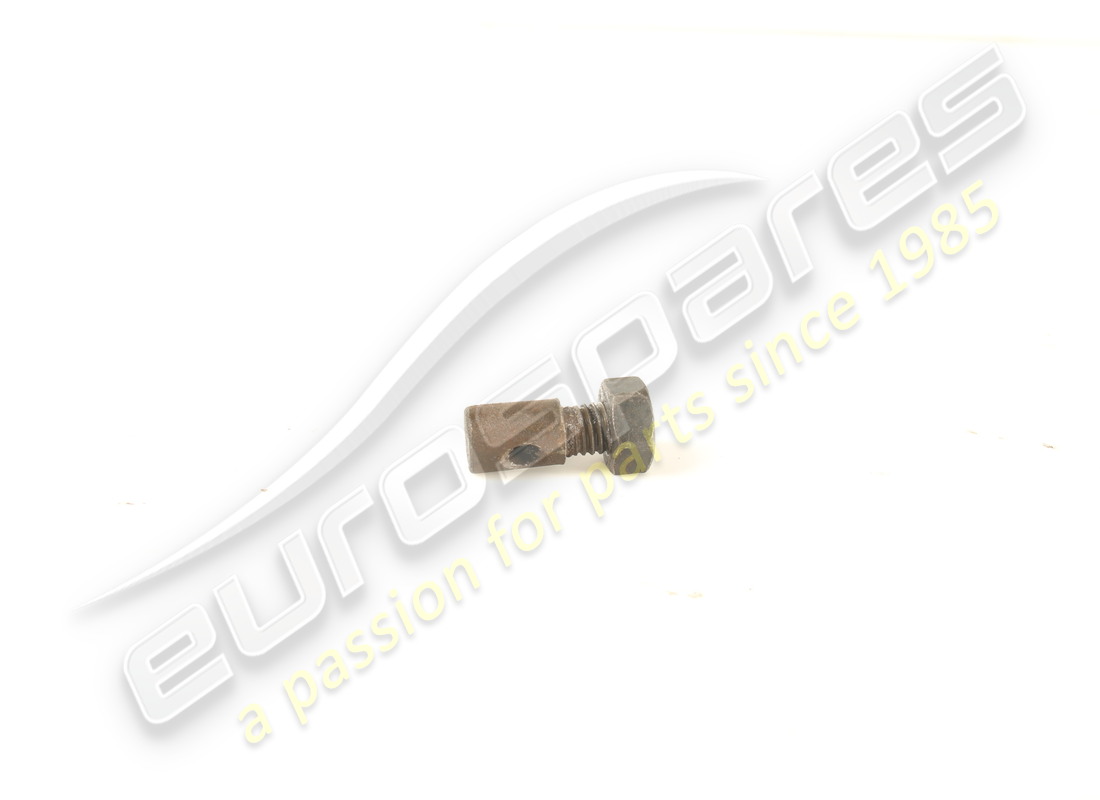

                                                                    # 002
                                                                    MPN: 16043221
                                                                    BOLT
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 13842414 - and 1 more. Click to view details
                                                                    # 003
                                                                    MPN: 10519621
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 004
                                                                    MPN: 106852
                                                                    SPRING WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                    # 005
                                                                    MPN: 10725911
                                                                    LOCK NUT (RH THREAD)
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 95900403
                                                                    # 006
                                                                    MPN: 10727311
                                                                    LOCK NUT (LH THREAD)
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 95560
                                                                    # 007
                                                                    MPN: 107618
                                                                    WASHER
                                                                    from £0.97
                                                                    from £0.97
                                                                    # 008
                                                                    MPN: 106852
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details

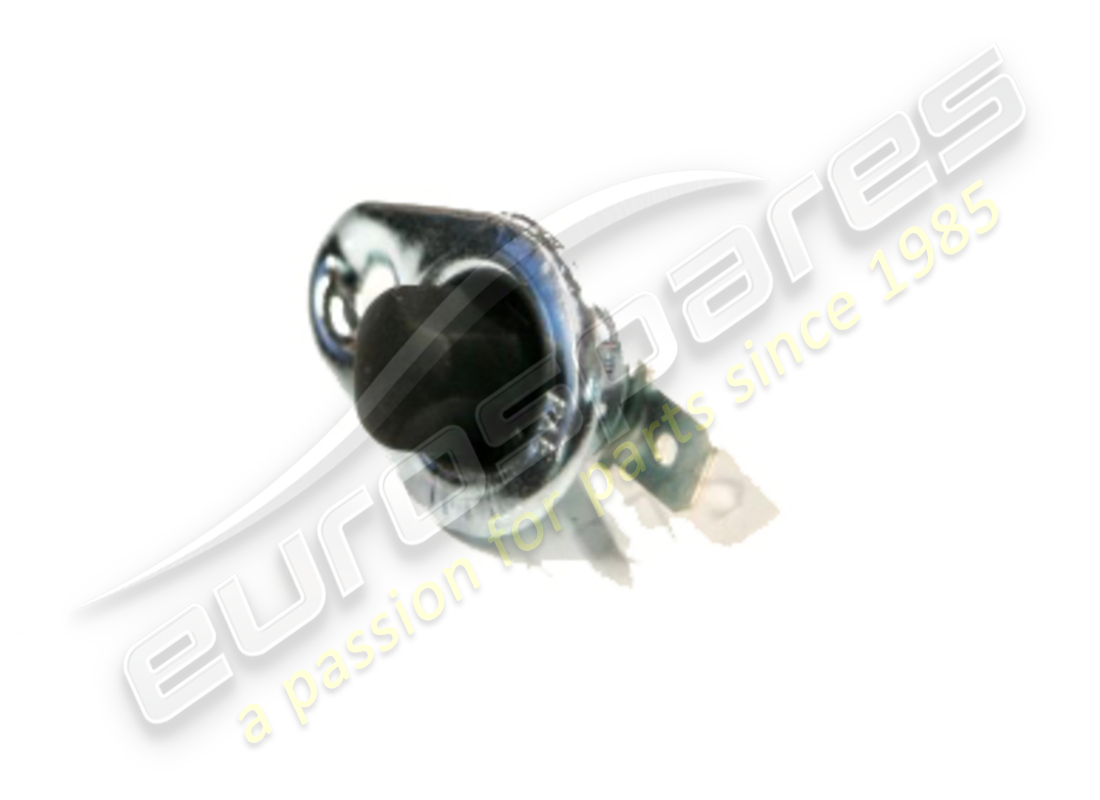

                                                                    # 009
                                                                    MPN: 20069803
                                                                    DOOR SWITCH
                                                                    from £10.74
                                                                    from £10.74
                                                                    This part replaces part number 148-80-816-00 - and 3 more. Click to view details
                                                                    # 010
                                                                    MPN: 106482
                                                                    FRONT CABLE - FOR RHD USE NO. 109854
                                                                    Supersession
                                                                    Supersession
                                                                    # 011
                                                                    MPN: 10734201
                                                                    SPLIT PIN
                                                                    Supersession
                                                                    Supersession

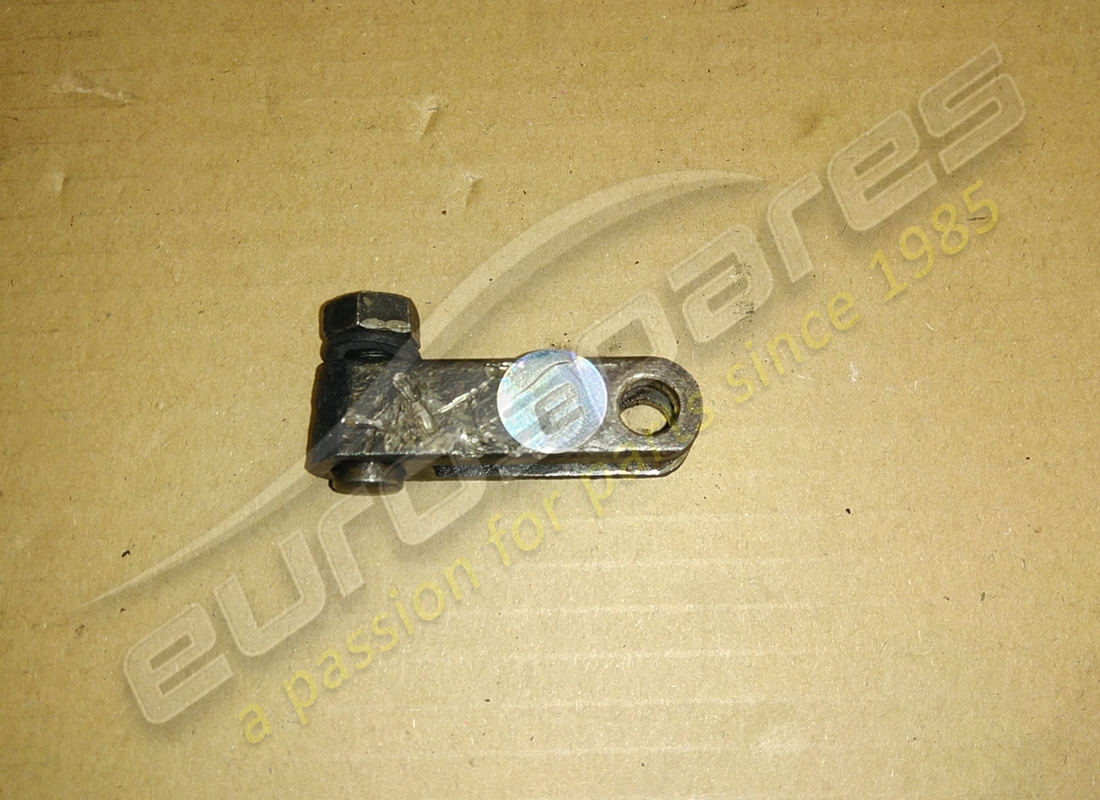

                                                                    # 013
                                                                    MPN: 113056
                                                                    REAR LEVER
                                                                    from £158.47
                                                                    from £158.47
                                                                    This part replaces part number 105782 - and 5 more. Click to view details
                                                                    # 014
                                                                    MPN: 106416
                                                                    WASHER
                                                                    from £1.35
                                                                    from £1.35
                                                                    # 015
                                                                    MPN: 10091014
                                                                    SLEEVE
                                                                    from £45.23
                                                                    from £45.23
                                                                    This part replaces part number 10091011
                                                                    # 016
                                                                    MPN: 11066476
                                                                    SEEGER RING
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 017
                                                                    MPN: 106415
                                                                    SUPPORT
                                                                    from £95.52
                                                                    from £95.52
                                                                    # 018
                                                                    MPN: 16044621
                                                                    BOLT
                                                                    from £0.71
                                                                    from £0.71
                                                                    # 019
                                                                    MPN: 16100824
                                                                    NUT
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 16100814 - and 1 more. Click to view details
                                                                    # 021
                                                                    MPN: 103227
                                                                    BUSH
                                                                    from £2.48
                                                                    from £2.48
                                                                    # 022
                                                                    MPN: 106170
                                                                    FORK
                                                                    from £28.40
                                                                    from £28.40
                                                                    # 023
                                                                    MPN: 10050811
                                                                    PIN
                                                                    from £5.22
                                                                    from £5.22
                                                                    This part replaces part number 10050810
                                                                    # 024
                                                                    MPN: 105789
                                                                    PIN
                                                                    from £4.78
                                                                    from £4.78
                                                                    This part replaces part number 680814 - and 1 more. Click to view details
                                                                    # 025
                                                                    MPN: 16100824
                                                                    NUT
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 16100814 - and 1 more. Click to view details
                                                                    # 026
                                                                    MPN: 106852
                                                                    SPRING WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                    # 027
                                                                    MPN: 104006
                                                                    SHEAVE
                                                                    This part replaces part number 9182019
                                                                    # 028
                                                                    MPN: 105790
                                                                    PROTECTION PLATE FOR CABLE
                                                                    from £7.80
                                                                    from £7.80
                                                                    This part replaces part number 40360802
                                                                    # 029
                                                                    MPN: 102948
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 12574211 - and 3 more. Click to view details
                                                                    # 030
                                                                    MPN: 114417
                                                                    BRAKET, FIXING SWITCH
                                                                    from £7.75
                                                                    from £7.75
                                                                    # 031
                                                                    MPN: 121622
                                                                    REAR CABLE, SHORT
                                                                    from £88.72
                                                                    from £88.72
                                                                    # 032
                                                                    MPN: 123515
                                                                    REAR CABLE, LONG
                                                                    from £53.80
                                                                    from £53.80
                                                                    # 033
                                                                    MPN: 105794
                                                                    FAIR - LEAD
                                                                    from £9.50
                                                                    from £9.50
                                                                    This part replaces part number 680876
                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
