ferrari 308 quattrovalvole (1985) inside gearbox controls parts diagram

023 - Inside Gearbox Controls

Ferrari 308 Quattrovalvole (1985) Inside Gearbox Controls Parts Diagram

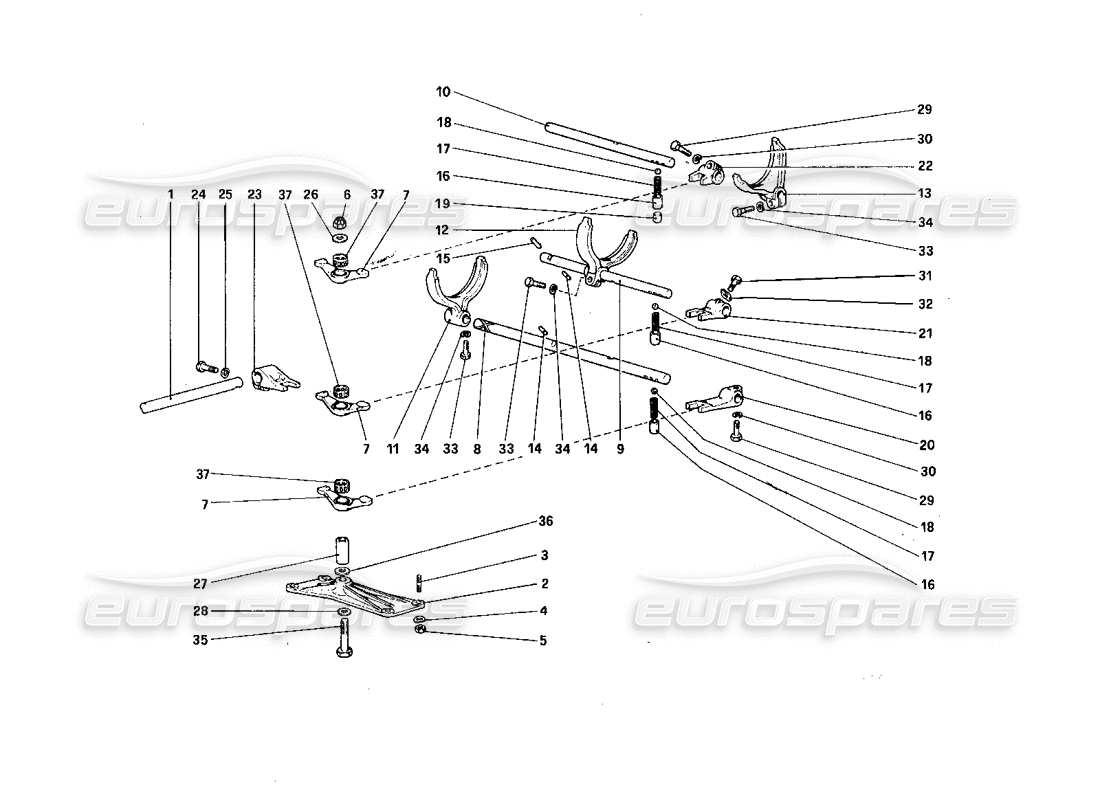

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 109767
                                                                            SHAFT FOR LEVER
                                                                            from £423.34
                                                                            from £423.34
                                                                            This part replaces part number 105733 - and 1 more. Click to view details
                                                                            # 002
                                                                            MPN: 114864
                                                                            SUPPORT
                                                                            from £38.82
                                                                            from £38.82
                                                                            This part replaces part number 104203 - and 5 more. Click to view details
                                                                            # 003
                                                                            MPN: 11500121
                                                                            STUD
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 13540820
                                                                            # 004
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                            # 005
                                                                            MPN: 15896211
                                                                            NUT
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 15896210 which we have in stock
                                                                            # 006
                                                                            MPN: 16109221
                                                                            NUT
                                                                            from £0.61
                                                                            from £0.61
                                                                            # 007
                                                                            MPN: 115249
                                                                            ROCKER ARM
                                                                            from £62.02
                                                                            from £62.02
                                                                            # 008
                                                                            MPN: 120923
                                                                            CONTROL ROD, 1ST SPEED AND REVERSE
                                                                            from £333.28
                                                                            from £333.28
                                                                            # 009
                                                                            MPN: 120924
                                                                            CONTROL ROD, 2ND • 3RD SPEEDS
                                                                            from £86.00
                                                                            from £86.00
                                                                            # 010
                                                                            MPN: 120925
                                                                            CONTROL ROD, 4TH - 5TH SPEEDS
                                                                            from £83.13
                                                                            from £83.13
                                                                            # 011
                                                                            MPN: 115341
                                                                            FORK, 1ST SPEED AND REVERSE
                                                                            from £167.07
                                                                            from £167.07
                                                                            # 012
                                                                            MPN: 115349
                                                                            FORK, 2ND - 3RD SPEEDS
                                                                            from £195.14
                                                                            from £195.14
                                                                            # 013
                                                                            MPN: 115348
                                                                            FORK, 4TH • 5TH SPEEDS
                                                                            from £354.80
                                                                            from £354.80
                                                                            This part replaces part number 116348
                                                                            # 014
                                                                            MPN: 115355
                                                                            STOP ROLLER
                                                                            from £8.25
                                                                            from £8.25
                                                                            # 015
                                                                            MPN: 115356
                                                                            STOP ROLLER
                                                                            from £4.26
                                                                            from £4.26
                                                                            # 016
                                                                            MPN: 115376
                                                                            BUSH
                                                                            from £28.81
                                                                            from £28.81
                                                                            # 017
                                                                            MPN: 100750
                                                                            SPRING
                                                                            from £0.91
                                                                            from £0.91
                                                                            This part replaces part number 523899
                                                                            # 018
                                                                            MPN: 101612
                                                                            BALL
                                                                            from £0.68
                                                                            from £0.68
                                                                            This part replaces part number 93309
                                                                            # 019
                                                                            MPN: 115357
                                                                            SPACER
                                                                            from £4.49
                                                                            from £4.49
                                                                            # 020
                                                                            MPN: 115358
                                                                            CONTROL FORK FOR 1ST SPEED AND REVERSE
                                                                            from £79.20
                                                                            from £79.20
                                                                            # 021
                                                                            MPN: 115359
                                                                            CONTROL FORK FOR 2ND AND 3RD SPEEDS
                                                                            from £128.92
                                                                            from £128.92
                                                                            # 022
                                                                            MPN: 115360
                                                                            CONTROL FORK FOR 4TH AND 5TH SPEEDS
                                                                            from £66.47
                                                                            from £66.47
                                                                            # 023
                                                                            MPN: 106213
                                                                            LEVER
                                                                            from £81.16
                                                                            from £81.16
                                                                            This part replaces part number 525010 - and 1 more. Click to view details
                                                                            # 025
                                                                            MPN: 106852
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                            # 026
                                                                            MPN: 114865
                                                                            WASHER
                                                                            from £1.16
                                                                            from £1.16
                                                                            This part replaces part number 112109
                                                                            # 027
                                                                            MPN: 115374
                                                                            BUSH
                                                                            from £5.15
                                                                            from £5.15
                                                                            # 028
                                                                            MPN: 108281
                                                                            WASHER
                                                                            from £0.96
                                                                            from £0.96
                                                                            # 030
                                                                            MPN: 106852
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                            # 031
                                                                            MPN: 104279
                                                                            BOLT
                                                                            from £20.23
                                                                            from £20.23
                                                                            This part replaces part number 95176 - and 1 more. Click to view details
                                                                            # 032
                                                                            MPN: 103587
                                                                            PLATE
                                                                            from £5.85
                                                                            from £5.85
                                                                            This part replaces part number 92692 - and 1 more. Click to view details
                                                                            # 034
                                                                            MPN: 106852
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                            # 035
                                                                            MPN: 15541121
                                                                            BOLT
                                                                            from £0.57
                                                                            from £0.57
                                                                            # 036
                                                                            MPN: 114865
                                                                            SHIM
                                                                            from £1.16
                                                                            from £1.16
                                                                            This part replaces part number 112109
                                                                            # 037
                                                                            MPN: 115373
                                                                            ROLLER CAGE
                                                                            from £2.80
                                                                            from £2.80
                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
