ferrari 308 quattrovalvole (1985) water pump and pipings parts diagram

017 - Water Pump and Pipings

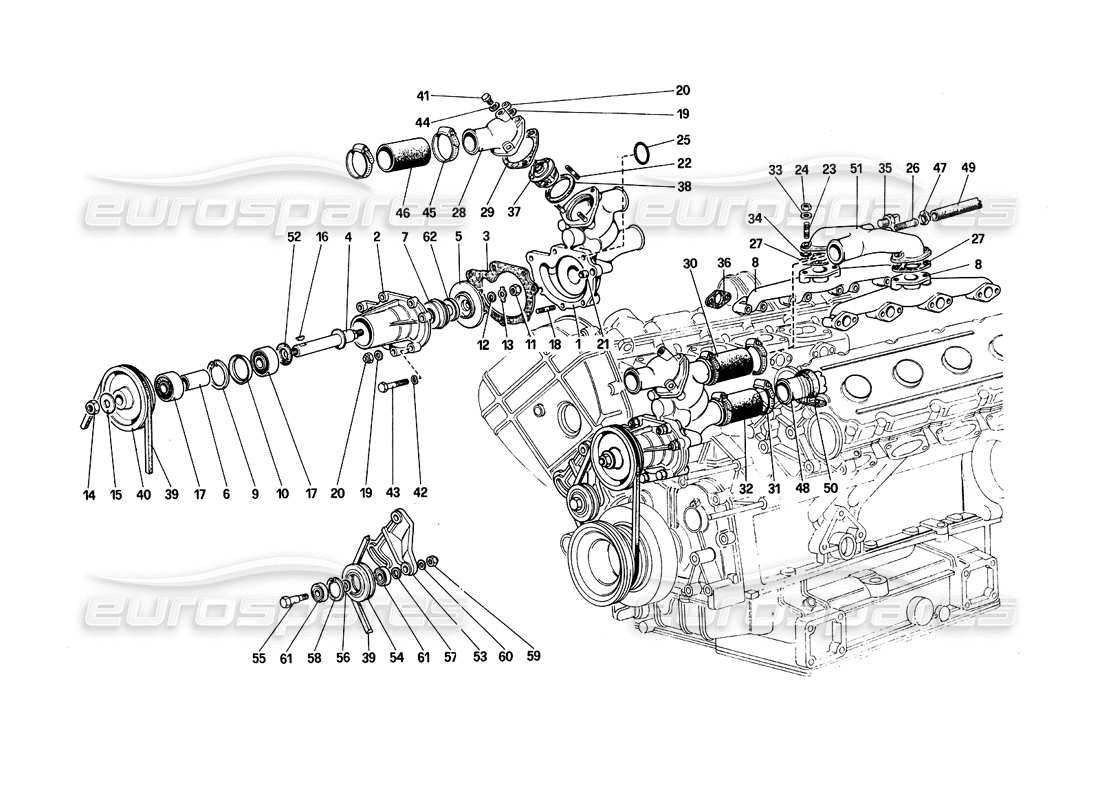

Ferrari 308 Quattrovalvole (1985) Water Pump and Pipings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 002
                                                                                              MPN: 121255
                                                                                              WATER PUMP OEM (ORIGINAL) + GASKET (135121)
                                                                                              from £245.00
                                                                                              from £245.00
                                                                                              This part replaces part number 103795 - and 5 more. Click to view details
                                                                                              # 002
                                                                                              MPN: 121255/A
                                                                                              WATER PUMP + GASKET
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 003
                                                                                              MPN: 135121
                                                                                              WATER PUMP GASKET
                                                                                              from £3.76
                                                                                              from £3.76
                                                                                              This part replaces part number 103952 - and 1 more. Click to view details
                                                                                              # 004
                                                                                              MPN: 121253
                                                                                              SPINDLE FOR PULLEY
                                                                                              For water pump no/121290
                                                                                              from £254.16
                                                                                              from £254.16
                                                                                              # 005
                                                                                              MPN: 10-38-06
                                                                                              IMPELLER
                                                                                              For water pump no.115472
                                                                                              from £206.61
                                                                                              from £206.61
                                                                                              # 005
                                                                                              MPN: 121254
                                                                                              IMPELLER
                                                                                              For water pump no. 121290
                                                                                              from £132.20
                                                                                              from £132.20
                                                                                              # 006
                                                                                              MPN: 116157
                                                                                              SPACER
                                                                                              from £68.02
                                                                                              from £68.02
                                                                                              # 007
                                                                                              MPN: 100433
                                                                                              SEALING RING
                                                                                              For water pump no. 115472 and 121265
                                                                                              from £69.95
                                                                                              from £69.95
                                                                                              This part replaces part number 114410
                                                                                              # 007
                                                                                              MPN: 100433
                                                                                              WATER PUMP SEAL
                                                                                              For water pump no. 121290
                                                                                              from £69.95
                                                                                              from £69.95
                                                                                              This part replaces part number 114410

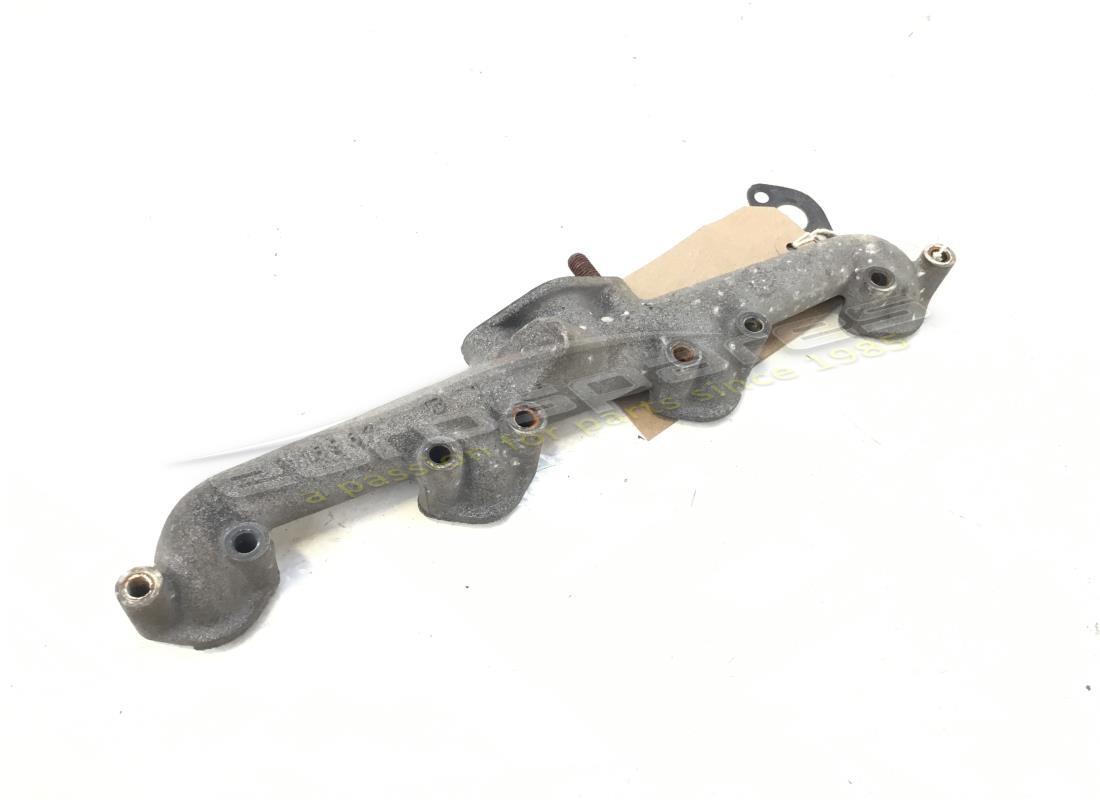

                                                                                              # 008
                                                                                              MPN: 116967
                                                                                              MANIFOLD OF OUTPUT WATER TO THE HEARS
                                                                                              See also 138852
                                                                                              from £1,044.04
                                                                                              from £1,044.04
                                                                                              # 008
                                                                                              MPN: 138852
                                                                                              MANIFOLD OF OUTPUT WATER TO THE HEARS
                                                                                              from £1,053.25
                                                                                              from £1,053.25
                                                                                              This part replaces part number 116967 which we have in stock - and 3 more. Click to view details
                                                                                              # 009
                                                                                              MPN: 11060076
                                                                                              SEEGER RING
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 010
                                                                                              MPN: 116158
                                                                                              WASHER
                                                                                              from £22.21
                                                                                              from £22.21
                                                                                              # 011
                                                                                              MPN: 100436
                                                                                              CAP NUT
                                                                                              from £7.41
                                                                                              from £7.41
                                                                                              This part replaces part number 92896
                                                                                              # 012
                                                                                              MPN: 10730321
                                                                                              WASHER
                                                                                              from £0.66
                                                                                              from £0.66
                                                                                              This part replaces part number 10730301 - and 2 more. Click to view details
                                                                                              # 013
                                                                                              MPN: 100434
                                                                                              PLATE
                                                                                              from £7.26
                                                                                              from £7.26
                                                                                              This part replaces part number 92361 - and 1 more. Click to view details
                                                                                              # 014
                                                                                              MPN: 16101521
                                                                                              NUT
                                                                                              from £0.57
                                                                                              from £0.57
                                                                                              This part replaces part number 16101520
                                                                                              # 015
                                                                                              MPN: 11198673
                                                                                              CONIC WASHER
                                                                                              from £0.87
                                                                                              from £0.87
                                                                                              This part replaces part number 11198671
                                                                                              # 016
                                                                                              MPN: 10205820
                                                                                              TONGUE
                                                                                              from £0.80
                                                                                              from £0.80
                                                                                              # 017
                                                                                              MPN: 116159
                                                                                              BEARING
                                                                                              from £21.01
                                                                                              from £21.01
                                                                                              # 018
                                                                                              MPN: 11500721
                                                                                              STUD
                                                                                              from £0.80
                                                                                              from £0.80
                                                                                              # 019
                                                                                              MPN: 12601279
                                                                                              CORRUGATED WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                              # 020
                                                                                              MPN: 12574211
                                                                                              NUT
                                                                                              from £0.71
                                                                                              from £0.71
                                                                                              # 021
                                                                                              MPN: 102704
                                                                                              DOWEL
                                                                                              from £1.59
                                                                                              from £1.59
                                                                                              This part replaces part number 500805
                                                                                              # 022
                                                                                              MPN: 13541124
                                                                                              STUD
                                                                                              from £12.01
                                                                                              from £12.01
                                                                                              This part replaces part number 13541121
                                                                                              # 023
                                                                                              MPN: 16100814
                                                                                              STUD
                                                                                              from £0.71
                                                                                              from £0.71
                                                                                              This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                              # 024
                                                                                              MPN: 16100824
                                                                                              NUT
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                              # 025
                                                                                              MPN: 105196
                                                                                              SEALING RING
                                                                                              from £2.88
                                                                                              from £2.88
                                                                                              # 026
                                                                                              MPN: 106241
                                                                                              UNION
                                                                                              from £25.26
                                                                                              from £25.26
                                                                                              # 027
                                                                                              MPN: 132981
                                                                                              GASKET
                                                                                              from £4.08
                                                                                              from £4.08
                                                                                              This part replaces part number 111481
                                                                                              # 028
                                                                                              MPN: 105165
                                                                                              WATER OUTLET UNION
                                                                                              from £141.04
                                                                                              from £141.04
                                                                                              # 029
                                                                                              MPN: 105189
                                                                                              GASKET
                                                                                              from £2.46
                                                                                              from £2.46
                                                                                              This part replaces part number 4206607
                                                                                              # 030
                                                                                              MPN: 121258
                                                                                              SLEEVE
                                                                                              from £19.23
                                                                                              from £19.23
                                                                                              This part replaces part number 10147087 - and 4 more. Click to view details
                                                                                              # 031
                                                                                              MPN: 296782
                                                                                              CLAMP
                                                                                              from £4.89
                                                                                              from £4.89
                                                                                              This part replaces part number 12174090
                                                                                              # 032
                                                                                              MPN: 122817
                                                                                              SLEEVE
                                                                                              from £21.76
                                                                                              from £21.76
                                                                                              This part replaces part number 121259
                                                                                              # 033
                                                                                              MPN: 11198074
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                              # 034
                                                                                              MPN: 103039
                                                                                              SEALING RING
                                                                                              (minimum order quantity = 10)
                                                                                              from £1.62
                                                                                              from £1.62
                                                                                              This part replaces part number 95860041
                                                                                              # 035
                                                                                              MPN: 104628
                                                                                              TEMPERATURE SENDER UNIT
                                                                                              from £31.50
                                                                                              from £31.50
                                                                                              This part replaces part number 4108672 - and 3 more. Click to view details
                                                                                              # 036
                                                                                              MPN: 132980
                                                                                              GASKET
                                                                                              from £1.36
                                                                                              from £1.36
                                                                                              This part replaces part number 111480
                                                                                              # 037
                                                                                              MPN: 109671
                                                                                              THERMOSTAT
                                                                                              from £78.24
                                                                                              from £78.24
                                                                                              This part replaces part number 105191 - and 1 more. Click to view details
                                                                                              # 038
                                                                                              MPN: 105192
                                                                                              GASKET
                                                                                              from £12.38
                                                                                              from £12.38
                                                                                              This part replaces part number 4184495

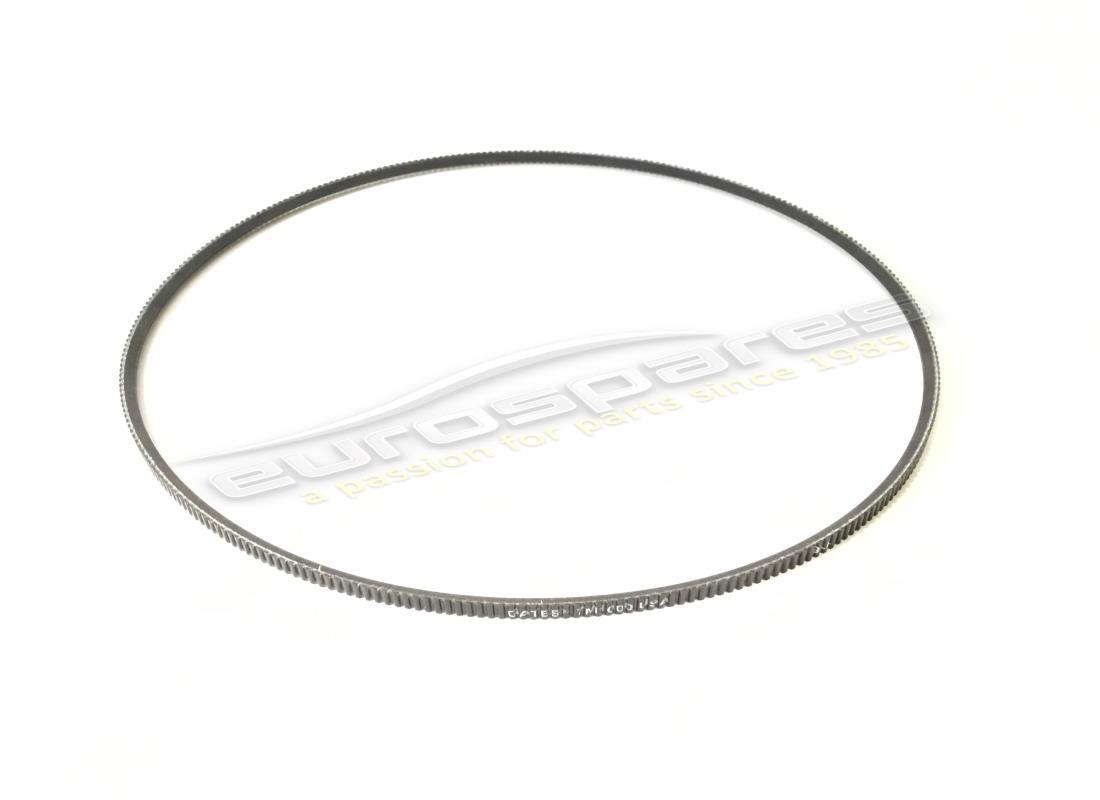

                                                                                              # 039
                                                                                              MPN: 107971
                                                                                              WATER PUMP AND ALTERNATOR BELT
                                                                                              (Assembly with single belt)
                                                                                              from £56.99
                                                                                              from £56.99

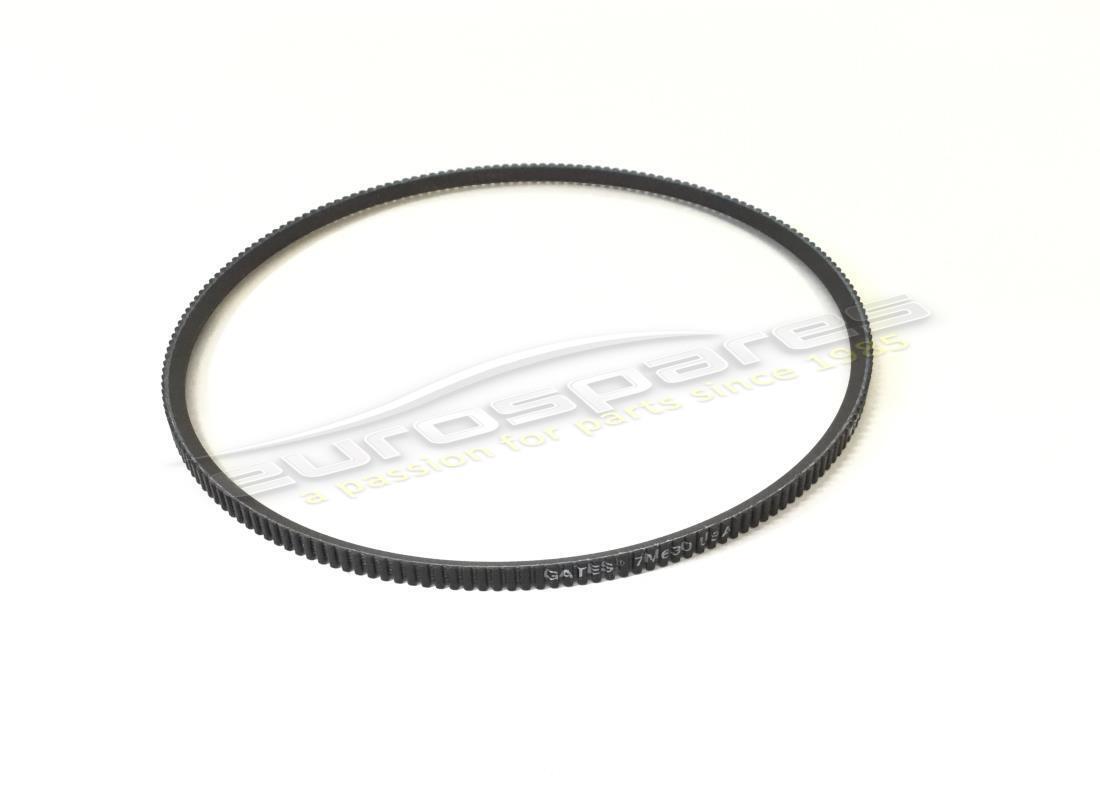

                                                                                              # 039
                                                                                              MPN: 121655
                                                                                              CONTROL BELT FOR WATER PUMP
                                                                                              2 individual belts
                                                                                              from £39.88
                                                                                              from £39.88

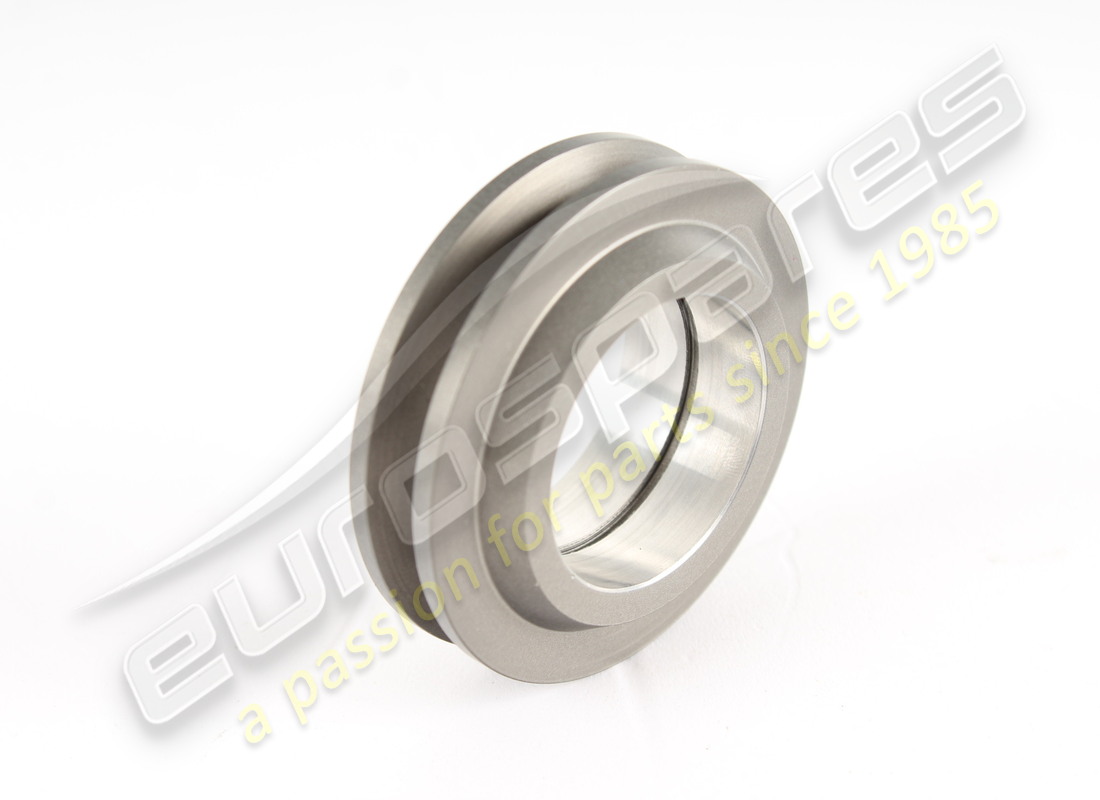

                                                                                              # 040
                                                                                              MPN: 105166
                                                                                              PULLEY
                                                                                              Single belt
                                                                                              from £217.45
                                                                                              from £217.45
                                                                                              This part replaces part number 107970

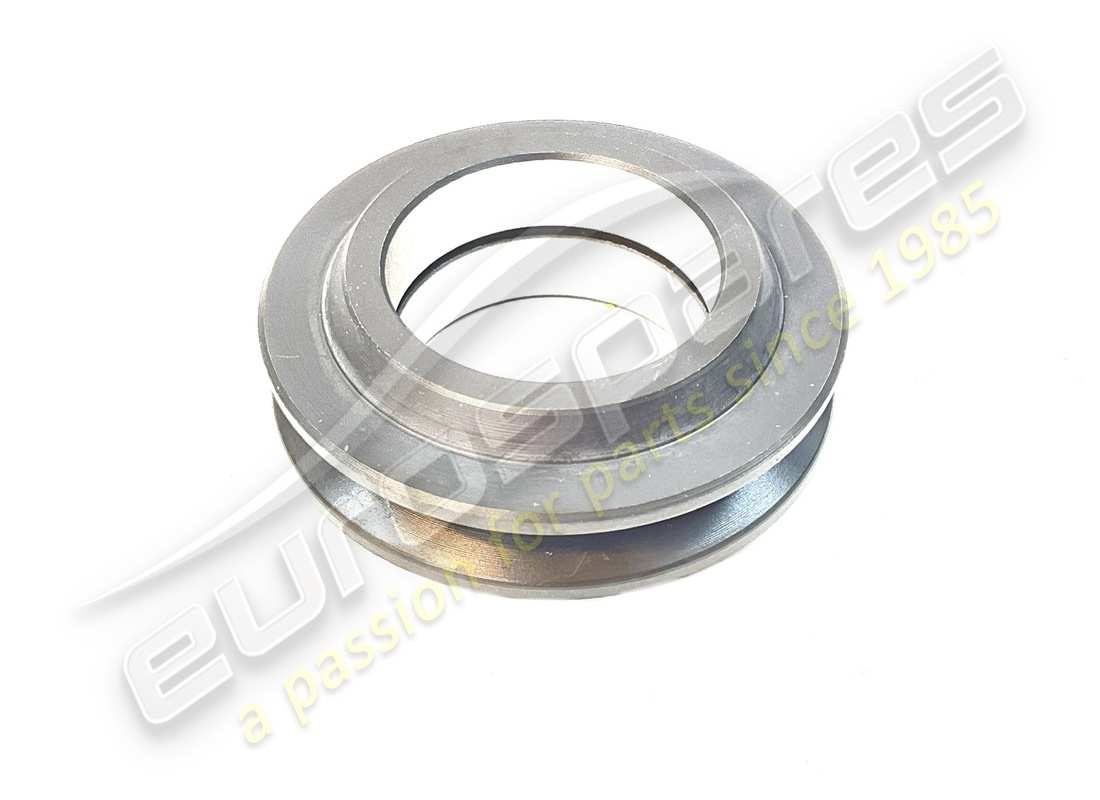

                                                                                              # 040
                                                                                              MPN: 121654
                                                                                              PULLEY
                                                                                              2 individual belts
                                                                                              from £135.38
                                                                                              from £135.38
                                                                                              This part replaces part number 119053 - and 1 more. Click to view details
                                                                                              # 041
                                                                                              MPN: 16042940
                                                                                              SCREW
                                                                                              from £8.89
                                                                                              from £8.89
                                                                                              # 042
                                                                                              MPN: 12601371
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 043
                                                                                              MPN: 16044421
                                                                                              FIXING SCREW FOR PUMP
                                                                                              from £1.31
                                                                                              from £1.31
                                                                                              # 044
                                                                                              MPN: 10260060
                                                                                              GASKET
                                                                                              from £0.79
                                                                                              from £0.79
                                                                                              # 045
                                                                                              MPN: 296782
                                                                                              CLAMP
                                                                                              from £4.89
                                                                                              from £4.89
                                                                                              This part replaces part number 12174090
                                                                                              # 046
                                                                                              MPN: 105190
                                                                                              SLEEVE
                                                                                              from £16.64
                                                                                              from £16.64
                                                                                              This part replaces part number 106364
                                                                                              # 047
                                                                                              MPN: 13000190
                                                                                              CLAMP
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 12178990 - and 1 more. Click to view details
                                                                                              # 048
                                                                                              MPN: 115136
                                                                                              TUBE
                                                                                              from £129.52
                                                                                              from £129.52
                                                                                              # 049
                                                                                              MPN: 122218
                                                                                              BREATHER PIPE
                                                                                              from £24.97
                                                                                              from £24.97
                                                                                              This part replaces part number 103471 - and 1 more. Click to view details
                                                                                              # 050
                                                                                              MPN: 107002
                                                                                              CLAMP FOR PIPE
                                                                                              from £7.32
                                                                                              from £7.32
                                                                                              # 051
                                                                                              MPN: 116968
                                                                                              JOINT PIPING TO MANIFOLDS OF OUTPUT WATER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 052
                                                                                              MPN: 121263
                                                                                              GASKET
                                                                                              For cover no.121262
                                                                                              from £8.65
                                                                                              from £8.65

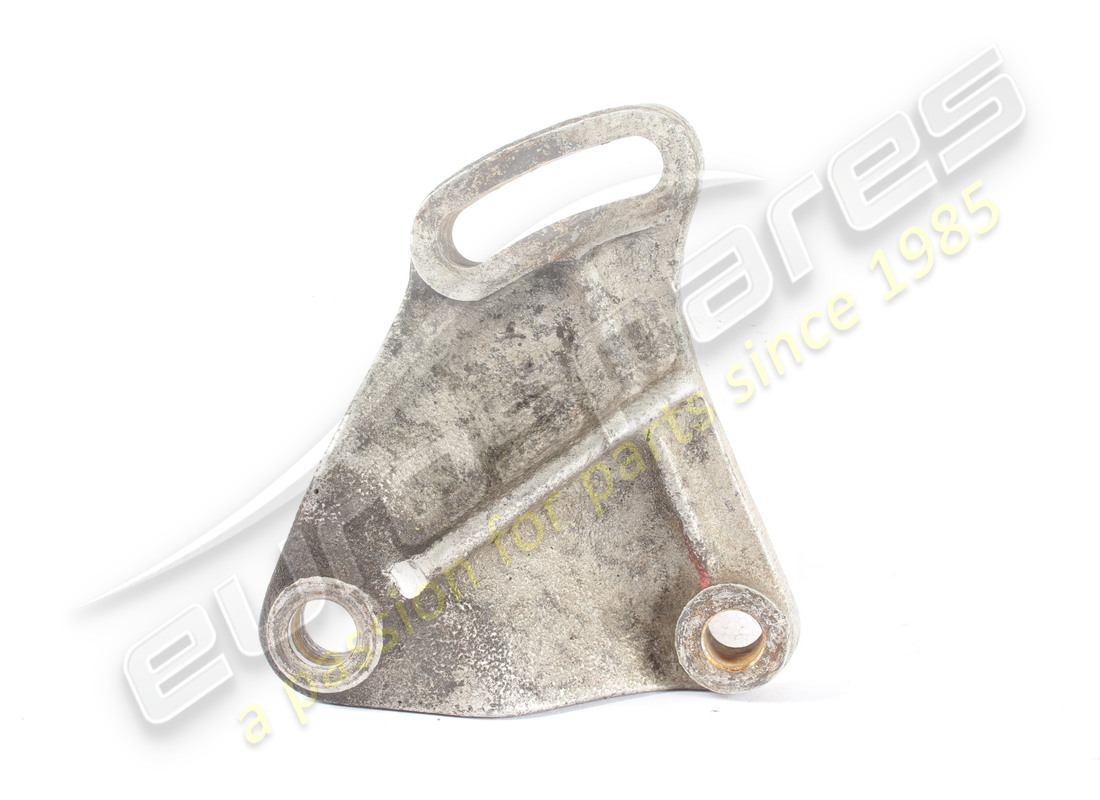

                                                                                              # 053
                                                                                              MPN: 121658
                                                                                              SUPPORT
                                                                                              from £86.94
                                                                                              from £86.94

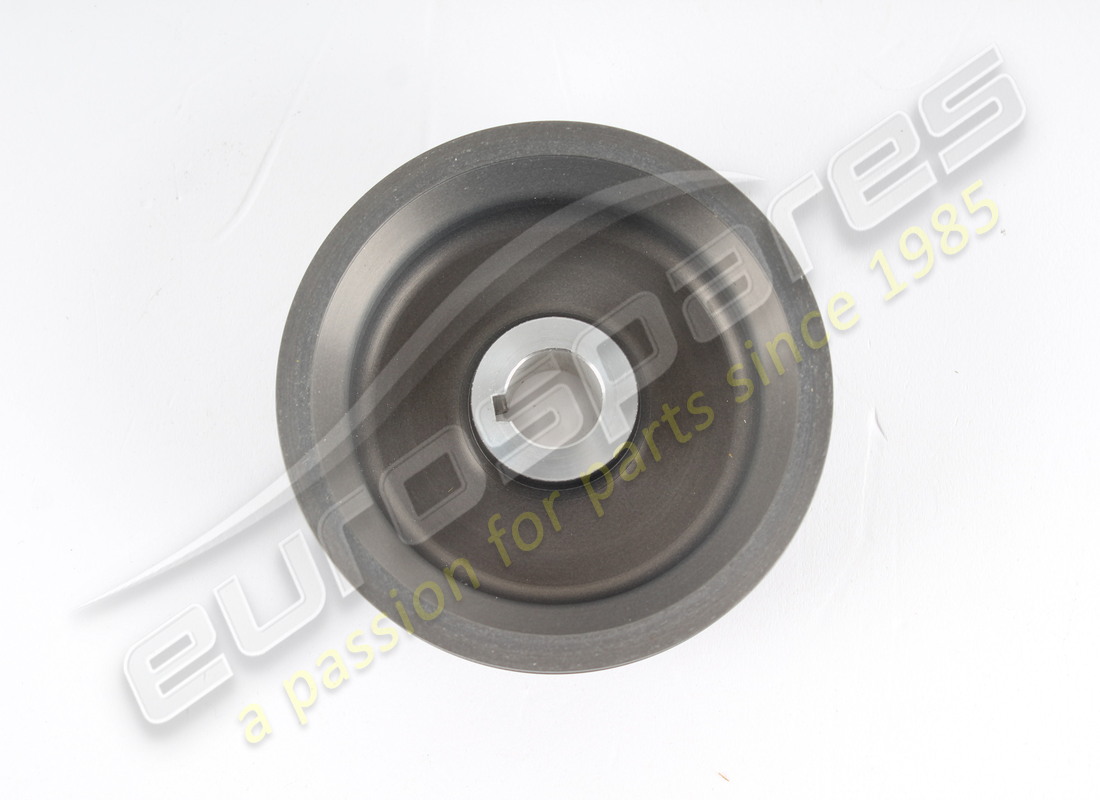

                                                                                              # 054
                                                                                              MPN: 121659
                                                                                              PULLEY
                                                                                              from £171.36
                                                                                              from £171.36
                                                                                              # 055
                                                                                              MPN: 105048
                                                                                              PIN
                                                                                              2 individual belts
                                                                                              from £53.52
                                                                                              from £53.52
                                                                                              # 056
                                                                                              MPN: 107841
                                                                                              SPACER
                                                                                              from £31.83
                                                                                              from £31.83
                                                                                              # 057
                                                                                              MPN: 107842
                                                                                              SPACER
                                                                                              2 individual belts
                                                                                              from £12.75
                                                                                              from £12.75
                                                                                              # 058
                                                                                              MPN: 11059076
                                                                                              SEEGER RING
                                                                                              2 individual belts
                                                                                              from £0.66
                                                                                              from £0.66
                                                                                              This part replaces part number 11059075
                                                                                              # 059
                                                                                              MPN: 148020
                                                                                              NUT
                                                                                              2 individual belts
                                                                                              from £2.57
                                                                                              from £2.57
                                                                                              This part replaces part number 102825 - and 3 more. Click to view details
                                                                                              # 060
                                                                                              MPN: 103025
                                                                                              WASHER
                                                                                              2 individual belts
                                                                                              from £23.18
                                                                                              from £23.18
                                                                                              # 061
                                                                                              MPN: 105038
                                                                                              SEALED BALL BEARING 9MM WIDE
                                                                                              2 individual belts
                                                                                              from £10.49
                                                                                              from £10.49
                                                                                              # 062
                                                                                              MPN: 100433
                                                                                              WATER PUMP SEAL
                                                                                              For pump no. 121290
                                                                                              from £69.95
                                                                                              from £69.95
                                                                                              This part replaces part number 114410
