ferrari 308 gtb (1980) air conditioning compressor and controls parts diagram

045 - Air Conditioning Compressor and Controls

Ferrari 308 GTB (1980) Air Conditioning Compressor and Controls Parts Diagram

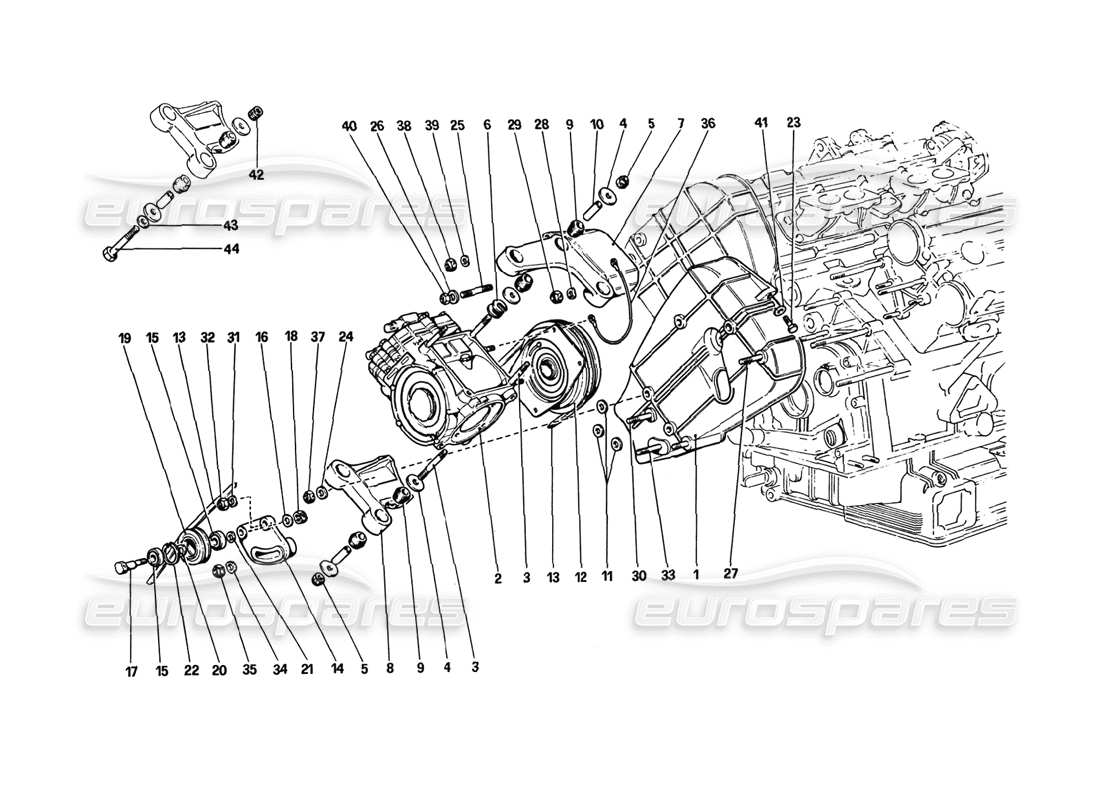

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 108098
                                                                            CARTER SX. COMPLETO
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 108097
                                                                            # 002
                                                                            MPN: 111222
                                                                            COMPRESSOR WITH PULLEY
                                                                            from £995.00
                                                                            from £995.00
                                                                            This part replaces part number 080.2112.000 - 209. U - and 5 more. Click to view details
                                                                            # 003
                                                                            MPN: 105044
                                                                            THREADED STUD
                                                                            Fino alla vettura n. 28805
                                                                            from £36.58
                                                                            from £36.58
                                                                            # 004
                                                                            MPN: 108051
                                                                            WASHER
                                                                            Dalla vettura n. 28807 q = 5
                                                                            from £1.98
                                                                            from £1.98
                                                                            # 005
                                                                            MPN: 12574511
                                                                            SELF LOCKING NUT
                                                                            Fino alla vettura n. 28805 q = 5
                                                                            Supersession
                                                                            Supersession
                                                                            # 006
                                                                            MPN: 105039
                                                                            WASHER
                                                                            Dalla vettura n. 28807 q = 3
                                                                            from £10.92
                                                                            from £10.92
                                                                            # 007
                                                                            MPN: 108050
                                                                            SUPPORT
                                                                            from £194.92
                                                                            from £194.92
                                                                            This part replaces part number 107869 - and 1 more. Click to view details
                                                                            # 008
                                                                            MPN: 108056
                                                                            SUPPORT
                                                                            from £68.01
                                                                            from £68.01
                                                                            # 009
                                                                            MPN: 107335
                                                                            RUBBER GROMMET
                                                                            from £11.22
                                                                            from £11.22
                                                                            # 010
                                                                            MPN: 108052
                                                                            TUBETTO DISTANZIALE
                                                                            from £17.33
                                                                            from £17.33
                                                                            # 011
                                                                            MPN: 107835
                                                                            WASHER
                                                                            from £7.82
                                                                            from £7.82
                                                                            # 012
                                                                            MPN: 105148
                                                                            A/C. CLUTCH
                                                                            Supersession
                                                                            Supersession
                                                                            # 013
                                                                            MPN: 105046
                                                                            CINGHIA COMANDO COMPRESSORE
                                                                            from £72.28
                                                                            from £72.28
                                                                            This part replaces part number 320382 which we have in stock
                                                                            # 014
                                                                            MPN: 105051
                                                                            SUPPORT
                                                                            from £338.61
                                                                            from £338.61
                                                                            # 015
                                                                            MPN: 105038
                                                                            SEALED BALL BEARING 9MM WIDE
                                                                            from £10.49
                                                                            from £10.49
                                                                            # 016
                                                                            MPN: 103025
                                                                            WASHER
                                                                            from £23.18
                                                                            from £23.18
                                                                            # 017
                                                                            MPN: 105048
                                                                            PIVOT
                                                                            from £53.52
                                                                            from £53.52
                                                                            # 018
                                                                            MPN: 148020
                                                                            SELF LOCKING NUT
                                                                            from £2.57
                                                                            from £2.57
                                                                            This part replaces part number 102825 - and 3 more. Click to view details
                                                                            # 019
                                                                            MPN: 121405
                                                                            PULEGGIA PER TENDICINGHIA
                                                                            from £103.87
                                                                            from £103.87
                                                                            This part replaces part number 107840
                                                                            # 020
                                                                            MPN: 107841
                                                                            DISTANZIALE INTEMO
                                                                            from £31.83
                                                                            from £31.83
                                                                            # 021
                                                                            MPN: 107842
                                                                            SPACER
                                                                            from £12.75
                                                                            from £12.75
                                                                            # 022
                                                                            MPN: 11059075
                                                                            SEEGER RING
                                                                            from £0.48
                                                                            from £0.48
                                                                            # 023
                                                                            MPN: 10979411
                                                                            BOLT
                                                                            Non vale per GTS
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 023
                                                                            MPN: 13540821
                                                                            PRIGIONIEIO
                                                                            Vale per GTS
                                                                            Supersession
                                                                            Supersession
                                                                            # 024
                                                                            MPN: 107993
                                                                            WASHER
                                                                            from £10.90
                                                                            from £10.90
                                                                            # 025
                                                                            MPN: 13546621
                                                                            PIIGIONIERO FISSAGGIO SUPPORTO SUPER.
                                                                            from £4.26
                                                                            from £4.26
                                                                            # 026
                                                                            MPN: 12601471
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            # 027
                                                                            MPN: 13517221
                                                                            STUD
                                                                            Supersession
                                                                            Supersession
                                                                            # 028
                                                                            MPN: 12601371
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            # 029
                                                                            MPN: 104030
                                                                            SELF LOCKING NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 16104125
                                                                            # 030
                                                                            MPN: 13449921
                                                                            PRIGIONIEIO
                                                                            from £0.74
                                                                            from £0.74
                                                                            # 031
                                                                            MPN: 12601471
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            # 032
                                                                            MPN: 12574511
                                                                            SELF LOCKING NUT
                                                                            Supersession
                                                                            Supersession
                                                                            # 033
                                                                            MPN: 13517421
                                                                            PRIGIONIEIO FISSAGGIO TENDICINGHIA
                                                                            from £53.42
                                                                            from £53.42
                                                                            This part replaces part number 13517420
                                                                            # 034
                                                                            MPN: 13550321
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 035
                                                                            MPN: 104030
                                                                            SELF LOCKING NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 16104125

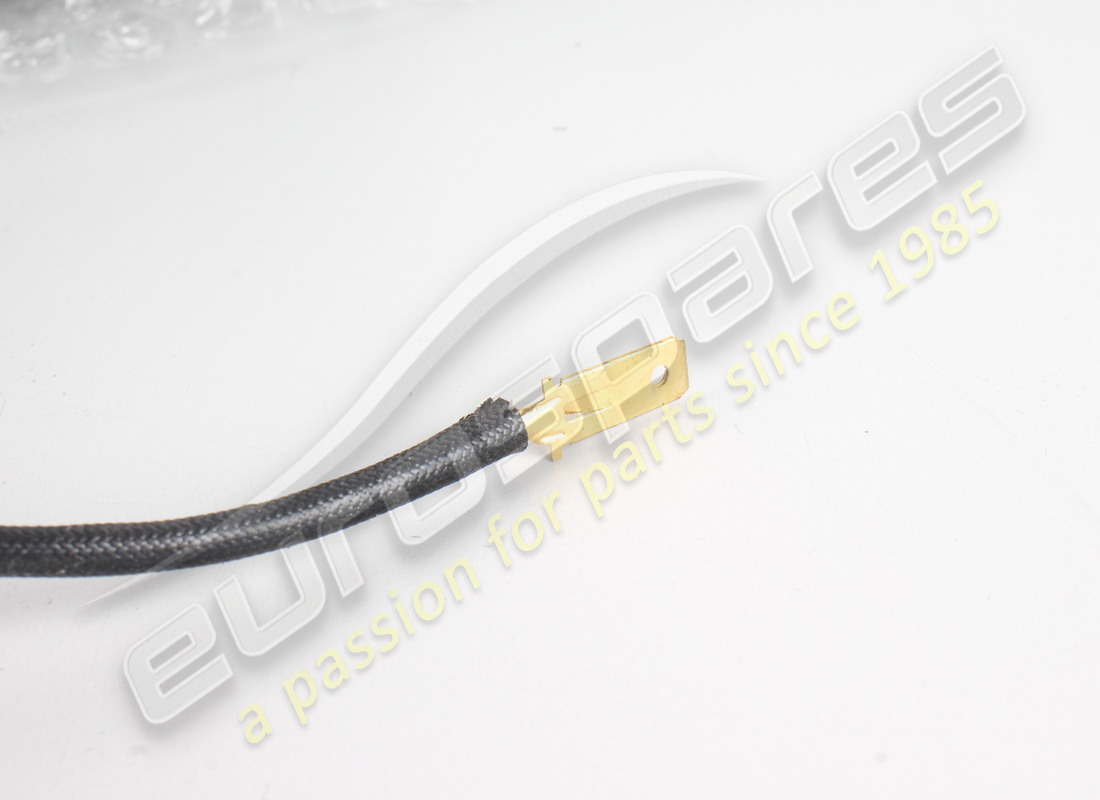

                                                                            # 036
                                                                            MPN: 108043
                                                                            CAVETTO DI MASSA
                                                                            from £2.42
                                                                            from £2.42
                                                                            # 037
                                                                            MPN: 102742
                                                                            SELF LOCKING NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 12557621 - and 2 more. Click to view details
                                                                            # 038
                                                                            MPN: 12574521
                                                                            SELF LOCKING NUT
                                                                            from £0.56
                                                                            from £0.56
                                                                            This part replaces part number 104114 which we have in stock - and 1 more. Click to view details
                                                                            # 039
                                                                            MPN: 12601471
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            # 040
                                                                            MPN: 12574511
                                                                            NUT
                                                                            Supersession
                                                                            Supersession
                                                                            # 041
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                            # 042
                                                                            MPN: 13526070
                                                                            HELI - COIL
                                                                            Vale dalla vettura n. 28807
                                                                            from £1.93
                                                                            from £1.93
                                                                            This part replaces part number 104657
                                                                            # 043
                                                                            MPN: 127497
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 10516871 - and 2 more. Click to view details
                                                                            # 044
                                                                            MPN: 11288031
                                                                            BOLT
                                                                            Vale dalla vettura n. 28807
                                                                            Supersession
                                                                            Supersession
