ferrari 308 gtb (1980) rear suspension - wishbones parts diagram

039 - Rear Suspension - Wishbones

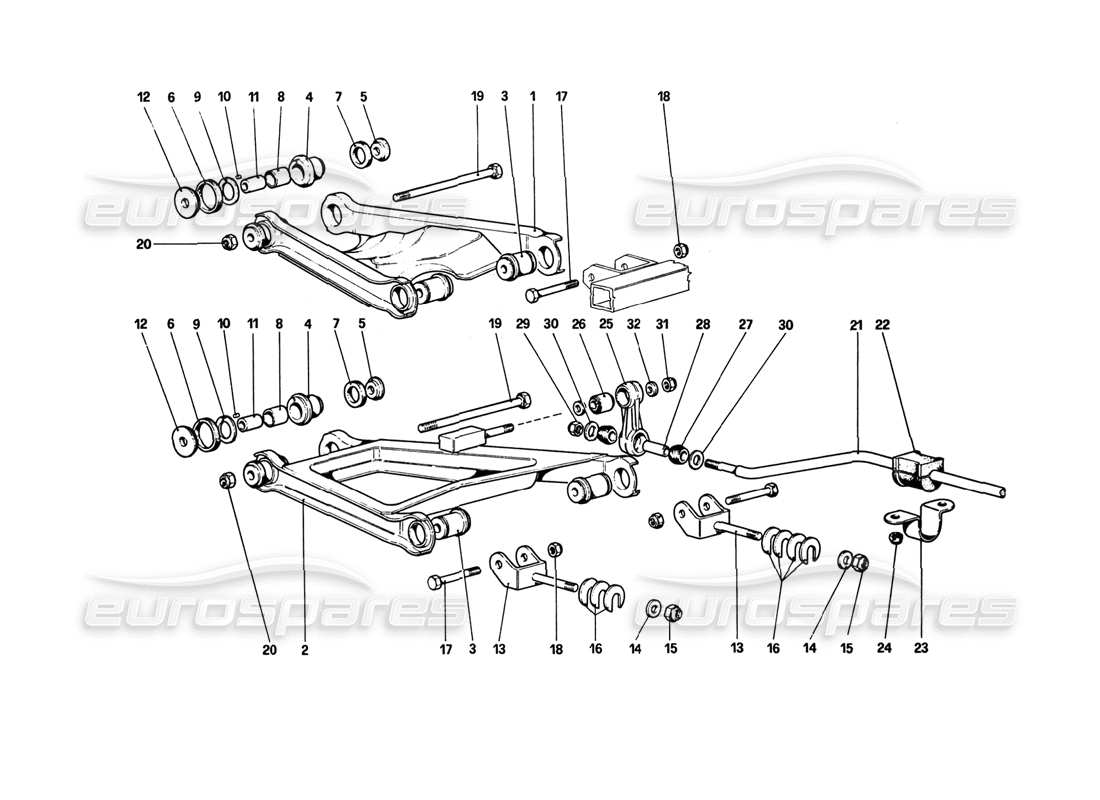

Ferrari 308 GTB (1980) Rear Suspension - Wishbones Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 000
                                                  MPN: 30812870
                                                  OUTER WISHBONE BUSH (SINGLE)
                                                  Includes 4,5,6,7,8,9,10,11,12
                                                  # 000
                                                  MPN: 30812870KIT
                                                  OUTER WISHBONE BUSH KIT
                                                  Includes 4X Outer Bushes
                                                  # 001
                                                  MPN: 104422

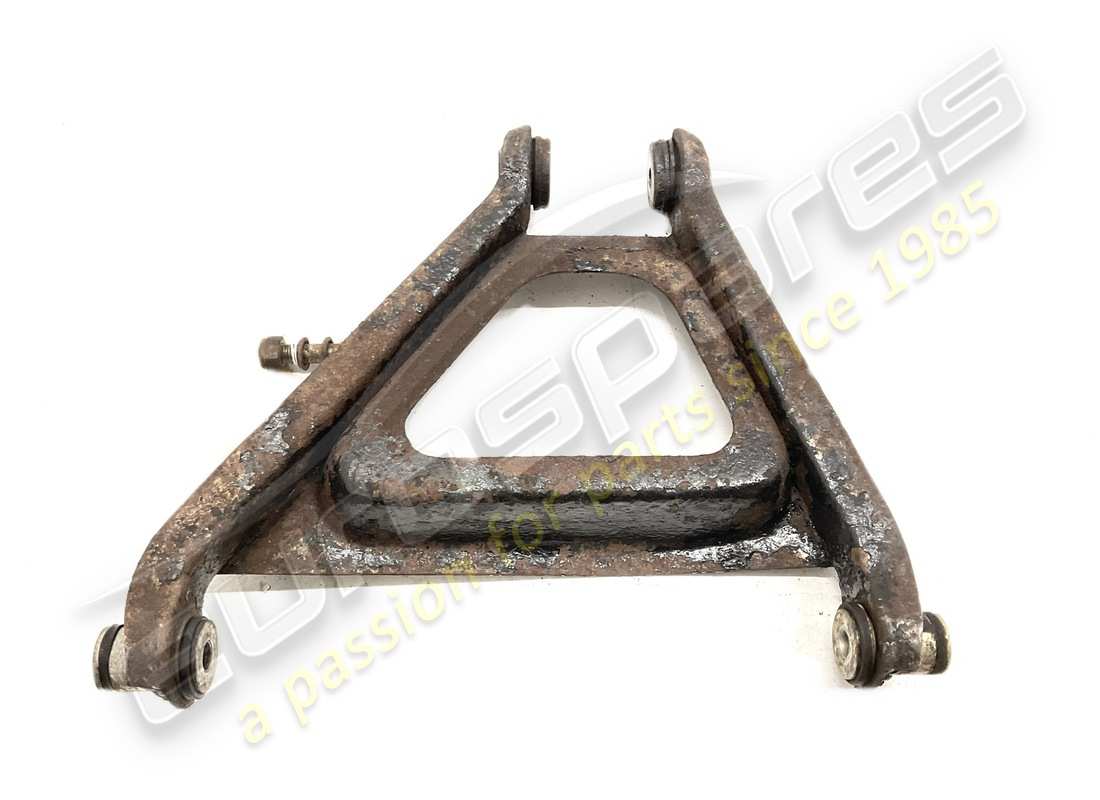

                                                  LH REAR UPPER SUSPENSION LEVER
                                                  from £403.87
                                                  from £403.87
                                                  This part replaces part number 602100 - and 5 more. Click to view details
                                                  # 001
                                                  MPN: 104423
                                                  RH REAR UPPER SUSPENSION LEVER
                                                  from £811.88
                                                  from £811.88
                                                  This part replaces part number 601346 - and 5 more. Click to view details
                                                  # 002
                                                  MPN: 104428
                                                  LEVER
                                                  RH Lower
                                                  from £1,963.82
                                                  from £1,963.82
                                                  This part replaces part number 602350 - and 1 more. Click to view details
                                                  # 002

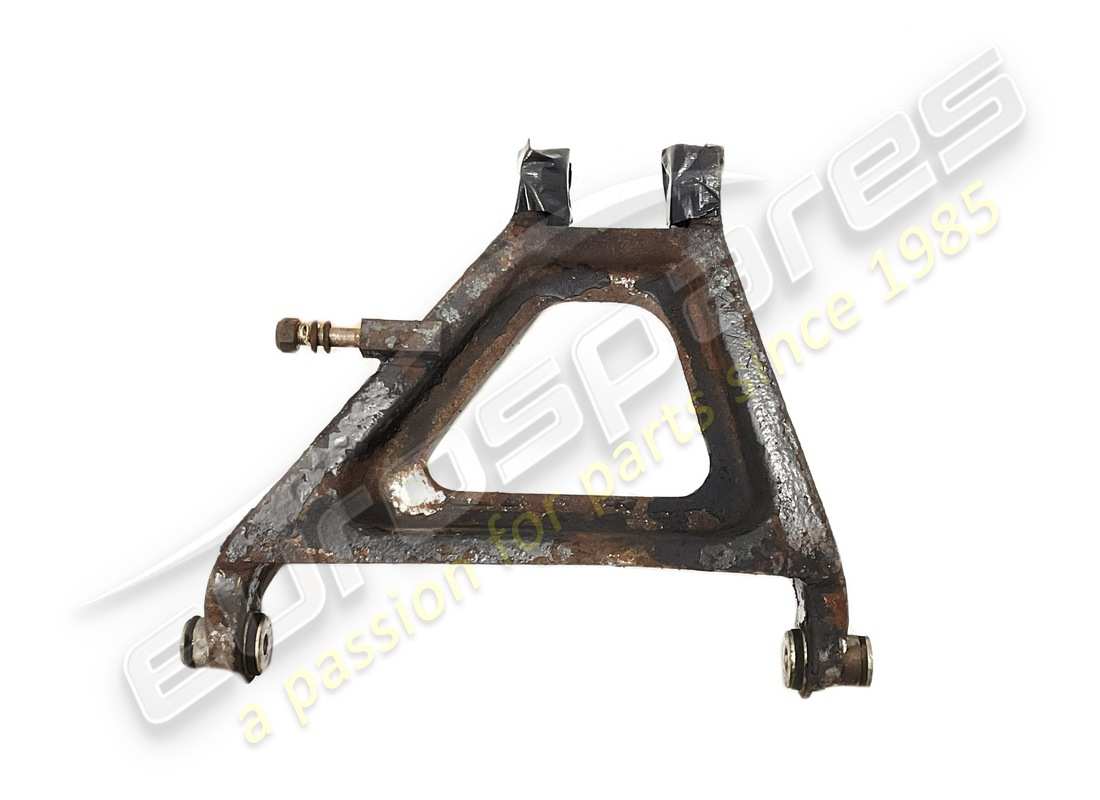

                                                  MPN: 104429
                                                  LEVER
                                                  LH Lower
                                                  from £1,145.07
                                                  from £1,145.07
                                                  This part replaces part number 602351 - and 1 more. Click to view details
                                                  # 003
                                                  MPN: 111616
                                                  BUSH
                                                  from £76.26
                                                  from £76.26
                                                  This part replaces part number 154536
                                                  # 003
                                                  MPN: 163038
                                                  BUSH
                                                  from £38.54
                                                  from £38.54
                                                  This part replaces part number 157701
                                                  # 004
                                                  MPN: 105340
                                                  BUSH
                                                  from £38.54
                                                  from £38.54
                                                  This part replaces part number 601684
                                                  # 005
                                                  MPN: 105341

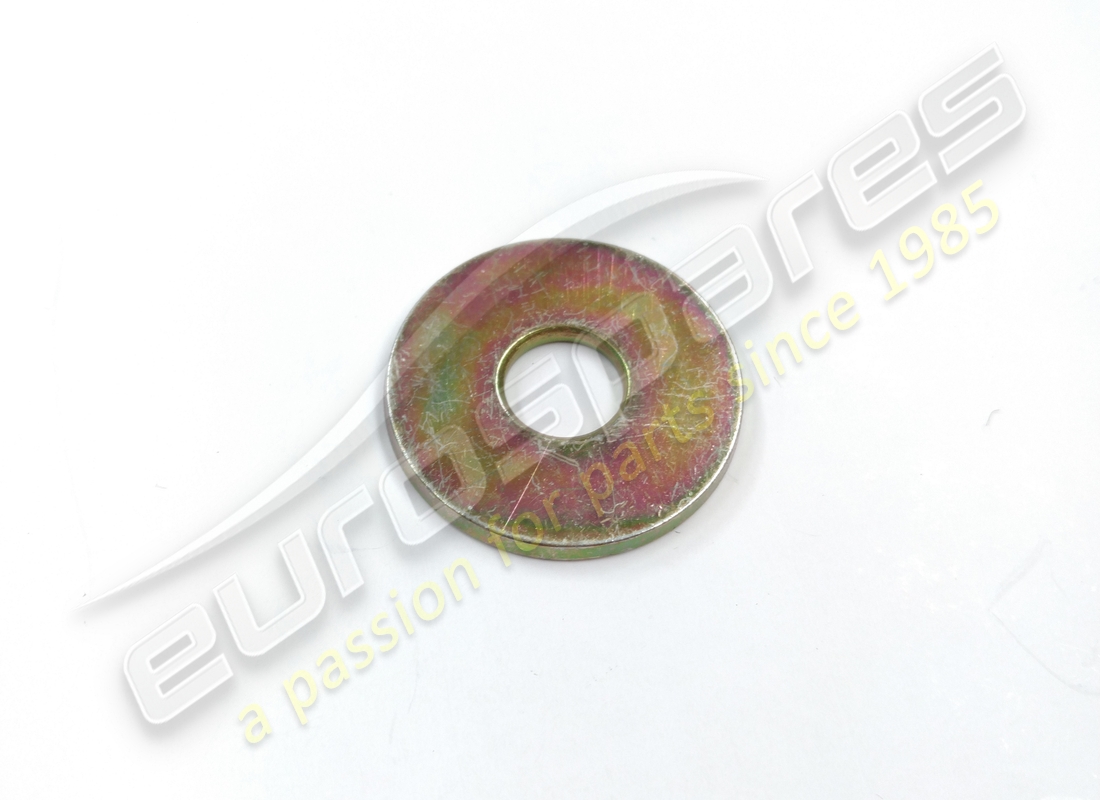

                                                  WASHER
                                                  from £18.21
                                                  from £18.21
                                                  This part replaces part number 601685
                                                  # 006
                                                  MPN: 105342
                                                  GOMMINO PARAPOLVERE GRANDE
                                                  from £17.91
                                                  from £17.91
                                                  This part replaces part number 641216
                                                  # 007
                                                  MPN: 105343
                                                  GOMMINO PARAPOLVERE PICCOLO
                                                  from £14.00
                                                  from £14.00
                                                  This part replaces part number 641217
                                                  # 008
                                                  MPN: 100787
                                                  BUSH
                                                  from £5.48
                                                  from £5.48
                                                  This part replaces part number 101315 - and 1 more. Click to view details
                                                  # 009
                                                  MPN: 101009
                                                  RING
                                                  from £6.71
                                                  from £6.71
                                                  This part replaces part number 600771
                                                  # 010
                                                  MPN: 100796
                                                  DOWEL
                                                  from £2.21
                                                  from £2.21
                                                  This part replaces part number 94943
                                                  # 011
                                                  MPN: 109905

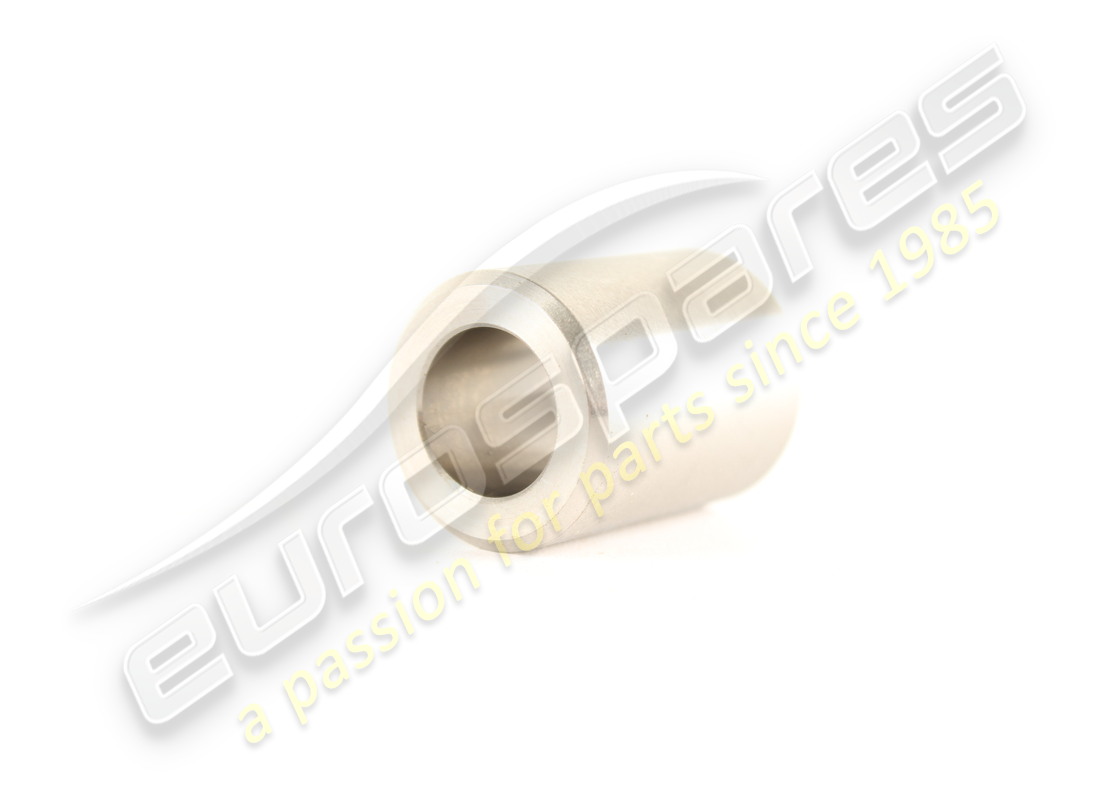

                                                  SPACER
                                                  from £29.50
                                                  from £29.50
                                                  This part replaces part number 100785 - and 3 more. Click to view details
                                                  # 012
                                                  MPN: 109902
                                                  WASHER
                                                  from £28.50
                                                  from £28.50
                                                  This part replaces part number 107438
                                                  # 013
                                                  MPN: 104439

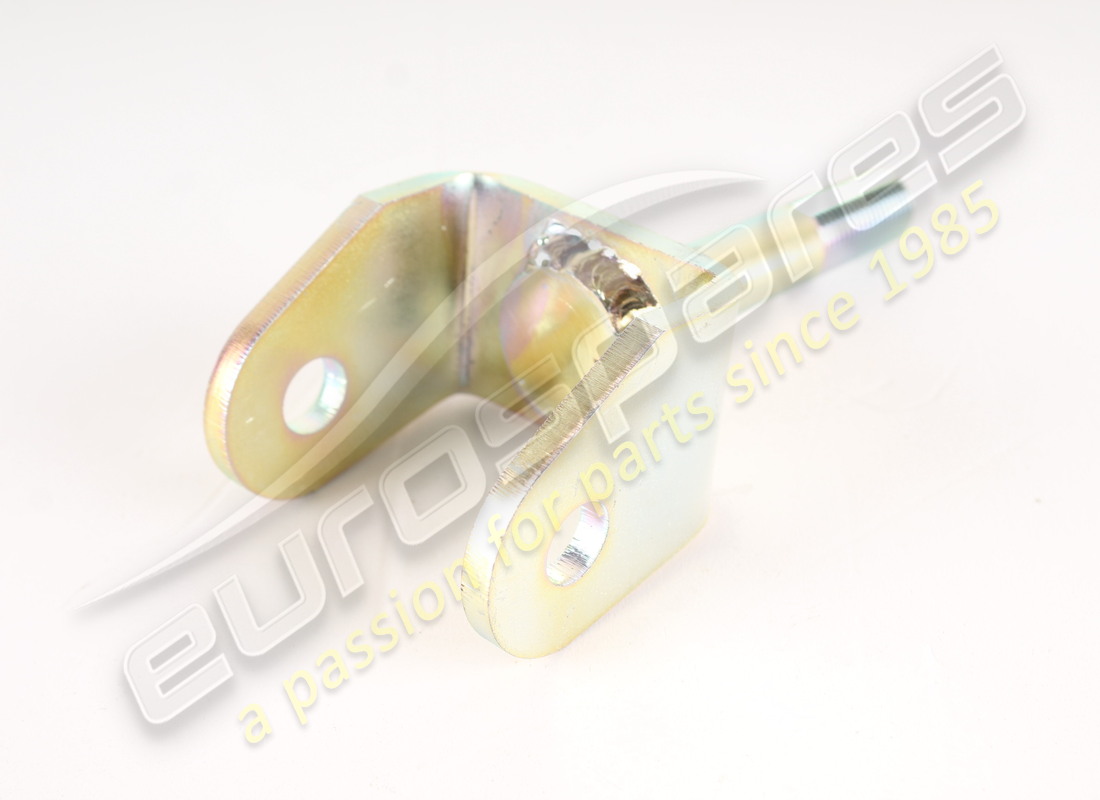

                                                  FORK
                                                  Fino alla vettura n. 26667
                                                  from £57.42
                                                  from £57.42
                                                  # 013
                                                  MPN: 114236
                                                  FORK
                                                  Dalla vettura n. 26669
                                                  from £78.75
                                                  from £78.75
                                                  # 014
                                                  MPN: 101041
                                                  WASHER
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 10730821
                                                  # 015
                                                  MPN: 150238
                                                  NUT
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 12575821 - and 2 more. Click to view details
                                                  # 016
                                                  MPN: 101039
                                                  IDEM SPESSORE MM. 1
                                                  from £1.78
                                                  from £1.78
                                                  This part replaces part number 107025 - and 1 more. Click to view details
                                                  # 016
                                                  MPN: 107338
                                                  IDEM SPESSORE MM. 1,5
                                                  from £12.55
                                                  from £12.55
                                                  This part replaces part number 107418
                                                  # 016
                                                  MPN: 107339
                                                  IDEM SPESSORE MM. 2
                                                  from £1.40
                                                  from £1.40
                                                  This part replaces part number 107419
                                                  # 016
                                                  MPN: 107340
                                                  WASHER
                                                  Di eventuale montaggio
                                                  from £1.46
                                                  from £1.46
                                                  This part replaces part number 107420
                                                  # 016
                                                  MPN: 107341
                                                  IDEM SPESSORE MM. 3
                                                  from £2.84
                                                  from £2.84
                                                  This part replaces part number 107421
                                                  # 016
                                                  MPN: 107342
                                                  IDEM SPESSORE MM. 3,25
                                                  from £0.64
                                                  from £0.64
                                                  This part replaces part number 107422
                                                  # 017
                                                  MPN: 106419
                                                  BOLT
                                                  from £10.77
                                                  from £10.77
                                                  This part replaces part number 100808 - and 11 more. Click to view details
                                                  # 018
                                                  MPN: 148020
                                                  NUT
                                                  from £2.28
                                                  from £2.28
                                                  This part replaces part number 102825 - and 3 more. Click to view details
                                                  # 019
                                                  MPN: 105344
                                                  BOLT
                                                  from £41.15
                                                  from £41.15
                                                  # 020
                                                  MPN: 148020
                                                  NUT
                                                  from £2.41
                                                  from £2.41
                                                  This part replaces part number 102825 - and 3 more. Click to view details
                                                  # 021
                                                  MPN: 108841
                                                  BANA STABILIZZATNTE
                                                  Per GTS vale n. 112872
                                                  from £172.05
                                                  from £172.05
                                                  # 022
                                                  MPN: 109010

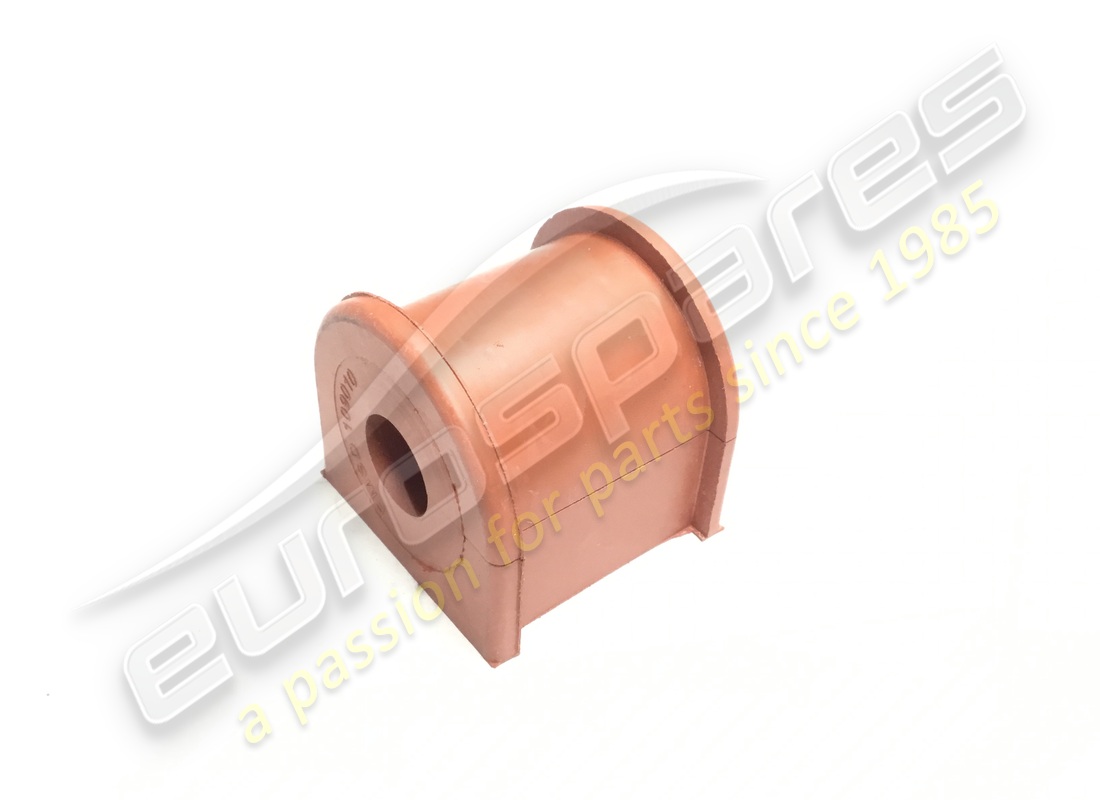

                                                  REAR ANTI ROLL BAR BUSH
                                                  GTB only (GTS use 108748)
                                                  from £14.03
                                                  from £14.03
                                                  # 023
                                                  MPN: 104417
                                                  CAVALLOTTO TENUTA BANA
                                                  from £20.83
                                                  from £20.83
                                                  This part replaces part number 64429 - and 4 more. Click to view details
                                                  # 024
                                                  MPN: 102742
                                                  NUT
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 12557621 - and 2 more. Click to view details
                                                  # 025
                                                  MPN: 108432
                                                  BISCOTTINO PER BANA
                                                  from £141.14
                                                  from £141.14
                                                  This part replaces part number 107334 - and 4 more. Click to view details
                                                  # 026
                                                  MPN: 100773
                                                  SILENTBLOCK PER BISCOTTINC
                                                  from £19.51
                                                  from £19.51
                                                  This part replaces part number 60220 - and 1 more. Click to view details
                                                  # 027
                                                  MPN: 107335
                                                  RUBBER GROMMET
                                                  from £11.22
                                                  from £11.22
                                                  # 028
                                                  MPN: 108294
                                                  TUBO DISTANZIALE
                                                  Vale solo per GTB
                                                  from £55.54
                                                  from £55.54
                                                  This part replaces part number 107336 - and 1 more. Click to view details
                                                  # 029
                                                  MPN: 101139
                                                  NUT
                                                  Per GTS vale n. 12575621
                                                  from £0.54
                                                  from £0.54
                                                  This part replaces part number 16104425
                                                  # 030
                                                  MPN: 107409
                                                  WASHER
                                                  Vale solo per GTB
                                                  from £1.55
                                                  from £1.55
                                                  # 030
                                                  MPN: 112873
                                                  WASHER
                                                  Vale solo per GTS
                                                  Supersession
                                                  Supersession
                                                  # 030
                                                  MPN: 112874
                                                  WASHER
                                                  Vale solo per GTS
                                                  from £10.91
                                                  from £10.91
                                                  # 031
                                                  MPN: 148020
                                                  NUT
                                                  from £2.48
                                                  from £2.48
                                                  This part replaces part number 102825 - and 3 more. Click to view details
                                                  # 032
                                                  MPN: 108913
                                                  WASHER
                                                  from £11.68
                                                  from £11.68
