023 - Gearbox - Differential Housing and Oil Sump (308 GTB)

Ferrari 308 GTB (1980) Gearbox - Differential Housing and Oil Sump (308 GTB) Parts Diagram

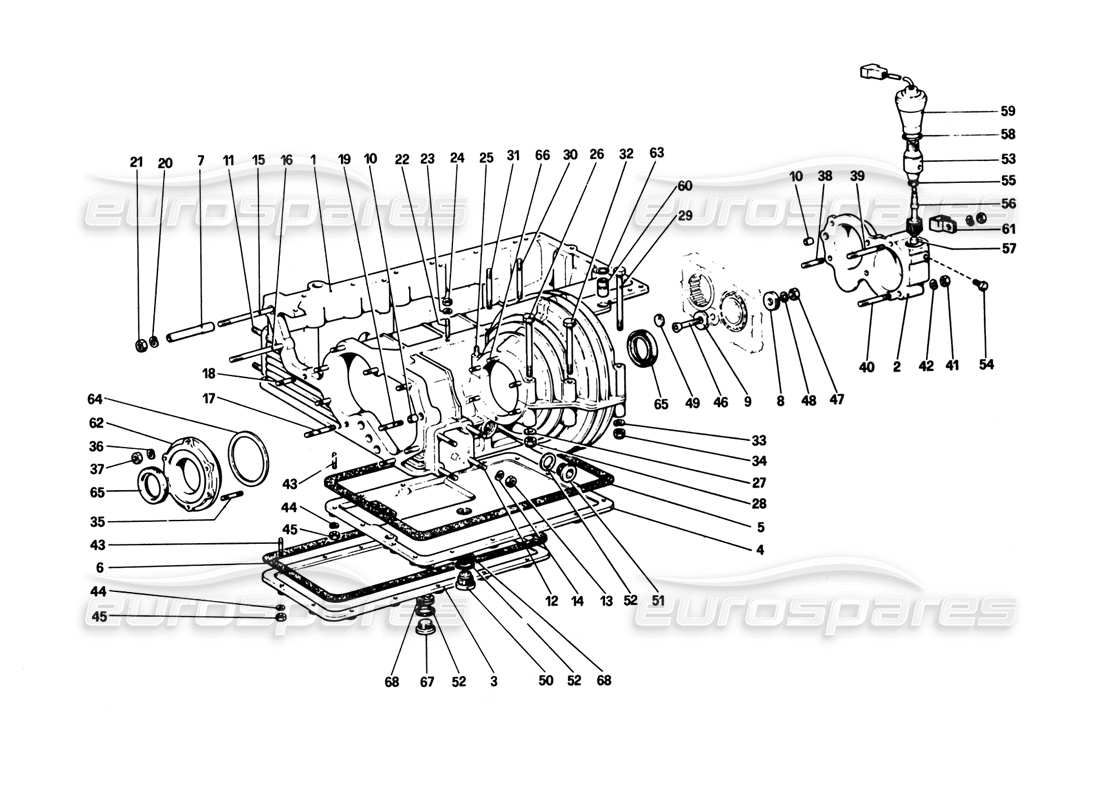

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                    #
                                                                                                                                    Part number
                                                                                                                                    Description
                                                                                                                                    Price
                                                                                                                                    # 000
                                                                                                                                    MPN: 109812
                                                                                                                                    CAMBTO COMPLETE DI RUOTISMI, DIFFERENZIALE E SUPPORTI
                                                                                                                                    from £12,632.08
                                                                                                                                    from £12,632.08
                                                                                                                                    # 000
                                                                                                                                    MPN: 95961309
                                                                                                                                    Ferrari 308GTB GEARBOX
                                                                                                                                    # 001
                                                                                                                                    MPN: 109290
                                                                                                                                    SCATOLA CAMBIO DIFFERENZIALE E COPPA OLIO
                                                                                                                                    Col complessivo n. 109587
                                                                                                                                    # 001
                                                                                                                                    MPN: 109587
                                                                                                                                    SCATOLA CAMBIO COMPLETA
                                                                                                                                    from £2,929.65
                                                                                                                                    from £2,929.65

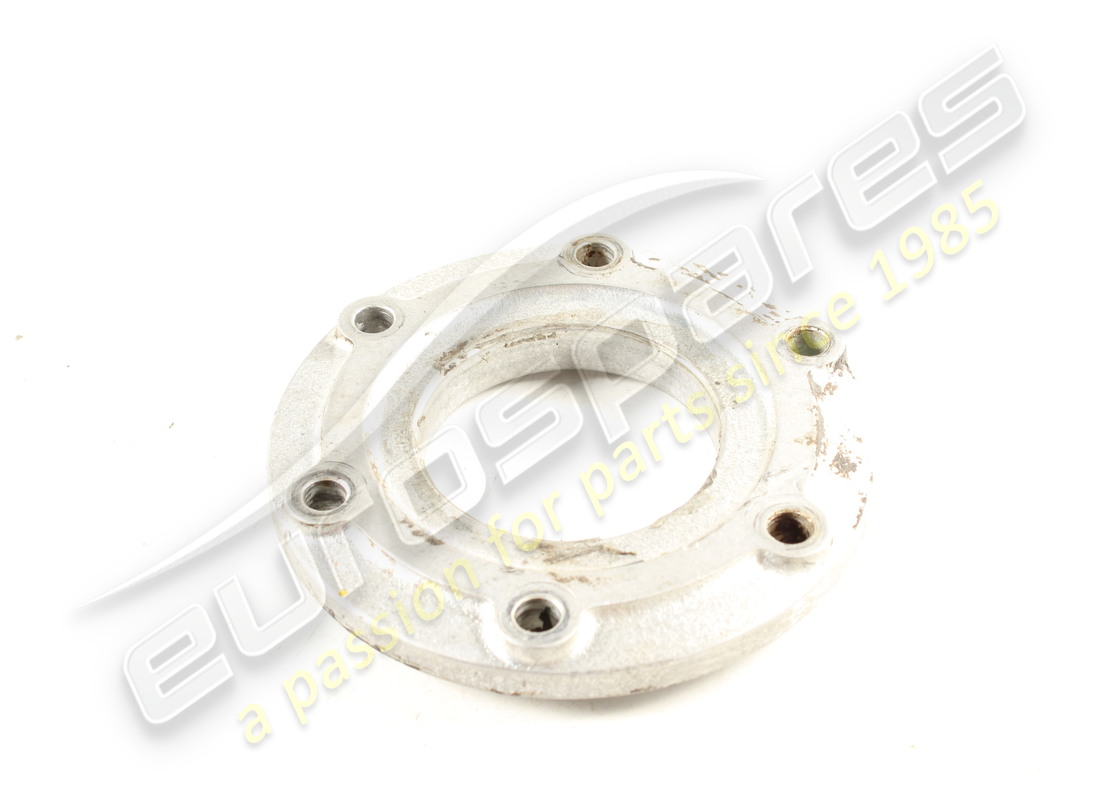

                                                                                                                                    # 002
                                                                                                                                    MPN: 105673
                                                                                                                                    COVER
                                                                                                                                    from £351.51
                                                                                                                                    from £351.51
                                                                                                                                    This part replaces part number 524960
                                                                                                                                    # 003
                                                                                                                                    MPN: 109313
                                                                                                                                    SUMP COVER
                                                                                                                                    from £619.86
                                                                                                                                    from £619.86
                                                                                                                                    # 004
                                                                                                                                    MPN: 115353
                                                                                                                                    COVER
                                                                                                                                    Dopo esaur. n. 104194
                                                                                                                                    from £707.61
                                                                                                                                    from £707.61
                                                                                                                                    This part replaces part number 108491
                                                                                                                                    # 005
                                                                                                                                    MPN: 147675
                                                                                                                                    GEARBOX SUMP GASKET
                                                                                                                                    from £17.47
                                                                                                                                    from £17.47
                                                                                                                                    This part replaces part number 104196
                                                                                                                                    # 006
                                                                                                                                    MPN: 147676
                                                                                                                                    ENGINE SUMP GASKET
                                                                                                                                    from £16.08
                                                                                                                                    from £16.08
                                                                                                                                    This part replaces part number 104197
                                                                                                                                    # 007
                                                                                                                                    MPN: 104033
                                                                                                                                    CENTERING DOWEL
                                                                                                                                    from £21.92
                                                                                                                                    from £21.92

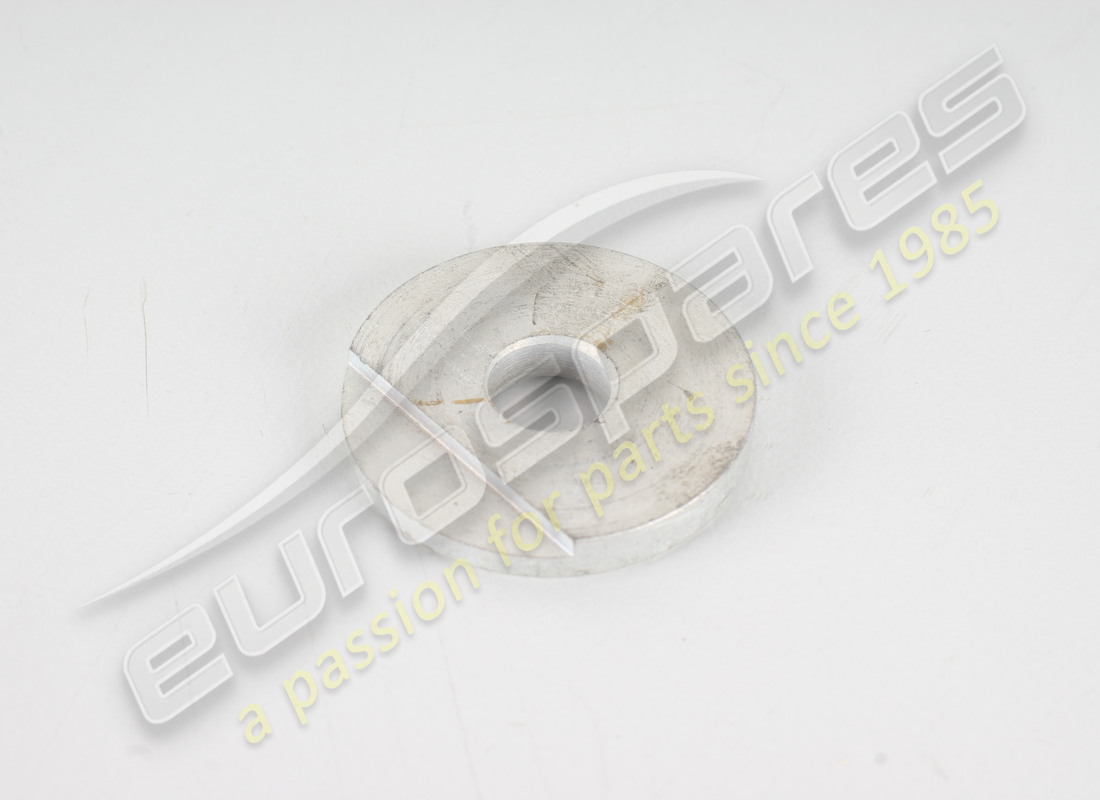

                                                                                                                                    # 008
                                                                                                                                    MPN: 104198
                                                                                                                                    WASHER
                                                                                                                                    from £8.77
                                                                                                                                    from £8.77
                                                                                                                                    This part replaces part number 523924
                                                                                                                                    # 009
                                                                                                                                    MPN: 104199
                                                                                                                                    WASHER
                                                                                                                                    from £5.20
                                                                                                                                    from £5.20
                                                                                                                                    This part replaces part number 523925
                                                                                                                                    # 010
                                                                                                                                    MPN: 102704
                                                                                                                                    CENTERING DOWEL
                                                                                                                                    from £1.59
                                                                                                                                    from £1.59
                                                                                                                                    This part replaces part number 500805
                                                                                                                                    # 011
                                                                                                                                    MPN: 13449521
                                                                                                                                    STUD
                                                                                                                                    from £9.25
                                                                                                                                    from £9.25
                                                                                                                                    # 012
                                                                                                                                    MPN: 13450021
                                                                                                                                    STUD
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    This part replaces part number 13450020 which we have in stock
                                                                                                                                    # 013
                                                                                                                                    MPN: 12164711
                                                                                                                                    NUT
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    This part replaces part number 12164712
                                                                                                                                    # 014
                                                                                                                                    MPN: 127497
                                                                                                                                    WASHER
                                                                                                                                    from £0.52
                                                                                                                                    from £0.52
                                                                                                                                    This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                                                                    # 015
                                                                                                                                    MPN: 13518921
                                                                                                                                    THREADED STUD
                                                                                                                                    # 016
                                                                                                                                    MPN: 13518721
                                                                                                                                    THREADED STUD
                                                                                                                                    from £3.15
                                                                                                                                    from £3.15
                                                                                                                                    # 017
                                                                                                                                    MPN: 13517421
                                                                                                                                    THREADED STUD
                                                                                                                                    from £53.42
                                                                                                                                    from £53.42
                                                                                                                                    This part replaces part number 13517420
                                                                                                                                    # 018
                                                                                                                                    MPN: 13517221
                                                                                                                                    STUD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 019
                                                                                                                                    MPN: 13517321
                                                                                                                                    THREADED STUD
                                                                                                                                    from £16.90
                                                                                                                                    from £16.90
                                                                                                                                    This part replaces part number 13517320
                                                                                                                                    # 020
                                                                                                                                    MPN: 11198074
                                                                                                                                    WASHER
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                                                    # 021
                                                                                                                                    MPN: 16100824
                                                                                                                                    NUT
                                                                                                                                    from £0.50
                                                                                                                                    from £0.50
                                                                                                                                    This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                                                    # 022
                                                                                                                                    MPN: 108966
                                                                                                                                    STUD
                                                                                                                                    from £10.05
                                                                                                                                    from £10.05
                                                                                                                                    # 023
                                                                                                                                    MPN: 11198074
                                                                                                                                    WASHER
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                                                    # 024
                                                                                                                                    MPN: 16100824
                                                                                                                                    NUT
                                                                                                                                    from £0.51
                                                                                                                                    from £0.51
                                                                                                                                    This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                                                    # 025
                                                                                                                                    MPN: 13550421
                                                                                                                                    THREADED STUD
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    # 026
                                                                                                                                    MPN: 15972021
                                                                                                                                    BOLT
                                                                                                                                    from £0.64
                                                                                                                                    from £0.64
                                                                                                                                    # 027
                                                                                                                                    MPN: 12638601
                                                                                                                                    WASHER
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    This part replaces part number 20232104
                                                                                                                                    # 028
                                                                                                                                    MPN: 12574511
                                                                                                                                    SELF LOCKING NUT
                                                                                                                                    Supersession
                                                                                                                                    Supersession

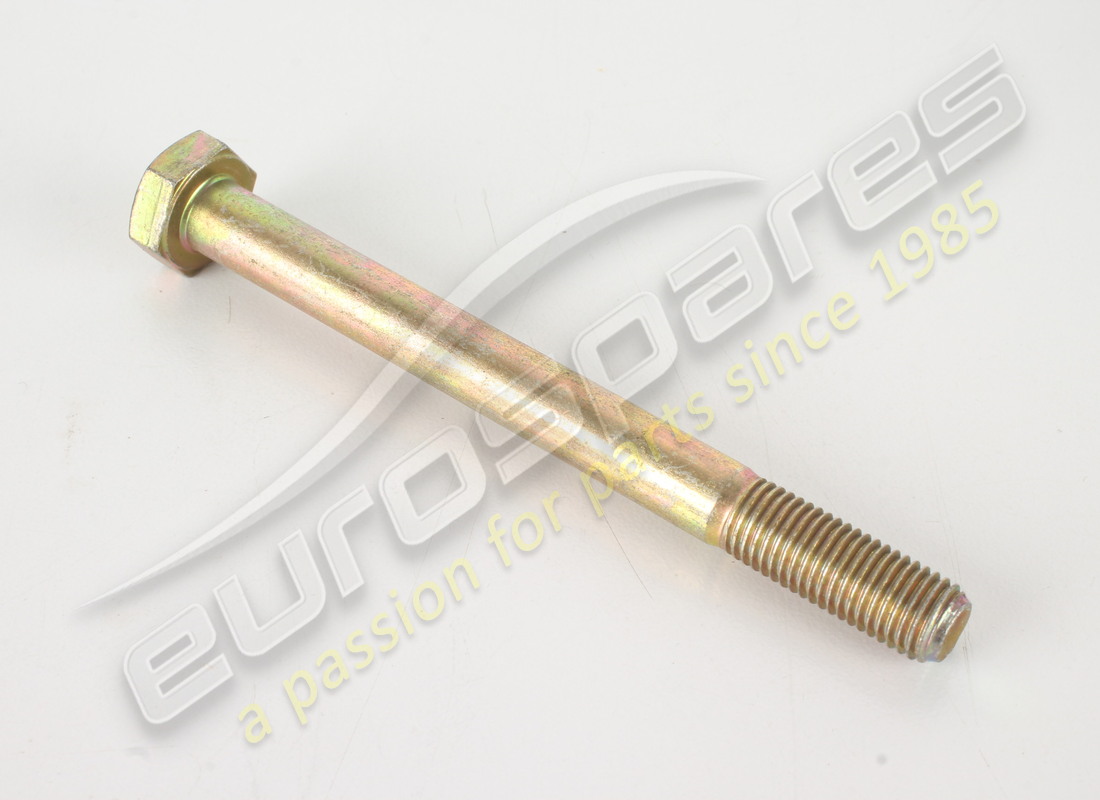

                                                                                                                                    # 029
                                                                                                                                    MPN: 104189
                                                                                                                                    BOLT
                                                                                                                                    from £27.43
                                                                                                                                    from £27.43
                                                                                                                                    This part replaces part number 95565 - and 1 more. Click to view details
                                                                                                                                    # 030
                                                                                                                                    MPN: 13518021
                                                                                                                                    THREADED STUD
                                                                                                                                    from £4.35
                                                                                                                                    from £4.35
                                                                                                                                    # 031
                                                                                                                                    MPN: 13517821
                                                                                                                                    THREADED STUD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 032
                                                                                                                                    MPN: 107711
                                                                                                                                    BOLT
                                                                                                                                    from £7.44
                                                                                                                                    from £7.44
                                                                                                                                    # 033
                                                                                                                                    MPN: 10519624
                                                                                                                                    WASHER
                                                                                                                                    from £0.53
                                                                                                                                    from £0.53
                                                                                                                                    This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                                                    # 034
                                                                                                                                    MPN: 104030
                                                                                                                                    SELF LOCKING NUT
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    This part replaces part number 16104125
                                                                                                                                    # 035
                                                                                                                                    MPN: 12429721
                                                                                                                                    THREADED STUD
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    # 036
                                                                                                                                    MPN: 12601371
                                                                                                                                    WASHER
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 037
                                                                                                                                    MPN: 104030
                                                                                                                                    SELF LOCKING NUT
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    This part replaces part number 16104125
                                                                                                                                    # 038
                                                                                                                                    MPN: 13517221
                                                                                                                                    STUD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 039
                                                                                                                                    MPN: 13517821
                                                                                                                                    THREADED STUD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 040
                                                                                                                                    MPN: 13517621
                                                                                                                                    THREADED STUD
                                                                                                                                    from £9.04
                                                                                                                                    from £9.04
                                                                                                                                    # 041
                                                                                                                                    MPN: 16100824
                                                                                                                                    NUT
                                                                                                                                    from £0.50
                                                                                                                                    from £0.50
                                                                                                                                    This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                                                    # 042
                                                                                                                                    MPN: 11198074
                                                                                                                                    WASHER
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                                                    # 043
                                                                                                                                    MPN: 13541124
                                                                                                                                    THREADED STUD
                                                                                                                                    from £11.33
                                                                                                                                    from £11.33
                                                                                                                                    This part replaces part number 13541121
                                                                                                                                    # 044
                                                                                                                                    MPN: 11197774
                                                                                                                                    WASHER
                                                                                                                                    from £0.50
                                                                                                                                    from £0.50
                                                                                                                                    This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                                                    # 045
                                                                                                                                    MPN: 15896211
                                                                                                                                    NUT
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    This part replaces part number 15896210
                                                                                                                                    # 046
                                                                                                                                    MPN: 104218
                                                                                                                                    SCREW
                                                                                                                                    from £1.14
                                                                                                                                    from £1.14
                                                                                                                                    # 047
                                                                                                                                    MPN: 16100824
                                                                                                                                    NUT
                                                                                                                                    from £0.53
                                                                                                                                    from £0.53
                                                                                                                                    This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                                                    # 048
                                                                                                                                    MPN: 127496
                                                                                                                                    WASHER
                                                                                                                                    from £0.54
                                                                                                                                    from £0.54
                                                                                                                                    This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                                    # 049
                                                                                                                                    MPN: 10158801
                                                                                                                                    PLUG
                                                                                                                                    from £0.73
                                                                                                                                    from £0.73
                                                                                                                                    This part replaces part number 10158800
                                                                                                                                    # 050
                                                                                                                                    MPN: 104280
                                                                                                                                    PLUG
                                                                                                                                    from £4.95
                                                                                                                                    from £4.95
                                                                                                                                    This part replaces part number 523977
                                                                                                                                    # 051
                                                                                                                                    MPN: 10275011
                                                                                                                                    PLUG
                                                                                                                                    from £1.05
                                                                                                                                    from £1.05
                                                                                                                                    This part replaces part number 10275001 - and 3 more. Click to view details
                                                                                                                                    # 052
                                                                                                                                    MPN: 10263460
                                                                                                                                    GASKET
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    This part replaces part number 95119
                                                                                                                                    # 053
                                                                                                                                    MPN: 106427
                                                                                                                                    CORPO RINVIO CONTACHILOMETRI
                                                                                                                                    from £168.00
                                                                                                                                    from £168.00
                                                                                                                                    # 054
                                                                                                                                    MPN: 101349
                                                                                                                                    BOLT
                                                                                                                                    from £10.21
                                                                                                                                    from £10.21
                                                                                                                                    This part replaces part number 520709
                                                                                                                                    # 055
                                                                                                                                    MPN: 104103
                                                                                                                                    SEALING RING
                                                                                                                                    from £5.53
                                                                                                                                    from £5.53
                                                                                                                                    # 056
                                                                                                                                    MPN: 107096
                                                                                                                                    PIGNONE CONTACHILOMETRI
                                                                                                                                    from £352.70
                                                                                                                                    from £352.70

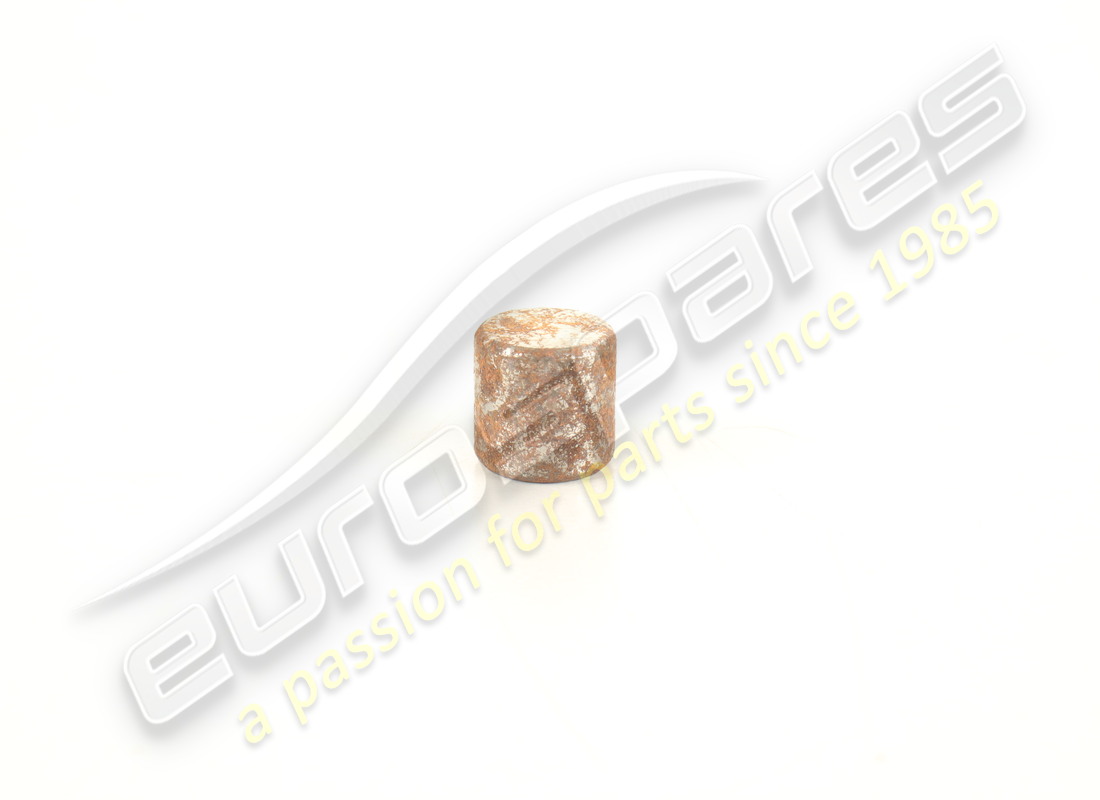

                                                                                                                                    # 057
                                                                                                                                    MPN: 105674
                                                                                                                                    RULLO REGGISPINTA
                                                                                                                                    from £6.60
                                                                                                                                    from £6.60
                                                                                                                                    This part replaces part number 524961
                                                                                                                                    # 058
                                                                                                                                    MPN: 101848
                                                                                                                                    SEALING RING
                                                                                                                                    from £1.75
                                                                                                                                    from £1.75
                                                                                                                                    # 059
                                                                                                                                    MPN: 124146
                                                                                                                                    SPEEDO PULSE GENERATOR
                                                                                                                                    from £261.08
                                                                                                                                    from £261.08
                                                                                                                                    This part replaces part number 106324
                                                                                                                                    # 060
                                                                                                                                    MPN: 103838
                                                                                                                                    DOWEL
                                                                                                                                    from £2.24
                                                                                                                                    from £2.24
                                                                                                                                    This part replaces part number 9100588
                                                                                                                                    # 061
                                                                                                                                    MPN: 10450090
                                                                                                                                    JUBILEE CLIP
                                                                                                                                    from £1.58
                                                                                                                                    from £1.58
                                                                                                                                    # 062
                                                                                                                                    MPN: 108226
                                                                                                                                    COVER
                                                                                                                                    from £65.47
                                                                                                                                    from £65.47
                                                                                                                                    # 063
                                                                                                                                    MPN: 103839
                                                                                                                                    ANELLINO
                                                                                                                                    from £10.35
                                                                                                                                    from £10.35
                                                                                                                                    This part replaces part number 100589 - and 1 more. Click to view details
                                                                                                                                    # 064
                                                                                                                                    MPN: 103422
                                                                                                                                    IDEM SPESSORE MM. 2,4
                                                                                                                                    from £52.02
                                                                                                                                    from £52.02
                                                                                                                                    # 064
                                                                                                                                    MPN: 103423
                                                                                                                                    IDEM SPESSORE MM. 2,60
                                                                                                                                    from £90.41
                                                                                                                                    from £90.41
                                                                                                                                    # 064
                                                                                                                                    MPN: 103424
                                                                                                                                    DISTANZIALE PER CUSCINETTI DIFFERENZIALE, SPESSORE MM. 2,862 (DI EVENTUALE MONTAGGIO)
                                                                                                                                    from £103.92
                                                                                                                                    from £103.92
                                                                                                                                    This part replaces part number 103231
                                                                                                                                    # 064
                                                                                                                                    MPN: 103424
                                                                                                                                    IDEM SPESSORE MM. 2,80
                                                                                                                                    from £103.92
                                                                                                                                    from £103.92
                                                                                                                                    This part replaces part number 103231
                                                                                                                                    # 064
                                                                                                                                    MPN: 103425
                                                                                                                                    IDEM SPESSORE MM. 3,00
                                                                                                                                    from £52.02
                                                                                                                                    from £52.02
                                                                                                                                    # 064
                                                                                                                                    MPN: 103426
                                                                                                                                    IDEM SPESSORE MM. 3,20
                                                                                                                                    from £110.82
                                                                                                                                    from £110.82
                                                                                                                                    # 064
                                                                                                                                    MPN: 109145
                                                                                                                                    IDEM SPESSORE MM. 4,3
                                                                                                                                    from £28.70
                                                                                                                                    from £28.70
                                                                                                                                    # 065
                                                                                                                                    MPN: 125078
                                                                                                                                    SEALING RING
                                                                                                                                    In alternativa al N. 108157
                                                                                                                                    from £14.63
                                                                                                                                    from £14.63
                                                                                                                                    This part replaces part number 104300 - and 1 more. Click to view details
                                                                                                                                    # 066
                                                                                                                                    MPN: 13543421
                                                                                                                                    THREADED STUD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 067
                                                                                                                                    MPN: 10275011
                                                                                                                                    PLUG
                                                                                                                                    from £1.05
                                                                                                                                    from £1.05
                                                                                                                                    This part replaces part number 10275001 - and 3 more. Click to view details
                                                                                                                                    # 068
                                                                                                                                    MPN: 112254
                                                                                                                                    HELI-COIL
                                                                                                                                    Per coperchio n. 108491
                                                                                                                                    from £2.27
                                                                                                                                    from £2.27
