ferrari 308 gtb (1980) lubrification system (308 gtb) parts diagram

015 - Lubrification System (308 GTB)

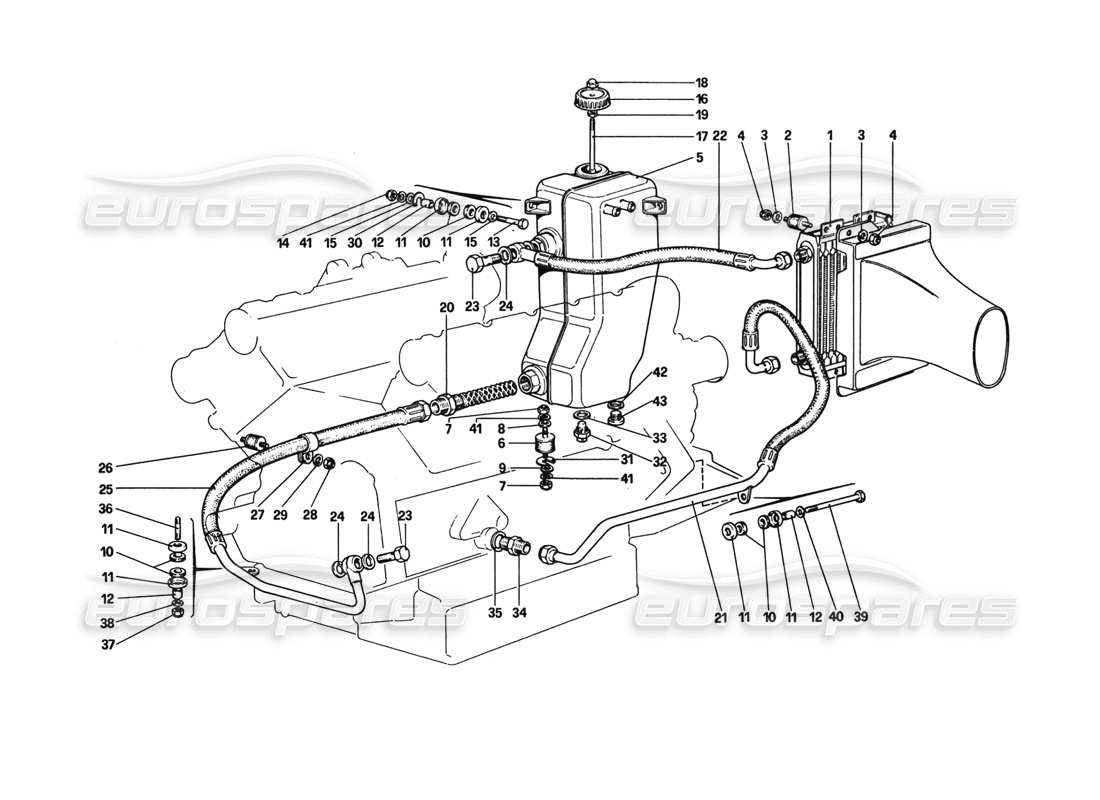

Ferrari 308 GTB (1980) Lubrification System (308 GTB) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 001
                                                                                    MPN: 145712
                                                                                    OIL RADIATOR
                                                                                    from £674.51
                                                                                    from £674.51
                                                                                    This part replaces part number 106965 - and 1 more. Click to view details
                                                                                    # 001
                                                                                    MPN: 145712
                                                                                    OIL RADIATOR
                                                                                    from £674.51
                                                                                    from £674.51
                                                                                    This part replaces part number 106965 - and 1 more. Click to view details
                                                                                    # 002
                                                                                    MPN: 102947
                                                                                    SUPPORT
                                                                                    from £6.17
                                                                                    from £6.17
                                                                                    This part replaces part number 102007 - and 14 more. Click to view details
                                                                                    # 003
                                                                                    MPN: 12643701
                                                                                    WASHER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                    # 004
                                                                                    MPN: 102741
                                                                                    NUT
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                    # 005
                                                                                    MPN: 109617
                                                                                    SERBATOIO OLIO
                                                                                    from £457.05
                                                                                    from £457.05
                                                                                    # 007
                                                                                    MPN: 16100824
                                                                                    SELF LOCKING NUT
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                    # 008
                                                                                    MPN: 12646201
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 009
                                                                                    MPN: 10519624
                                                                                    WASHER
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                    # 010
                                                                                    MPN: 107978
                                                                                    PAD
                                                                                    from £1.07
                                                                                    from £1.07
                                                                                    # 011
                                                                                    MPN: 107979
                                                                                    CAP
                                                                                    from £1.07
                                                                                    from £1.07
                                                                                    # 012
                                                                                    MPN: 107980
                                                                                    BUSH
                                                                                    from £1.54
                                                                                    from £1.54
                                                                                    # 013
                                                                                    MPN: 16043921
                                                                                    SCREW
                                                                                    from £1.43
                                                                                    from £1.43
                                                                                    # 014
                                                                                    MPN: 16100824
                                                                                    SELF LOCKING NUT
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                    # 015
                                                                                    MPN: 12646701
                                                                                    WASHER
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    # 016
                                                                                    MPN: 126141
                                                                                    OIL FILLER CAP
                                                                                    (Reqs 101242 & 126142)
                                                                                    from £61.85
                                                                                    from £61.85
                                                                                    This part replaces part number 109719
                                                                                    # 017
                                                                                    MPN: 109720
                                                                                    ASTA LIVELLO
                                                                                    from £28.56
                                                                                    from £28.56
                                                                                    # 018
                                                                                    MPN: 100044
                                                                                    CAP NUT
                                                                                    from £0.26
                                                                                    from £0.26
                                                                                    This part replaces part number 151230 - and 1 more. Click to view details
                                                                                    # 019
                                                                                    MPN: 15896211
                                                                                    NUT
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 15896210
                                                                                    # 020
                                                                                    MPN: 109632
                                                                                    FILTRO OLIO SUL PESCANTE SERBATOIO
                                                                                    from £102.15
                                                                                    from £102.15
                                                                                    # 021
                                                                                    MPN: 109626
                                                                                    TUBO DALLA POMPA RECUPERO AL RADIATORE
                                                                                    from £666.29
                                                                                    from £666.29
                                                                                    # 022
                                                                                    MPN: 109624
                                                                                    TUBO DAL RADIATORE AL SERBATOIO
                                                                                    from £147.00
                                                                                    from £147.00

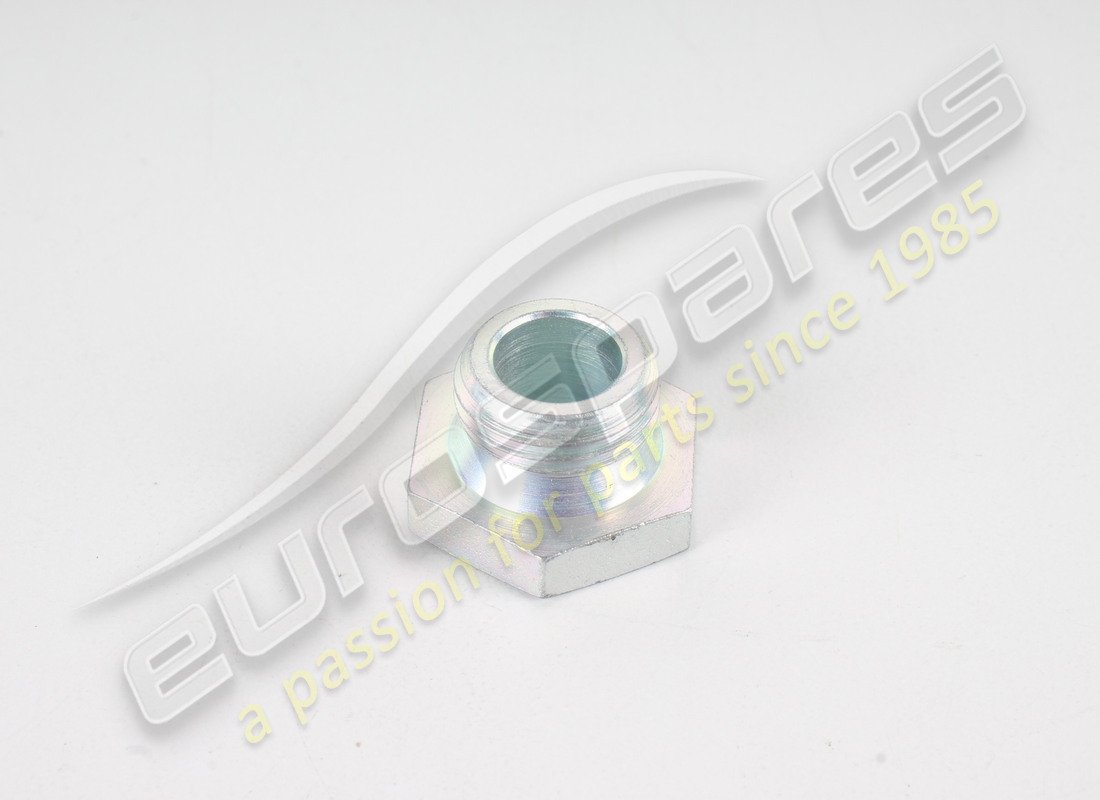

                                                                                    # 023
                                                                                    MPN: 109694
                                                                                    UNION
                                                                                    from £82.50
                                                                                    from £82.50
                                                                                    # 024
                                                                                    MPN: 144487
                                                                                    GASKET
                                                                                    from £16.20
                                                                                    from £16.20
                                                                                    # 025
                                                                                    MPN: 109625
                                                                                    TUBO DAL PESCANTE SUL SERBATOIO ALLA POMPA
                                                                                    from £592.18
                                                                                    from £592.18
                                                                                    # 026
                                                                                    MPN: 102947
                                                                                    TAMPONE SOSTEGNO TUBO
                                                                                    from £6.17
                                                                                    from £6.17
                                                                                    This part replaces part number 102007 - and 14 more. Click to view details
                                                                                    # 027
                                                                                    MPN: 10442190
                                                                                    JUBILEE CLIP
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 028
                                                                                    MPN: 15896211
                                                                                    NUT
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 15896210
                                                                                    # 029
                                                                                    MPN: 106850
                                                                                    WASHER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                    # 030
                                                                                    MPN: 106470
                                                                                    WASHER
                                                                                    from £7.53
                                                                                    from £7.53
                                                                                    # 030
                                                                                    MPN: 106471
                                                                                    IDEM SPESSORE MM. 2
                                                                                    from £7.85
                                                                                    from £7.85
                                                                                    # 030
                                                                                    MPN: 106472
                                                                                    IDEM SPESSORE MM. 3
                                                                                    from £9.67
                                                                                    from £9.67
                                                                                    This part replaces part number 32309
                                                                                    # 031
                                                                                    MPN: 101039
                                                                                    WASHER
                                                                                    from £1.78
                                                                                    from £1.78
                                                                                    This part replaces part number 107025 - and 1 more. Click to view details
                                                                                    # 031
                                                                                    MPN: 107338
                                                                                    IDEM SPESSORE MM. 1,5
                                                                                    from £13.02
                                                                                    from £13.02
                                                                                    This part replaces part number 107418
                                                                                    # 031
                                                                                    MPN: 107339
                                                                                    IDEM SPESSORE MM. 2
                                                                                    from £1.19
                                                                                    from £1.19
                                                                                    This part replaces part number 107419
                                                                                    # 031
                                                                                    MPN: 107340
                                                                                    IDEM SPESSORE MM. 2,5
                                                                                    from £1.11
                                                                                    from £1.11
                                                                                    This part replaces part number 107420
                                                                                    # 031
                                                                                    MPN: 107341
                                                                                    IDEM SPESSORE MM. 3
                                                                                    from £2.84
                                                                                    from £2.84
                                                                                    This part replaces part number 107421
                                                                                    # 031
                                                                                    MPN: 107342
                                                                                    IDEM SPESSORE MM. 3,25
                                                                                    from £0.48
                                                                                    from £0.48
                                                                                    This part replaces part number 107422
                                                                                    # 032
                                                                                    MPN: 100453
                                                                                    OIL THERMISTOR
                                                                                    from £13.65
                                                                                    from £13.65
                                                                                    This part replaces part number 100345 - and 1 more. Click to view details
                                                                                    # 033
                                                                                    MPN: 10257060
                                                                                    GASKET
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                    # 034
                                                                                    MPN: 109314
                                                                                    UNION
                                                                                    from £106.66
                                                                                    from £106.66
                                                                                    # 035
                                                                                    MPN: 10296260
                                                                                    GASKET
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 94701
                                                                                    # 036
                                                                                    MPN: 13543821
                                                                                    STUD
                                                                                    from £1.21
                                                                                    from £1.21
                                                                                    This part replaces part number 210x1,25
                                                                                    # 037
                                                                                    MPN: 16100824
                                                                                    NUT
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                    # 038
                                                                                    MPN: 11198074
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details

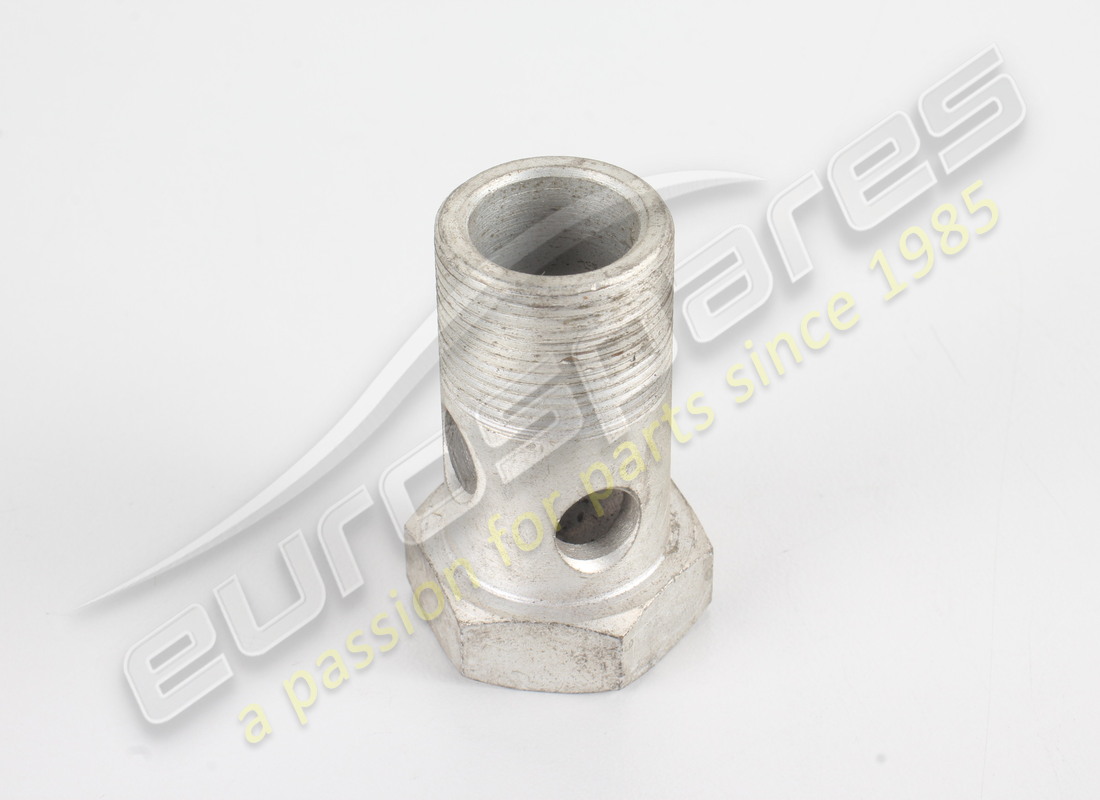

                                                                                    # 039
                                                                                    MPN: 109731
                                                                                    BOLT
                                                                                    from £13.16
                                                                                    from £13.16
                                                                                    # 040
                                                                                    MPN: 11198074
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                    # 041
                                                                                    MPN: 106852
                                                                                    WASHER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                                    # 042
                                                                                    MPN: 10257060
                                                                                    GASKET
                                                                                    Vale dalla vettura n. 27127
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                    # 043
                                                                                    MPN: 10300771
                                                                                    FUEL DRAIN PLUG
                                                                                    from £0.57
                                                                                    from £0.57
