028 - Pedal Board -Brake and Clutch Controls

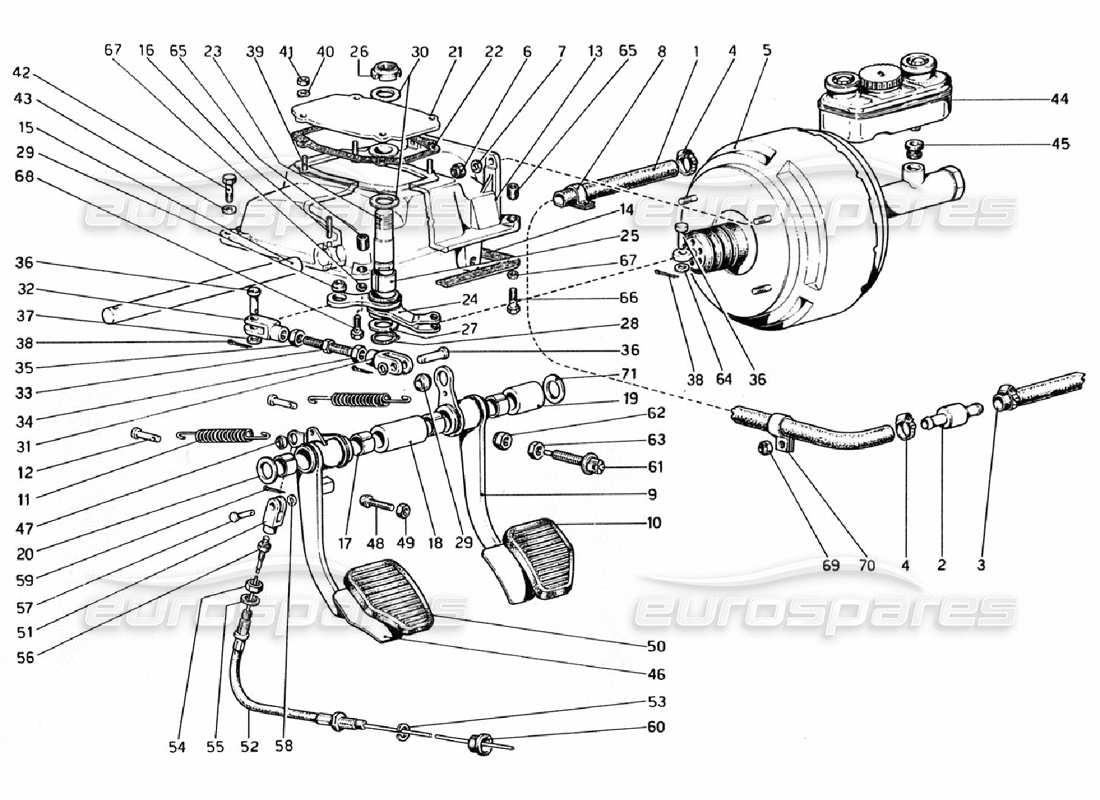

Ferrari 308 GTB (1976) Pedal Board -Brake and Clutch Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 308BMRK
BRAKE MASTER SEAL KIT
Rebuild Kit (superb quality)
# 001
MPN: 108951
TUBO DAL SERVOFRENO ALLA VALVOLA DI NON RITORNO
Supersession
Supersession
# 002
MPN: 128435
VALVOLA NON RITORNO
from £148.52
from £148.52
This part replaces part number 101538 - and 3 more. Click to view details
# 003
MPN: 107982
SERVO HOSE
from £7.48
from £7.48
This part replaces part number 107041 - and 1 more. Click to view details
# 004
MPN: 13000390
JUBILEE CLIP
from £0.51
from £0.51
This part replaces part number 12179590 - and 1 more. Click to view details
# 005
MPN: 111338/b
LHD & RHD Brake pump
from £252.00
from £252.00
# 005
MPN: 151471
LHD BRAKE SERVO & PUMP
from £1,200.00
from £1,200.00
This part replaces part number 133568 - and 7 more. Click to view details
# 005
MPN: 151471/A
LHD & RHD Brake Servo & Pump
# 005
MPN: 151471/B
RHD Brake Servo & Pump
Supersession
Supersession
# 006
MPN: 16104411
NUT
from £0.53
from £0.53
# 007
MPN: 12601371
WASHER
Supersession
Supersession
# 008
MPN: 10418900
JUBILEE CLIP
from £1.31
from £1.31
# 009
MPN: 108524
PEDALE FRENO
Dopo esaurim.N.108533
Supersession
Supersession
# 009
MPN: 108533
PEDALE FRENO
Vale fino ad esaurimento
from £245.84
from £245.84
This part replaces part number 108524 - and 1 more. Click to view details
# 010
MPN: 106950
COPRIPEDALE FRENO
from £11.68
from £11.68
# 011
MPN: 104895
SPRING
from £2.94
from £2.94
# 012
MPN: 104896
PIVOT SPRING
from £15.22
from £15.22
# 013
MPN: 106187
SUPPORT
Supersession
Supersession
# 013
MPN: 108022
PEDAL BOX SUPPORT, COMPLETE
LHD
from £1,795.45
from £1,795.45
This part replaces part number 106187 - and 2 more. Click to view details
# 014
MPN: 104899
GASKET
Supersession
Supersession
# 015
MPN: 104900
PIVOT SUPPORT
from £58.10
from £58.10
# 016
MPN: 104901
PIN
from £0.97
from £0.97
# 017
MPN: 103163
BUSH
from £2.83
from £2.83
# 018
MPN: 104902
SPACER
Fino ad esaurim.N. 108533
from £17.03
from £17.03
# 019
MPN: 104903
SPACER
Fino ad esaurim.N. 108533
from £19.29
from £19.29
# 020
MPN: 106083
WASHER
from £0.71
from £0.71
# 021
MPN: 104904
COVER
from £3.89
from £3.89
# 022
MPN: 104905
GASKET
from £8.59
from £8.59
# 023
MPN: 106081
PIVOT SUPPORT
from £24.37
from £24.37
This part replaces part number 104906 - and 3 more. Click to view details
# 024
MPN: 108313
LEVER
from £34.69
from £34.69
This part replaces part number 107205 - and 5 more. Click to view details
# 025
MPN: 100787
BUSH
from £5.48
from £5.48
This part replaces part number 101315 - and 1 more. Click to view details
# 026
MPN: 106082
RING NUT
Supersession
Supersession
# 027
MPN: 108382
SPACER
from £8.49
from £8.49
# 028
MPN: 11066875
SEEGER RING
Supersession
Supersession
# 029
MPN: 100424
SNODO SFERICO
from £41.51
from £41.51
# 030
MPN: 106084
WASHER
from £5.61
from £5.61
# 031
MPN: 104910
FORK
Filetto sinistro
from £4.22
from £4.22
# 032
MPN: 104911
FORK
from £10.33
from £10.33
# 033
MPN: 104912
SCREW
from £9.79
from £9.79
# 034
MPN: 103157
NUT
Filetto sinistro
from £1.05
from £1.05
# 035
MPN: 103160
NUT
from £1.16
from £1.16
# 036
MPN: 10033411
PIVOT
from £42.00
from £42.00
This part replaces part number 10033441 - and 3 more. Click to view details
# 037
MPN: 103167
WASHER
from £1.97
from £1.97
# 038
MPN: 10796301
SPLIT PIN
from £0.71
from £0.71
# 039
MPN: 11500021
THREADED STUD
from £9.50
from £9.50
# 040
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 041
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 042
MPN: 16139021
BOLT
from £2.27
from £2.27
# 043
MPN: 12601471
WASHER
Supersession
Supersession
# 044
MPN: 108802/A
BRAKE RESERVOIR
(Benditalia)
from £74.58
from £74.58
This part replaces part number 119566 which we have in stock - and 1 more. Click to view details
# 044
MPN: 95691500
VASCHETTA PER LIQUIDO FRENI
from £395.00
from £395.00
# 045
MPN: 175189
SEALING RING
from £13.70
from £13.70
This part replaces part number 106625
# 046
MPN: 108523
PEDALE FRIZIONE
Dopo esaurim.N. 108533
This part replaces part number 108534
# 046
MPN: 108534
PEDALE FRIZIONE
Fino esaurim.N. 108533
Supersession
Supersession
# 047
MPN: 100423
SNODO SFERICO
from £21.11
from £21.11
# 048
MPN: 106409
SCREW
from £4.55
from £4.55
# 049
MPN: 16100321
NUT
# 050
MPN: 106949
COPRIPEDALE
from £17.95
from £17.95
# 051
MPN: 108575
FORK
from £33.34
from £33.34
# 052
MPN: 106745
CAVO COMANDO FRIZIONE
LHD (RHD = 108342)
from £45.47
from £45.47
# 053
MPN: 12601671
WASHER
from £0.47
from £0.47
# 054
MPN: 16103611
NUT
from £0.47
from £0.47
# 055
MPN: 12601571
WASHER
Supersession
Supersession
This part replaces part number 12601574
# 056
MPN: 100861
LOCKNUT
Supersession
Supersession
This part replaces part number 100862 which we have in stock
# 057
MPN: 103218
PIVOT
from £25.41
from £25.41
This part replaces part number 100857 - and 1 more. Click to view details
# 058
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 059
MPN: 10734201
SPLIT PIN
Supersession
Supersession
# 060
MPN: 105369
CABLE GROMMET
from £19.10
from £19.10
# 061
MPN: 101663
STOP LIGHT SWITCH (2 TERMINALS)
from £23.05
from £23.05
This part replaces part number 4177124 - and 13 more. Click to view details
# 062
MPN: 101662
NUT
from £2.53
from £2.53
This part replaces part number 660523
# 063
MPN: 10791211
NUT
from £0.47
from £0.47
This part replaces part number 10791215 - and 1 more. Click to view details
# 064
MPN: 10730521
WASHER
from £2.78
from £2.78
This part replaces part number 10730501 which we have in stock
# 065
MPN: 106188
BUSH
from £33.92
from £33.92
# 066
MPN: 16044321
SCREW
from £0.30
from £0.30
# 067
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 068
MPN: 16043621
SCREW
from £1.07
from £1.07
# 069
MPN: 12575421
NUT
Supersession
Supersession
# 070
MPN: 10441890
JUBILEE CLIP
from £0.53
from £0.53
