ferrari 308 gt4 dino (1979) bumpers (u.s. and japanese version) parts diagram

112 - Bumpers (U.S. and Japanese Version)

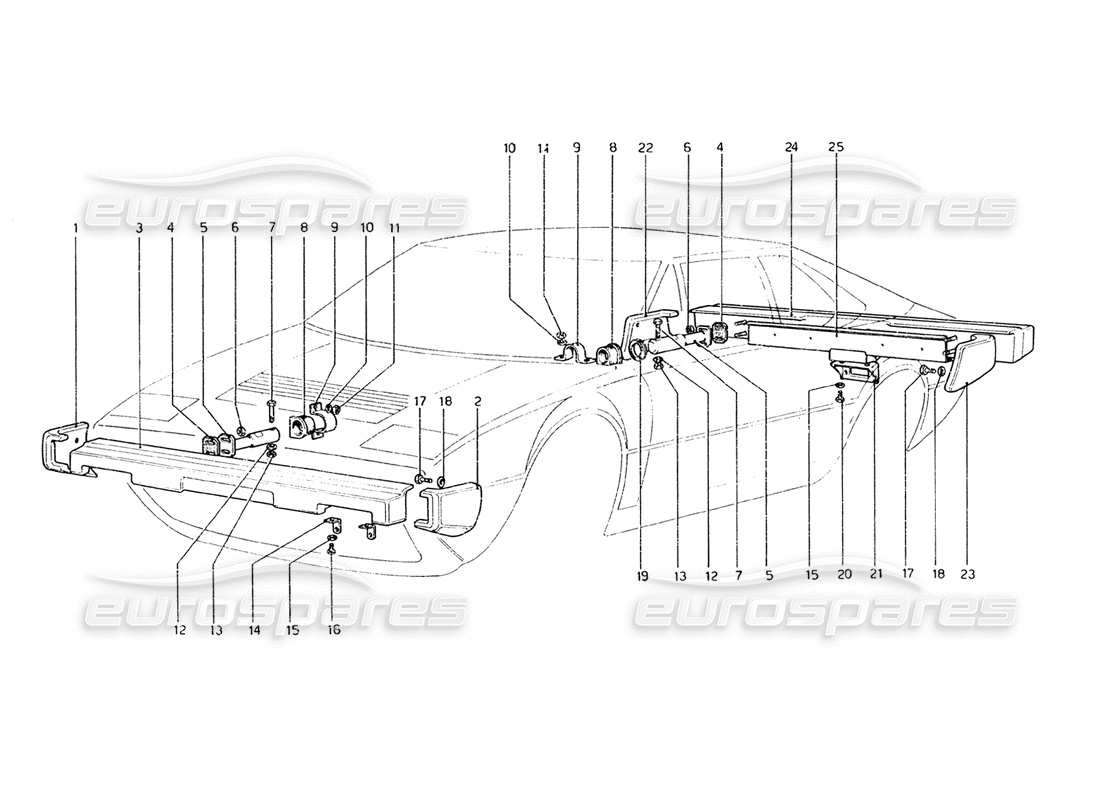

Ferrari 308 GT4 Dino (1979) Bumpers (U.S. and Japanese Version) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 40292203
                                      LATERALE DX. PER PARAURTI ANT.
                                      This part replaces part number 40194102
                                      # 002
                                      MPN: 40292302
                                      LATERALE SX. PER PARAURTI ANT.
                                      from £330.00
                                      from £330.00
                                      This part replaces part number 40194201

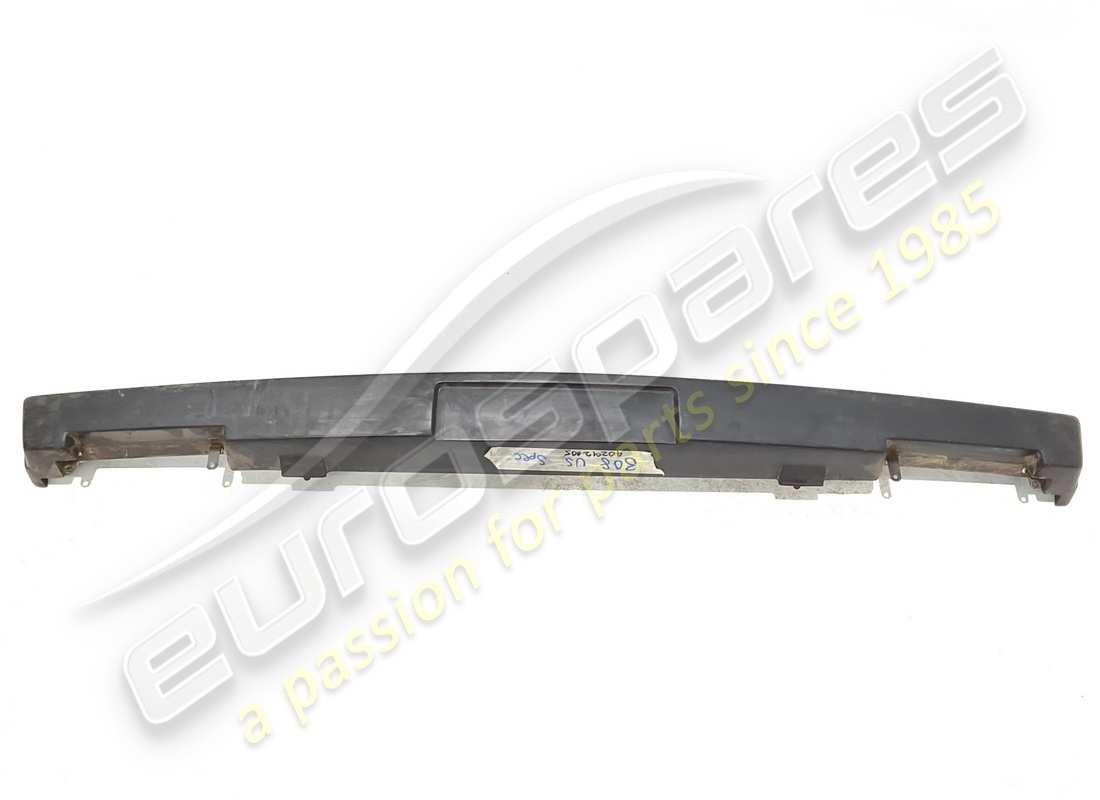

                                      # 003
                                      MPN: 40292005
                                      PARAURTI ANTERIORE
                                      Vale solo per USA
                                      from £780.54
                                      from £780.54
                                      This part replaces part number 40214207 - and 1 more. Click to view details
                                      # 003
                                      MPN: 60578000
                                      PARAURTI ANTERIORE
                                      Vale solo per J
                                      from £1,199.38
                                      from £1,199.38
                                      # 004
                                      MPN: 40208407
                                      SPESSORE
                                      Vale solo per USA
                                      from £11.22
                                      from £11.22
                                      # 005
                                      MPN: 40283202
                                      ASSORBITORE
                                      Vale solo per USA
                                      from £209.68
                                      from £209.68
                                      This part replaces part number 40204000
                                      # 005
                                      MPN: 60436100
                                      BRACKET / SUPPORT
                                      Vale solo per J
                                      Supersession
                                      Supersession
                                      # 006
                                      MPN: 12574521
                                      NUT
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 104114 which we have in stock - and 1 more. Click to view details
                                      # 006
                                      MPN: 60436003
                                      BRACKET / SUPPORT
                                      Vale solo per J
                                      from £226.38
                                      from £226.38
                                      # 007
                                      MPN: 40217200
                                      SCREW
                                      from £29.36
                                      from £29.36
                                      This part replaces part number 95881204

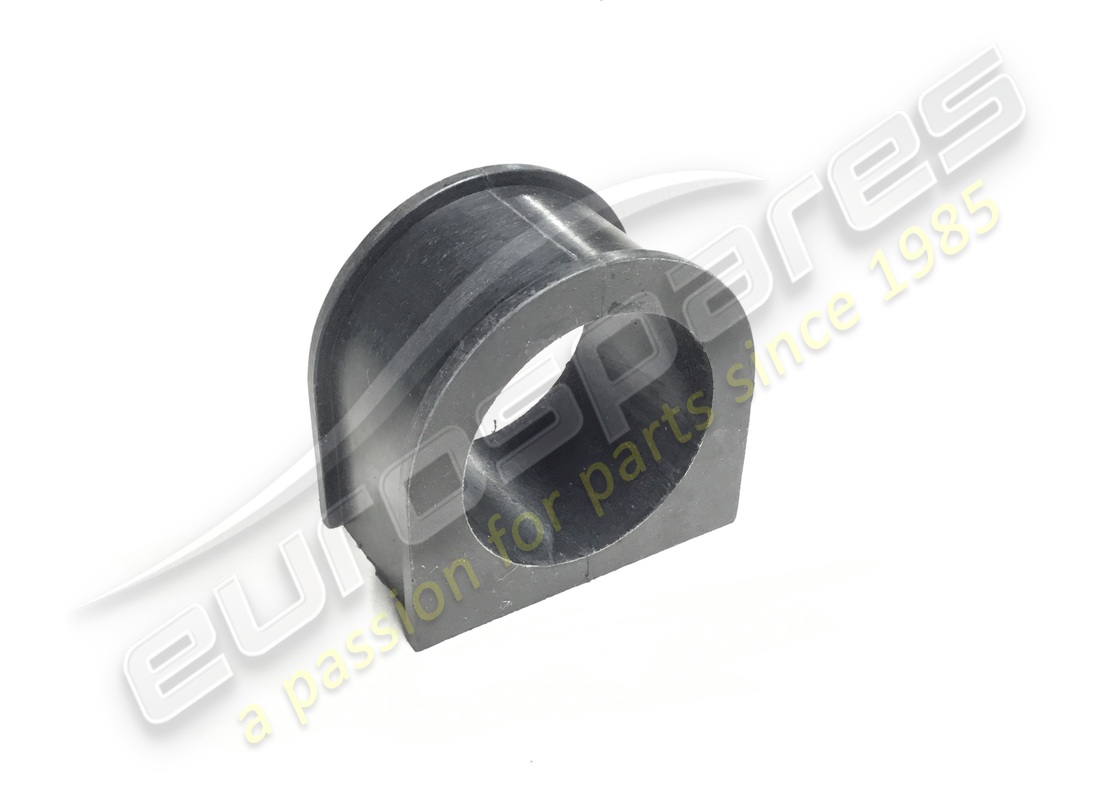

                                      # 008
                                      MPN: 40204109
                                      ELEMENTO IN GOMMA
                                      from £20.26
                                      from £20.26
                                      # 009
                                      MPN: 40204208
                                      BRACKET / SUPPORT
                                      from £15.49
                                      from £15.49
                                      # 010
                                      MPN: 50208800
                                      WASHER
                                      from £0.69
                                      from £0.69
                                      # 011
                                      MPN: 12574521
                                      NUT
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 104114 which we have in stock - and 1 more. Click to view details
                                      # 012
                                      MPN: 10520101
                                      WASHER
                                      from £1.39
                                      from £1.39
                                      # 013
                                      MPN: 12164021
                                      NUT
                                      Supersession
                                      Supersession
                                      # 014
                                      MPN: 40287500
                                      STAFFETTA FISS. FANALE
                                      from £6.78
                                      from £6.78
                                      # 015
                                      MPN: 10615370
                                      WASHER
                                      Supersession
                                      Supersession
                                      # 016
                                      MPN: 10977511
                                      SCREW
                                      Supersession
                                      Supersession
                                      # 017
                                      MPN: 10902221
                                      SCREW
                                      from £0.52
                                      from £0.52
                                      # 018
                                      MPN: 12643701
                                      WASHER
                                      Supersession
                                      Supersession
                                      This part replaces part number 12643704 - and 1 more. Click to view details
                                      # 019
                                      MPN: 60188901
                                      GASKET
                                      from £17.99
                                      from £17.99
                                      # 020
                                      MPN: 10977816
                                      SCREW
                                      Vale solo per USA
                                      # 021
                                      MPN: 40216905
                                      SUPPORT
                                      Vale fino versione USA 77
                                      from £52.85
                                      from £52.85
                                      # 021
                                      MPN: 60546000
                                      SUPPORT
                                      Vale per USA 78 - J
                                      from £40.18
                                      from £40.18
                                      # 022
                                      MPN: 40292609
                                      LATERALE DX. PARAURTI POST.
                                      from £279.06
                                      from £279.06
                                      This part replaces part number 40194300
                                      # 023
                                      MPN: 40292708
                                      LATERALE SX. PARAURTI POST.
                                      from £405.57
                                      from £405.57
                                      This part replaces part number 40194409
                                      # 024
                                      MPN: 40292401
                                      PARAURTI POSTERIORE
                                      Vale solo per USA
                                      from £2,029.10
                                      from £2,029.10
                                      This part replaces part number 40216608
                                      # 024
                                      MPN: 60577800
                                      PARAURTI POSTERIORE
                                      from £1,604.35
                                      from £1,604.35
                                      # 025
                                      MPN: 60546300
                                      RIPARO PARAURTI POSTERIORE
                                      from £94.36
                                      from £94.36
