ferrari 308 gt4 dino (1979) exhaust system (variants for usa - aus and j version) parts diagram

054 - Exhaust System (Variants for USA - AUS and J Version)

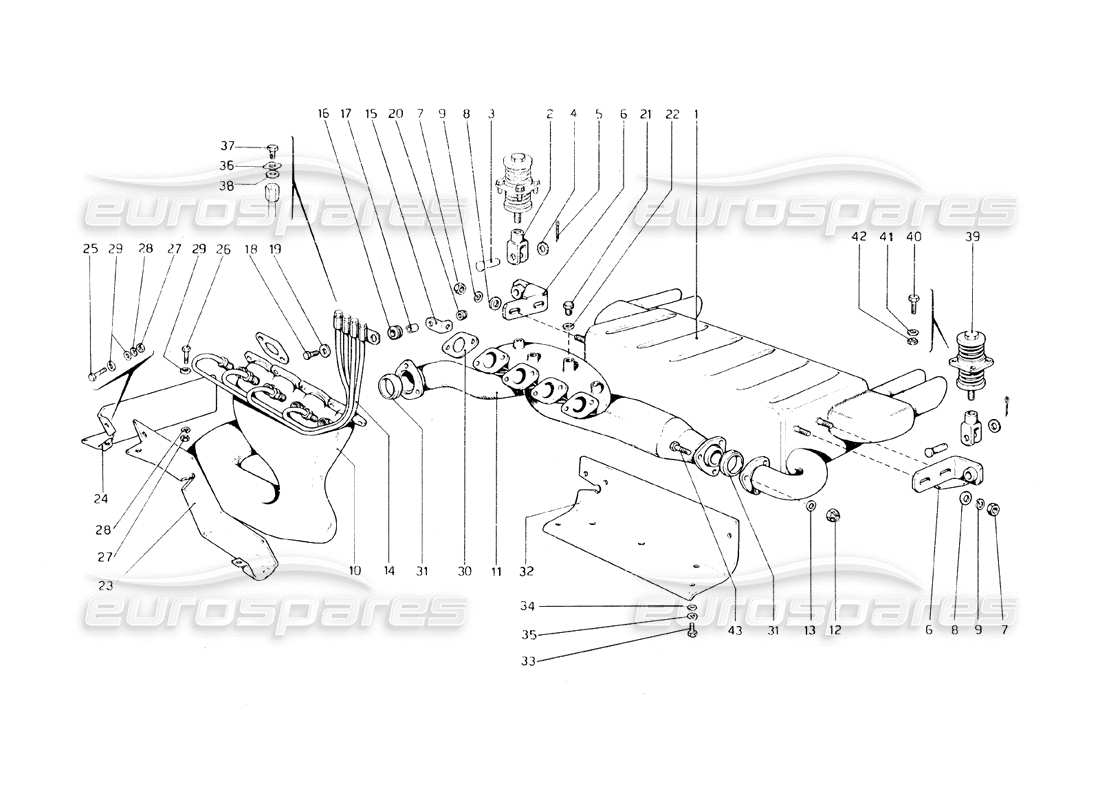

Ferrari 308 GT4 Dino (1979) Exhaust System (Variants for USA - AUS and J Version) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 108211
          CASSA SILENZIATORE
          For AUS version
          # 002
          MPN: 108257
          FORK
          For AUS version
          from £100.31
          from £100.31
          # 003
          MPN: 10033411
          PIVOT
          For AUS version
          from £42.00
          from £42.00
          This part replaces part number 10033441 - and 3 more. Click to view details
          # 004
          MPN: 103167
          WASHER
          For AUS version
          from £1.97
          from £1.97
          # 005
          MPN: 10796440
          SPLIT PIN
          For AUS version
          Supersession
          Supersession
          This part replaces part number 264555
          # 006
          MPN: 108290
          BRACKET
          For AUS version
          from £97.55
          from £97.55
          # 007
          MPN: 114748
          NUT
          For AUS version
          from £8.90
          from £8.90
          # 008
          MPN: 10519624
          WASHER
          For AUS version
          from £0.53
          from £0.53
          This part replaces part number 10519601 - and 3 more. Click to view details
          # 009
          MPN: 106852
          RCNDELLA ELASTICA
          For AUS version
          Supersession
          Supersession
          This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
          # 010
          MPN: 108212
          COLLETTORE SCARICO ANTERIORE
          For AUS version
          from £2,042.56
          from £2,042.56
          # 011
          MPN: 108213
          COLLETTORE SCARICO POSTERIORE
          For AUS version
          from £2,042.56
          from £2,042.56
          # 012
          MPN: 108272
          NUT
          For AUS version
          from £27.57
          from £27.57
          # 013
          MPN: 10519624
          WASHER
          For AUS version
          from £0.53
          from £0.53
          This part replaces part number 10519601 - and 3 more. Click to view details
          # 014
          MPN: 108258
          ASSIEME TUBETTI ANALIZZATORI
          For AUS version
          # 015
          MPN: 108260
          STAFFETTA
          For AUS version
          from £5.44
          from £5.44
          # 016
          MPN: 103549
          RUBBER BUSH
          from £0.68
          from £0.68
          # 017
          MPN: 103550
          BUSH
          For AUS version
          from £1.94
          from £1.94
          This part replaces part number 4130913
          # 018
          MPN: 10902621
          SCREW
          For AUS version
          Supersession
          Supersession
          This part replaces part number 10902611
          # 019
          MPN: 106744
          WASHER
          For AUS version
          from £5.50
          from £5.50
          # 020
          MPN: 12574211
          NUT
          For AUS version
          from £0.71
          from £0.71
          # 021
          MPN: 110860
          PLUG
          from £8.34
          from £8.34
          This part replaces part number 11903240
          # 022
          MPN: 10298460
          GASKET
          For AUS version
          from £0.47
          from £0.47
          This part replaces part number 93353
          # 023
          MPN: 108716
          PARATIA PER TUBO COLLEGAMENTO SERBATOI
          For AUS version
          from £76.53
          from £76.53
          This part replaces part number 60233509 - and 1 more. Click to view details
          # 024
          MPN: 108717
          PARATIA PROTEZIONE SERBATOIO DX.
          For AUS version
          from £32.16
          from £32.16
          This part replaces part number 60233103 - and 1 more. Click to view details
          # 025
          MPN: 10902321
          SCREW
          For AUS version
          from £0.71
          from £0.71
          # 026
          MPN: 10902121
          SCREW
          For AUS version
          from £0.71
          from £0.71
          This part replaces part number 20146601
          # 027
          MPN: 15896211
          NUT
          For AUS version
          Supersession
          Supersession
          This part replaces part number 15896210
          # 028
          MPN: 106850
          WASHER
          For AUS version
          Supersession
          Supersession
          This part replaces part number 10516473 - and 1 more. Click to view details
          # 029
          MPN: 12643724
          WASHER
          For AUS version
          from £0.47
          from £0.47
          This part replaces part number 109684 - and 4 more. Click to view details
          # 030
          MPN: 106125
          GASKET
          For AUS version
          from £10.51
          from £10.51
          This part replaces part number 105942 - and 1 more. Click to view details
          # 031
          MPN: 146698
          GASKET
          Alternative use :154984
          from £10.13
          from £10.13
          This part replaces part number 103377 which we have in stock - and 1 more. Click to view details
          # 032
          MPN: 118783
          SHIELD
          from £136.75
          from £136.75
          This part replaces part number 108188 - and 1 more. Click to view details
          # 033
          MPN: 10902021
          SCREW
          For AUS version
          from £1.10
          from £1.10
          This part replaces part number 10902020
          # 034
          MPN: 106744
          WASHER
          For AUS version
          from £5.39
          from £5.39
          # 035
          MPN: 106850
          WASHER
          For AUS version
          Supersession
          Supersession
          This part replaces part number 10516473 - and 1 more. Click to view details
          # 036
          MPN: 103587
          PLATE
          For AUS version
          from £5.85
          from £5.85
          This part replaces part number 92692 - and 1 more. Click to view details
          # 037
          MPN: 103748
          PLUG
          For AUS version
          from £21.30
          from £21.30
          This part replaces part number 20429
          # 038
          MPN: 103749
          GASKET
          For AUS version
          from £0.45
          from £0.45
          This part replaces part number 20430 - and 1 more. Click to view details
          # 039
          MPN: 106052
          EXHAUST MOUNT
          from £57.78
          from £57.78
          # 040
          MPN: 10977621
          BOLT
          For AUS version
          from £1.07
          from £1.07
          # 041
          MPN: 106849
          WASHER
          For AUS version
          Supersession
          Supersession
          This part replaces part number 11195473
          # 042
          MPN: 15896411
          NUT
          For AUS version
          Supersession
          Supersession
          This part replaces part number 15896401
          # 043
          MPN: 16044021
          SCREW
          For AUS version
          from £1.61
          from £1.61
          This part replaces part number 119631 which we have in stock
