053 - Exhaust System (Variants for USA - AUS and J Version)

Ferrari 308 GT4 Dino (1979) Exhaust System (Variants for USA - AUS and J Version) Parts Diagram

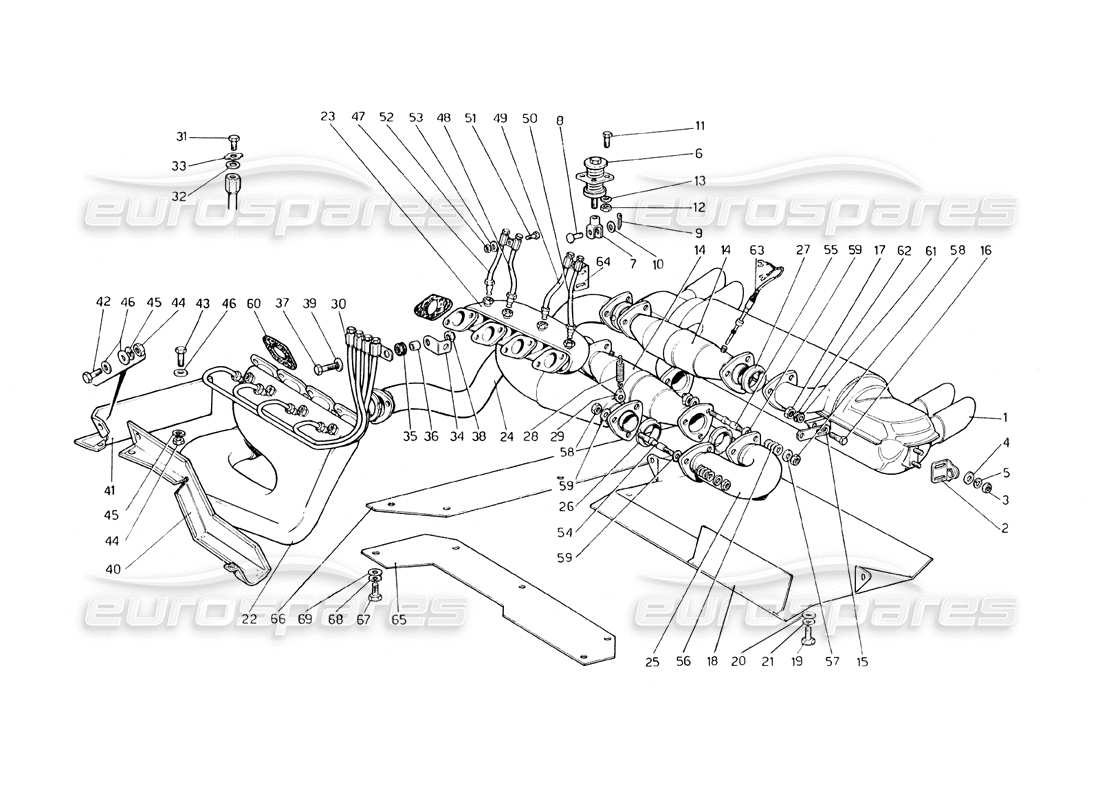

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 111902
        MARMITTA
        For U.S. and JAPANESE Version / Part Number 111902
        from £2.54
        from £2.54
        # 002
        MPN: 113686
        BRACKET / SUPPORT
        For U.S. and JAPANESE Version
        from £47.94
        from £47.94
        # 003
        MPN: 114748
        NUT
        For U.S. and JAPANESE Version
        from £9.07
        from £9.07
        # 004
        MPN: 10519624
        WASHER
        For U.S. and JAPANESE Version
        from £0.53
        from £0.53
        This part replaces part number 10519601 - and 3 more. Click to view details
        # 005
        MPN: 106852
        WASHER
        For U.S. and JAPANESE Version
        Supersession
        Supersession
        This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
        # 006
        MPN: 106052
        EXHAUST MOUNT
        from £57.78
        from £57.78
        # 007
        MPN: 108257
        FORK
        For U.S. and JAPANESE Version
        from £100.31
        from £100.31
        # 008
        MPN: 10033411
        PIVOT
        For U.S. and JAPANESE Version
        from £42.00
        from £42.00
        This part replaces part number 10033441 - and 3 more. Click to view details
        # 009
        MPN: 10796440
        COPIGLIA SUL PERNO FORCELLA
        For U.S. and JAPANESE Version
        Supersession
        Supersession
        This part replaces part number 264555
        # 010
        MPN: 103167
        WASHER
        For U.S. and JAPANESE Version
        from £1.98
        from £1.98
        # 011
        MPN: 10977621
        SCREW
        For U.S. and JAPANESE Version
        from £1.08
        from £1.08
        # 012
        MPN: 15896411
        NUT
        For U.S. and JAPANESE Version
        Supersession
        Supersession
        This part replaces part number 15896401
        # 013
        MPN: 106849
        WASHER
        For U.S. and JAPANESE Version
        Supersession
        Supersession
        This part replaces part number 11195473
        # 014
        MPN: 111583
        CATALIZZATORE
        For U.S. and JAPANESE Version
        from £1,259.29
        from £1,259.29
        # 015
        MPN: 112494
        BRACKET / SUPPORT
        For U.S. and JAPANESE Version
        from £9.42
        from £9.42
        # 016
        MPN: 16043221
        SCREW
        For U.S. and JAPANESE Version
        from £0.47
        from £0.47
        This part replaces part number 13842414 - and 1 more. Click to view details
        # 017
        MPN: 114748
        NUT
        For U.S. and JAPANESE Version
        from £9.12
        from £9.12
        # 018
        MPN: 111716
        PARATIA
        For U.S. and JAPANESE Version / Per Giappone n. 113847
        # 019
        MPN: 10902021
        SCREW
        For U.S. and JAPANESE Version / Per Giappone q.= 5
        from £1.11
        from £1.11
        This part replaces part number 10902020
        # 020
        MPN: 12643701
        WASHER
        For U.S. and JAPANESE Version / Per Giappone q.= 5
        Supersession
        Supersession
        This part replaces part number 12643704 - and 1 more. Click to view details
        # 021
        MPN: 106850
        WASHER
        For U.S. and JAPANESE Version / Per Giappone q.= 5
        Supersession
        Supersession
        This part replaces part number 10516473 - and 1 more. Click to view details
        # 022
        MPN: 111697
        COLLETTORE DI SCARICO ANTERIORE
        For U.S. and JAPANESE Version
        from £720.40
        from £720.40
        # 023
        MPN: 111698
        COLLETTORE DI SCARICO POBTERIORE
        For U.S. and JAPANESE Version
        from £1,295.13
        from £1,295.13
        # 024
        MPN: 111699
        TUBO DAL COLLETTORE AL CATALIZZATORE
        For U.S. and JAPANESE Version
        from £725.22
        from £725.22
        # 025
        MPN: 111700
        TUBO DAL COLLETTORE AL CATALIZZATORE
        For U.S. and JAPANESE Version
        from £321.06
        from £321.06

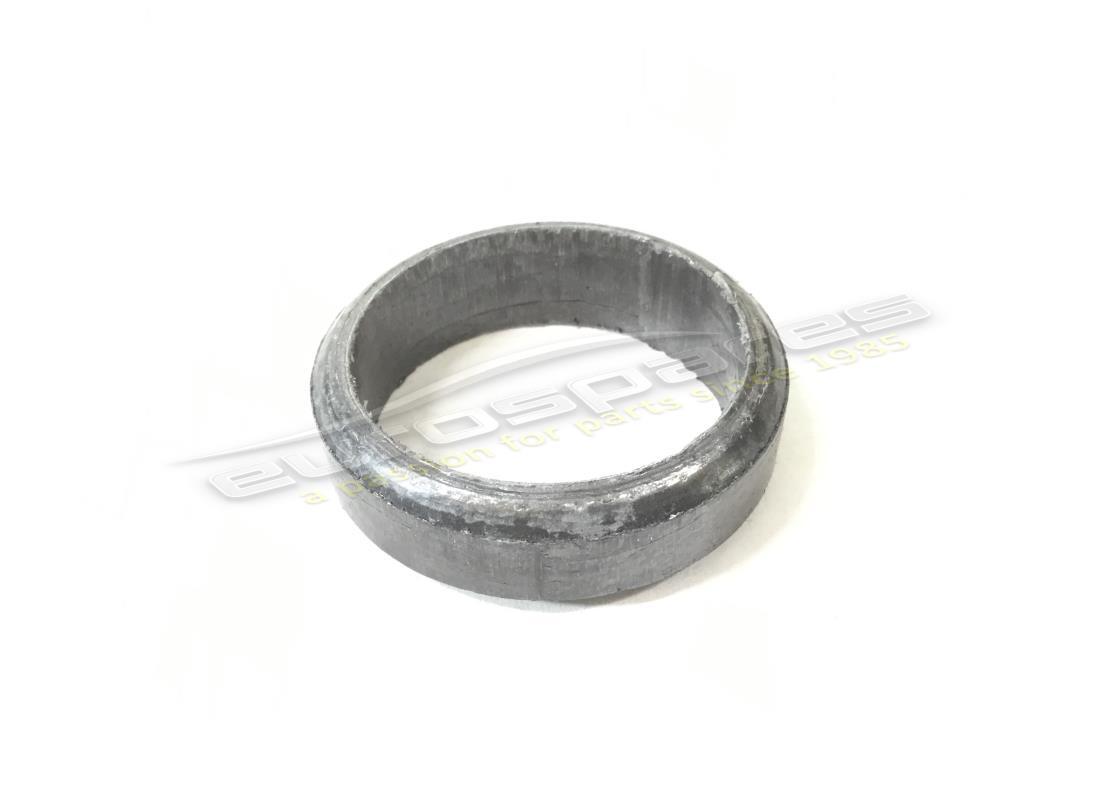

        # 026
        MPN: 147830
        GASKET
        For U.S. and JAPANESE Version
        from £14.00
        from £14.00
        This part replaces part number 113111
        # 027
        MPN: 147829
        GASKET
        from £18.46
        from £18.46
        This part replaces part number 111693
        # 028
        MPN: 112982
        SPRING
        For U.S. and JAPANESE Version
        from £8.08
        from £8.08
        # 029
        MPN: 112983
        PLATE
        For U.S. and JAPANESE Version
        from £3.31
        from £3.31
        # 030
        MPN: 108258
        TUBETTI ANALIZZATORI ANTERIORI
        For U.S. and JAPANESE Version
        # 031
        MPN: 103748
        PLUG
        For U.S. and JAPANESE Version
        from £21.30
        from £21.30
        This part replaces part number 20429
        # 032
        MPN: 103749
        GASKET
        For U.S. and JAPANESE Version
        from £0.45
        from £0.45
        This part replaces part number 20430 - and 1 more. Click to view details
        # 033
        MPN: 103587
        PLATE
        For U.S. and JAPANESE Version
        from £5.85
        from £5.85
        This part replaces part number 92692 - and 1 more. Click to view details
        # 034
        MPN: 108260
        BRACKET / SUPPORT
        For U.S. and JAPANESE Version
        from £5.44
        from £5.44
        # 035
        MPN: 103549
        RUBBER BUSH
        from £0.70
        from £0.70
        # 036
        MPN: 103550
        BUSH
        For U.S. and JAPANESE Version
        from £1.96
        from £1.96
        This part replaces part number 4130913
        # 037
        MPN: 10902621
        SCREW
        For U.S. and JAPANESE Version
        Supersession
        Supersession
        This part replaces part number 10902611
        # 038
        MPN: 12574211
        SELF LOCKING NUT
        For U.S. and JAPANESE Version
        from £0.71
        from £0.71
        # 039
        MPN: 106744
        WASHER
        For U.S. and JAPANESE Version
        from £5.52
        from £5.52
        # 040
        MPN: 108716
        PARATIA PROTEZIONE TUBO COLLEGAMENTO SERBATOI
        For U.S. and JAPANESE Version
        from £76.53
        from £76.53
        This part replaces part number 60233509 - and 1 more. Click to view details
        # 041
        MPN: 108717
        PARATIA PROTEZIONE SERBATOIO DX.
        For U.S. and JAPANESE Version
        from £32.16
        from £32.16
        This part replaces part number 60233103 - and 1 more. Click to view details
        # 042
        MPN: 10902321
        SCREW
        For U.S. and JAPANESE Version
        from £0.71
        from £0.71
        # 043
        MPN: 10902121
        SCREW
        For U.S. and JAPANESE Version
        from £0.71
        from £0.71
        This part replaces part number 20146601
        # 044
        MPN: 15896211
        NUT
        For U.S. and JAPANESE Version
        Supersession
        Supersession
        This part replaces part number 15896210
        # 045
        MPN: 106850
        WASHER
        For U.S. and JAPANESE Version
        Supersession
        Supersession
        This part replaces part number 10516473 - and 1 more. Click to view details
        # 046
        MPN: 12643701
        WASHER
        For U.S. and JAPANESE Version
        Supersession
        Supersession
        This part replaces part number 12643704 - and 1 more. Click to view details
        # 047
        MPN: 113220
        TUBETTO ANALIZZATORE - CILINDRO N. 1
        For U.S. and JAPANESE Version
        from £57.71
        from £57.71
        # 048
        MPN: 113221
        TUBETTO ANALIZZATORE - CILINDRO N. 2
        For U.S. and JAPANESE Version
        from £57.66
        from £57.66
        # 049
        MPN: 113222
        TUBETTO ANALIZZATORE - CILINDRO N. 3
        For U.S. and JAPANESE Version
        from £94.66
        from £94.66
        # 050
        MPN: 113223
        TUBETTO ANALIZZATORE - CILINDRO N. 4
        For U.S. and JAPANESE Version
        from £62.91
        from £62.91
        # 051
        MPN: 10977621
        SCREW
        For U.S. and JAPANESE Version
        from £1.08
        from £1.08
        # 052
        MPN: 15896411
        NUT
        For U.S. and JAPANESE Version
        Supersession
        Supersession
        This part replaces part number 15896401
        # 053
        MPN: 106849
        WASHER
        For U.S. and JAPANESE Version
        Supersession
        Supersession
        This part replaces part number 11195473
        # 054
        MPN: 111744
        THREADED STUD
        For U.S. and JAPANESE Version
        from £5.04
        from £5.04
        # 055
        MPN: 113108
        THREADED STUD
        For U.S. and JAPANESE Version
        from £18.28
        from £18.28
        # 056
        MPN: 111743
        SPRING
        For U.S. and JAPANESE Version
        from £6.91
        from £6.91
        # 057
        MPN: 113113
        WASHER
        For U.S. and JAPANESE Version
        from £4.35
        from £4.35
        # 058
        MPN: 113112
        SELF LOCKING NUT
        For U.S. and JAPANESE Version
        from £1.86
        from £1.86
        # 059
        MPN: 128010
        WASHER
        For U.S. and JAPANESE Version
        from £2.16
        from £2.16
        # 060
        MPN: 106125
        GASKET
        For U.S. and JAPANESE Version
        from £10.51
        from £10.51
        This part replaces part number 105942 - and 1 more. Click to view details
        # 061
        MPN: 10519624
        WASHER
        For U.S. and JAPANESE Version
        from £0.54
        from £0.54
        This part replaces part number 10519601 - and 3 more. Click to view details
        # 062
        MPN: 106852
        WASHER
        For U.S. and JAPANESE Version
        Supersession
        Supersession
        This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
        # 063
        MPN: 111703
        TERMOCOPPIA TIPO CROMEL - ALUMEL PER IMPIANTO DI SCARICO
        For U.S. and JAPANESE Version
        from £229.74
        from £229.74
        # 064
        MPN: 113687
        BRACKET / SUPPORT
        For U.S. and JAPANESE Version / Vale solo per Giappone
        from £47.94
        from £47.94
        # 065
        MPN: 113869
        PARATIA CENTRALE
        For U.S. and JAPANESE Version / Vale solo per Giappone
        from £234.63
        from £234.63
        # 066
        MPN: 113870
        PARATIA LATERALE
        For U.S. and JAPANESE Version / Vale solo per Giappone
        from £203.06
        from £203.06
        # 067
        MPN: 10902021
        SCREW
        For U.S. and JAPANESE Version / Vale solo per Giappone
        from £1.08
        from £1.08
        This part replaces part number 10902020
        # 068
        MPN: 106850
        WASHER
        For U.S. and JAPANESE Version / Vale solo per Giappone
        Supersession
        Supersession
        This part replaces part number 10516473 - and 1 more. Click to view details
        # 069
        MPN: 12643724
        WASHER
        For U.S. and JAPANESE Version / Vale solo per Giappone
        from £0.47
        from £0.47
        This part replaces part number 109684 - and 4 more. Click to view details
