039 - Electric Generating System

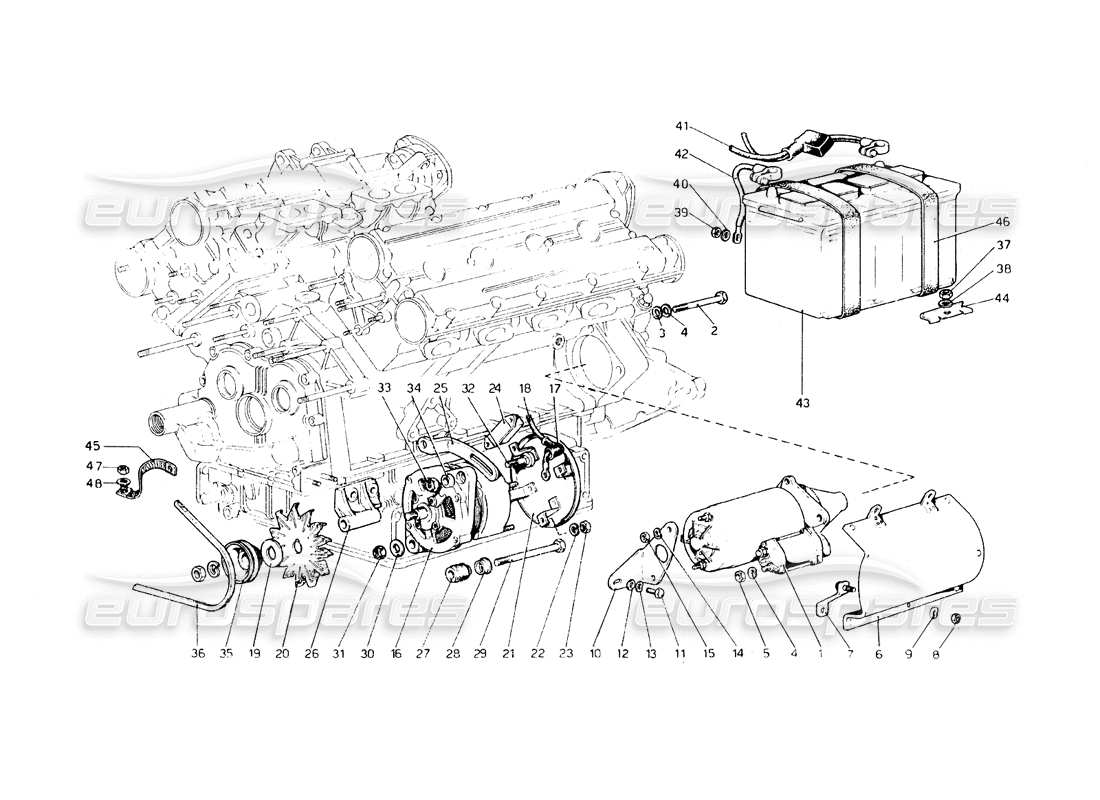

Ferrari 308 GT4 Dino (1979) Electric Generating System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price

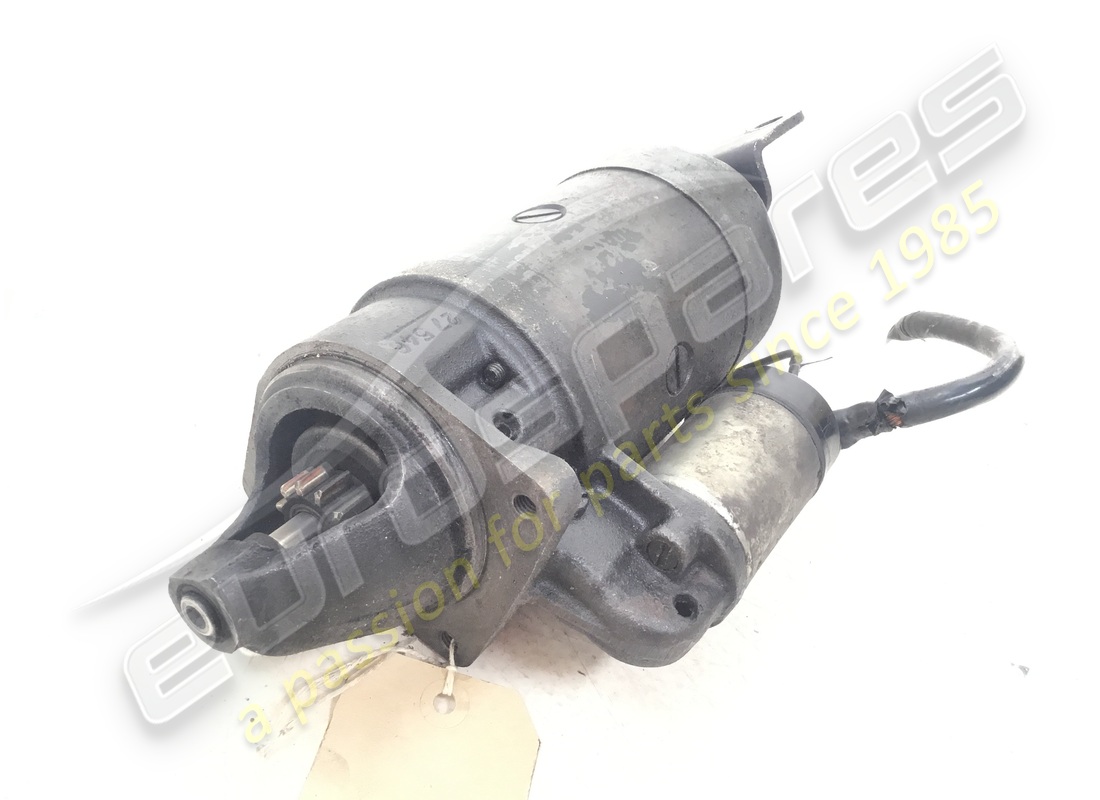

                                                                            # 001
                                                                            MPN: 103959
                                                                            MOTORINO AVVIARNENTO (FIAT)
                                                                            This part replaces part number 4162784
                                                                            # 001
                                                                            MPN: 106966
                                                                            MOTORINO AVVIAMENTO (BOSCH)
                                                                            from £472.50
                                                                            from £472.50
                                                                            # 002
                                                                            MPN: 16045031
                                                                            BULIONE FISSAGGIO MOTORINO
                                                                            # 003
                                                                            MPN: 11198074
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                            # 004
                                                                            MPN: 10519621
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            # 005
                                                                            MPN: 127496
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 10516671 - and 2 more. Click to view details
                                                                            # 005
                                                                            MPN: 16100824
                                                                            NUT
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 16100814 - and 1 more. Click to view details
                                                                            # 006
                                                                            MPN: 107038
                                                                            PARATIA DI PROTEZIONE
                                                                            Non valgono per USA-AUS e J
                                                                            from £87.06
                                                                            from £87.06
                                                                            # 007
                                                                            MPN: 107039

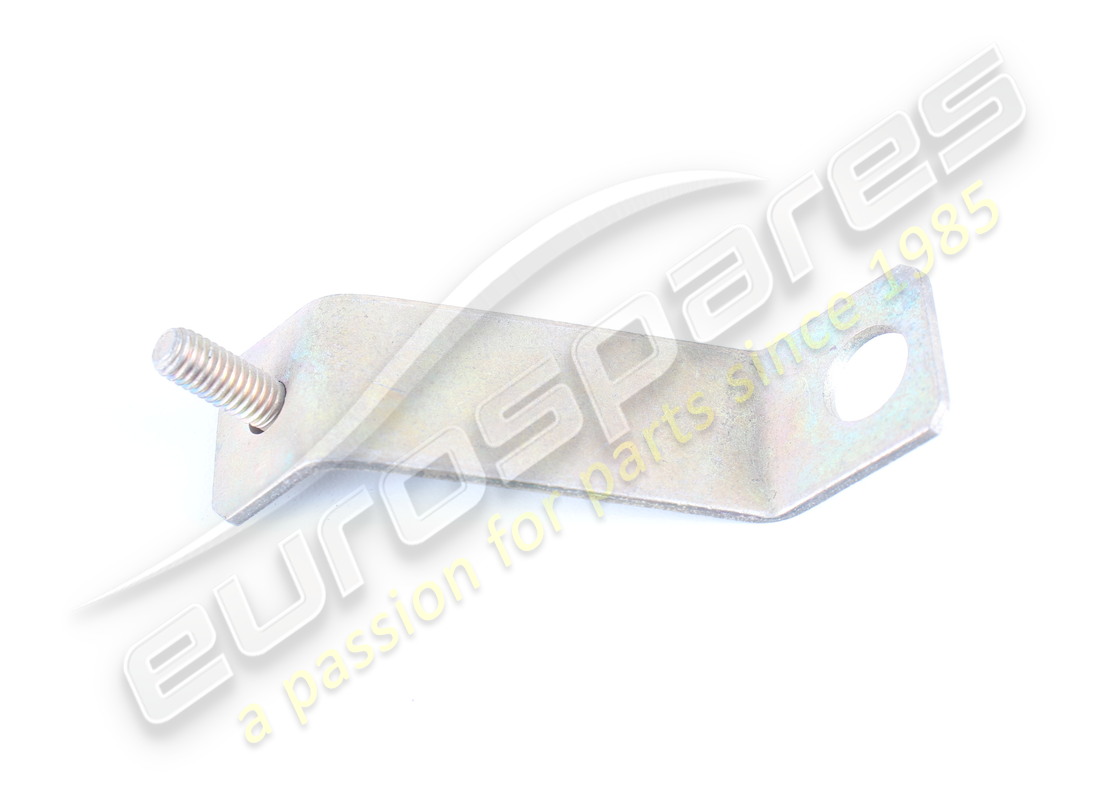

                                                                            BRACKET / SUPPORT
                                                                            Non valgono per USA-AUS e J
                                                                            from £11.38
                                                                            from £11.38
                                                                            This part replaces part number 40361404
                                                                            # 008
                                                                            MPN: 15896211
                                                                            NUT
                                                                            Non valgono per USA-AUS e J
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 15896210
                                                                            # 009
                                                                            MPN: 12643724
                                                                            RONDOLLA
                                                                            Non valgono per USA-AUS e J
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 109684 - and 4 more. Click to view details
                                                                            # 010
                                                                            MPN: 107129
                                                                            BRACKET / SUPPORT
                                                                            from £43.39
                                                                            from £43.39
                                                                            This part replaces part number 40361800
                                                                            # 011
                                                                            MPN: 15970721
                                                                            BULIONEFSOLO PER MOTORINO BOSCH)
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 012
                                                                            MPN: 105391
                                                                            WASHER
                                                                            from £2.24
                                                                            from £2.24
                                                                            This part replaces part number 4124022
                                                                            # 013
                                                                            MPN: 127497
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 10516871 - and 2 more. Click to view details
                                                                            # 014
                                                                            MPN: 106850
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 10516473 - and 1 more. Click to view details
                                                                            # 015
                                                                            MPN: 15896211
                                                                            NUT
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 15896210
                                                                            # 016
                                                                            MPN: 111680

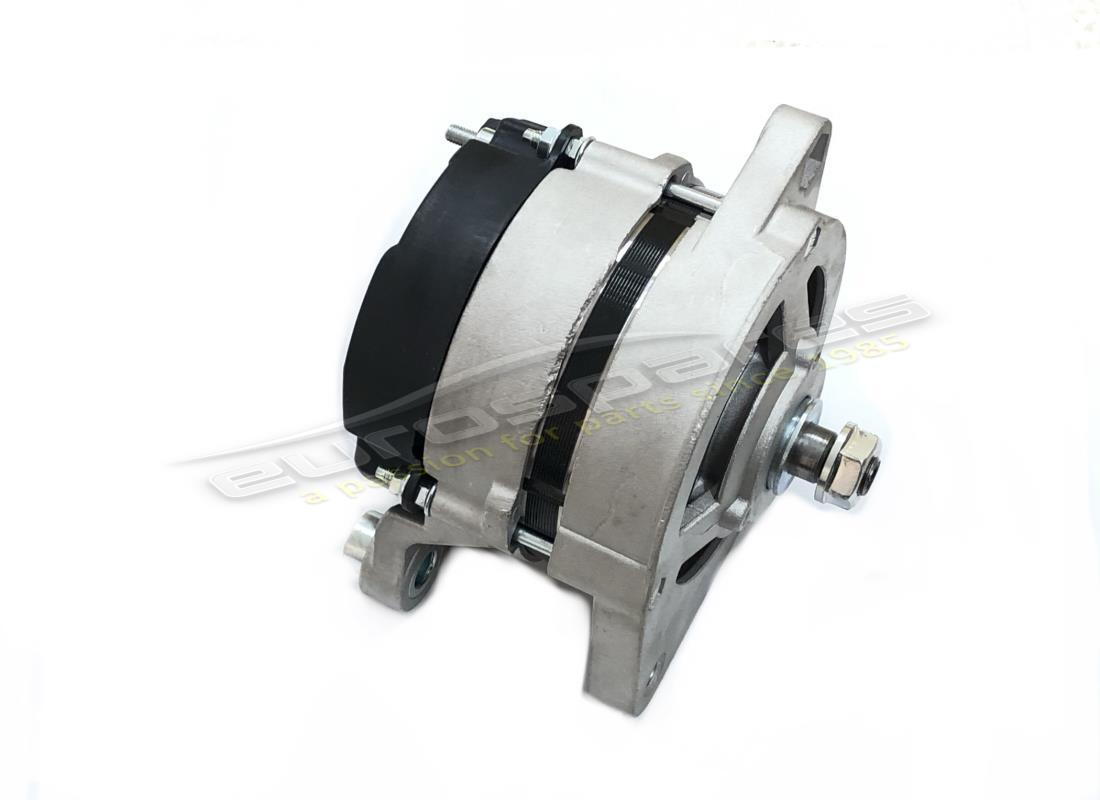

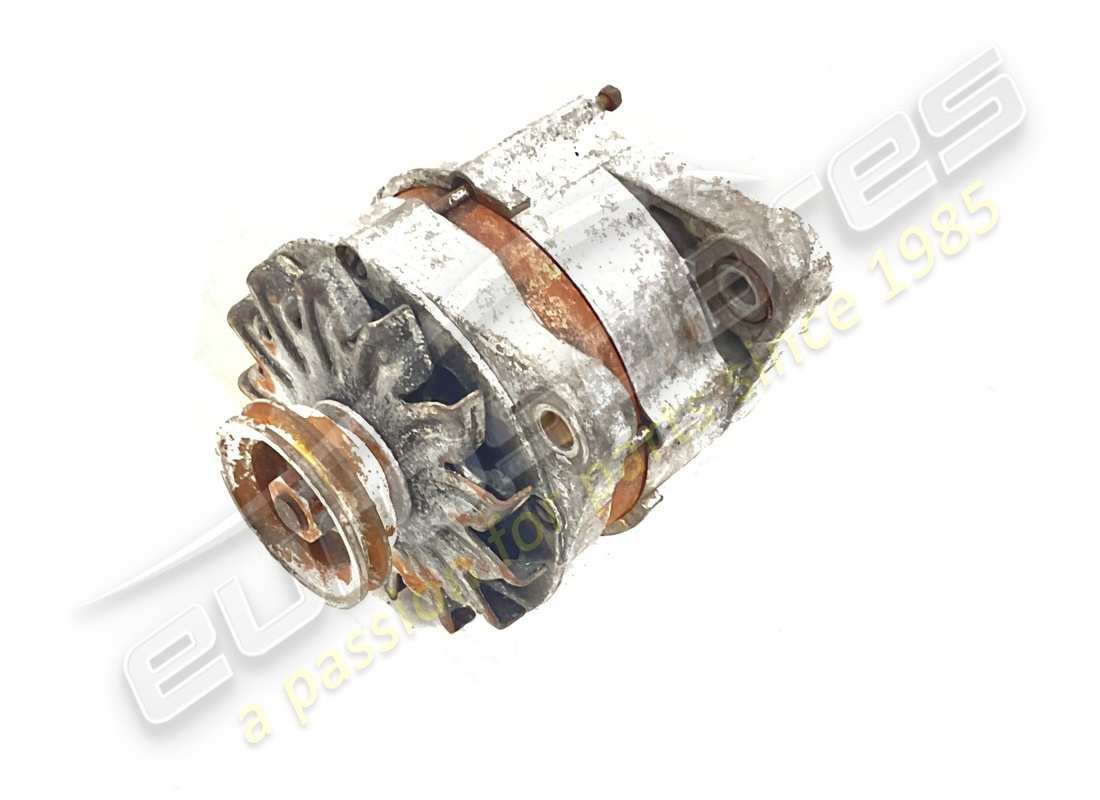

                                                                            ALTERNATOR
                                                                            from £414.75
                                                                            from £414.75
                                                                            This part replaces part number 106541 which we have in stock - and 2 more. Click to view details
                                                                            # 017
                                                                            MPN: 107003
                                                                            CAPPUCCIO PROTEZIONE CAVO
                                                                            from £5.79
                                                                            from £5.79
                                                                            # 018
                                                                            MPN: 106989
                                                                            CAVI COLLEGAMENTO ALTERNATORE
                                                                            from £62.56
                                                                            from £62.56
                                                                            # 019
                                                                            MPN: 106543
                                                                            WASHER
                                                                            from £1.16
                                                                            from £1.16
                                                                            # 020
                                                                            MPN: 106544
                                                                            VENTOLD
                                                                            Ad esaurimento n. 106541
                                                                            Supersession
                                                                            Supersession
                                                                            # 020
                                                                            MPN: 110111
                                                                            VENTOLA
                                                                            Serve per part. n. 111680
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 106544
                                                                            # 021
                                                                            MPN: 107221
                                                                            PARATIA DI PROTEZIONE
                                                                            from £157.50
                                                                            from £157.50
                                                                            # 022
                                                                            MPN: 106849
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 11195473
                                                                            # 023
                                                                            MPN: 106426
                                                                            WASHER
                                                                            Con alternatore n. 111680
                                                                            from £2.50
                                                                            from £2.50
                                                                            # 023
                                                                            MPN: 15896411
                                                                            NUT
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 15896401
                                                                            # 024
                                                                            MPN: 107396
                                                                            REGOLATORE DI TENSIONE
                                                                            from £121.00
                                                                            from £121.00
                                                                            # 025
                                                                            MPN: 105940

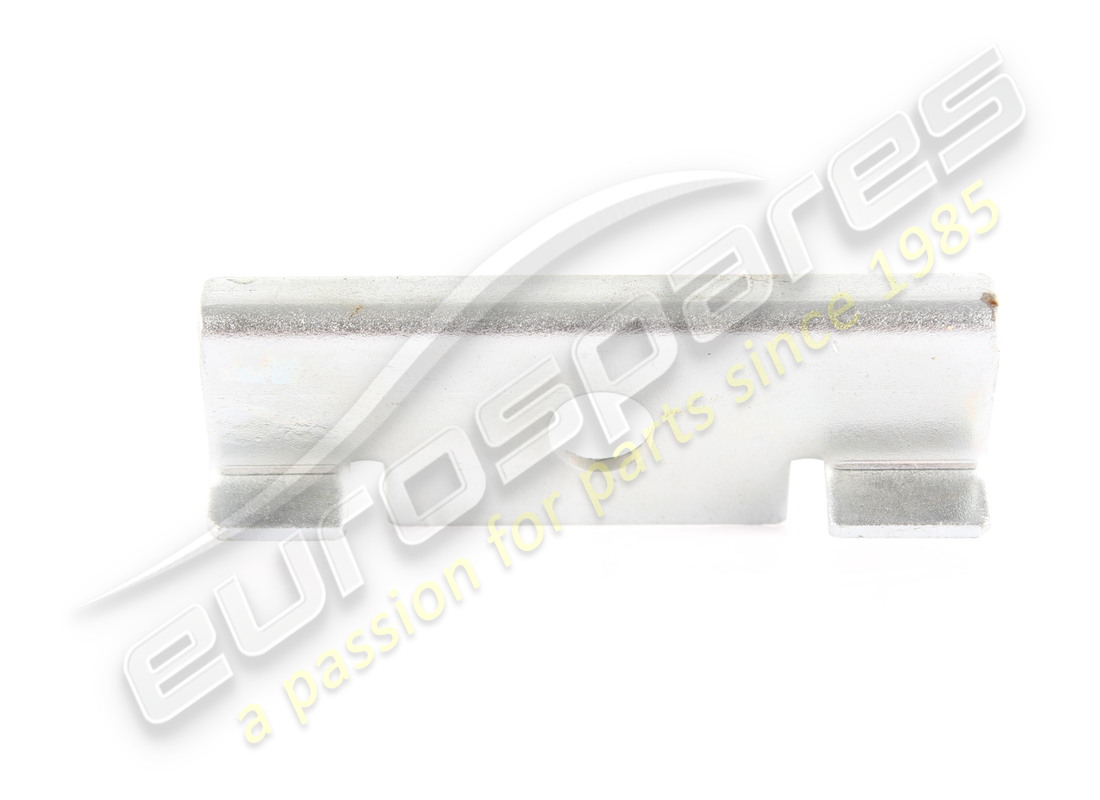

                                                                            BRACKET / SUPPORT
                                                                            from £51.56
                                                                            from £51.56
                                                                            # 026
                                                                            MPN: 105158
                                                                            SUPPORT
                                                                            from £573.75
                                                                            from £573.75
                                                                            # 027
                                                                            MPN: 105392
                                                                            BUSH
                                                                            Ad esaurimento n. 106541
                                                                            from £15.74
                                                                            from £15.74
                                                                            This part replaces part number 4085211 - and 1 more. Click to view details
                                                                            # 028
                                                                            MPN: 105393
                                                                            WASHER
                                                                            Ad esaurimento n. 106541
                                                                            from £2.58
                                                                            from £2.58
                                                                            This part replaces part number 4085214 - and 1 more. Click to view details
                                                                            # 029
                                                                            MPN: 105390
                                                                            BOLT
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 15543221
                                                                            # 030
                                                                            MPN: 11198673
                                                                            WASHER
                                                                            from £0.87
                                                                            from £0.87
                                                                            This part replaces part number 11198671
                                                                            # 031
                                                                            MPN: 16109221
                                                                            NUT
                                                                            from £0.50
                                                                            from £0.50
                                                                            # 032
                                                                            MPN: 106228
                                                                            SCREW
                                                                            Ad esaurimento n. 106541
                                                                            Supersession
                                                                            Supersession
                                                                            # 032
                                                                            MPN: 15970931
                                                                            SCREW
                                                                            Serve per part. n. 111680
                                                                            from £5.83
                                                                            from £5.83
                                                                            This part replaces part number 106228
                                                                            # 033
                                                                            MPN: 13598021
                                                                            NUT
                                                                            from £0.71
                                                                            from £0.71
                                                                            This part replaces part number 13598011
                                                                            # 034
                                                                            MPN: 105931
                                                                            SPACER
                                                                            Serve per part. n. 111680
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 034
                                                                            MPN: 106229
                                                                            SPACER
                                                                            Ad esaui imento n. 106541
                                                                            # 035
                                                                            MPN: 106542
                                                                            PULEGGIA
                                                                            from £239.33
                                                                            from £239.33
                                                                            # 036
                                                                            MPN: 104336

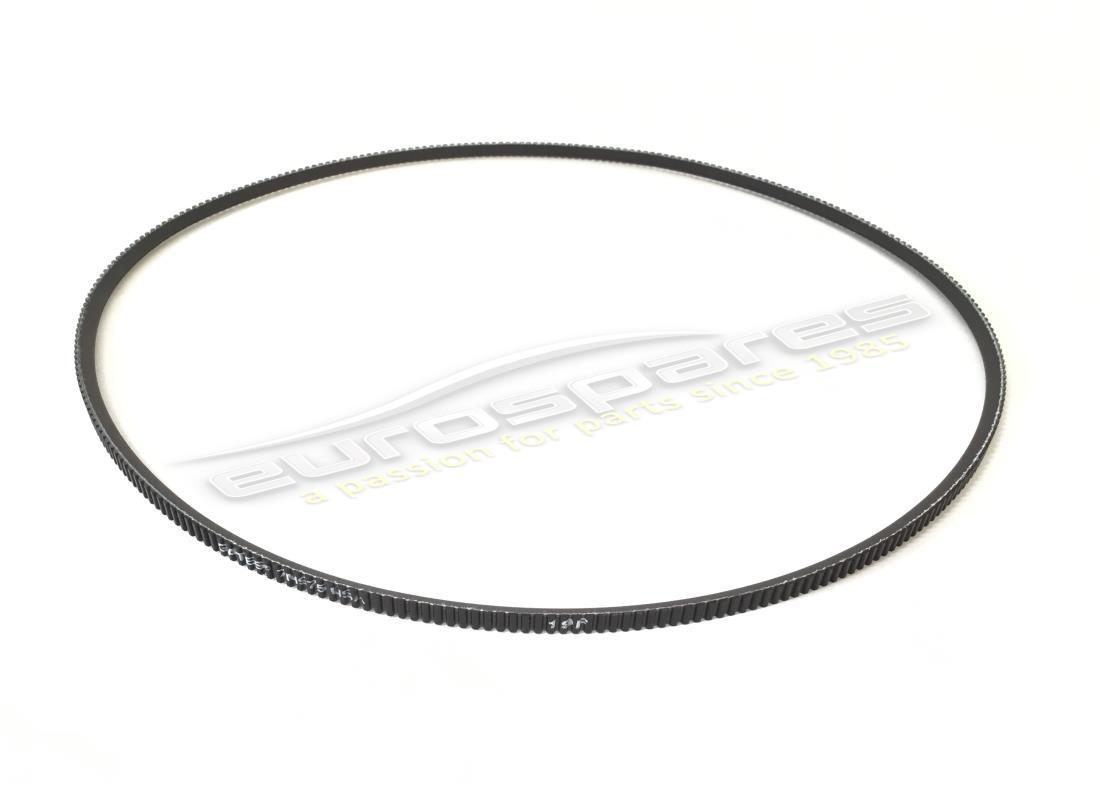

                                                                            ALTERNATOR BELT 975MM
                                                                            from £52.69
                                                                            from £52.69
                                                                            This part replaces part number 104336/A
                                                                            # 037
                                                                            MPN: 16100824
                                                                            NUT
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 16100814 - and 1 more. Click to view details
                                                                            # 038
                                                                            MPN: 106852
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                            # 039
                                                                            MPN: 16100311
                                                                            NUT
                                                                            # 040
                                                                            MPN: 127496
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 10516671 - and 2 more. Click to view details
                                                                            # 041
                                                                            MPN: 107079
                                                                            CAVO COLLEGAMENTO BATTERIA
                                                                            from £56.31
                                                                            from £56.31
                                                                            # 042
                                                                            MPN: 107547
                                                                            CAVO MASSA BATTERIA
                                                                            This part replaces part number 40136103 - and 2 more. Click to view details
                                                                            # 043
                                                                            MPN: 104163
                                                                            BATTERIA 12V - 66AH.
                                                                            In alternative n. 107630
                                                                            # 043
                                                                            MPN: 107630
                                                                            BATTERIA 12V -60AH.
                                                                            Non vale per USA e J
                                                                            Supersession
                                                                            Supersession
                                                                            # 044
                                                                            MPN: 106525
                                                                            BRACKET
                                                                            from £42.10
                                                                            from £42.10
                                                                            This part replaces part number 40361909
                                                                            # 045
                                                                            MPN: 100901
                                                                            CAVO DI MASSA MOTORE
                                                                            This part replaces part number 40814
                                                                            # 046
                                                                            MPN: 105694
                                                                            NASTRO SOLLEVAMENTO BATTERIA
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 401393
                                                                            # 047
                                                                            MPN: 16100821
                                                                            NUT
                                                                            from £0.71
                                                                            from £0.71
                                                                            This part replaces part number 16100825 which we have in stock
                                                                            # 048
                                                                            MPN: 12603171
                                                                            WASHER
                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
