ferrari 308 gt4 dino (1979) engine ignition (from n. 14070 gs - 14020 gd) parts diagram

038 - Engine Ignition (From N. 14070 GS - 14020 GD)

Ferrari 308 GT4 Dino (1979) Engine Ignition (From N. 14070 GS - 14020 GD) Parts Diagram

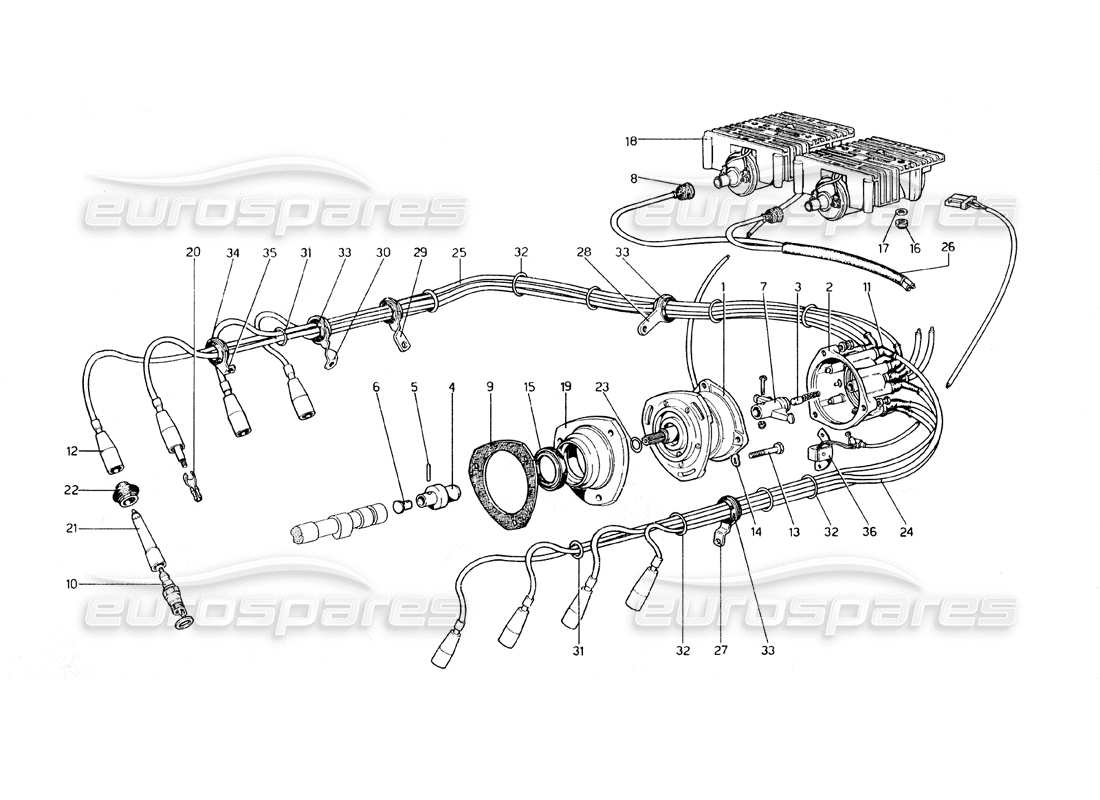

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 000
                                                                    MPN: FHT017

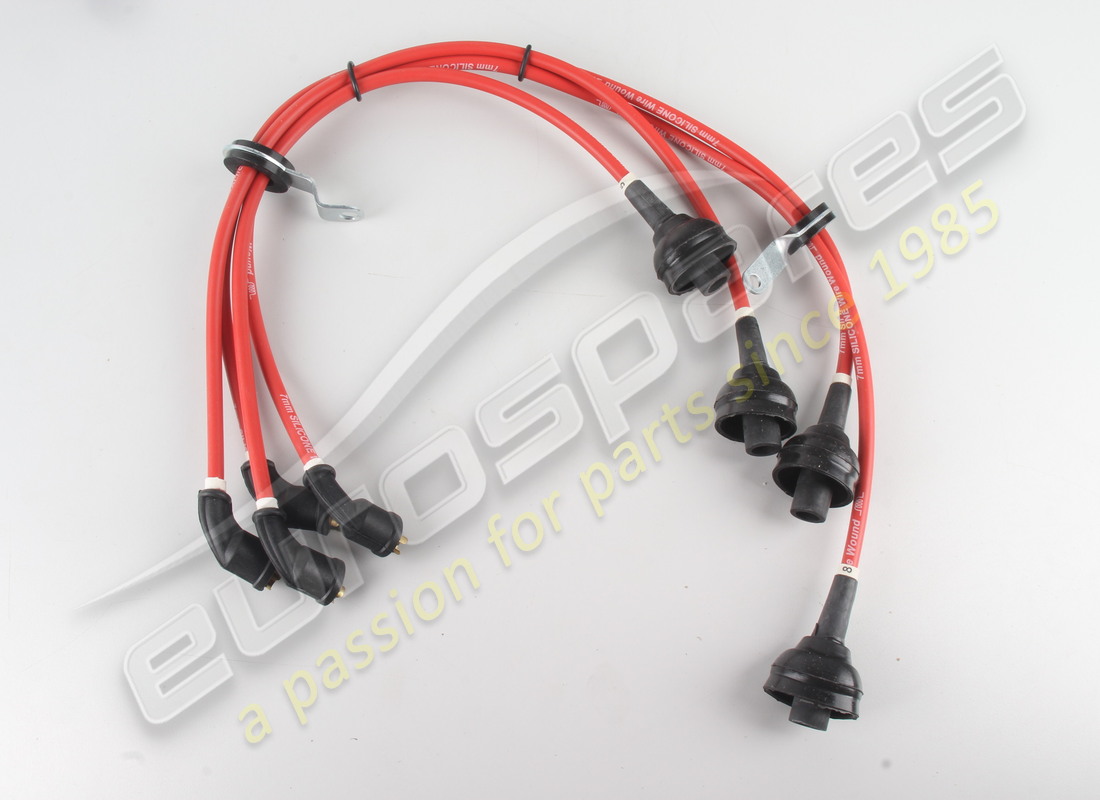

                                                                    COMPLETE HT LEADS SET
                                                                    Valid for cars with TWIN distributor
                                                                    from £295.00
                                                                    from £295.00
                                                                    # 000
                                                                    MPN: FHT019

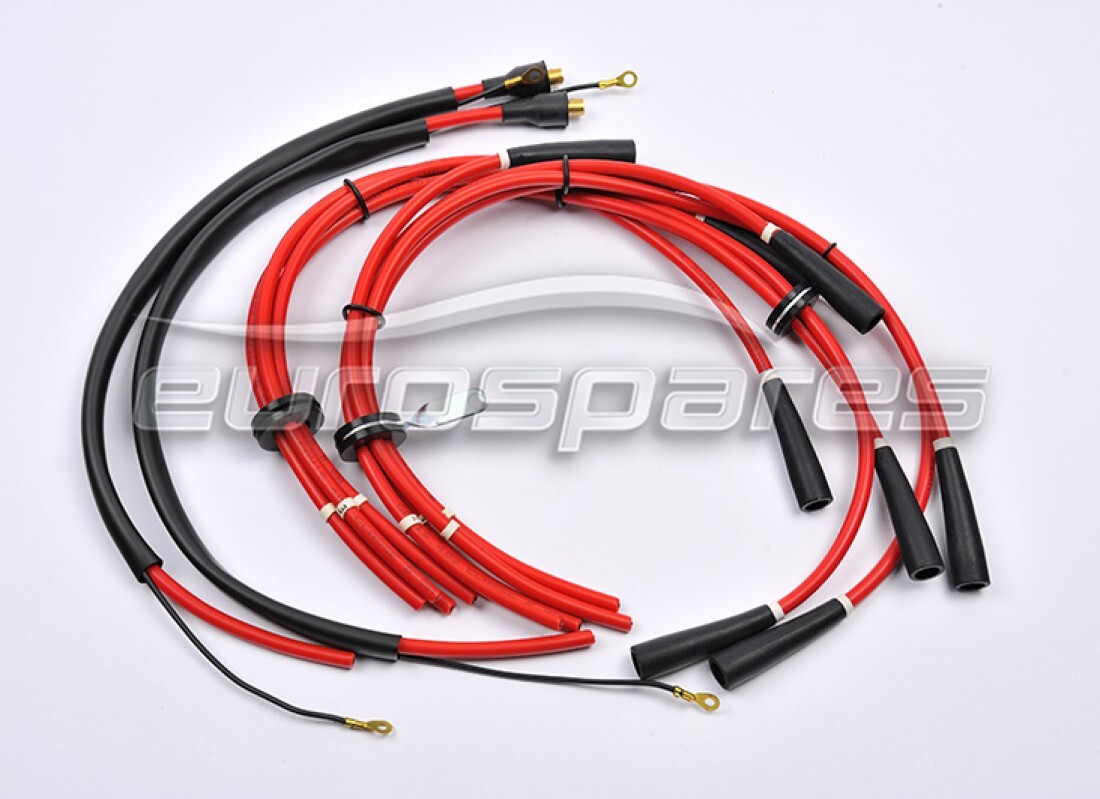

                                                                    COMPLETE HT LEADS SET
                                                                    Valid for cars with SINGLE distributor (with electronic ignition)
                                                                    from £340.42
                                                                    from £340.42
                                                                    # 000
                                                                    MPN: FHT020
                                                                    COMPLETE HT LEADS SET
                                                                    Valid for cars with SINGLE distributor (non electric)
                                                                    from £357.44
                                                                    from £357.44
                                                                    # 001
                                                                    MPN: 112901
                                                                    DISTRIBUTORE DI ACCENSIONE COMPLETO MARELLI SM805A
                                                                    from £1,566.35
                                                                    from £1,566.35
                                                                    # 002
                                                                    MPN: 95300046
                                                                    DISTRIBUTOR CAP
                                                                    (electronic type)
                                                                    from £275.00
                                                                    from £275.00
                                                                    # 003
                                                                    MPN: 95300069
                                                                    CARBONCINO CON MOLLA
                                                                    Non a ricambio
                                                                    # 004
                                                                    MPN: 108005
                                                                    INNESTO
                                                                    from £239.27
                                                                    from £239.27
                                                                    # 005
                                                                    MPN: 100279
                                                                    PIN
                                                                    from £11.85
                                                                    from £11.85
                                                                    This part replaces part number 13904770 - and 2 more. Click to view details
                                                                    # 006
                                                                    MPN: 112547
                                                                    PLUG
                                                                    from £16.65
                                                                    from £16.65
                                                                    # 007
                                                                    MPN: 95300317
                                                                    ROTOR ARM
                                                                    from £110.00
                                                                    from £110.00
                                                                    # 008
                                                                    MPN: 12056986
                                                                    CAPPUCCIO DI PROTEZIONE
                                                                    from £0.94
                                                                    from £0.94
                                                                    This part replaces part number 12056286 - and 2 more. Click to view details
                                                                    # 009
                                                                    MPN: 147642
                                                                    GASKET
                                                                    from £3.94
                                                                    from £3.94
                                                                    This part replaces part number 103815
                                                                    # 010
                                                                    MPN: 107603
                                                                    SPARK PLUG
                                                                    (champion N7Y)
                                                                    from £2.81
                                                                    from £2.81
                                                                    This part replaces part number 113224
                                                                    # 010
                                                                    MPN: 109297
                                                                    CANDELA DI ACCENSIONE (BOSCH W200T3)
                                                                    In alternativa al N. 107603
                                                                    from £3.22
                                                                    from £3.22
                                                                    # 011
                                                                    MPN: 100284
                                                                    CAPPUCCIO PROTEZIONE CAVI SUL DISTRIBUTORE
                                                                    from £6.10
                                                                    from £6.10
                                                                    This part replaces part number 29288
                                                                    # 012
                                                                    MPN: 29171
                                                                    TERMINALE
                                                                    from £4.14
                                                                    from £4.14
                                                                    This part replaces part number 12056886
                                                                    # 013
                                                                    MPN: 16043921
                                                                    SCREW
                                                                    from £1.43
                                                                    from £1.43
                                                                    # 014
                                                                    MPN: 11198074
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                    # 015
                                                                    MPN: 108009
                                                                    SEALING RING
                                                                    from £12.14
                                                                    from £12.14
                                                                    # 016
                                                                    MPN: 102741
                                                                    SELF LOCKING NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                    # 017
                                                                    MPN: 12643721
                                                                    WASHER
                                                                    from £0.92
                                                                    from £0.92
                                                                    # 018
                                                                    MPN: 112902
                                                                    BOBINA DI ACCENSIONE CON GRUPPO MODULO ELETTRONICO
                                                                    from £1,297.12
                                                                    from £1,297.12
                                                                    # 019
                                                                    MPN: 117670
                                                                    CRANKCASE COMPLETE
                                                                    from £5,047.52
                                                                    from £5,047.52
                                                                    This part replaces part number 114229
                                                                    # 020
                                                                    MPN: 12656340
                                                                    CAPOCORDA
                                                                    # 021
                                                                    MPN: 116613
                                                                    SPARK PLUG EXTENSION
                                                                    from £8.52
                                                                    from £8.52
                                                                    This part replaces part number 107310

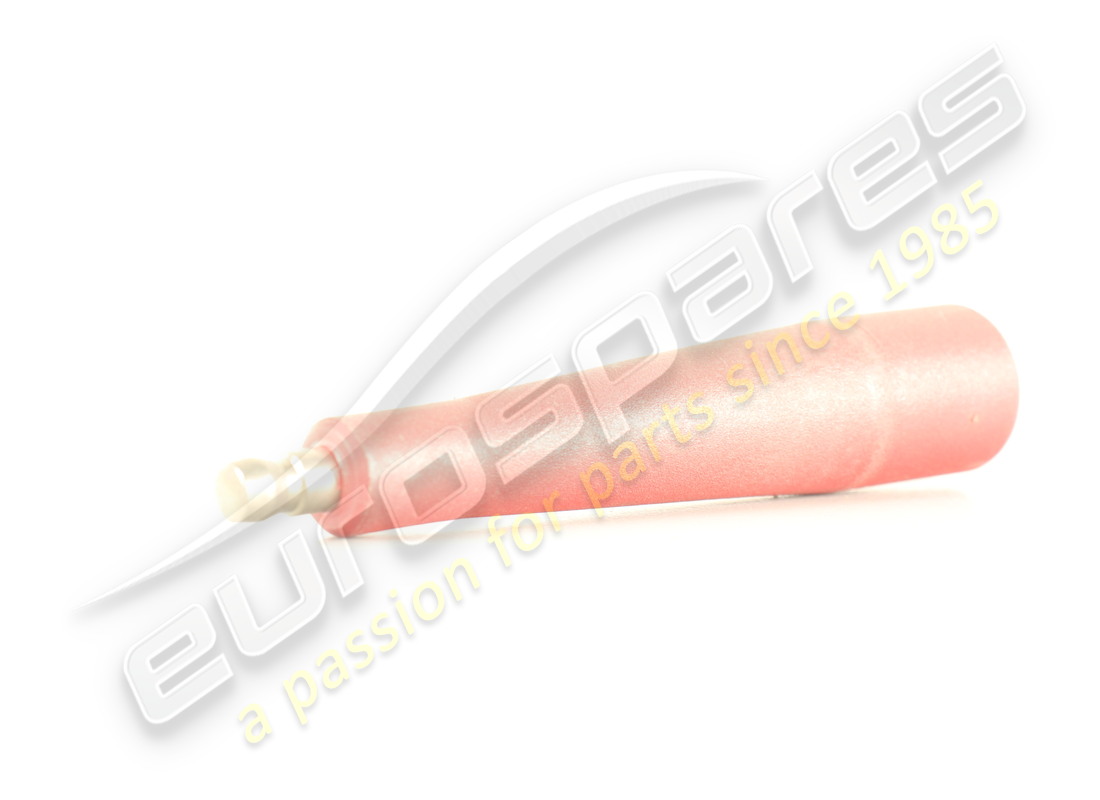

                                                                    # 022
                                                                    MPN: 108333
                                                                    CAPPUCCETTO PROTEZIONE CANDELE
                                                                    from £11.62
                                                                    from £11.62
                                                                    This part replaces part number 61605900
                                                                    # 023
                                                                    MPN: 100015
                                                                    RING
                                                                    from £1.21
                                                                    from £1.21
                                                                    # 024
                                                                    MPN: 108910
                                                                    ASSIEME CAVI ACCENSIONE LATO SX.
                                                                    from £248.18
                                                                    from £248.18
                                                                    This part replaces part number 113638
                                                                    # 025
                                                                    MPN: 108911
                                                                    ASSIEME CAVI ACCENSIONE LATO DX.
                                                                    from £228.74
                                                                    from £228.74
                                                                    This part replaces part number 113639
                                                                    # 026
                                                                    MPN: 113641
                                                                    ASSIEME CAVI COLLEGAMENTO BOBINA DISTRIBUTORE
                                                                    from £8.33
                                                                    from £8.33
                                                                    # 027
                                                                    MPN: 105902
                                                                    BRACKET
                                                                    from £11.54
                                                                    from £11.54
                                                                    This part replaces part number 29268
                                                                    # 028
                                                                    MPN: 109670
                                                                    BRACKET
                                                                    from £6.09
                                                                    from £6.09
                                                                    # 029
                                                                    MPN: 110092
                                                                    BRACKET
                                                                    from £5.65
                                                                    from £5.65
                                                                    # 030
                                                                    MPN: 107361
                                                                    BRACKET
                                                                    from £29.97
                                                                    from £29.97
                                                                    This part replaces part number 29267
                                                                    # 032
                                                                    MPN: 103702
                                                                    SEAL
                                                                    from £6.84
                                                                    from £6.84
                                                                    This part replaces part number 29265
                                                                    # 033
                                                                    MPN: 10396580
                                                                    CABLE GROMMET
                                                                    from £1.07
                                                                    from £1.07
                                                                    This part replaces part number 100286
                                                                    # 034
                                                                    MPN: 10396480
                                                                    CABLE GROMMET
                                                                    from £2.31
                                                                    from £2.31
                                                                    This part replaces part number 103516
                                                                    # 035
                                                                    MPN: 110094
                                                                    BRACKET

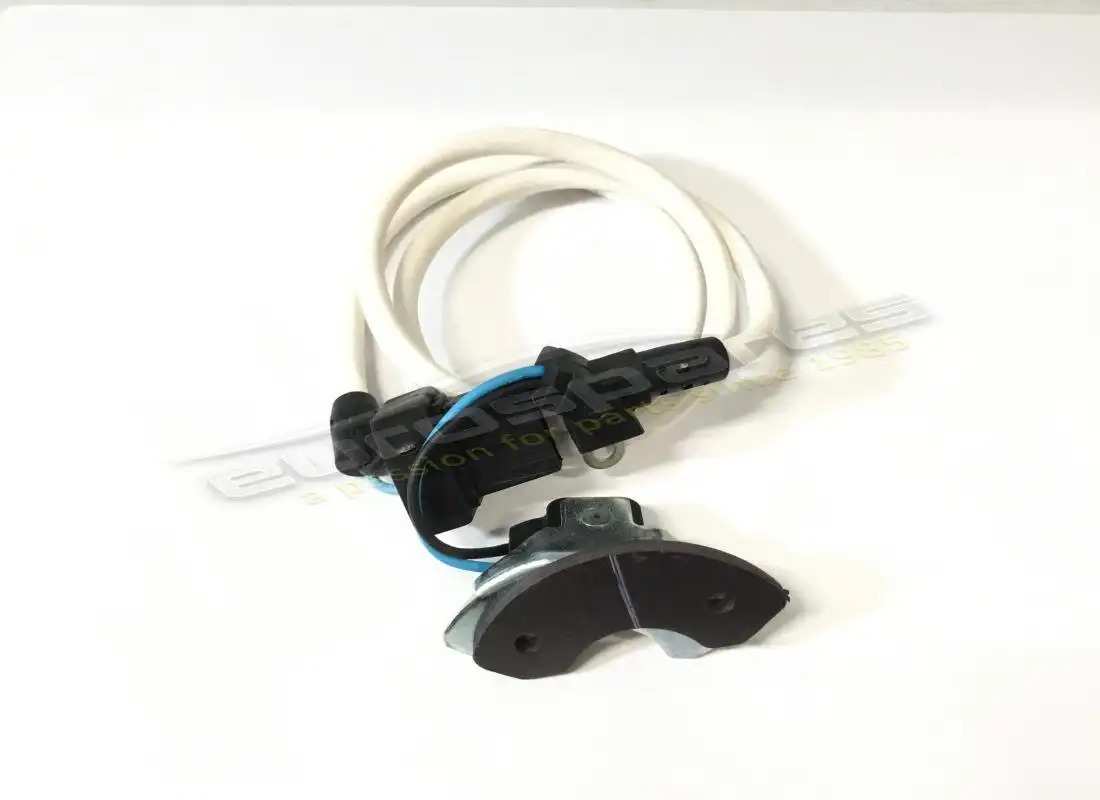

                                                                    # 036
                                                                    MPN: 95300027
                                                                    BOBINETTA COMPLETA DI FILO E SQUADRETTA
                                                                    from £81.70
                                                                    from £81.70
                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
