ferrari 308 gt4 dino (1979) rear suspension - wishbones parts diagram

034 - Rear Suspension - Wishbones

Ferrari 308 GT4 Dino (1979) Rear Suspension - Wishbones Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 108435
                                                        SPRING
                                                        Vale per USA - AUS e J
                                                        from £251.14
                                                        from £251.14
                                                        # 001
                                                        MPN: 113055
                                                        SPRING
                                                        Non vale per USA - AUS e J
                                                        from £392.78
                                                        from £392.78
                                                        This part replaces part number 104946 - and 2 more. Click to view details
                                                        # 002
                                                        MPN: 103264
                                                        DISTANZIALE INFERIORE
                                                        from £15.72
                                                        from £15.72
                                                        This part replaces part number 640423 - and 3 more. Click to view details
                                                        # 005
                                                        MPN: 104442
                                                        TAMPONE FINE CORSA
                                                        Non a ricambio
                                                        # 006
                                                        MPN: 100809
                                                        ESTENDBLOK PER AMMORTIZZATORE
                                                        from £13.10
                                                        from £13.10
                                                        This part replaces part number 101051 - and 1 more. Click to view details
                                                        # 007
                                                        MPN: 106419
                                                        BOLT
                                                        from £10.81
                                                        from £10.81
                                                        This part replaces part number 100808 - and 11 more. Click to view details
                                                        # 008
                                                        MPN: 108047
                                                        RING
                                                        from £54.21
                                                        from £54.21
                                                        # 009
                                                        MPN: 148020
                                                        NUT
                                                        from £2.53
                                                        from £2.53
                                                        This part replaces part number 102825 - and 3 more. Click to view details
                                                        # 010
                                                        MPN: 106245
                                                        RH HUB CARRIER
                                                        with the assembly: 112484
                                                        Supersession
                                                        Supersession
                                                        # 010
                                                        MPN: 112484
                                                        RH HUB CARRIER
                                                        from £1,727.07
                                                        from £1,727.07
                                                        This part replaces part number 106245
                                                        # 010
                                                        MPN: 112485
                                                        LH HUB CARRIER
                                                        This part replaces part number 107441
                                                        # 011
                                                        MPN: 108049
                                                        FLANGIA TENUTA CUSCINETTO
                                                        from £74.76
                                                        from £74.76
                                                        # 012
                                                        MPN: 11061575
                                                        SEEGER RING
                                                        Supersession
                                                        Supersession
                                                        # 013
                                                        MPN: 13543121
                                                        THREADED STUD
                                                        Supersession
                                                        Supersession
                                                        # 014
                                                        MPN: 16100821
                                                        NUT
                                                        from £0.71
                                                        from £0.71
                                                        This part replaces part number 16100825 which we have in stock
                                                        # 015
                                                        MPN: 106852
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                        # 016
                                                        MPN: 124964
                                                        ALBERO CON MOZZO POSTERIORI
                                                        from £1,404.00
                                                        from £1,404.00

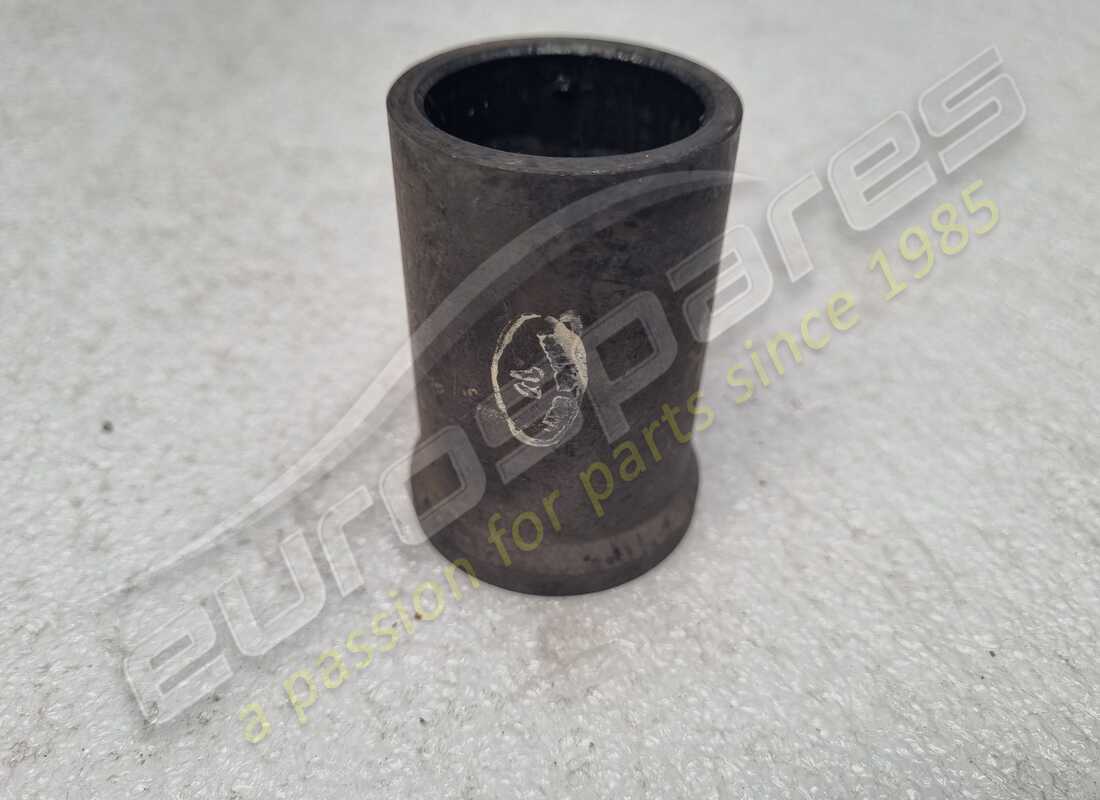

                                                        # 017
                                                        MPN: 106129
                                                        SPACER
                                                        from £95.54
                                                        from £95.54
                                                        # 018
                                                        MPN: 111521
                                                        FLANGIA ATTACCO SEMIASSI
                                                        Dopo esaur. n. 104604
                                                        from £235.64
                                                        from £235.64
                                                        This part replaces part number 10-46-04 which we have in stock - and 2 more. Click to view details
                                                        # 019
                                                        MPN: 102289
                                                        RING NUT
                                                        from £45.52
                                                        from £45.52
                                                        This part replaces part number 700648
                                                        # 020
                                                        MPN: 105511
                                                        WASHER
                                                        from £33.71
                                                        from £33.71
                                                        This part replaces part number 700753
                                                        # 021
                                                        MPN: 108048
                                                        SEALING RING
                                                        from £12.53
                                                        from £12.53
                                                        # 022
                                                        MPN: 104370
                                                        SCREW
                                                        from £5.61
                                                        from £5.61
                                                        This part replaces part number 139981
                                                        # 023
                                                        MPN: 101221
                                                        CUSCINETTO ESTERNO
                                                        from £65.31
                                                        from £65.31
                                                        # 024
                                                        MPN: 101220
                                                        CUSCINETTO INTERNE
                                                        Supersession
                                                        Supersession

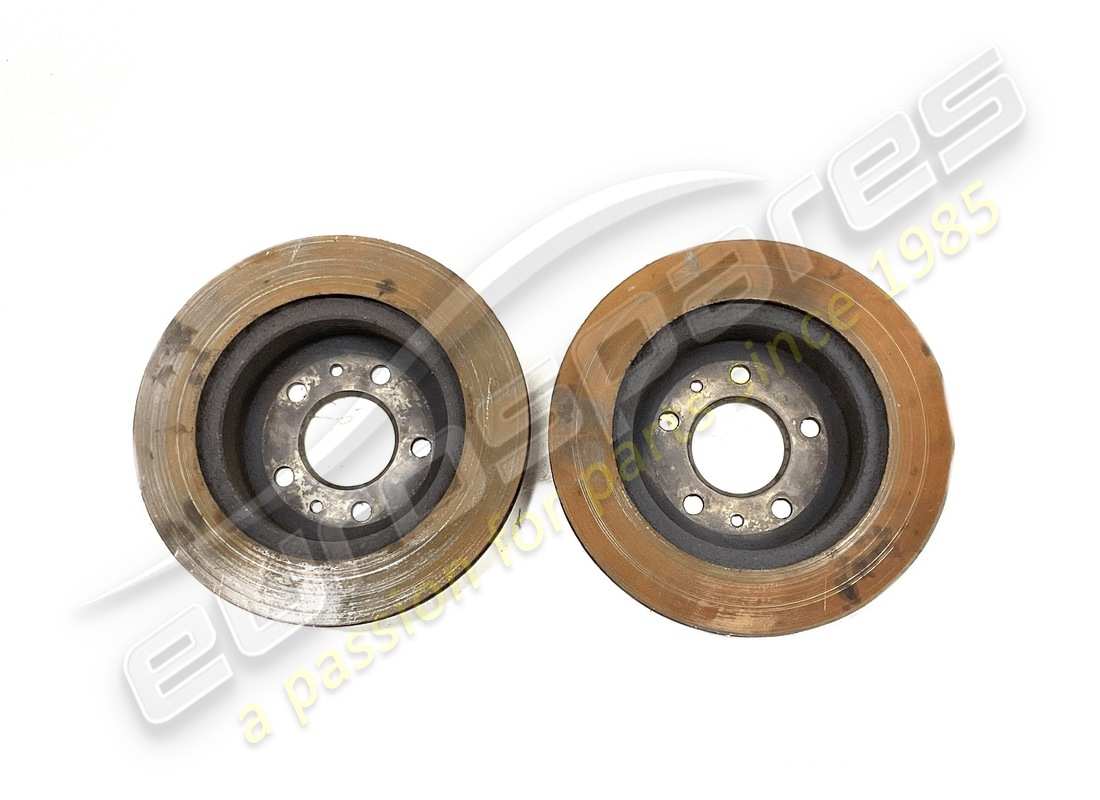

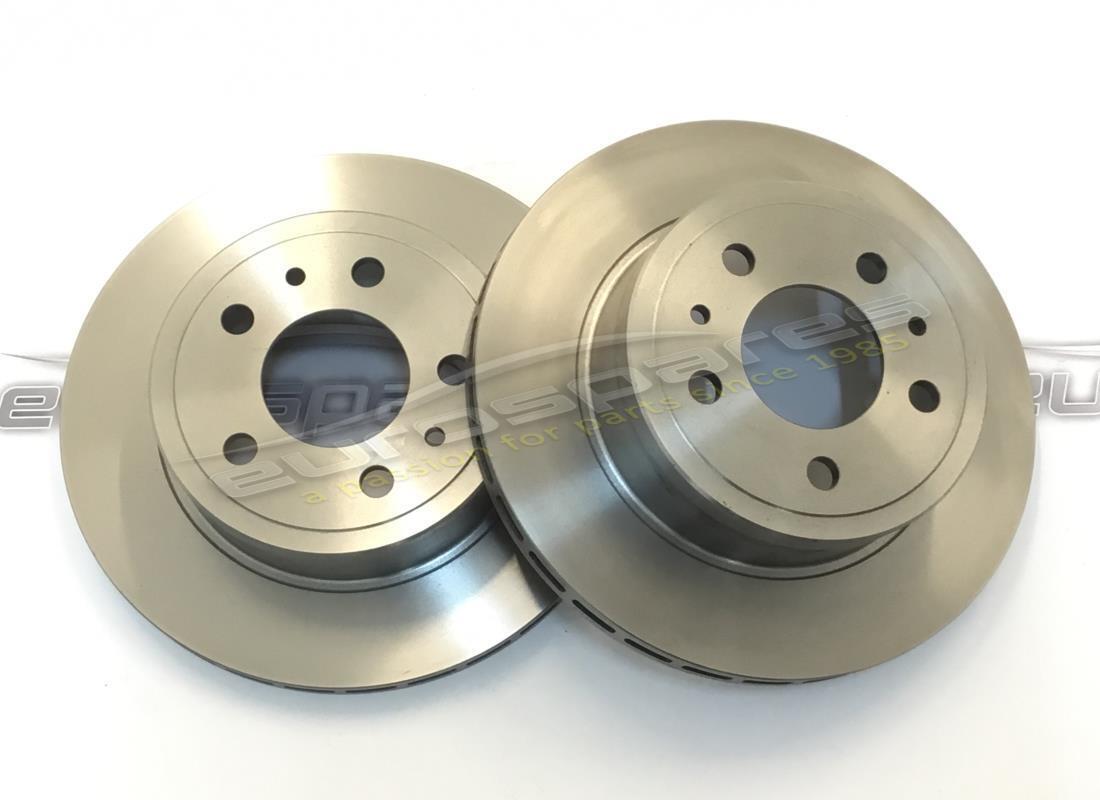

                                                        # 025
                                                        MPN: 104458
                                                        REAR BRAKE DISC
                                                        (price each disc)
                                                        from £225.00
                                                        from £225.00
                                                        This part replaces part number 680832 - and 3 more. Click to view details
                                                        # 027
                                                        MPN: 105621
                                                        HELI -COIL
                                                        Supersession
                                                        Supersession
                                                        # 028
                                                        MPN: 106616
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        # 029
                                                        MPN: 106854
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        # 030
                                                        MPN: 16103621
                                                        NUT
                                                        from £0.71
                                                        from £0.71
                                                        # 031
                                                        MPN: 106616
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        # 032
                                                        MPN: 112475
                                                        DISTANZIALE SULLA FLANGIA
                                                        from £42.98
                                                        from £42.98
