026 - Pedal Board - Brake and Clutch Controls

Ferrari 308 GT4 Dino (1979) Pedal Board - Brake and Clutch Controls Parts Diagram

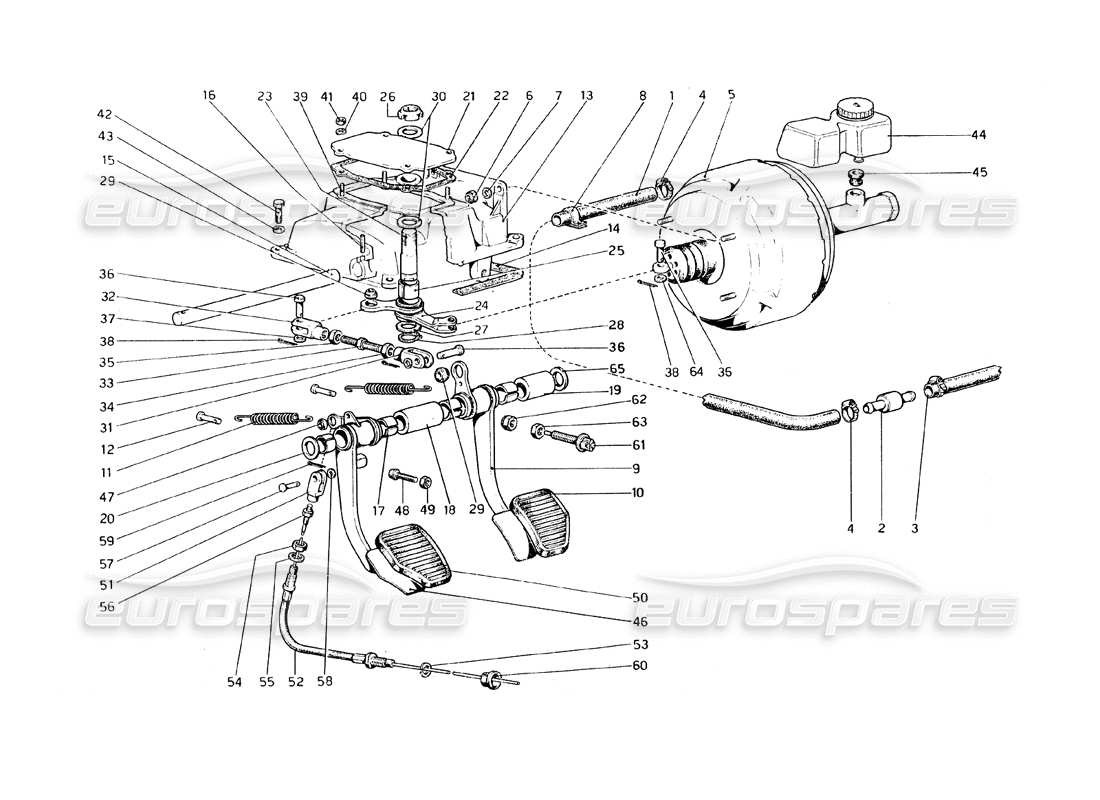

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                      #
                                                                                                                      Part number
                                                                                                                      Description
                                                                                                                      Price
                                                                                                                      # 000
                                                                                                                      MPN: 106177/A

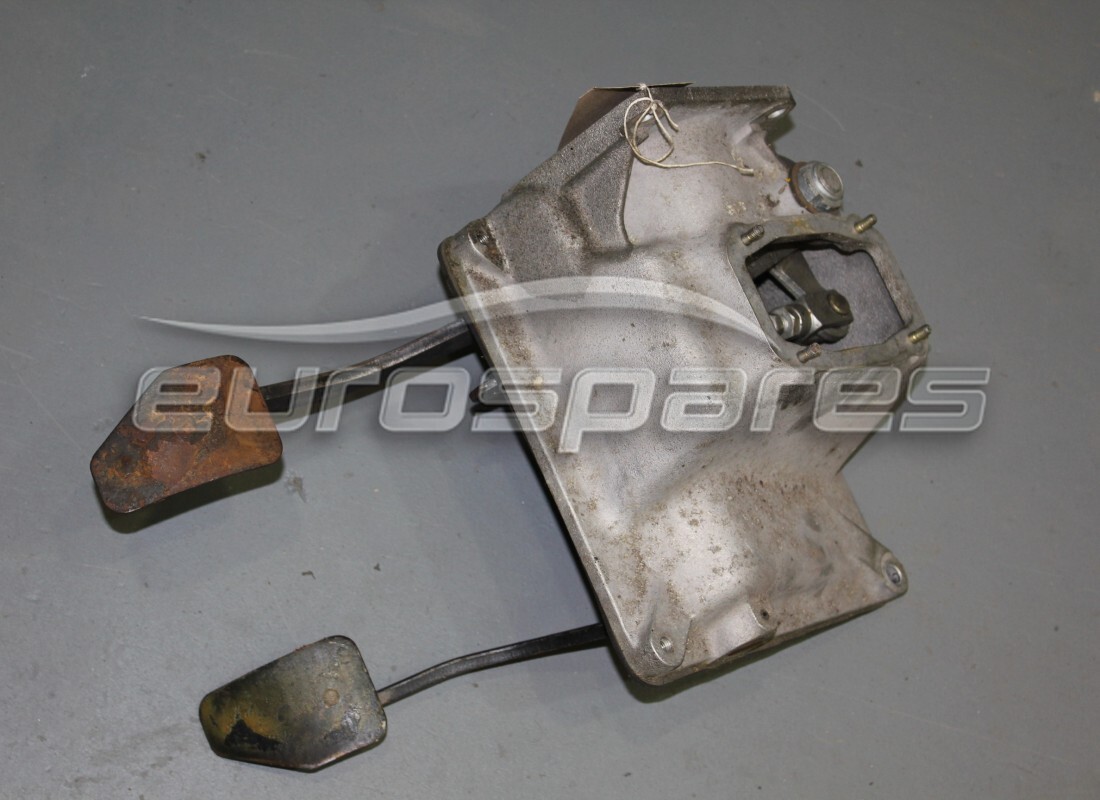

                                                                                                                      COMPLETE PEDALBOX
                                                                                                                      Valid For RHD
                                                                                                                      from £834.75
                                                                                                                      from £834.75
                                                                                                                      # 000
                                                                                                                      MPN: 107877/A

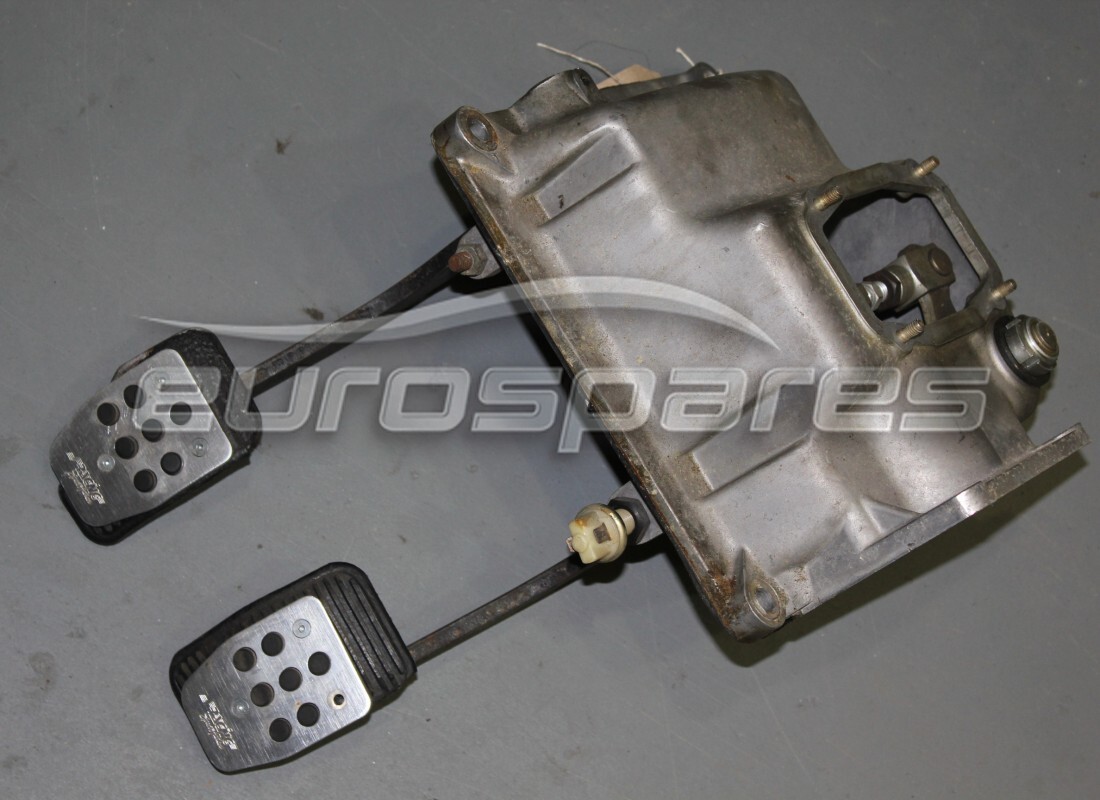

                                                                                                                      COMPLETE PEDALBOX
                                                                                                                      valid for LHD
                                                                                                                      from £1,044.75
                                                                                                                      from £1,044.75
                                                                                                                      # 001
                                                                                                                      MPN: 104464
                                                                                                                      TUBO DAL SERVOFRENO ALIA VALVOLA DI NON RITORNO
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 002
                                                                                                                      MPN: 128435
                                                                                                                      VALVOLA NON RITORNO
                                                                                                                      from £148.52
                                                                                                                      from £148.52
                                                                                                                      This part replaces part number 101538 - and 3 more. Click to view details
                                                                                                                      # 003
                                                                                                                      MPN: 107982
                                                                                                                      SERVO HOSE
                                                                                                                      from £7.54
                                                                                                                      from £7.54
                                                                                                                      This part replaces part number 107041 - and 1 more. Click to view details
                                                                                                                      # 004
                                                                                                                      MPN: 13000390
                                                                                                                      JUBILEE CLIP
                                                                                                                      from £0.51
                                                                                                                      from £0.51
                                                                                                                      This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                                                      # 005
                                                                                                                      MPN: 151471
                                                                                                                      LHD BRAKE SERVO & PUMP
                                                                                                                      from £1,200.00
                                                                                                                      from £1,200.00
                                                                                                                      This part replaces part number 133568 - and 7 more. Click to view details
                                                                                                                      # 005
                                                                                                                      MPN: 681075
                                                                                                                      RHD Brake Servo & Pump
                                                                                                                      from £1,000.00
                                                                                                                      from £1,000.00
                                                                                                                      # 006
                                                                                                                      MPN: 16104411
                                                                                                                      NUT
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      # 007
                                                                                                                      MPN: 12601371
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 008
                                                                                                                      MPN: 10418900
                                                                                                                      JUBILEE CLIP
                                                                                                                      from £1.31
                                                                                                                      from £1.31
                                                                                                                      # 009
                                                                                                                      MPN: 108173
                                                                                                                      PEDALE FRENO
                                                                                                                      Dopo esaurim. n. 10V247
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 010
                                                                                                                      MPN: 106950
                                                                                                                      COPRIPODALE FRENO
                                                                                                                      from £11.68
                                                                                                                      from £11.68
                                                                                                                      # 012
                                                                                                                      MPN: 104896
                                                                                                                      PIVOT SPRING
                                                                                                                      from £15.22
                                                                                                                      from £15.22
                                                                                                                      # 013
                                                                                                                      MPN: 106177
                                                                                                                      SUPPORT
                                                                                                                      Col complessivo n. 107877
                                                                                                                      from £166.62
                                                                                                                      from £166.62
                                                                                                                      # 014
                                                                                                                      MPN: 104899
                                                                                                                      GASKET
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 015
                                                                                                                      MPN: 104900
                                                                                                                      PIVOT SUPPORT
                                                                                                                      from £58.10
                                                                                                                      from £58.10
                                                                                                                      # 016
                                                                                                                      MPN: 104901
                                                                                                                      PIN
                                                                                                                      from £0.97
                                                                                                                      from £0.97
                                                                                                                      # 017
                                                                                                                      MPN: 103163
                                                                                                                      BUSH
                                                                                                                      from £2.85
                                                                                                                      from £2.85
                                                                                                                      # 018
                                                                                                                      MPN: 104902
                                                                                                                      SPACER
                                                                                                                      Fino ad esaur. n. 108533
                                                                                                                      from £17.03
                                                                                                                      from £17.03
                                                                                                                      # 019
                                                                                                                      MPN: 104903
                                                                                                                      SPACER
                                                                                                                      Fino ad esaur. n. 108533
                                                                                                                      from £19.29
                                                                                                                      from £19.29
                                                                                                                      # 020
                                                                                                                      MPN: 106083
                                                                                                                      WASHER
                                                                                                                      from £0.71
                                                                                                                      from £0.71
                                                                                                                      # 021
                                                                                                                      MPN: 104904
                                                                                                                      COVER
                                                                                                                      from £3.89
                                                                                                                      from £3.89
                                                                                                                      # 022
                                                                                                                      MPN: 104905
                                                                                                                      GASKET
                                                                                                                      from £8.59
                                                                                                                      from £8.59
                                                                                                                      # 023
                                                                                                                      MPN: 106081
                                                                                                                      PIVOT SUPPORT
                                                                                                                      from £24.37
                                                                                                                      from £24.37
                                                                                                                      This part replaces part number 104906 - and 3 more. Click to view details
                                                                                                                      # 024
                                                                                                                      MPN: 108313
                                                                                                                      LEVER
                                                                                                                      Dopo esaur. n. 106094
                                                                                                                      from £34.69
                                                                                                                      from £34.69
                                                                                                                      This part replaces part number 107205 - and 5 more. Click to view details
                                                                                                                      # 025
                                                                                                                      MPN: 100787
                                                                                                                      BUSH
                                                                                                                      from £5.48
                                                                                                                      from £5.48
                                                                                                                      This part replaces part number 101315 - and 1 more. Click to view details
                                                                                                                      # 026
                                                                                                                      MPN: 106082
                                                                                                                      RING NUT
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 027
                                                                                                                      MPN: 108382
                                                                                                                      SPACER
                                                                                                                      from £8.49
                                                                                                                      from £8.49
                                                                                                                      # 028
                                                                                                                      MPN: 11066875
                                                                                                                      SEEGER RING
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 029
                                                                                                                      MPN: 100424
                                                                                                                      SNODO SFERICO
                                                                                                                      from £62.27
                                                                                                                      from £62.27
                                                                                                                      # 030
                                                                                                                      MPN: 106084
                                                                                                                      WASHER
                                                                                                                      from £5.61
                                                                                                                      from £5.61
                                                                                                                      # 031
                                                                                                                      MPN: 104910
                                                                                                                      FORK (LH THREAD)
                                                                                                                      from £4.22
                                                                                                                      from £4.22
                                                                                                                      # 032
                                                                                                                      MPN: 104911
                                                                                                                      FORK
                                                                                                                      from £10.33
                                                                                                                      from £10.33
                                                                                                                      # 033
                                                                                                                      MPN: 104912
                                                                                                                      SCREW
                                                                                                                      from £9.79
                                                                                                                      from £9.79
                                                                                                                      # 034
                                                                                                                      MPN: 103157
                                                                                                                      NUT LH THREAD
                                                                                                                      from £1.05
                                                                                                                      from £1.05
                                                                                                                      # 035
                                                                                                                      MPN: 103160
                                                                                                                      NUT
                                                                                                                      from £1.16
                                                                                                                      from £1.16
                                                                                                                      # 036
                                                                                                                      MPN: 10033411
                                                                                                                      PIVOT
                                                                                                                      from £42.00
                                                                                                                      from £42.00
                                                                                                                      This part replaces part number 10033441 - and 3 more. Click to view details
                                                                                                                      # 037
                                                                                                                      MPN: 103187
                                                                                                                      WASHER
                                                                                                                      # 038
                                                                                                                      MPN: 10796301
                                                                                                                      SPLIT PIN
                                                                                                                      from £0.71
                                                                                                                      from £0.71
                                                                                                                      # 039
                                                                                                                      MPN: 11500021
                                                                                                                      THREADED STUD
                                                                                                                      from £9.50
                                                                                                                      from £9.50
                                                                                                                      # 040
                                                                                                                      MPN: 12601271
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                                      # 041
                                                                                                                      MPN: 15896211
                                                                                                                      NUT
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      This part replaces part number 15896210 which we have in stock
                                                                                                                      # 042
                                                                                                                      MPN: 16139021
                                                                                                                      BOLT
                                                                                                                      from £2.27
                                                                                                                      from £2.27
                                                                                                                      # 043
                                                                                                                      MPN: 12601471
                                                                                                                      RCNDELLA ONDULATA
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 044
                                                                                                                      MPN: 95691500
                                                                                                                      BRAKE FLUID RESERVOIR
                                                                                                                      from £395.00
                                                                                                                      from £395.00
                                                                                                                      # 045
                                                                                                                      MPN: 175189
                                                                                                                      SEALING RING
                                                                                                                      from £13.70
                                                                                                                      from £13.70
                                                                                                                      This part replaces part number 106625
                                                                                                                      # 046
                                                                                                                      MPN: 107246
                                                                                                                      PEDALE FRIZIONE
                                                                                                                      Fino ad esaurimento pedale freno n. 107247
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 046
                                                                                                                      MPN: 108170
                                                                                                                      PEDALE FRIZIONE
                                                                                                                      Fino ad esaurimento pedale freno n. 107247
                                                                                                                      from £127.23
                                                                                                                      from £127.23
                                                                                                                      This part replaces part number 107246 - and 1 more. Click to view details
                                                                                                                      # 047
                                                                                                                      MPN: 100423
                                                                                                                      SNODO SFERICO
                                                                                                                      from £21.11
                                                                                                                      from £21.11
                                                                                                                      # 048
                                                                                                                      MPN: 106409
                                                                                                                      SCREW
                                                                                                                      from £4.55
                                                                                                                      from £4.55
                                                                                                                      # 049
                                                                                                                      MPN: 16100821
                                                                                                                      NUT
                                                                                                                      from £0.71
                                                                                                                      from £0.71
                                                                                                                      This part replaces part number 16100825 which we have in stock
                                                                                                                      # 050
                                                                                                                      MPN: 106949
                                                                                                                      COPRIPEDALE
                                                                                                                      from £17.95
                                                                                                                      from £17.95
                                                                                                                      # 051
                                                                                                                      MPN: 108575
                                                                                                                      FORK
                                                                                                                      from £33.34
                                                                                                                      from £33.34
                                                                                                                      # 052
                                                                                                                      MPN: 106598
                                                                                                                      CAVO COMANDO FRIZIONE
                                                                                                                      Valid for LHD (RHD = 106599)
                                                                                                                      from £71.27
                                                                                                                      from £71.27
                                                                                                                      # 053
                                                                                                                      MPN: 12601671
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 054
                                                                                                                      MPN: 16103611
                                                                                                                      NUT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 055
                                                                                                                      MPN: 12601571
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      This part replaces part number 12601574
                                                                                                                      # 056
                                                                                                                      MPN: 100861
                                                                                                                      LOCKNUT
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      This part replaces part number 100862 which we have in stock
                                                                                                                      # 057
                                                                                                                      MPN: 103218
                                                                                                                      PIVOT
                                                                                                                      from £25.41
                                                                                                                      from £25.41
                                                                                                                      This part replaces part number 100857 - and 1 more. Click to view details
                                                                                                                      # 058
                                                                                                                      MPN: 12639701
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      This part replaces part number 12639704
                                                                                                                      # 059
                                                                                                                      MPN: 10796440
                                                                                                                      SPLIT PIN
                                                                                                                      from £0.71
                                                                                                                      from £0.71
                                                                                                                      This part replaces part number 10796401 - and 1 more. Click to view details
                                                                                                                      # 060
                                                                                                                      MPN: 105369
                                                                                                                      CABLE GROMMET
                                                                                                                      from £19.10
                                                                                                                      from £19.10
                                                                                                                      # 061
                                                                                                                      MPN: 101663
                                                                                                                      STOP LIGHT SWITCH (2 TERMINALS)
                                                                                                                      from £23.05
                                                                                                                      from £23.05
                                                                                                                      This part replaces part number 4177124 - and 13 more. Click to view details
                                                                                                                      # 062
                                                                                                                      MPN: 101662
                                                                                                                      NUT
                                                                                                                      from £2.53
                                                                                                                      from £2.53
                                                                                                                      This part replaces part number 660523
                                                                                                                      # 063
                                                                                                                      MPN: 10791211
                                                                                                                      NUT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 10791215 - and 1 more. Click to view details
                                                                                                                      # 064
                                                                                                                      MPN: 10730521
                                                                                                                      WASHER
                                                                                                                      from £2.78
                                                                                                                      from £2.78
                                                                                                                      This part replaces part number 10730501 which we have in stock
                                                                                                                      # 065
                                                                                                                      MPN: 106083
                                                                                                                      WASHER
                                                                                                                      from £0.71
                                                                                                                      from £0.71
                                                                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
