013 - Blow - By System

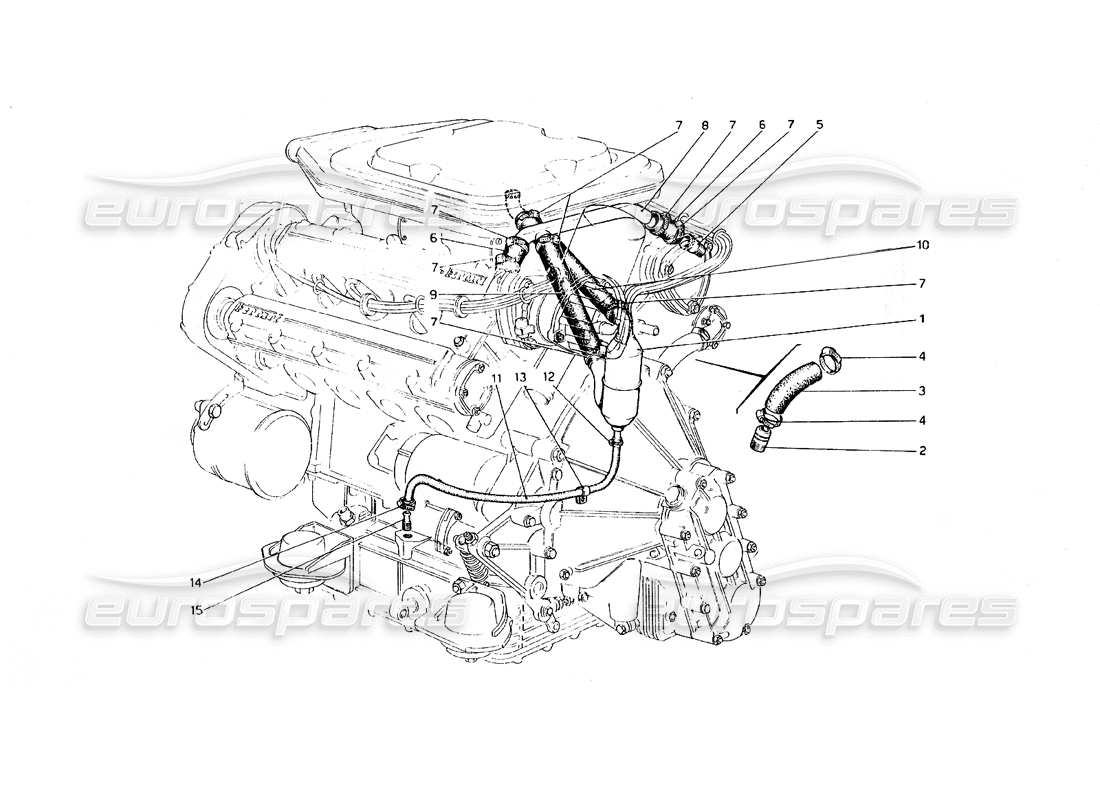

Ferrari 308 GT4 Dino (1979) Blow - By System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 106330

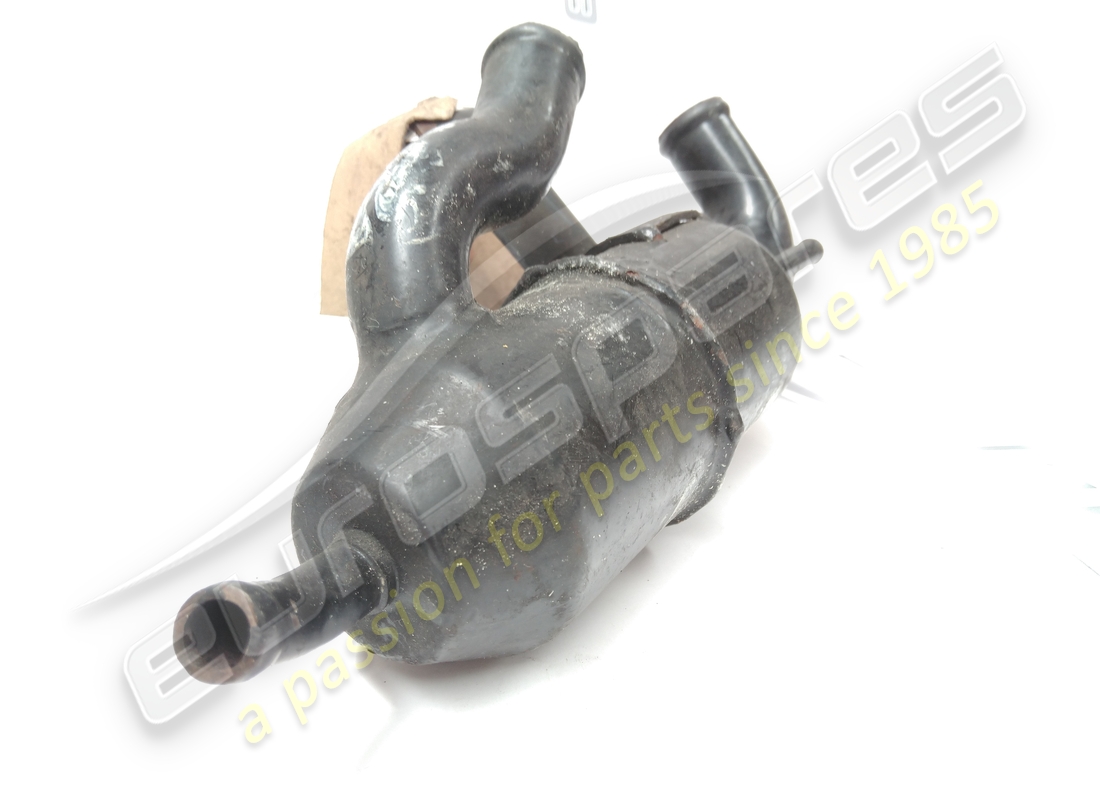

OIL VAPOUR BOX
from £304.50
from £304.50
# 002
MPN: 102705
UNION
from £79.26
from £79.26
# 003
MPN: 106981
HOSE
from £67.26
from £67.26
# 004
MPN: 10169290
JUBILEE CLIP
Supersession
Supersession
# 006
MPN: 108883
UNION
from £47.09
from £47.09
# 006
MPN: 116783
OIL BREATHER HOSE
from £31.64
from £31.64
This part replaces part number 106335
# 007
MPN: 13000490
JUBILEE CLIP
from £0.48
from £0.48
This part replaces part number 10169090 - and 3 more. Click to view details
# 008
MPN: 106982
PIPE
from £158.70
from £158.70
This part replaces part number 106985
# 009
MPN: 106336
HOSE
Supersession
Supersession
# 010
MPN: 106337
HOSE
Supersession
Supersession
# 011
MPN: 108099
HOSE
from £27.56
from £27.56
This part replaces part number 106338
# 012
MPN: 10168790
JUBILEE CLIP
# 013
MPN: 10450490
BRACKET / SUPPORT
from £0.54
from £0.54
# 014
MPN: 10168890
JUBILEE CLIP
from £1.05
from £1.05
# 015
MPN: 103870
UNION
from £40.05
from £40.05
This part replaces part number 4082627
