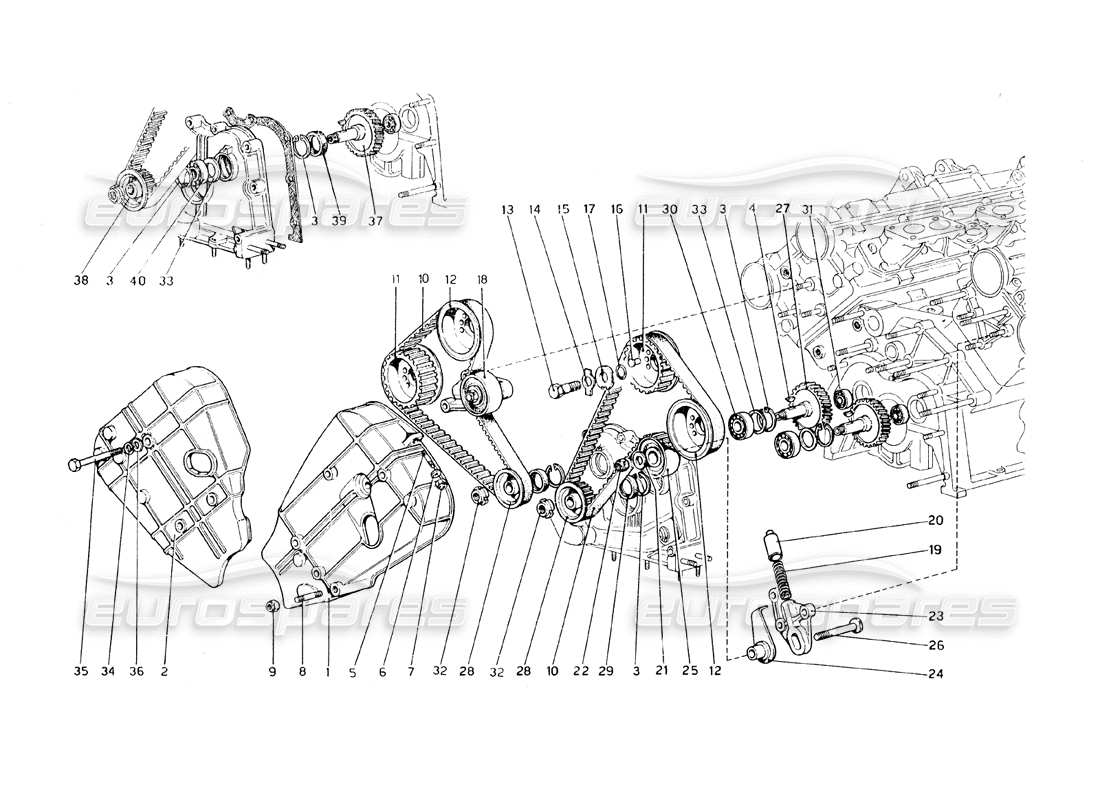

ferrari 308 gt4 dino (1979) timing system - controls parts diagram

008 - timing system - controls

Ferrari 308 GT4 Dino (1979) Timing System - Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 108054
                                                                    LH CAM BELT CASING
                                                                    from £234.54
                                                                    from £234.54
                                                                    # 001
                                                                    MPN: 108097
                                                                    LH CAM BELT CASING COMPLETE
                                                                    Supersession
                                                                    Supersession
                                                                    # 002
                                                                    MPN: 121241
                                                                    RH CAM BELT COVER
                                                                    from £441.26
                                                                    from £441.26
                                                                    This part replaces part number 105927
                                                                    # 003
                                                                    MPN: 11059976
                                                                    RING
                                                                    from £0.56
                                                                    from £0.56
                                                                    This part replaces part number 11059975
                                                                    # 004
                                                                    MPN: 10206320
                                                                    LINQUETTA
                                                                    from £0.77
                                                                    from £0.77
                                                                    # 005
                                                                    MPN: 13540820
                                                                    STUD
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 11500120
                                                                    # 006
                                                                    MPN: 12644421
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 007
                                                                    MPN: 12574211
                                                                    SELF LOCKING NUT
                                                                    from £0.71
                                                                    from £0.71
                                                                    # 008
                                                                    MPN: 13546221
                                                                    THREADED STUD
                                                                    from £0.95
                                                                    from £0.95
                                                                    # 009
                                                                    MPN: 13598021
                                                                    NUT
                                                                    from £0.71
                                                                    from £0.71
                                                                    This part replaces part number 13598011
                                                                    # 010
                                                                    MPN: 107833

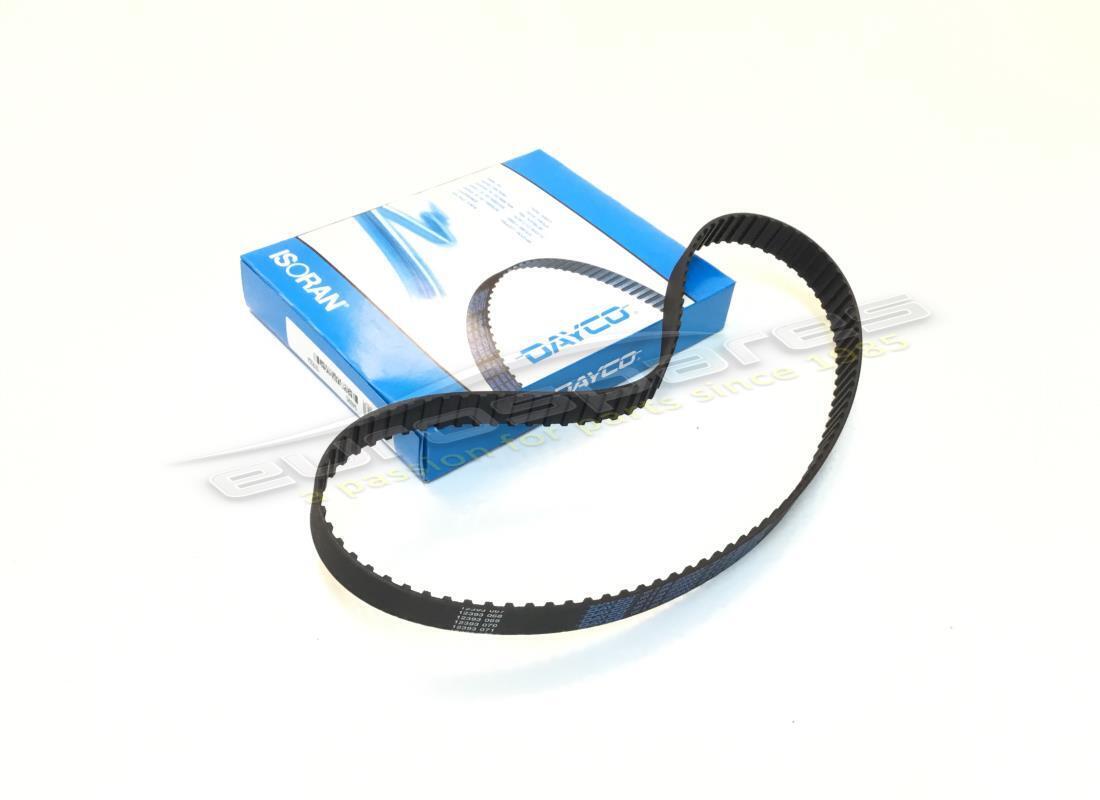

                                                                    TIMING BELT
                                                                    In alternativa al N. 102877
                                                                    from £10.50
                                                                    from £10.50
                                                                    This part replaces part number 102877
                                                                    # 010
                                                                    MPN: FTBK010
                                                                    TIMING BELT KIT
                                                                    Includes 2x Timing Belt (107833) & 2x Tensioner bearing (105206)
                                                                    # 011
                                                                    MPN: 113097

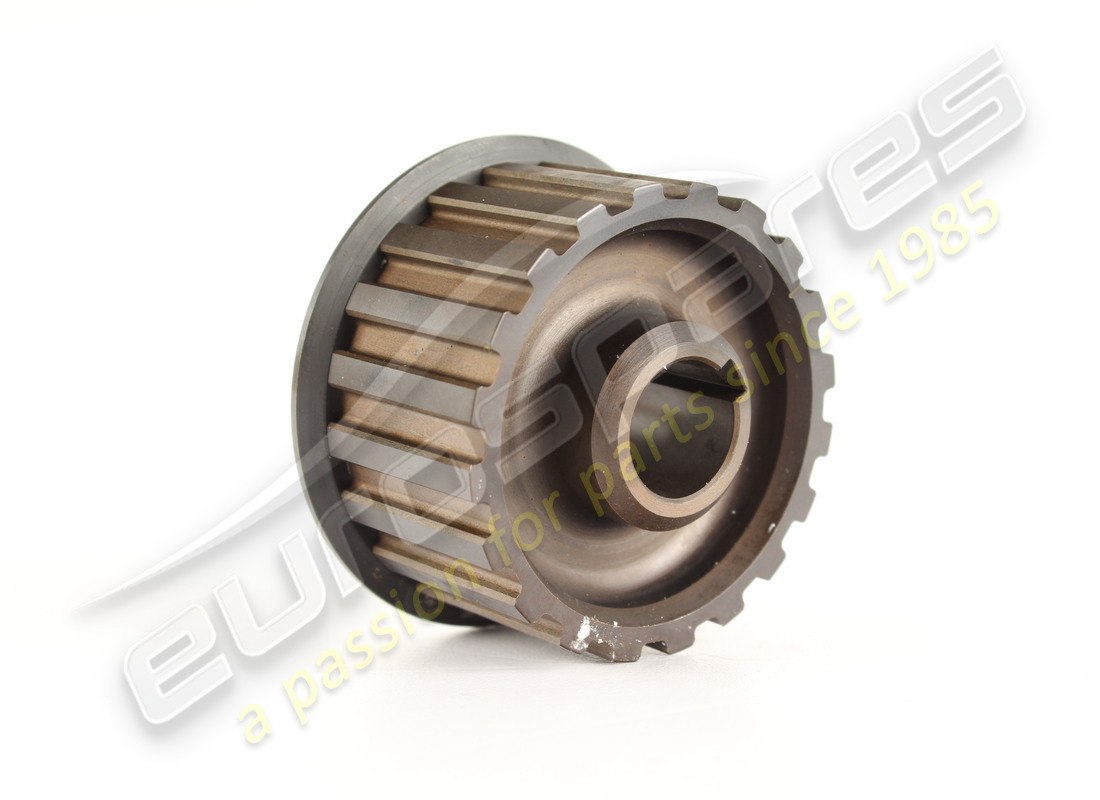

                                                                    DRIVEN GEAR
                                                                    (steel)
                                                                    from £286.35
                                                                    from £286.35
                                                                    This part replaces part number 110994
                                                                    # 012
                                                                    MPN: 113098
                                                                    DRIVEN GEAR
                                                                    (steel)
                                                                    from £286.35
                                                                    from £286.35
                                                                    This part replaces part number 102587 - and 1 more. Click to view details
                                                                    # 013
                                                                    MPN: 106606
                                                                    SCREW
                                                                    from £39.90
                                                                    from £39.90
                                                                    This part replaces part number 102776 - and 1 more. Click to view details
                                                                    # 014
                                                                    MPN: 102777
                                                                    PLATE
                                                                    from £7.84
                                                                    from £7.84
                                                                    This part replaces part number 4146781
                                                                    # 015
                                                                    MPN: 106605
                                                                    WASHER
                                                                    from £5.36
                                                                    from £5.36

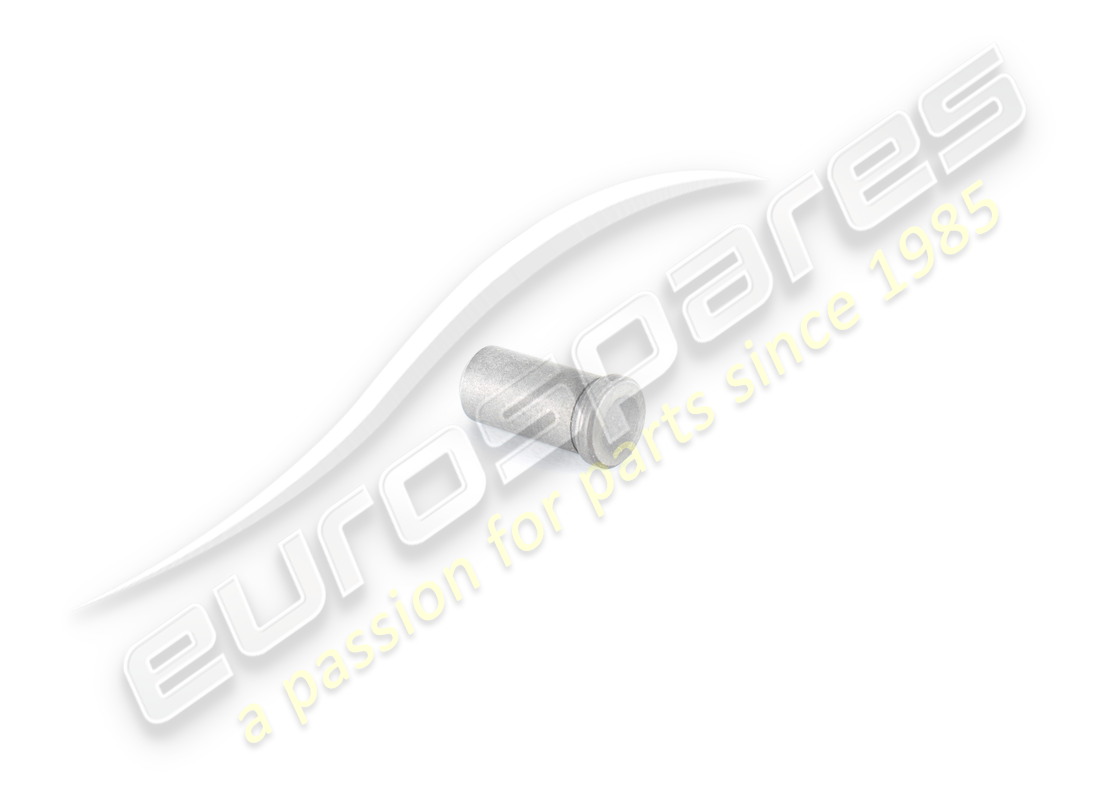

                                                                    # 016
                                                                    MPN: 106203
                                                                    DOWEL
                                                                    from £3.53
                                                                    from £3.53
                                                                    # 017
                                                                    MPN: 101031
                                                                    SEALING RING
                                                                    from £1.41
                                                                    from £1.41
                                                                    # 018
                                                                    MPN: 105206
                                                                    TIMING BEARING
                                                                    from £37.75
                                                                    from £37.75
                                                                    This part replaces part number 126720
                                                                    # 020
                                                                    MPN: 102819
                                                                    PLUNGER
                                                                    from £153.57
                                                                    from £153.57
                                                                    # 021
                                                                    MPN: 102824
                                                                    WASHER
                                                                    from £14.96
                                                                    from £14.96
                                                                    # 022
                                                                    MPN: 148020
                                                                    SELF LOCKING NUT
                                                                    from £2.53
                                                                    from £2.53
                                                                    This part replaces part number 102825 - and 3 more. Click to view details
                                                                    # 023
                                                                    MPN: 105200
                                                                    SUPPORT
                                                                    from £225.33
                                                                    from £225.33
                                                                    # 024
                                                                    MPN: 105202
                                                                    PLATE
                                                                    from £70.15
                                                                    from £70.15
                                                                    # 025
                                                                    MPN: 105206
                                                                    TIMING BEARING
                                                                    from £37.75
                                                                    from £37.75
                                                                    This part replaces part number 126720
                                                                    # 026
                                                                    MPN: 105205
                                                                    SCREW
                                                                    from £43.17
                                                                    from £43.17
                                                                    # 027
                                                                    MPN: 104913
                                                                    GEAR
                                                                    from £147.00
                                                                    from £147.00
                                                                    # 028
                                                                    MPN: 104914
                                                                    PULLEY
                                                                    from £378.50
                                                                    from £378.50
                                                                    # 029
                                                                    MPN: 104916
                                                                    RING
                                                                    Vale fino al motore 03044 / Non vale per USA 78 e J
                                                                    from £10.71
                                                                    from £10.71
                                                                    # 030
                                                                    MPN: 104917
                                                                    BEARING OPEN TRACK
                                                                    from £7.30
                                                                    from £7.30
                                                                    This part replaces part number 101299
                                                                    # 031
                                                                    MPN: 104913
                                                                    GEAR
                                                                    from £147.00
                                                                    from £147.00
                                                                    # 032
                                                                    MPN: 104819
                                                                    LOCKING RING NUT
                                                                    # 033
                                                                    MPN: 104915
                                                                    WASHER
                                                                    from £87.57
                                                                    from £87.57
                                                                    # 034
                                                                    MPN: 127497
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 10516871 - and 2 more. Click to view details
                                                                    # 035
                                                                    MPN: 111668
                                                                    SCREW
                                                                    from £23.70
                                                                    from £23.70
                                                                    This part replaces part number 13451121
                                                                    # 036
                                                                    MPN: 12638601
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 20232104
                                                                    # 037
                                                                    MPN: 112017
                                                                    INGRANAGGIO COMANDO ALBERI A CAMME POMPA ACQUA E POMPA OLIO
                                                                    36 Teeth
                                                                    from £940.86
                                                                    from £940.86
                                                                    # 038
                                                                    MPN: 112018
                                                                    PULEGGIA CONDUTTRICE
                                                                    Vale dal motore 03045 / Vale per USA 78 e J
                                                                    from £279.30
                                                                    from £279.30
                                                                    # 039
                                                                    MPN: 117276
                                                                    RING
                                                                    from £17.14
                                                                    from £17.14
                                                                    This part replaces part number 112020
                                                                    # 040
                                                                    MPN: 175260
                                                                    CUSCINETTO SUL COPERCHIO ANTERIORE
                                                                    Vale dal motore 03045 / Vale per USA 78 e J
                                                                    from £26.78
                                                                    from £26.78
                                                                    This part replaces part number 112019
                                                                    # 040
                                                                    MPN: 175260
                                                                    BEARING (SEALED)
                                                                    from £26.78
                                                                    from £26.78
                                                                    This part replaces part number 112019
