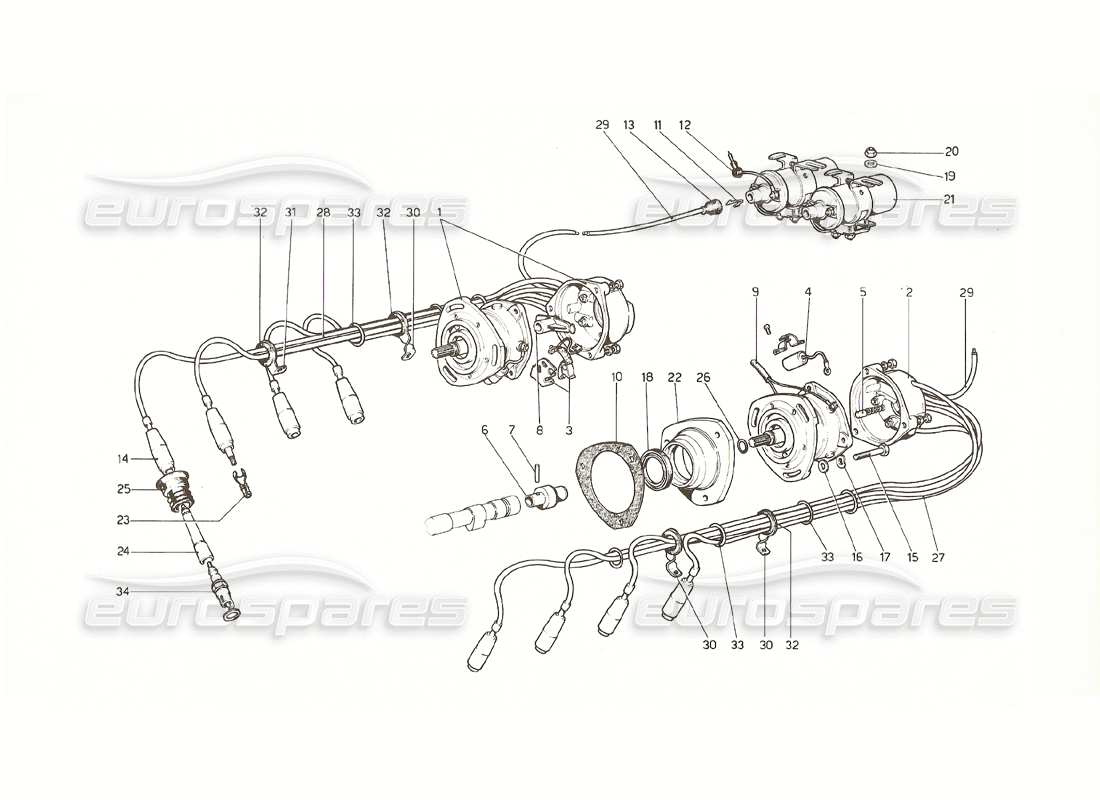

053 - Engine Ignition (US and Australian versions 1976)
Ferrari 308 GT4 Dino (1976) Engine Ignition (US and Australian versions 1976) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 107991
DISTRIBUTORE DI ACCENSIONE COMPLETO (MARELLI S 159 B)
Varianti per versione USA e Australia 76
# 002
MPN: 115518
DISTRIBUTOR CAP (TWIN)
from £110.00
from £110.00
This part replaces part number 95300044
# 002
MPN: 115518
DISTRIBUTOR CAP (TWIN)
from £110.00
from £110.00
This part replaces part number 95300044
# 003
MPN: 95300083
IGNITION CONTACT POINTS SET
1x long & 1x Short
from £22.03
from £22.03
This part replaces part number 95300087 - and 1 more. Click to view details
# 003
MPN: 95300289
ROTOR ARM
use on exhastion of 95300288
Supersession
Supersession
# 004
MPN: 95300072
CONDENSOR
Varianti per versione USA e Australia 76
from £13.44
from £13.44
This part replaces part number 9916525 - and 1 more. Click to view details
# 004
MPN: 95300072
CONDENSOR
single lead
from £13.44
from £13.44
This part replaces part number 9916525 - and 1 more. Click to view details
# 005
MPN: MARELLI
CARBONCINO CON MOLLA
# 006
MPN: 108005
INNESTO
Varianti per versione USA e Australia 76
from £239.27
from £239.27
# 007
MPN: 100279
PIN
Varianti per versione USA e Australia 76
from £11.85
from £11.85
This part replaces part number 13904770 - and 2 more. Click to view details
# 008
MPN: 95300289
SPAZZOLA ROTANTE
Varianti per versione USA e Australia 76
Supersession
Supersession
# 009
MPN: 107539
CAVO COLLEGAMENTO SPINTEROGENI
Varianti per versione USA e Australia 76
from £63.47
from £63.47
# 010
MPN: 147642
GASKET
from £3.94
from £3.94
This part replaces part number 103815
# 011
-
SPILLO PER TERRNINALE
# 012
MPN: 100285
CAPPUCCIO DI PROTEZIONE
Varianti per versione USA e Australia 76
Supersession
Supersession
# 013
MPN: 103006
CAPPUCCIO DI PROTEZIONE
Varianti per versione USA e Australia 76
Supersession
Supersession
# 014
MPN: 29171
TERMINAIE
from £4.14
from £4.14
This part replaces part number 12056886 which we have in stock
# 015
MPN: 16043921
SCREW
Varianti per versione USA e Australia 76
from £1.42
from £1.42
# 016
MPN: 10519624
WASHER
Varianti per versione USA e Australia 76
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 017
MPN: 11198074
WASHER
Varianti per versione USA e Australia 76
from £0.54
from £0.54
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 018
MPN: 108009
SEALING RING
Varianti per versione USA e Australia 76
from £12.14
from £12.14
# 019
MPN: 12643721
WASHER
Varianti per versione USA e Australia 76
from £0.53
from £0.53
This part replaces part number 12643724 which we have in stock
# 020
MPN: 12574211
SELF LOCKING NUT
Varianti per versione USA e Australia 76
from £0.71
from £0.71
# 021
MPN: 109584
BOBINA DI ACCENSIONE
Varianti per versione USA e Australia 76 - Fino N.I 1462 USA-No AUS
from £159.95
from £159.95
This part replaces part number 100262 - and 1 more. Click to view details
# 021
MPN: 109584
BOBINA DI ACCENSIONE
from £159.95
from £159.95
This part replaces part number 100262 - and 1 more. Click to view details
# 022
MPN: 107992
SUPPORT
Varianti per versione USA e Australia 76
from £180.69
from £180.69
# 023
MPN: 12656340
CAPOCORDA
Varianti per versione USA e Australia 76
# 024
MPN: 116613
SPARK PLUG EXTENSION
from £8.48
from £8.48
This part replaces part number 107310
# 025
MPN: 108183
CAPPUCCIO PROTEZIONE CANDELE
Varianti per versione USA e Australia 76
from £8.80
from £8.80
This part replaces part number 104341
# 026
MPN: 100015
ANEILO TOROIDALE
Varianti per versione USA e Australia 76
from £1.21
from £1.21
# 027
MPN: 107364
ASSIEME CAVI ACCENSIONE LATO SX.
Varianti per versione USA e Australia 76
from £205.70
from £205.70
# 028
MPN: 107365
ASSIEME CAVI ACCENSIONE LATO DX.
Varianti per versione USA e Australia 76
from £220.26
from £220.26
# 029
MPN: 107368
CAVO COILEGAMENTO BOBINA - DISTRIBUTORE
Varianti per versione USA e Australia 76
# 030
MPN: 107361
BRACKET
Varianti per versione USA e Australia 76
from £29.97
from £29.97
This part replaces part number 29267
# 031
MPN: 10-30-04
BRACKET
Varianti per versione USA e Australia 76
from £34.13
from £34.13
# 032
MPN: 10396580
CABLE GROMMET
Varianti per versione USA e Australia 76
from £1.07
from £1.07
This part replaces part number 100286
# 033
MPN: 103702
ANEILO DI TENUTA CAVI
Varianti per versione USA e Australia 76
from £6.84
from £6.84
This part replaces part number 29265
# 034
MPN: 110070
CANDEFA DI ACCENSIONE (CHAMPION N 7 Y)
Varianti per versione USA e Australia 76
