038A - Engine Ignition (1 distributor)

Ferrari 308 GT4 Dino (1976) Engine Ignition (1 distributor) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 00
                                                                        MPN: EAP1220704
                                                                        BOB WEIGHT KIT
                                                                        from £208.95
                                                                        from £208.95

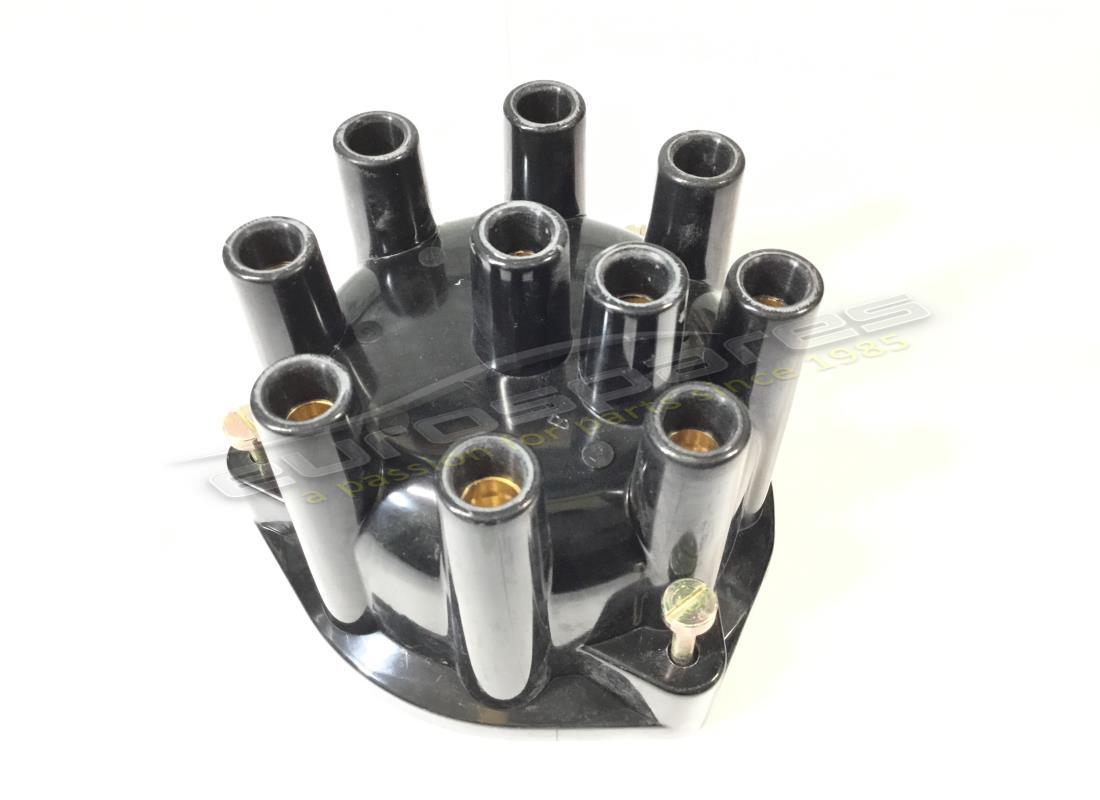

                                                                        # 001
                                                                        MPN: 108870
                                                                        DISTRIBUTORE DI ACCENSIONE COMPLETO (MARELLI S 127 G)
                                                                        from £1,027.61
                                                                        from £1,027.61
                                                                        # 003
                                                                        MPN: 95300083
                                                                        IGNITION CONTACT POINTS SET
                                                                        1x long & 1x Short
                                                                        from £22.03
                                                                        from £22.03
                                                                        This part replaces part number 95300087 - and 1 more. Click to view details
                                                                        # 004
                                                                        MPN: 95300072

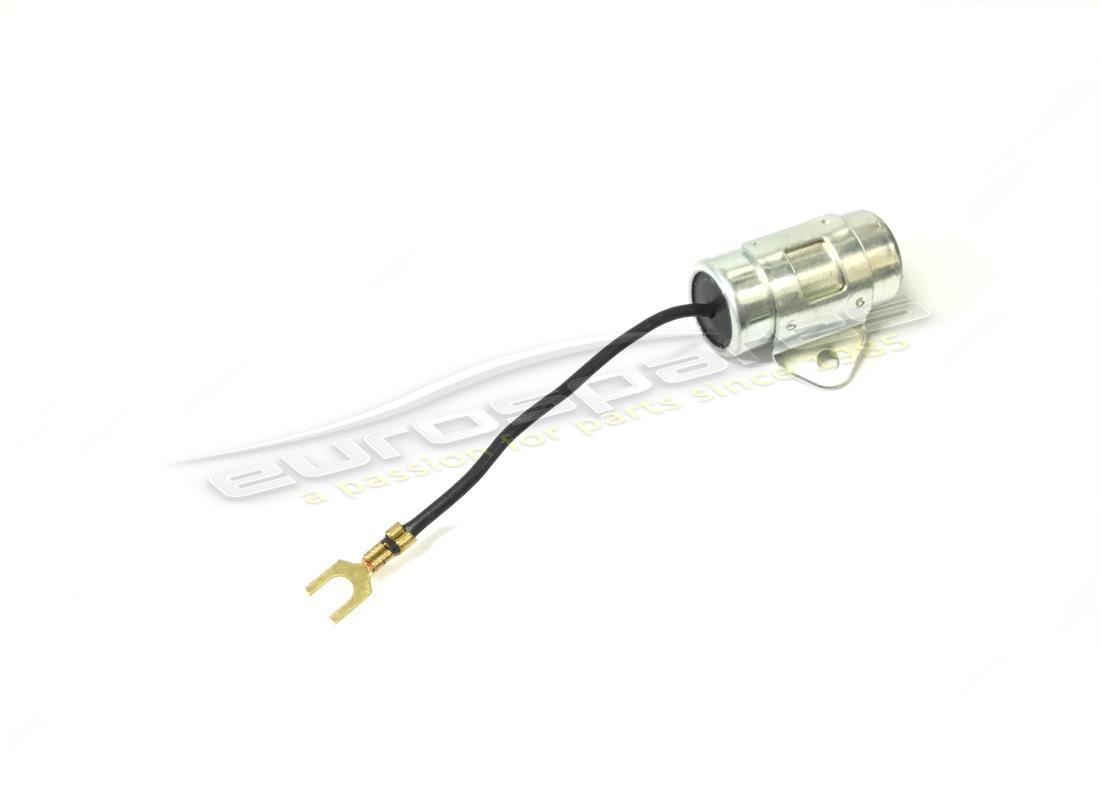

                                                                        CONDENSOR
                                                                        from £13.44
                                                                        from £13.44
                                                                        This part replaces part number 9916525 - and 1 more. Click to view details
                                                                        # 005
                                                                        MPN: 95300069
                                                                        CARBONCINO CON MOLLA
                                                                        # 006
                                                                        MPN: 108005
                                                                        INNESTO
                                                                        from £239.27
                                                                        from £239.27
                                                                        # 007
                                                                        MPN: 100279
                                                                        PIN
                                                                        from £11.85
                                                                        from £11.85
                                                                        This part replaces part number 13904770 - and 2 more. Click to view details
                                                                        # 008
                                                                        MPN: 95300317

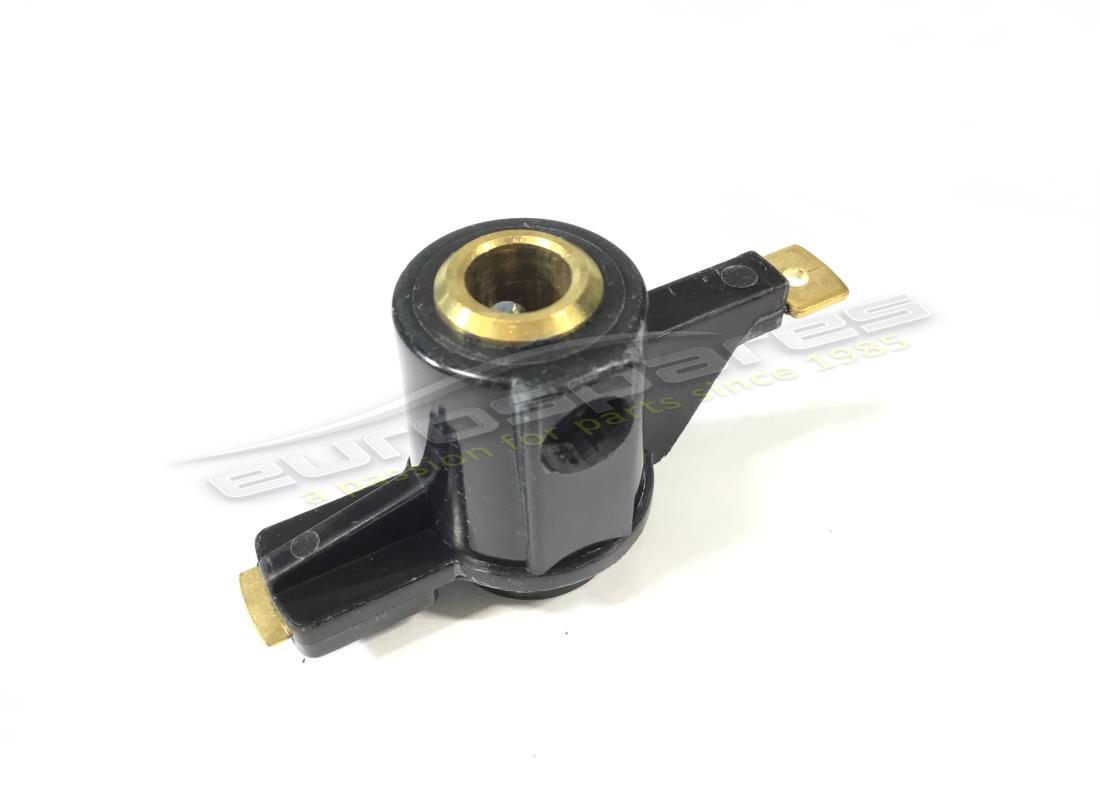

                                                                        SPAZZOLA ROTANTE
                                                                        from £110.00
                                                                        from £110.00
                                                                        # 009
                                                                        MPN: 12056986
                                                                        CAPPUCCIO DI'PROTEZIONE
                                                                        from £0.94
                                                                        from £0.94
                                                                        This part replaces part number 12056286 - and 2 more. Click to view details
                                                                        # 010
                                                                        MPN: 147642
                                                                        GASKET
                                                                        from £3.97
                                                                        from £3.97
                                                                        This part replaces part number 103815
                                                                        # 011
                                                                        MPN: 107603
                                                                        SPARK PLUG
                                                                        (champion N7Y)
                                                                        from £2.81
                                                                        from £2.81
                                                                        This part replaces part number 113224
                                                                        # 011
                                                                        MPN: 109297
                                                                        CANDELA DI ACCENSIONE (BOSCH W 200 T 30)
                                                                        Particolari modificati - In alternativa con N. 107603
                                                                        from £3.22
                                                                        from £3.22
                                                                        # 012
                                                                        MPN: 100285
                                                                        CAPPUCCIO DI PROTEZIONE
                                                                        Supersession
                                                                        Supersession
                                                                        # 013
                                                                        MPN: 100284

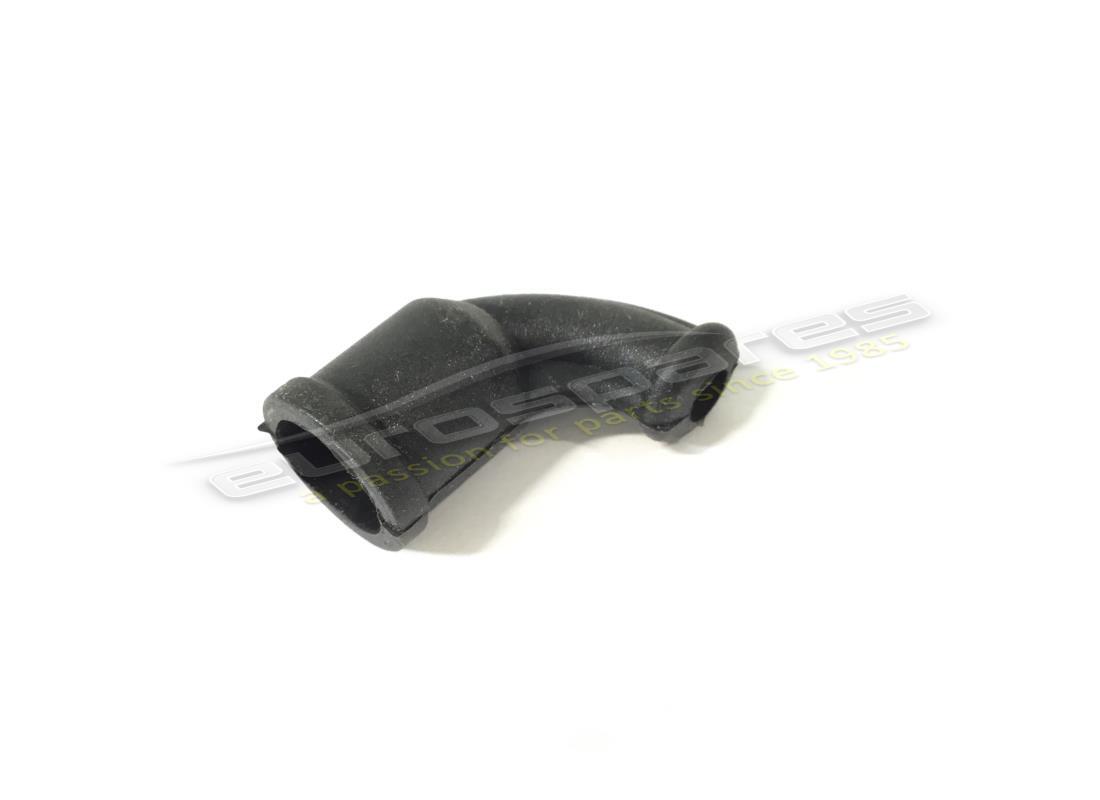

                                                                        CAPPUCCIO PROTEZIONE CAVI SUL DISTRIBUTORE
                                                                        from £6.10
                                                                        from £6.10
                                                                        This part replaces part number 29288
                                                                        # 014
                                                                        MPN: 29171
                                                                        TERMINALE
                                                                        from £4.14
                                                                        from £4.14
                                                                        This part replaces part number 12056886
                                                                        # 015
                                                                        MPN: 16043921
                                                                        SCREW
                                                                        from £1.43
                                                                        from £1.43
                                                                        # 016
                                                                        MPN: 10519624
                                                                        WASHER
                                                                        from £0.54
                                                                        from £0.54
                                                                        This part replaces part number 10519601 - and 3 more. Click to view details
                                                                        # 017
                                                                        MPN: 11198074
                                                                        WASHER
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                        # 018
                                                                        MPN: 108009
                                                                        SEALING RING
                                                                        from £12.14
                                                                        from £12.14
                                                                        # 020
                                                                        MPN: 12574211
                                                                        SELF LOCKING NUT
                                                                        from £0.71
                                                                        from £0.71
                                                                        # 021

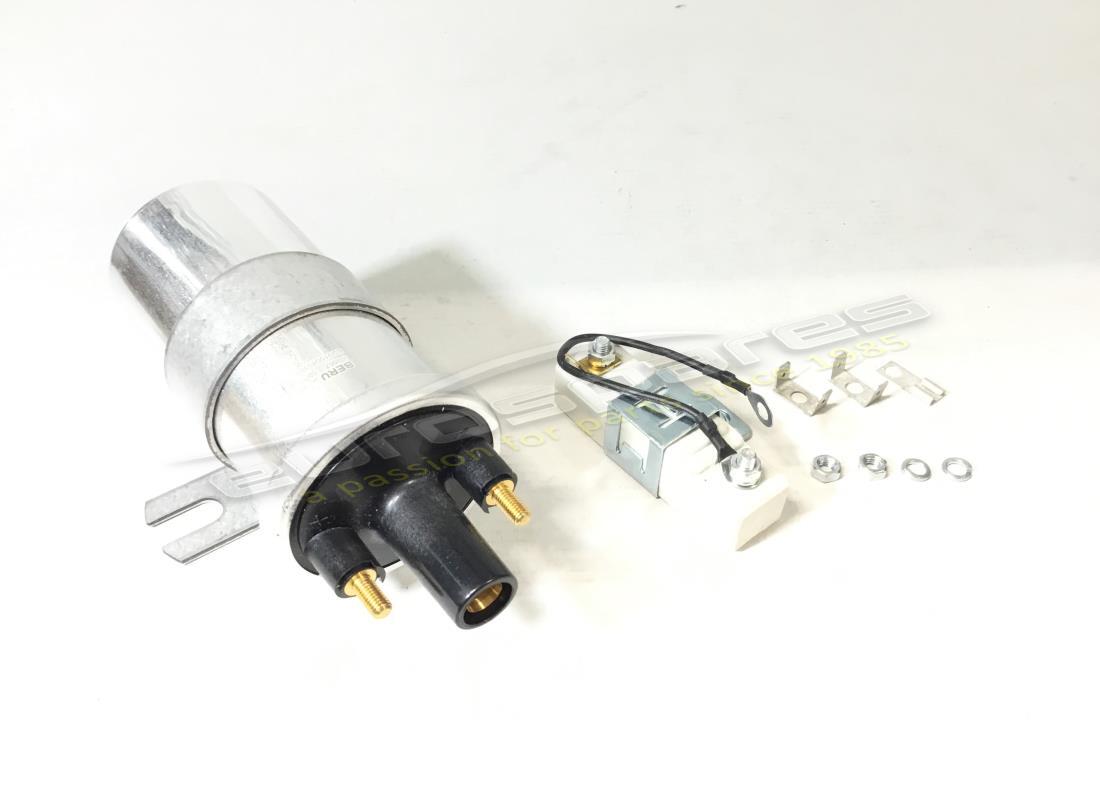

                                                                        MPN: 109584
                                                                        BOBINA DI ACCENSIONE
                                                                        from £161.33
                                                                        from £161.33
                                                                        This part replaces part number 100262 - and 1 more. Click to view details
                                                                        # 022
                                                                        MPN: 107992
                                                                        SUPPORT
                                                                        from £180.69
                                                                        from £180.69
                                                                        # 023
                                                                        MPN: 12656340
                                                                        CAPOCORDA
                                                                        # 024
                                                                        MPN: 116613
                                                                        SPARK PLUG EXTENSION
                                                                        from £8.54
                                                                        from £8.54
                                                                        This part replaces part number 107310
                                                                        # 025
                                                                        MPN: 108183
                                                                        CAPPUCCIO PROTEZIONECANDELE
                                                                        from £8.80
                                                                        from £8.80
                                                                        This part replaces part number 104341
                                                                        # 026
                                                                        MPN: 100015
                                                                        RING
                                                                        from £1.21
                                                                        from £1.21
                                                                        # 027
                                                                        MPN: 108910
                                                                        ASSIEME CAVI ACCENSIONE LATO S.
                                                                        from £248.18
                                                                        from £248.18
                                                                        This part replaces part number 113638
                                                                        # 028
                                                                        MPN: 108911
                                                                        ASSIEME CAVI ACCENSIONE LATO D.
                                                                        from £228.74
                                                                        from £228.74
                                                                        This part replaces part number 113639
                                                                        # 029
                                                                        MPN: 109763
                                                                        ASSIEME CAVI COLLEGAMENTO BOBINA-DISTRIBUTORE
                                                                        Supersession
                                                                        Supersession
                                                                        # 030
                                                                        MPN: 105902
                                                                        BRACKET
                                                                        from £11.54
                                                                        from £11.54
                                                                        This part replaces part number 29268
                                                                        # 031
                                                                        MPN: 109670
                                                                        BRACKET
                                                                        from £6.09
                                                                        from £6.09
                                                                        # 032
                                                                        MPN: 110092
                                                                        BRACKET
                                                                        from £5.65
                                                                        from £5.65
                                                                        # 033
                                                                        MPN: 107361
                                                                        BRACKET
                                                                        from £29.97
                                                                        from £29.97
                                                                        This part replaces part number 29267
                                                                        # 035
                                                                        MPN: 103702

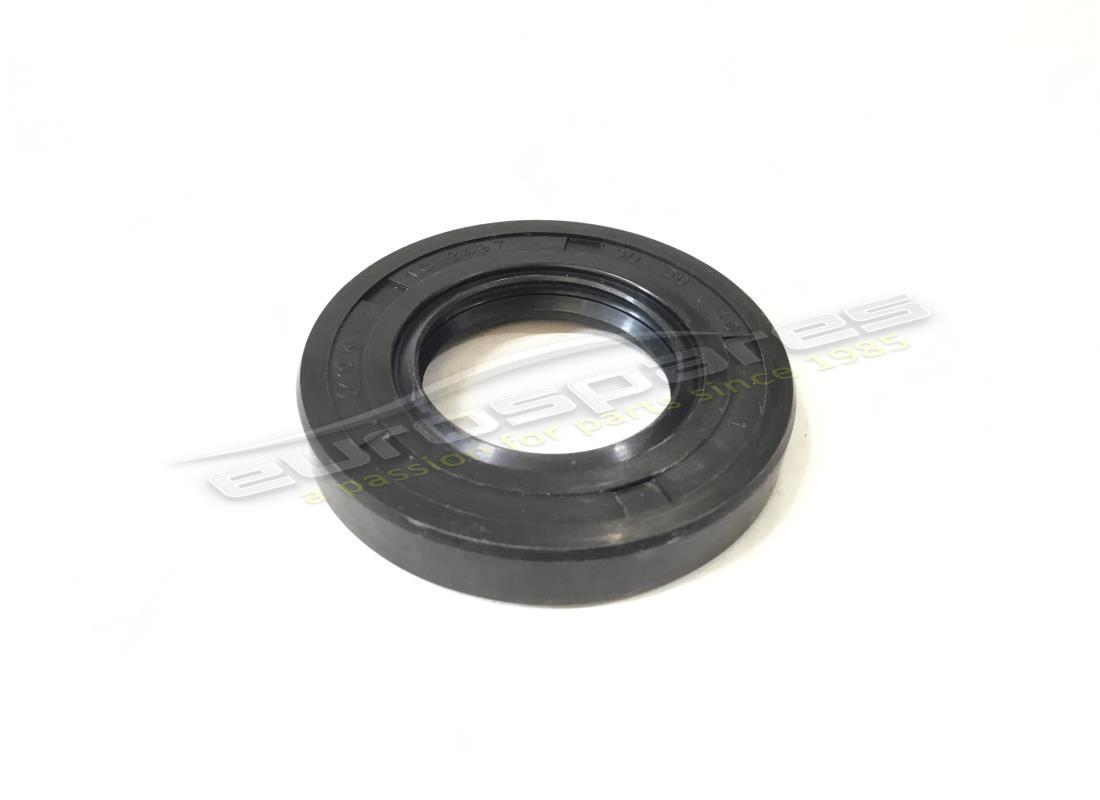

                                                                        SEAL
                                                                        from £6.84
                                                                        from £6.84
                                                                        This part replaces part number 29265

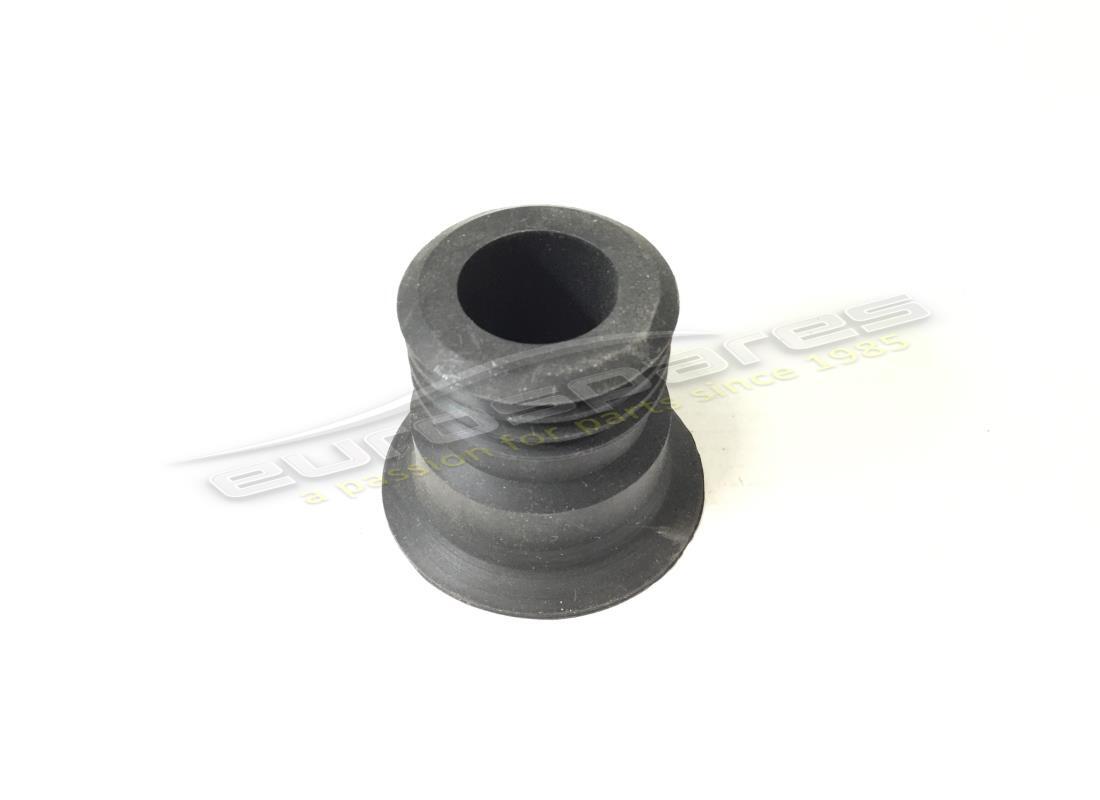

                                                                        # 036
                                                                        MPN: 10396580
                                                                        CABLE GROMMET
                                                                        from £1.08
                                                                        from £1.08
                                                                        This part replaces part number 100286
                                                                        # 037
                                                                        MPN: 10396480
                                                                        CABLE GROMMET
                                                                        from £2.31
                                                                        from £2.31
                                                                        This part replaces part number 103516
