ferrari 308 gt4 dino (1976) differential & axle shaft (up to gearbox no. 692) parts diagram

026 - Differential & Axle Shaft (Up to gearbox No. 692)

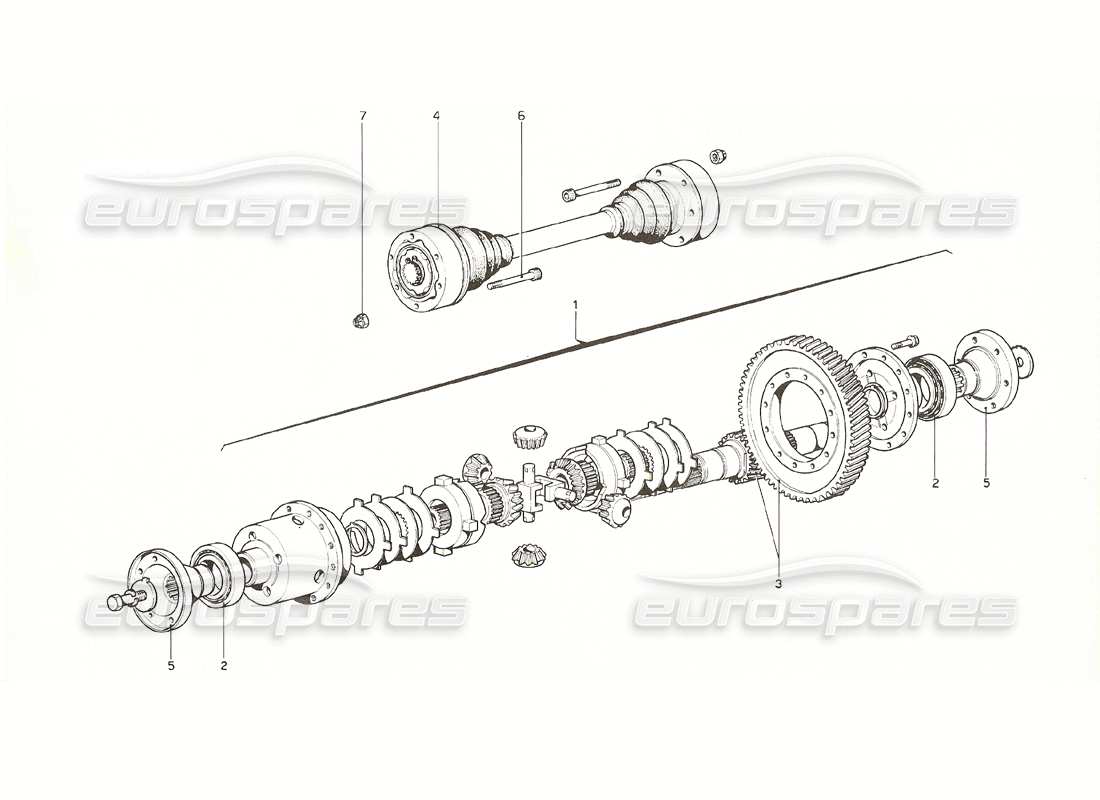

Ferrari 308 GT4 Dino (1976) Differential & Axle Shaft (Up to gearbox No. 692) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 104301
              DIFFERENZIALE COMPLETE DI BULLONI
              from £3,234.00
              from £3,234.00
              This part replaces part number 580778
              # 002
              MPN: 101634
              BEARING
              from £89.60
              from £89.60
              This part replaces part number 580881
              # 003
              MPN: 107883
              COPPIA CILINDRICA
              from £2,279.37
              from £2,279.37
              # 004
              MPN: 103885

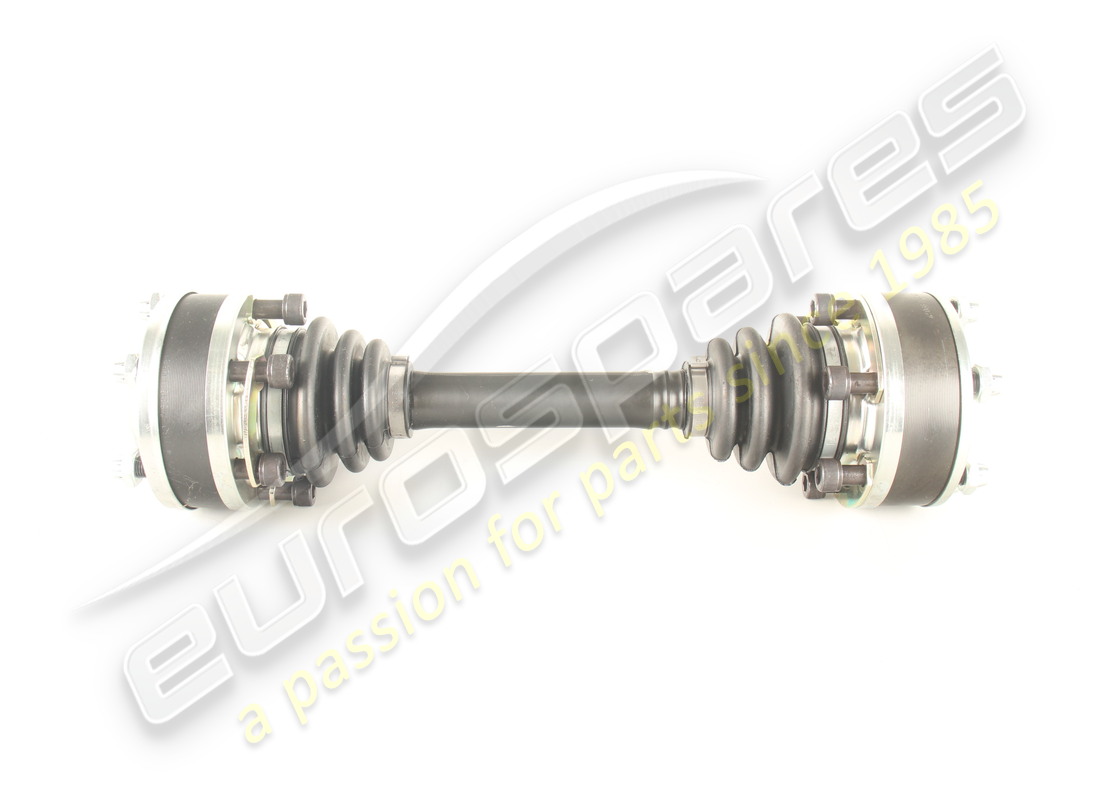

              AXLE SHAFT
              from £1,199.00
              from £1,199.00
              # 005
              MPN: 101631
              FLANGIA ATTACCO SEMIASSE
              Supersession
              Supersession
              # 006
              MPN: 101632
              DRIVESHAFT BOLT
              from £14.75
              from £14.75
              This part replaces part number 103432 - and 5 more. Click to view details
              # 007
              MPN: 101633
              DRIVESHAFT NUT
              (original)
              from £4.29
              from £4.29
              # 007
              MPN: 95860404
              DRIVE SHAFT GAITER
              from £9.95
              from £9.95
              This part replaces part number 95860404/A
              # 007
              MPN: 95860404/A
              CV BOOT KIT
              Supersession
              Supersession
