ferrari 308 gt4 dino (1976) water pump and pipes parts diagram

017 - Water Pump and Pipes

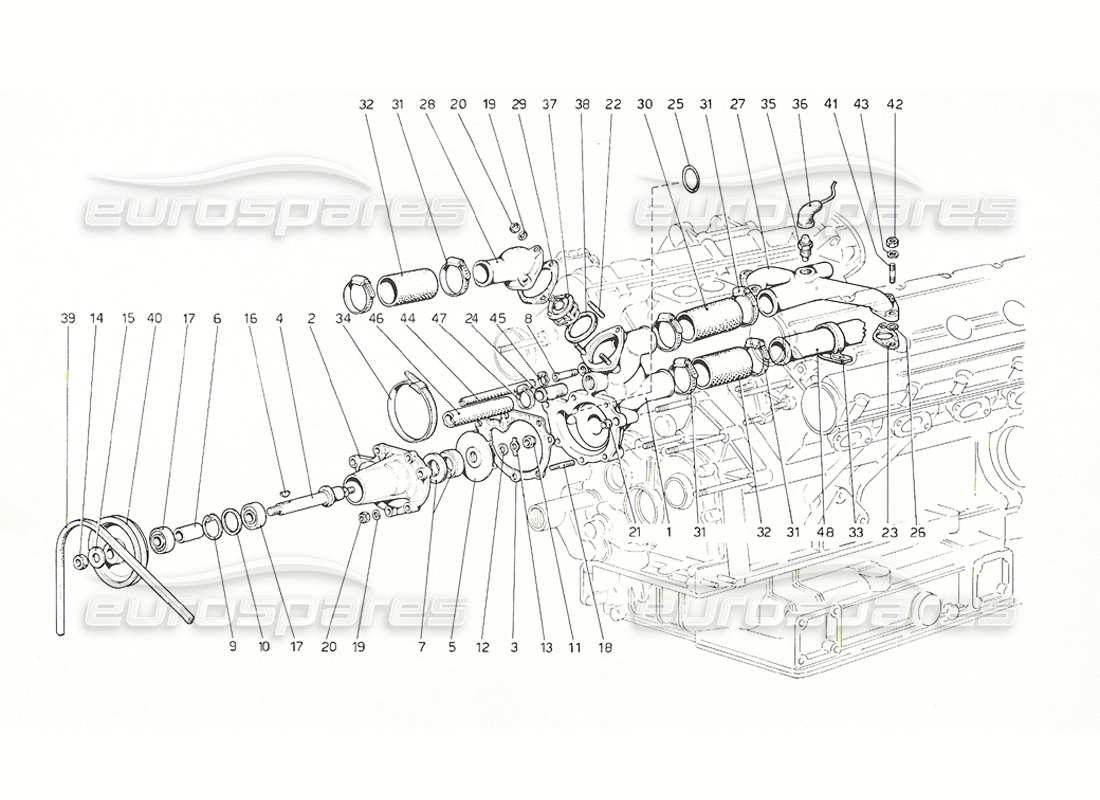

Ferrari 308 GT4 Dino (1976) Water Pump and Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price

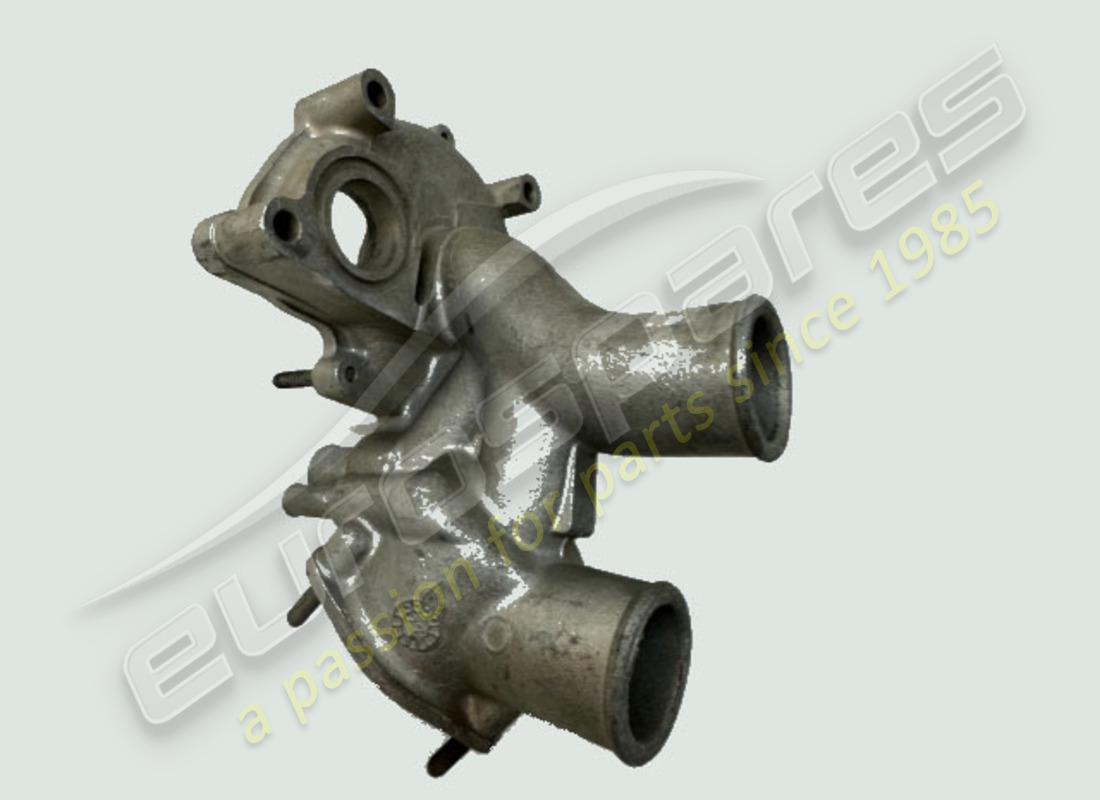

                                                                                      # 001
                                                                                      MPN: 107128
                                                                                      CORPO PORNPA ACQUA
                                                                                      from £1,910.26
                                                                                      from £1,910.26
                                                                                      This part replaces part number 105163
                                                                                      # 002
                                                                                      MPN: 103705
                                                                                      COVER
                                                                                      use part number: 121255
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 002
                                                                                      MPN: 121255
                                                                                      WATER PUMP OEM (ORIGINAL) + GASKET (135121)
                                                                                      from £245.00
                                                                                      from £245.00
                                                                                      This part replaces part number 103795 - and 5 more. Click to view details
                                                                                      # 002
                                                                                      MPN: 121255/A
                                                                                      WATER PUMP + GASKET
                                                                                      Supersession
                                                                                      Supersession

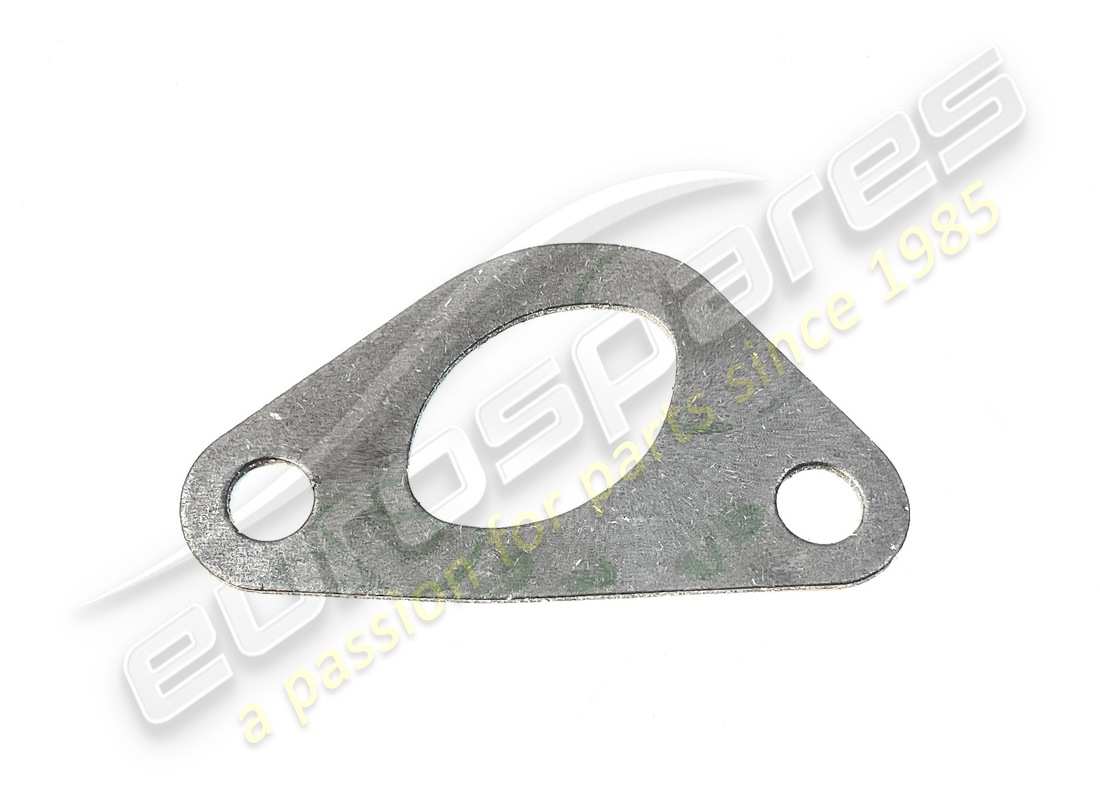

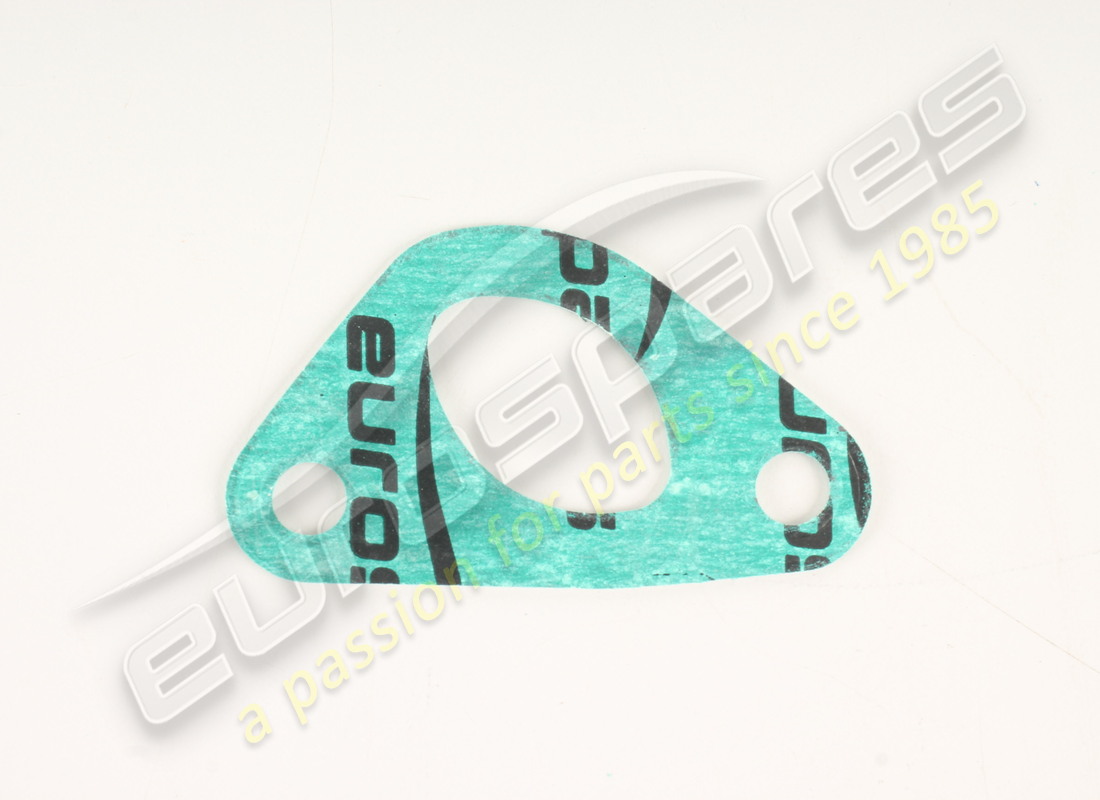

                                                                                      # 003
                                                                                      MPN: 135121
                                                                                      WATER PUMP GASKET
                                                                                      from £3.76
                                                                                      from £3.76
                                                                                      This part replaces part number 103952 - and 1 more. Click to view details
                                                                                      # 004
                                                                                      MPN: 121255
                                                                                      WATER PUMP OEM (ORIGINAL) + GASKET (135121)
                                                                                      from £245.00
                                                                                      from £245.00
                                                                                      This part replaces part number 103795 - and 5 more. Click to view details
                                                                                      # 004
                                                                                      MPN: 121255/A
                                                                                      WATER PUMP + GASKET
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 005
                                                                                      MPN: 10-38-06
                                                                                      GIRANTE
                                                                                      from £206.61
                                                                                      from £206.61
                                                                                      # 006
                                                                                      MPN: 103799
                                                                                      DISTANZLALE
                                                                                      from £13.34
                                                                                      from £13.34
                                                                                      # 007
                                                                                      MPN: 100433
                                                                                      SEALING RING
                                                                                      from £69.95
                                                                                      from £69.95
                                                                                      This part replaces part number 114410
                                                                                      # 008
                                                                                      MPN: 106241
                                                                                      UNION
                                                                                      from £25.26
                                                                                      from £25.26
                                                                                      # 009
                                                                                      MPN: 11059475
                                                                                      SEEGER RING
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 010
                                                                                      MPN: 102783
                                                                                      WASHER
                                                                                      from £22.94
                                                                                      from £22.94
                                                                                      This part replaces part number 4182710
                                                                                      # 011
                                                                                      MPN: 100436
                                                                                      CAP NUT
                                                                                      from £7.41
                                                                                      from £7.41
                                                                                      This part replaces part number 92896
                                                                                      # 012
                                                                                      MPN: 10730321
                                                                                      WASHER
                                                                                      from £0.66
                                                                                      from £0.66
                                                                                      This part replaces part number 10730301 - and 2 more. Click to view details
                                                                                      # 013
                                                                                      MPN: 100434
                                                                                      PLATE
                                                                                      from £7.26
                                                                                      from £7.26
                                                                                      This part replaces part number 92361 - and 1 more. Click to view details
                                                                                      # 014
                                                                                      MPN: 16101521
                                                                                      NUT
                                                                                      from £0.57
                                                                                      from £0.57
                                                                                      This part replaces part number 16101520
                                                                                      # 015
                                                                                      MPN: 11198673
                                                                                      WASHER
                                                                                      from £0.87
                                                                                      from £0.87
                                                                                      This part replaces part number 11198671
                                                                                      # 016
                                                                                      MPN: 10205820
                                                                                      Key
                                                                                      from £0.80
                                                                                      from £0.80
                                                                                      # 017
                                                                                      MPN: 103877
                                                                                      PILOT BEARING
                                                                                      from £15.20
                                                                                      from £15.20
                                                                                      This part replaces part number 24940440
                                                                                      # 018
                                                                                      MPN: 11500721
                                                                                      THREADED STUD
                                                                                      from £0.80
                                                                                      from £0.80
                                                                                      # 019
                                                                                      MPN: 12601279
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                      # 020
                                                                                      MPN: 12574211
                                                                                      NUT
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      # 021
                                                                                      MPN: 102704
                                                                                      DOWEL
                                                                                      from £1.59
                                                                                      from £1.59
                                                                                      This part replaces part number 500805
                                                                                      # 022
                                                                                      MPN: 13541124
                                                                                      STUD
                                                                                      from £12.06
                                                                                      from £12.06
                                                                                      This part replaces part number 13541121
                                                                                      # 023
                                                                                      MPN: 147671
                                                                                      GASKET
                                                                                      from £3.09
                                                                                      from £3.09
                                                                                      This part replaces part number 103954
                                                                                      # 024
                                                                                      MPN: 105195
                                                                                      UNION
                                                                                      from £46.23
                                                                                      from £46.23
                                                                                      # 025
                                                                                      MPN: 105196
                                                                                      SEALING RING
                                                                                      from £2.88
                                                                                      from £2.88
                                                                                      # 026
                                                                                      MPN: 103039
                                                                                      SEALING RING
                                                                                      (minimum order quantity = 10)
                                                                                      from £1.62
                                                                                      from £1.62
                                                                                      This part replaces part number 95860041
                                                                                      # 027
                                                                                      MPN: 105164
                                                                                      COLLETTORE USCITA ACQUA
                                                                                      Particolari modificati - Motore con 2 distributori
                                                                                      from £95.67
                                                                                      from £95.67
                                                                                      # 027
                                                                                      MPN: 107678
                                                                                      COLLETTORE USCITA ACQUA
                                                                                      Particolari modificati - Motore con 1 distributore
                                                                                      from £344.91
                                                                                      from £344.91
                                                                                      # 028
                                                                                      MPN: 105165
                                                                                      UNION
                                                                                      from £141.04
                                                                                      from £141.04
                                                                                      # 029
                                                                                      MPN: 105189
                                                                                      GASKET
                                                                                      from £2.48
                                                                                      from £2.48
                                                                                      This part replaces part number 4206607
                                                                                      # 030
                                                                                      MPN: 105190
                                                                                      SLEEVE
                                                                                      from £16.64
                                                                                      from £16.64
                                                                                      This part replaces part number 106364
                                                                                      # 031
                                                                                      MPN: 100441
                                                                                      JUBILEE CLIP
                                                                                      Particolari modificati - Vale fino ad esaurirnento
                                                                                      from £4.96
                                                                                      from £4.96
                                                                                      # 031
                                                                                      MPN: 12180090
                                                                                      JUBILEE CLIP
                                                                                      Particolari modificati - Dopo esaurim.N. 100441
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 102958
                                                                                      # 032
                                                                                      MPN: 121258
                                                                                      SLEEVE
                                                                                      from £19.23
                                                                                      from £19.23
                                                                                      This part replaces part number 10147087 - and 4 more. Click to view details
                                                                                      # 033
                                                                                      MPN: 107002
                                                                                      JUBILEE CLIP
                                                                                      from £7.32
                                                                                      from £7.32
                                                                                      # 034
                                                                                      MPN: 105550
                                                                                      JUBILEE CLIP
                                                                                      from £1.28
                                                                                      from £1.28
                                                                                      # 035
                                                                                      MPN: 104628
                                                                                      TEMPERATURE SENDER UNIT
                                                                                      from £31.50
                                                                                      from £31.50
                                                                                      This part replaces part number 4108672 - and 3 more. Click to view details
                                                                                      # 036
                                                                                      MPN: 107211
                                                                                      CAPPUCCIO PROTEZIONE
                                                                                      Particolari modificati - Motore con 2 distributori
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 036
                                                                                      MPN: 108295
                                                                                      CAVO TERMISTORE
                                                                                      Particolari modificati - Motore con 1 distributore
                                                                                      from £3.14
                                                                                      from £3.14
                                                                                      # 037
                                                                                      MPN: 109671
                                                                                      TERMOSTATO
                                                                                      from £75.22
                                                                                      from £75.22
                                                                                      This part replaces part number 105191 - and 1 more. Click to view details
                                                                                      # 037
                                                                                      MPN: 109671
                                                                                      TERMOSTATO
                                                                                      Particolari modificati - Dopo esaurim.N. 105191
                                                                                      from £75.22
                                                                                      from £75.22
                                                                                      This part replaces part number 105191 - and 1 more. Click to view details
                                                                                      # 038
                                                                                      MPN: 105192
                                                                                      GASKET
                                                                                      from £12.38
                                                                                      from £12.38
                                                                                      This part replaces part number 4184495
                                                                                      # 039
                                                                                      MPN: 104336
                                                                                      ALTERNATOR BELT 975MM
                                                                                      from £52.69
                                                                                      from £52.69
                                                                                      # 040
                                                                                      MPN: 105166
                                                                                      PULEGGIA
                                                                                      from £217.45
                                                                                      from £217.45
                                                                                      This part replaces part number 107970
                                                                                      # 041
                                                                                      MPN: 16100814
                                                                                      STUD
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                      # 042
                                                                                      MPN: 16100824
                                                                                      NUT
                                                                                      from £0.51
                                                                                      from £0.51
                                                                                      This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                      # 043
                                                                                      MPN: 11198074
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                      # 044
                                                                                      MPN: 122219
                                                                                      TUBO DAL MOTORE ALIA NOURICE
                                                                                      from £19.82
                                                                                      from £19.82
                                                                                      This part replaces part number 113351 - and 1 more. Click to view details
                                                                                      # 045
                                                                                      MPN: 102604
                                                                                      JUBILEE CLIP
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 046
                                                                                      MPN: 125088
                                                                                      TUBO DALLA NOURICE AL MOTORE
                                                                                      from £45.31
                                                                                      from £45.31
                                                                                      This part replaces part number 109355 - and 2 more. Click to view details
                                                                                      # 047
                                                                                      MPN: 105622
                                                                                      JUBILEE CLIP
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 048
                                                                                      MPN: 106306
                                                                                      PIPE / TUBE / HOSE
                                                                                      from £148.02
                                                                                      from £148.02
