015 - Lubrication System

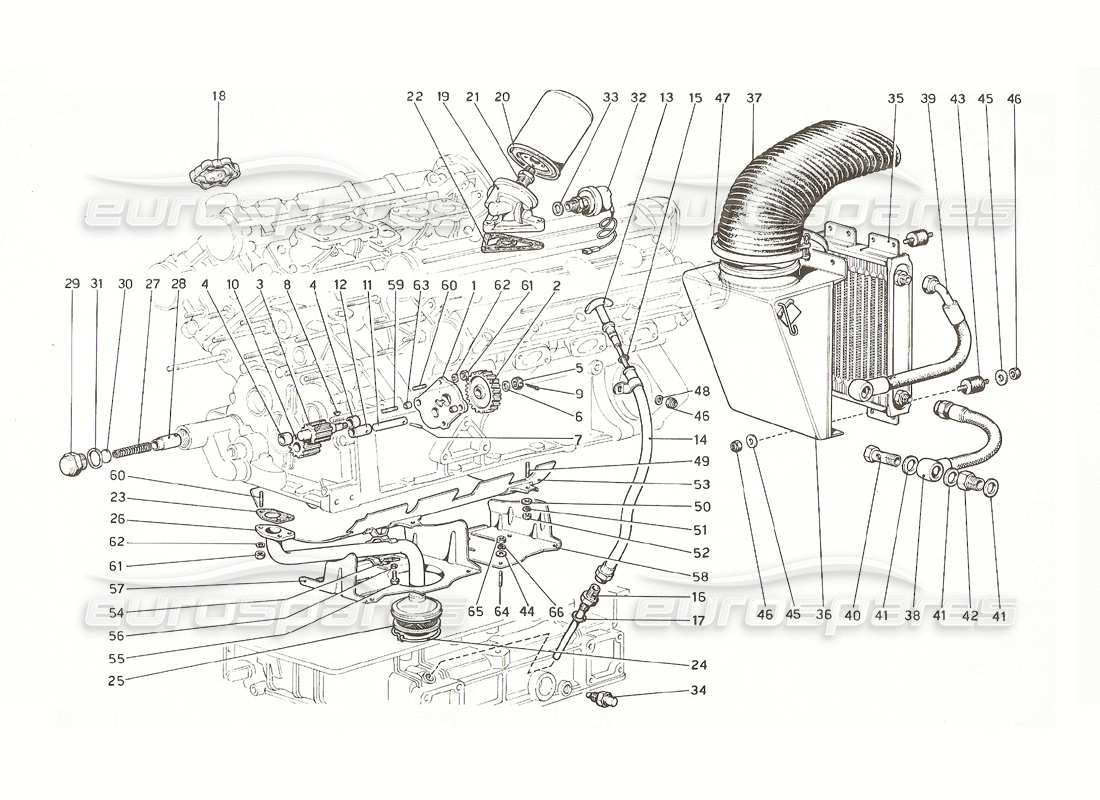

Ferrari 308 GT4 Dino (1976) Lubrication system Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 103513
COVER
from £118.18
from £118.18
# 002
MPN: 104574
PUMP GEAR
29 Teeth
from £131.67
from £131.67
# 003
MPN: 103782
DRIVING GEAR
Particolari modificati - Vale fino ad esaurimento
Supersession
Supersession
# 003
MPN: 109956
GEAR
from £478.86
from £478.86
This part replaces part number 103782 which we have in stock - and 1 more. Click to view details
# 004
MPN: 102770
CENTERING DOWEL
from £17.82
from £17.82
This part replaces part number 240795 - and 1 more. Click to view details
# 005
MPN: 102900
NUT
from £7.66
from £7.66
This part replaces part number 4146931
# 006
MPN: 102901
WASHER
from £0.71
from £0.71
This part replaces part number 4146930
# 007
MPN: 14161970
PIN
from £0.60
from £0.60
# 008
MPN: 10205620
Key
from £0.50
from £0.50
# 009
MPN: 10734301
COPIGIIA
from £0.47
from £0.47
# 010
MPN: 105704
DRIVEN GEAR
Particolari modificati - Vale fino ad esaurimento
from £155.58
from £155.58
# 010
MPN: 109957
DRIVEN GEAR
Particolari modificati - Dopo esaurim.N;105704
# 011
MPN: 101499/C
RADIATOR PRESSURE CAP
Square Radiator cap (0.9 BAR)
from £12.00
from £12.00
# 011
MPN: 105705
PIVOT
from £21.59
from £21.59
# 012
MPN: 105706
BUSH
from £22.41
from £22.41
# 013
MPN: 105657
OIL LEVEL STICK
from £56.01
from £56.01
# 014
MPN: 119937
DIPSTICK TUBE
from £134.57
from £134.57
This part replaces part number 105227 which we have in stock - and 1 more. Click to view details
# 015
MPN: 100317
ANELIC DI TENUTA
(minimum order quantity = 10)
from £0.61
from £0.61
# 016
MPN: 107868
DIPSTICK TUBE
from £41.21
from £41.21
# 017
MPN: 10259960
GASKET
from £0.47
from £0.47
This part replaces part number 95017
# 018
MPN: 103936
OIL CAP
from £45.00
from £45.00
# 020
MPN: 100325/OE
OIL FILTER (FULL FLOW)
(full flow - Fram PH2804-1) Alternative Use filter: 191993
from £46.95
from £46.95
# 020
MPN: 191993
UFI OIL FILTER
(UFI)
from £18.95
from £18.95
This part replaces part number 111782 - and 2 more. Click to view details
# 021
MPN: 100327
UNION
from £42.00
from £42.00
This part replaces part number 240216
# 022
MPN: 147689
GASKET
from £4.02
from £4.02
This part replaces part number 106179 - and 1 more. Click to view details
# 023
MPN: 134961
GASKET
from £2.27
from £2.27
This part replaces part number 103942
# 024
MPN: 103944
FILTER SEAL RING
from £36.75
from £36.75
This part replaces part number 24124 - and 3 more. Click to view details
# 025
MPN: 100332
SUMP FILTER
from £9.31
from £9.31
This part replaces part number 240387 - and 9 more. Click to view details
# 026
MPN: 105998
OIL PICKUP TUBE
from £126.00
from £126.00
# 027
MPN: 106900
SPRING
from £3.71
from £3.71
# 028
MPN: 125885
PISTON
from £126.45
from £126.45
This part replaces part number 106236 - and 1 more. Click to view details
# 029
MPN: 106237
PLUG
from £25.24
from £25.24
# 030
MPN: 106238
DISTANZIATE
from £0.84
from £0.84
# 031
MPN: 144487
GASKET
from £18.15
from £18.15
# 032
MPN: 125340
OIL PRESSURE UNIT M16X1.5
from £134.00
from £134.00
This part replaces part number 100343 - and 1 more. Click to view details
# 033
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 034
MPN: 107576

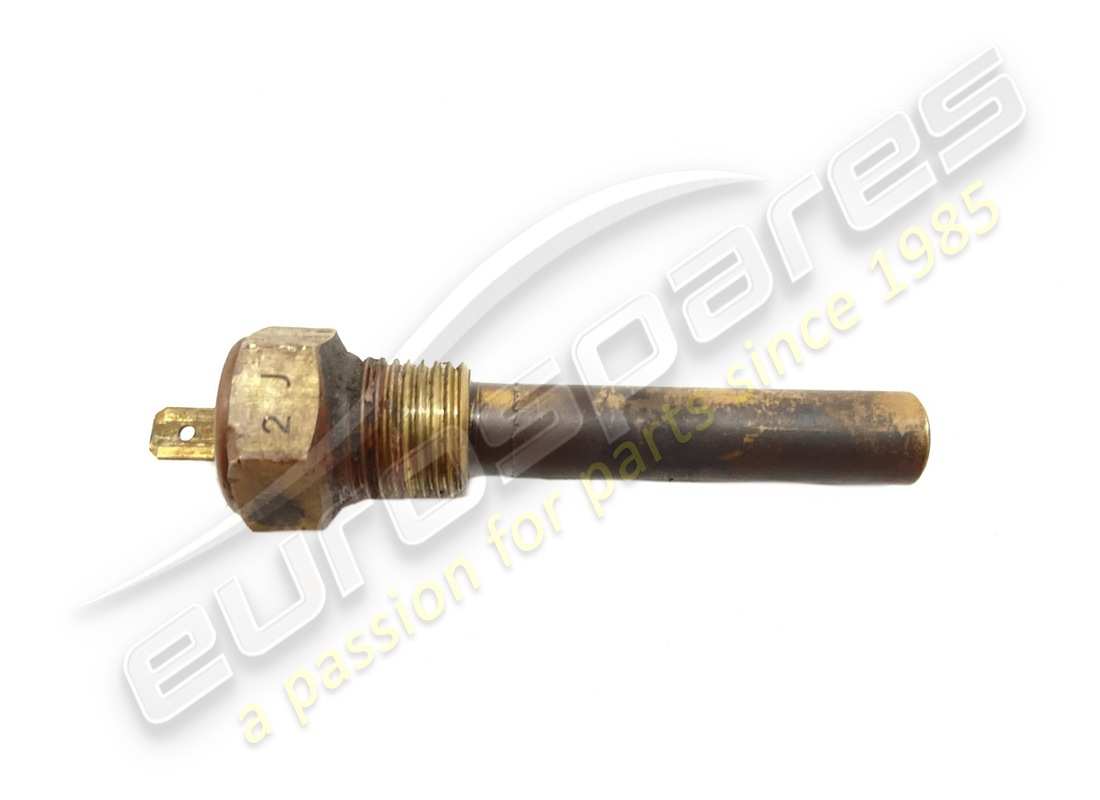

OIL TEMPERATURE THERMISTOR
from £82.74
from £82.74
This part replaces part number 4159681 - and 1 more. Click to view details
# 035
MPN: 145712
OIL RADIATOR
from £674.51
from £674.51
This part replaces part number 106965 - and 1 more. Click to view details
# 036
MPN: 107131
AIR INLET VENT
from £105.00
from £105.00
# 036
MPN: 107891
AIR INLET
from £241.14
from £241.14
This part replaces part number 107131 which we have in stock - and 3 more. Click to view details
# 037

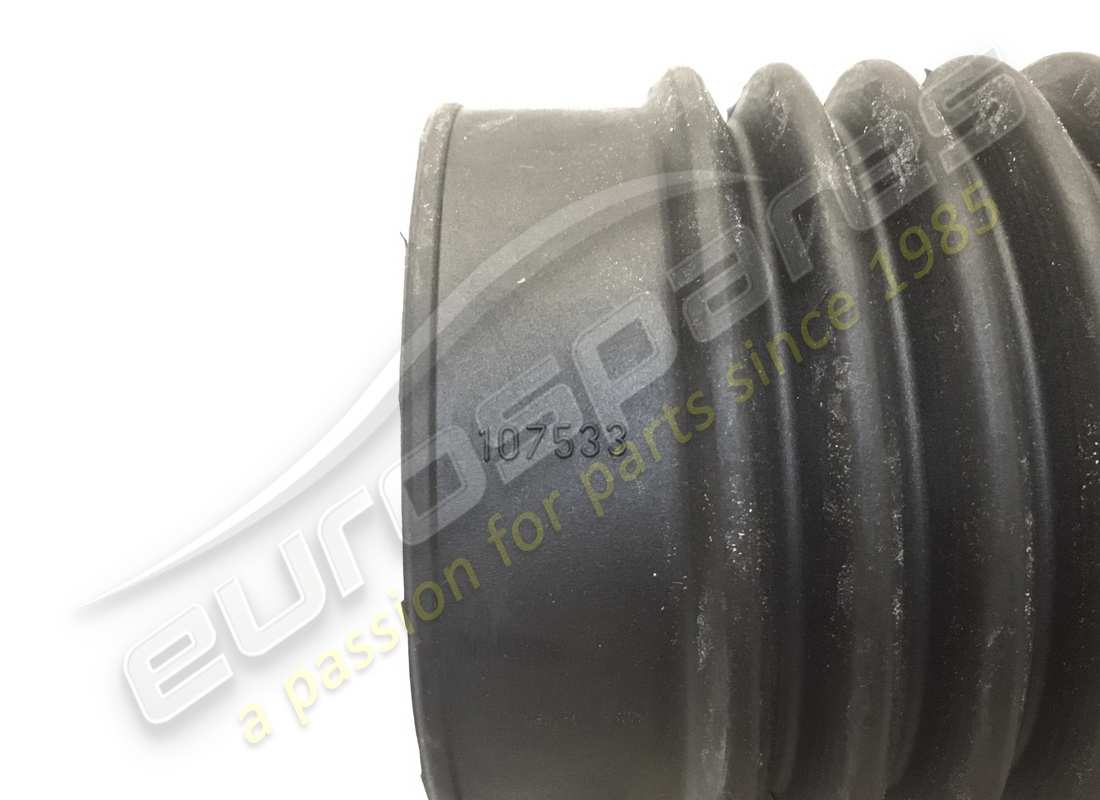

MPN: 107533
AIR DUCT
from £93.36
from £93.36
This part replaces part number 110943 - and 2 more. Click to view details

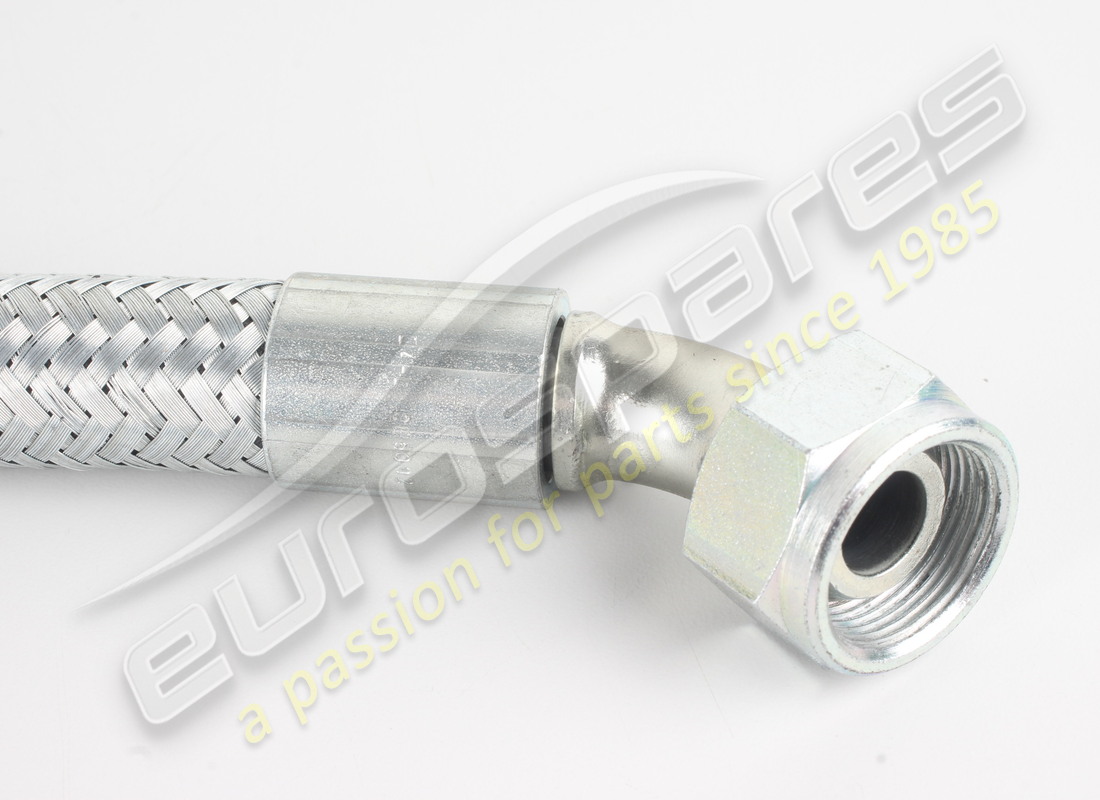

# 038
MPN: 107414
OIL PIPE
from £303.75
from £303.75

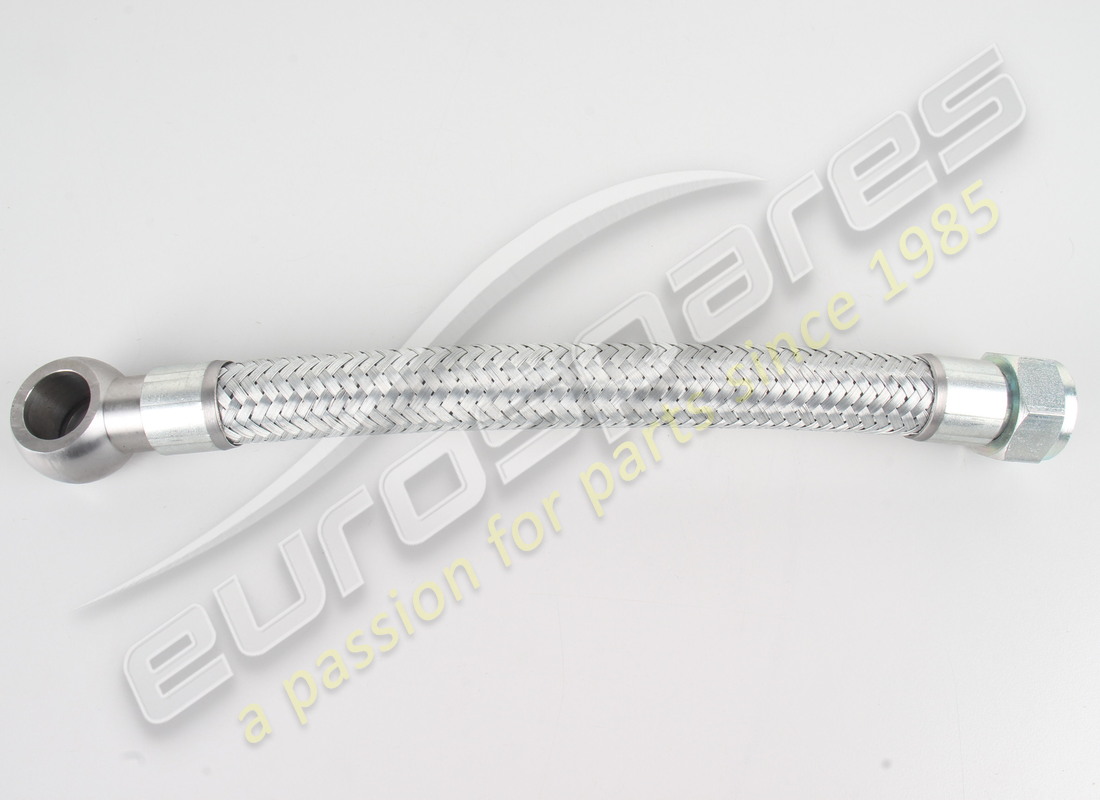

# 039
MPN: 106277
OIL PIPE
from £266.14
from £266.14
# 040
MPN: 102302
UNION
from £66.36
from £66.36
# 041
MPN: 10279550
GASKET
Particolari modificati - Dal N.08662quantita 4
Supersession
Supersession
# 042
MPN: 107030
UNION
Particolari modificati - Vale fino al N.08660
from £55.98
from £55.98
# 043
MPN: 102947
SUPPORT
from £6.17
from £6.17
This part replaces part number 102007 - and 14 more. Click to view details
# 044
MPN: 12638101
WASHER
from £0.71
from £0.71
# 045
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 046
MPN: 12574211
NUT
from £0.71
from £0.71
# 047
MPN: 10292390
JUBILEE CLIP
Supersession
Supersession
# 048
MPN: 12644421
WASHER
Supersession
Supersession
# 049
MPN: 13516521
STUD
Supersession
Supersession
This part replaces part number 102682 - and 1 more. Click to view details
# 050
MPN: 10519624
WASHER
from £0.47
from £0.47
This part replaces part number 10519601 - and 3 more. Click to view details
# 051
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 052
MPN: 13102311
NUT
# 053
MPN: 103929
CRANK SHIELD
from £60.23
from £60.23
# 054
MPN: 103933
BRACKET / SUPPORT
from £8.49
from £8.49
# 055
MPN: 10977621
BOLT
from £1.09
from £1.09
# 056
MPN: 11195471
WASHER
Supersession
Supersession
# 057
MPN: 107073
SUMP SHIELD
from £55.50
from £55.50
This part replaces part number 40361305
# 058
MPN: 107074
PLATE
from £29.35
from £29.35
This part replaces part number 40361206 - and 1 more. Click to view details
# 059
MPN: 13541124
STUD
from £11.77
from £11.77
This part replaces part number 13541121
# 060
MPN: 11500121
SHORT THREADED STUD
Supersession
Supersession
This part replaces part number 13540820
# 061
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 062
MPN: 11197774
WASHER
from £0.53
from £0.53
This part replaces part number 11197770 - and 3 more. Click to view details
# 063
MPN: 102725
DOWEL
from £0.66
from £0.66
# 064
MPN: 11000821
STUD
from £0.71
from £0.71
# 065
MPN: 15896414
NUT
from £0.48
from £0.48
This part replaces part number 15896411
# 066
MPN: 11185471
WASHER
# 1!9
MPN: 106226
OIL FILTER HOUSING
from £164.36
from £164.36
-part-diagram-016.webp "FERRARI 308 GT4 DINO (1976) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 308 GT4 DINO (1976) WATER PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 308 GT4 DINO (1976) CLUTCH OPERATING CONTROL PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 308 GT4 DINO (1976) CLUTCH UNIT AND COVER PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 308 GT4 DINO (1976) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 308 GT4 DINO (1976) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 308 GT4 DINO (1976) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 308 GT4 DINO (1976) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 308 GT4 DINO (1976) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 308 GT4 DINO (1976) OUTSIDE GEARBOX CONTROLS (UP TO NO. 10114 GS - 10100 GD - 10358 U.S. VERSION) PARTS DIAGRAM")
-part-diagram-025a.webp "FERRARI 308 GT4 DINO (1976) OUTSIDE GEARBOX CONTROLS (FROM NO. 11324 GS - 11300 GD - 10360 U.S. VERSION) PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 308 GT4 DINO (1976) DIFFERENTIAL & AXLE SHAFT (UP TO GEARBOX NO. 692) PARTS DIAGRAM")
-part-diagram-026a.webp "FERRARI 308 GT4 DINO (1976) DIFFERENTIAL & AXLE SHAFT (FROM GEARBOX NO. 693) PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 308 GT4 DINO (1976) PEDAL BOARD - BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 308 GT4 DINO (1976) BRAKE SYSTEM (UP TO NO. 11482 GS | 12... GD | 11462 USA) PARTS DIAGRAM")
-part-diagram-028a.webp "FERRARI 308 GT4 DINO (1976) BRAKE SYSTEM (FROM NO. 11506 GS | 12... GD | 11994 USA) PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 308 GT4 DINO (1976) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 308 GT4 DINO (1976) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 308 GT4 DINO (1976) STREERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 308 GT4 DINO (1976) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 308 GT4 DINO (1976) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISCS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 308 GT4 DINO (1976) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 308 GT4 DINO (1976) REAR SUSPENSION - SHOCK ABSORBER & BRAKE DISC PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 308 GT4 DINO (1976) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 308 GT4 DINO (1976) WHEELS PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 308 GT4 DINO (1976) ENGINE IGNITION (2 DISTRIBUTORS) PARTS DIAGRAM")
-part-diagram-038a.webp "FERRARI 308 GT4 DINO (1976) ENGINE IGNITION (1 DISTRIBUTOR) PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 308 GT4 DINO (1976) ELECTRIC GENERATING SYSTEM PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 308 GT4 DINO (1976) AIR CONDITIONING SYSTEM (UP TO N. 12162) PARTS DIAGRAM")
-part-diagram-040a.webp "FERRARI 308 GT4 DINO (1976) AIR CONDITIONING SYSTEM (FROM NO. 12180) PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 308 GT4 DINO (1976) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 308 GT4 DINO (1976) TOOL KIT PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 308 GT4 DINO (1976) THROTTLE CONTROL (RH D VERSION) PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 308 GT4 DINO (1976) PEDAL BOARD - CLUTCH CONTROL (RH D VERSION) PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 308 GT4 DINO (1976) BRAKE HYDRAULIC SYSTEM (RH D VERSION) PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 308 GT4 DINO (1976) FRONT AIR PUMP AND PIPINGS (U.S. 1976 VERSION) PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 308 GT4 DINO (1976) REAR AIR PUMP AND PIPINGS (U.S. AND AUSTRALIAN VERSIONS 1976) PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 308 GT4 DINO (1976) AIR PUMP GUARDS (US & AUSTRALIAN VERSIONS 1976) PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 308 GT4 DINO (1976) FAST IDLE DEVICE (U.S. AND AUSTRALIAN VERSIONS 1976) PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI 308 GT4 DINO (1976) WEBER 40 DCNF CARBS (US 1976 VERSION) PARTS DIAGRAM")
-part-diagram-050a.webp "FERRARI 308 GT4 DINO (1976) WEBER 40 DCNF CARBS (AUSTRALIAN 1976 VERSION) PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI 308 GT4 DINO (1976) FUEL SYSTEM USA SPEC (UP TO NO. 11462 - US 1976 VERSION) PARTS DIAGRAM")
-part-diagram-051a.webp "FERRARI 308 GT4 DINO (1976) FUEL SYSTEM USA SPEC (FROM NO.11994 - US 1976 VERSION) PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI 308 GT4 DINO (1976) EXHAUST SYSTEM (U.S. AND AUSTRALIAN VERSIONS 1976) PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI 308 GT4 DINO (1976) ENGINE IGNITION (US AND AUSTRALIAN VERSIONS 1976) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI 308 GT4 DINO (1976) WATER RADIATOR - GEAR - LEVER HOUSING (US 1976 VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 308 GT4 DINO (1976) BODY SHELL PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 308 GT4 DINO (1976) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 308 GT4 DINO (1976) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 308 GT4 DINO (1976) BODY SHELL - INNER ELEMENTS (U.S.VERSION) PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 308 GT4 DINO (1976) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 308 GT4 DINO (1976) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 308 GT4 DINO (1976) ENGINE COMPARTMENT LID AND CARPETING PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 308 GT4 DINO (1976) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 308 GT4 DINO (1976) DOORS PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 308 GT4 DINO (1976) DOORS PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 308 GT4 DINO (1976) BUMPERS AND MOULDINGS PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI 308 GT4 DINO (1976) BUMPERS (U.S. VERSION) PARTS DIAGRAM")
-part-diagram-112a.webp "FERRARI 308 GT4 DINO (1976) BUMPERS (U.S. VERSION) PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 308 GT4 DINO (1976) GLASSES PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 308 GT4 DINO (1976) INTERIOR TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI 308 GT4 DINO (1976) INTERIOR TRIM AND 'ACCESSORIES PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI 308 GT4 DINO (1976) SEATS PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 308 GT4 DINO (1976) CARPETING PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 308 GT4 DINO (1976) INSTRUMENTS AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 308 GT4 DINO (1976) SEAT BELTS PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 308 GT4 DINO (1976) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 308 GT4 DINO (1976) FUSES AND RELAYS PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI 308 GT4 DINO (1976) HEADLIGHTS LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI 308 GT4 DINO (1976) LIGHTS PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI 308 GT4 DINO (1976) WINDSHIELD WIPER, WASHER AND HORN PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI 308 GT4 DINO (1976) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 308 GT4 DINO (1976) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 308 GT4 DINO (1976) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 308 GT4 DINO (1976) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 308 GT4 DINO (1976) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 308 GT4 DINO (1976) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 308 GT4 DINO (1976) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 308 GT4 DINO (1976) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 308 GT4 DINO (1976) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 308 GT4 DINO (1976) FUEL SYSTEM (EURO VERSION) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 308 GT4 DINO (1976) CARBURETTORS AND AIR CLEANER PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 308 GT4 DINO (1976) WEBER 40 DCNF CARBS (2 DISTRIBUTORS) PARTS DIAGRAM")
-part-diagram-011a.webp "FERRARI 308 GT4 DINO (1976) WEBER 40 DCNF CARBS (1 DISTRIBUTOR) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 308 GT4 DINO (1976) THROTTLE CONTROL (2 DISTRIBUTORS) PARTS DIAGRAM")
-part-diagram-012a.webp "FERRARI 308 GT4 DINO (1976) THROTTLE CONTROL (1 DISTRIBUTOR) PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 308 GT4 DINO (1976) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 308 GT4 DINO (1976) BLOW-BY SYSTEM PARTS DIAGRAM")
