ferrari 308 gt4 dino (1976) cylinder head (right) parts diagram

005 - cylinder head (right)

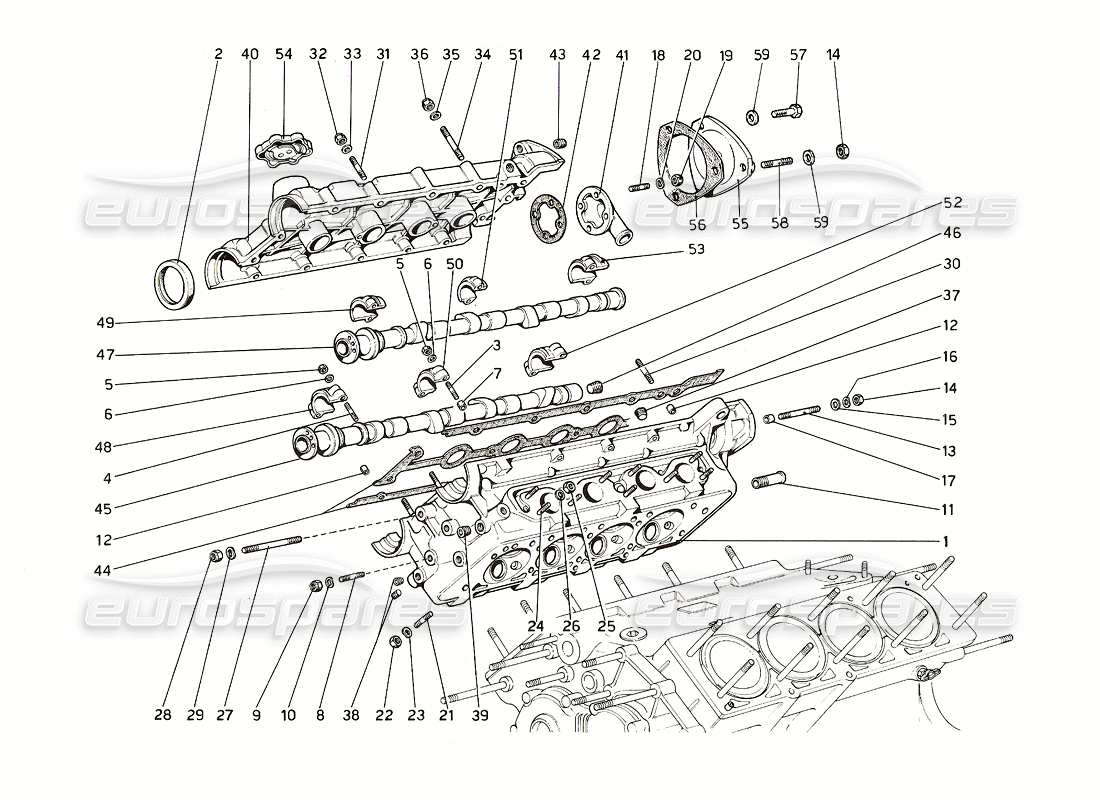

Ferrari 308 GT4 Dino (1976) Cylinder head (Right) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 000
                                                                                      MPN: 107110

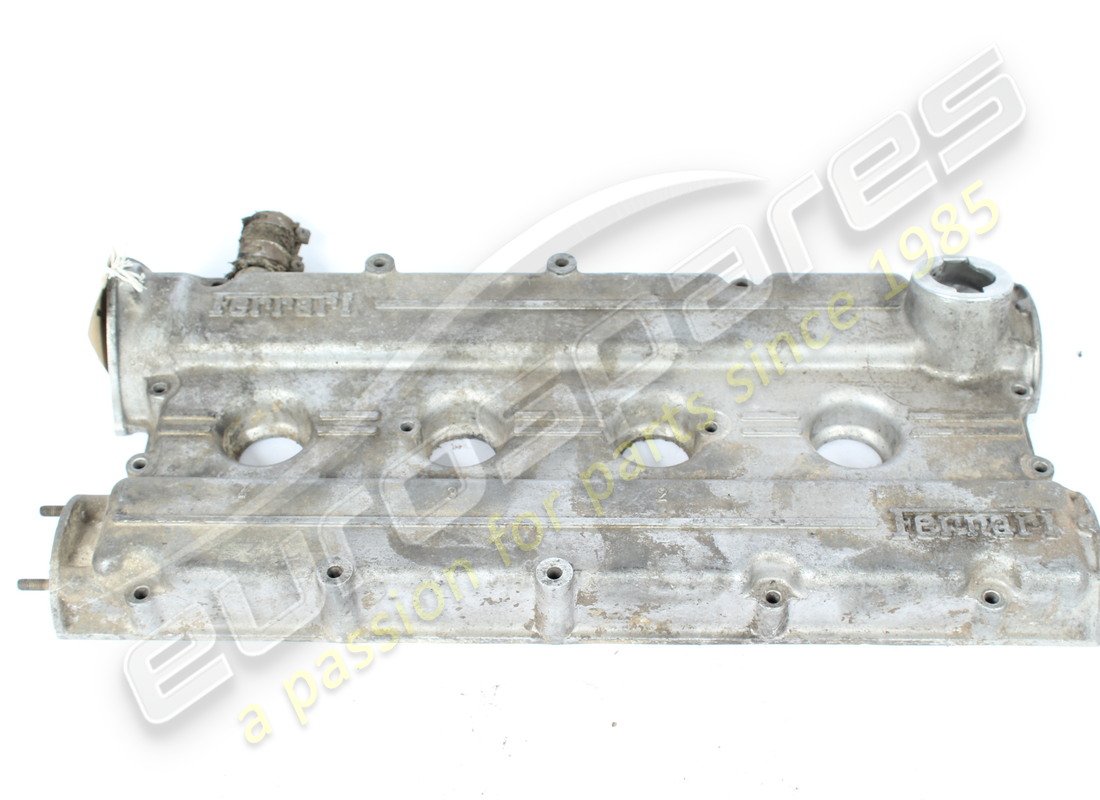

                                                                                      RH cylinder head
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 000
                                                                                      MPN: 107112
                                                                                      COVER
                                                                                      Particolari modificati - Vale fino N. 09532
                                                                                      This part replaces part number 105002 which we have in stock
                                                                                      # 000
                                                                                      MPN: 107117
                                                                                      ALBERO DISTRIBUZIONE SCARICO DESTRO COMPLETO
                                                                                      Particolari modificati - Motore con 2 distributori
                                                                                      from £899.15
                                                                                      from £899.15
                                                                                      # 000
                                                                                      MPN: 108006
                                                                                      RH INTAKE CAMSHAFT
                                                                                      from £1,389.53
                                                                                      from £1,389.53
                                                                                      This part replaces part number 107794
                                                                                      # 000
                                                                                      MPN: 108915
                                                                                      RH INTAKE CAMSHAFT
                                                                                      from £944.11
                                                                                      from £944.11
                                                                                      # 000
                                                                                      MPN: 108977
                                                                                      RH EXHAUST CAMSHAFT
                                                                                      from £944.11
                                                                                      from £944.11
                                                                                      # 000
                                                                                      MPN: 110670
                                                                                      COVER
                                                                                      Particolari modificati - Vale dal N. 09534
                                                                                      from £310.34
                                                                                      from £310.34
                                                                                      # 001
                                                                                      MPN: 103514
                                                                                      TESTA CIMNDRI DESTRA
                                                                                      Particolari modificati - Vale fino a! N. 09262
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 002
                                                                                      MPN: 163987
                                                                                      SEALING RING
                                                                                      from £9.95
                                                                                      from £9.95
                                                                                      This part replaces part number 136526
                                                                                      # 003
                                                                                      MPN: 102735
                                                                                      STUD
                                                                                      from £11.07
                                                                                      from £11.07
                                                                                      This part replaces part number 4146561
                                                                                      # 003
                                                                                      MPN: 106468

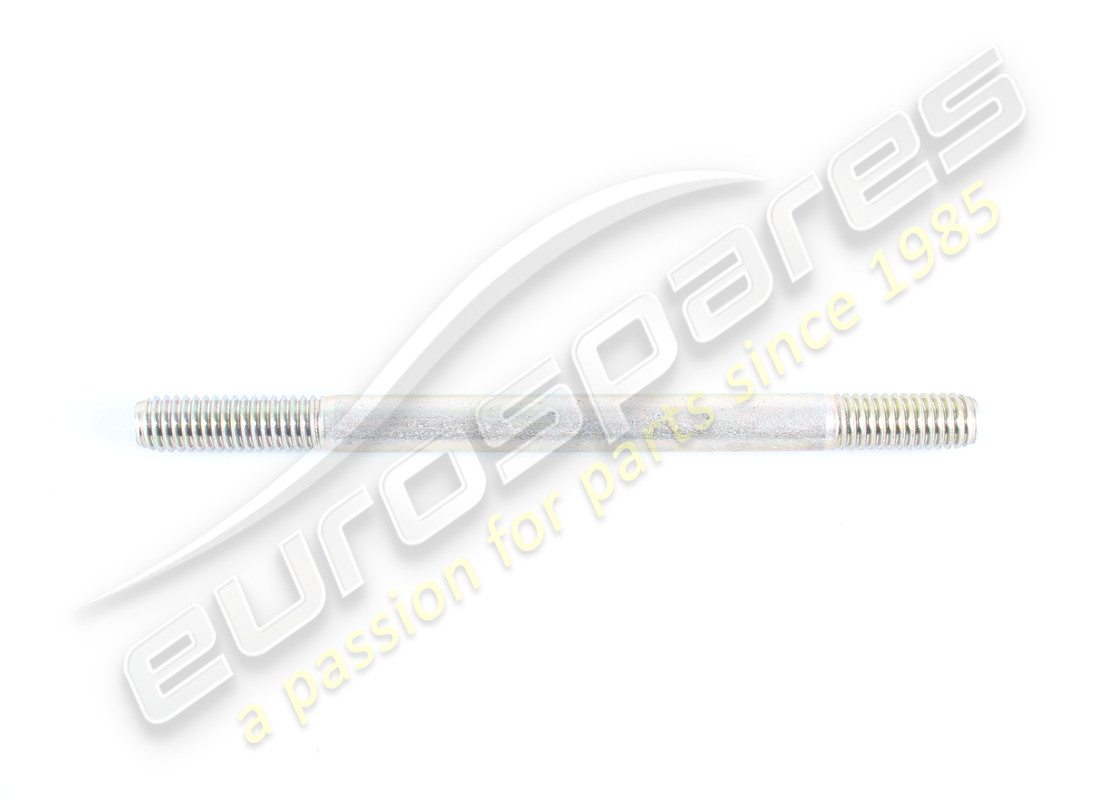

                                                                                      TIE ROD
                                                                                      from £96.00
                                                                                      from £96.00
                                                                                      # 004
                                                                                      MPN: 102754
                                                                                      STUD
                                                                                      from £5.00
                                                                                      from £5.00
                                                                                      # 005
                                                                                      MPN: 15896211
                                                                                      NUT
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 15896210
                                                                                      # 006
                                                                                      MPN: 11197773
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 007
                                                                                      MPN: 102725
                                                                                      DOWEL
                                                                                      from £0.57
                                                                                      from £0.57
                                                                                      # 008
                                                                                      MPN: 13517121
                                                                                      STUD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 009
                                                                                      MPN: 18104411
                                                                                      SELF LOCKING NUT
                                                                                      # 010
                                                                                      MPN: 12601371
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 011
                                                                                      MPN: 106227
                                                                                      UNION
                                                                                      from £3.33
                                                                                      from £3.33
                                                                                      # 012
                                                                                      MPN: 102725
                                                                                      DOWEL
                                                                                      from £0.65
                                                                                      from £0.65
                                                                                      # 013
                                                                                      MPN: 13517721
                                                                                      STUD
                                                                                      Particolari modificati - Per motore a 2 distributori
                                                                                      from £4.23
                                                                                      from £4.23
                                                                                      # 014
                                                                                      MPN: 16100824
                                                                                      NUT
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                      # 015
                                                                                      MPN: 10519624
                                                                                      WASHER
                                                                                      Particolari modificati - Solo per motori
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                      # 016
                                                                                      MPN: 11198074
                                                                                      WASHER
                                                                                      Particolari modificati - Con 2
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                      # 017
                                                                                      MPN: 102704
                                                                                      DOWEL
                                                                                      Particolari modificati - Distributori
                                                                                      from £1.59
                                                                                      from £1.59
                                                                                      This part replaces part number 500805
                                                                                      # 018
                                                                                      MPN: 11500321
                                                                                      THREADED STUD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 019
                                                                                      MPN: 12575411
                                                                                      SELF LOCKING NUT
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 020
                                                                                      MPN: 12601279
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                      # 021
                                                                                      MPN: 13543324
                                                                                      THREADED STUD
                                                                                      Particolari modificati - Dopo esaurirn.N. 13516821
                                                                                      from £0.83
                                                                                      from £0.83
                                                                                      This part replaces part number 13543321
                                                                                      # 021
                                                                                      MPN: 16100814
                                                                                      THREADED STUD
                                                                                      Particolari modificati - Vale fino ad esaurimento
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                      # 022
                                                                                      MPN: 114748
                                                                                      NUT
                                                                                      from £8.81
                                                                                      from £8.81
                                                                                      # 023
                                                                                      MPN: 127496
                                                                                      WASHER
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                      # 024
                                                                                      MPN: 16100814
                                                                                      THREADED STUD
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                      # 025
                                                                                      MPN: 16100824
                                                                                      NUT
                                                                                      from £0.48
                                                                                      from £0.48
                                                                                      This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                      # 026
                                                                                      MPN: 11198074
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                      # 027
                                                                                      MPN: 13953421
                                                                                      STUD
                                                                                      from £2.71
                                                                                      from £2.71
                                                                                      # 028
                                                                                      MPN: 12574521
                                                                                      SELF LOCKING NUT
                                                                                      from £0.56
                                                                                      from £0.56
                                                                                      This part replaces part number 104114 which we have in stock - and 1 more. Click to view details
                                                                                      # 029
                                                                                      MPN: 12601471
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 030
                                                                                      MPN: 13541721
                                                                                      THREADED STUD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 031
                                                                                      MPN: 13541621
                                                                                      THREADED STUD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 032
                                                                                      MPN: 100044
                                                                                      SELF LOCKING NUT
                                                                                      from £0.26
                                                                                      from £0.26
                                                                                      This part replaces part number 151230 - and 1 more. Click to view details
                                                                                      # 033
                                                                                      MPN: 12601279
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                      # 034
                                                                                      MPN: 10982021
                                                                                      THREADED STUD
                                                                                      Particolari modificati - Vale dal N. 09264
                                                                                      from £14.45
                                                                                      from £14.45
                                                                                      # 034
                                                                                      MPN: 13518021
                                                                                      THREADED STUD
                                                                                      Particolari modificati - Vale fino al N.09262
                                                                                      from £4.35
                                                                                      from £4.35
                                                                                      # 035
                                                                                      MPN: 12601279
                                                                                      WASHER
                                                                                      Particolari modificati - Vale dal N. 09264
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                      # 035
                                                                                      MPN: 12601371
                                                                                      WASHER
                                                                                      Particolari modificati - Vale fino al N.09262
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 036
                                                                                      MPN: 101239
                                                                                      SELF LOCKING NUT
                                                                                      Particolari modificati - Vale dal N. 09264
                                                                                      from £1.60
                                                                                      from £1.60
                                                                                      This part replaces part number 92310
                                                                                      # 036
                                                                                      MPN: 101240
                                                                                      SELF LOCKING NUT
                                                                                      Particolari modificati - Vale fino al N.09262
                                                                                      from £1.30
                                                                                      from £1.30
                                                                                      # 037
                                                                                      MPN: 10269750
                                                                                      PLUG
                                                                                      from £0.88
                                                                                      from £0.88
                                                                                      This part replaces part number 95184
                                                                                      # 038
                                                                                      MPN: 14326150
                                                                                      THREADED PLUG
                                                                                      from £0.50
                                                                                      from £0.50
                                                                                      This part replaces part number 12326150
                                                                                      # 039
                                                                                      MPN: 10269450
                                                                                      PLUG
                                                                                      from £16.22
                                                                                      from £16.22
                                                                                      # 040
                                                                                      MPN: 105002
                                                                                      COVER
                                                                                      Particolari modificati - Vale finoal N. 09532
                                                                                      from £262.50
                                                                                      from £262.50
                                                                                      # 040
                                                                                      MPN: 107316
                                                                                      COVER
                                                                                      Particolari modificati - Vale da! N. 09534
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 041
                                                                                      MPN: 10-38-08
                                                                                      COVER
                                                                                      from £143.06
                                                                                      from £143.06
                                                                                      # 042
                                                                                      MPN: 151342
                                                                                      GASKET
                                                                                      from £2.14
                                                                                      from £2.14
                                                                                      This part replaces part number 103809 - and 5 more. Click to view details
                                                                                      # 043
                                                                                      MPN: 103830
                                                                                      HELI - COIL
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 044
                                                                                      MPN: 105004
                                                                                      GASKET
                                                                                      Particolari modificati - Vale fino al N. 09532
                                                                                      # 044
                                                                                      MPN: 147700
                                                                                      RH GASKET
                                                                                      from £37.74
                                                                                      from £37.74
                                                                                      This part replaces part number 107312 - and 1 more. Click to view details
                                                                                      # 045
                                                                                      MPN: 105711
                                                                                      ALBERO DISTRIBUZIONE SCARICO DESTRO
                                                                                      Particolari modificati - Motore con 2 distributori
                                                                                      from £1,323.36
                                                                                      from £1,323.36
                                                                                      # 045
                                                                                      MPN: 109438
                                                                                      RH EXHAUST CAMSHAFT
                                                                                      from £655.56
                                                                                      from £655.56
                                                                                      # 046
                                                                                      MPN: 10269750
                                                                                      PLUG
                                                                                      Particolari modificati - Motore a 1 distributore q=2
                                                                                      from £0.91
                                                                                      from £0.91
                                                                                      This part replaces part number 95184
                                                                                      # 047
                                                                                      MPN: 105710
                                                                                      ALBERO DISTRIBUZIONE ASPIRAZIONE DX
                                                                                      Particolari modificati - Motore con 2 distributori
                                                                                      from £1,389.53
                                                                                      from £1,389.53
                                                                                      # 047
                                                                                      MPN: 107994
                                                                                      RH INTAKE CAMSHAFT
                                                                                      # 047
                                                                                      MPN: 108892
                                                                                      RH INTAKE CAMSHAFT
                                                                                      # 048
                                                                                      MPN: 105988
                                                                                      BEARING CAP FRONT
                                                                                      from £59.13
                                                                                      from £59.13
                                                                                      # 049
                                                                                      MPN: 105989
                                                                                      BEARING CAP FRONT
                                                                                      # 050
                                                                                      MPN: 106836
                                                                                      BEARING CAP INTERMEDIATE
                                                                                      from £5.80
                                                                                      from £5.80
                                                                                      # 051
                                                                                      MPN: 106837
                                                                                      MIDDLE CAM CAP
                                                                                      from £8.97
                                                                                      from £8.97
                                                                                      # 052
                                                                                      MPN: 106838
                                                                                      REAR CAM CAP
                                                                                      from £57.09
                                                                                      from £57.09
                                                                                      # 053
                                                                                      MPN: 106839
                                                                                      REAR CAM CAP
                                                                                      # 054
                                                                                      MPN: 103936
                                                                                      OIL CAP
                                                                                      from £45.00
                                                                                      from £45.00
                                                                                      # 055
                                                                                      MPN: 108889
                                                                                      RH COVER
                                                                                      from £134.37
                                                                                      from £134.37
                                                                                      # 056
                                                                                      MPN: 147642
                                                                                      GASKET
                                                                                      from £3.94
                                                                                      from £3.94
                                                                                      This part replaces part number 103815
                                                                                      # 057
                                                                                      MPN: 16043611
                                                                                      SCREW
                                                                                      Particolari modificati - Solo per motori
                                                                                      # 058
                                                                                      MPN: 13517011
                                                                                      THREADED STUD
                                                                                      Particolari modificati - Con 1
                                                                                      from £0.48
                                                                                      from £0.48
                                                                                      # 059
                                                                                      MPN: 12601371
                                                                                      WASHER
                                                                                      Particolari modificati - Distributore
                                                                                      Supersession
                                                                                      Supersession
