ferrari 308 gt4 dino (1976) flywheel and clutch housing spacer parts diagram

004 - flywheel and clutch housing spacer

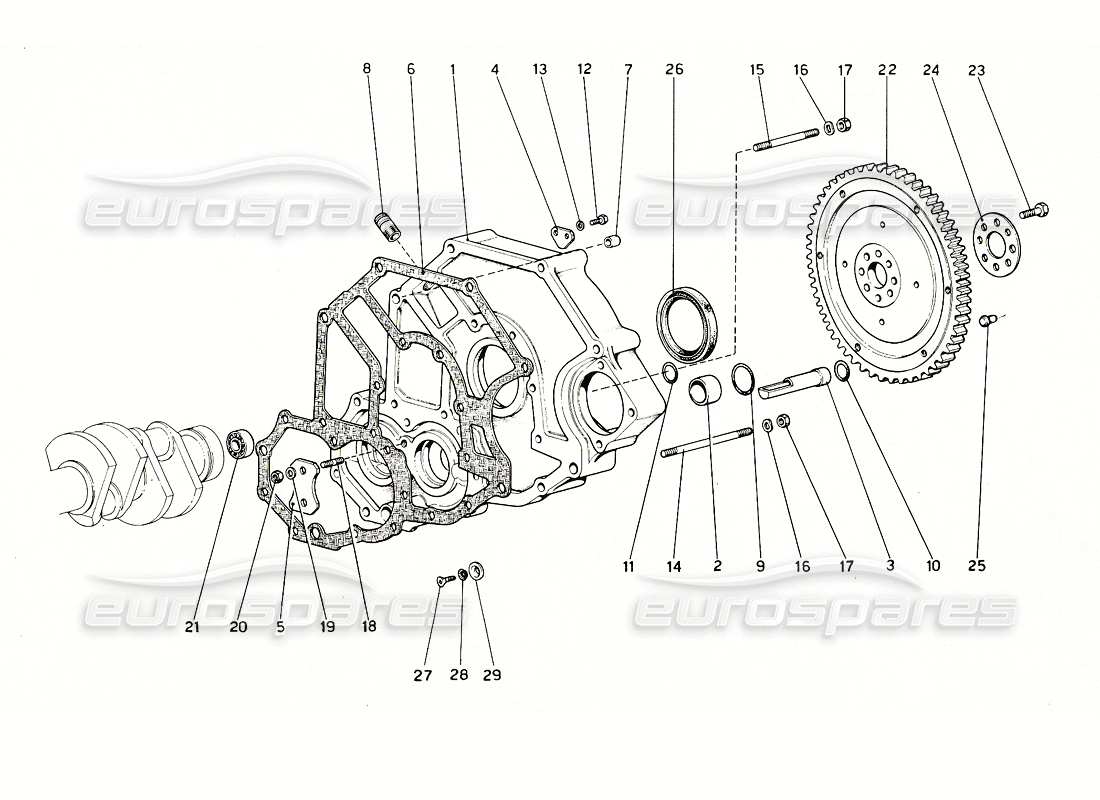

Ferrari 308 GT4 Dino (1976) Flywheel and clutch housing spacer Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 103860
                                        CORPO INTERMEDIO
                                        Particolari modificati - Vale fino ad esaurirnento
                                        # 001
                                        MPN: 107860
                                        CORPO INTERMEDIO
                                        Particolari modificati - Dopo esaurirnento N. 103860 e fino N.10090
                                        # 001
                                        MPN: 109117
                                        FLYWHEEL HOUSING
                                        from £495.31
                                        from £495.31
                                        This part replaces part number 107997 - and 2 more. Click to view details
                                        # 002
                                        MPN: 104032
                                        BUSH
                                        Particolari modificati - Vale fino N. 10090
                                        from £16.31
                                        from £16.31
                                        # 002
                                        MPN: 106418
                                        BUSH
                                        from £65.48
                                        from £65.48
                                        # 003
                                        MPN: 104035
                                        OIL TRANSFER TUBE
                                        from £33.04
                                        from £33.04
                                        # 004
                                        MPN: 104034
                                        PLATE
                                        Supersession
                                        Supersession
                                        # 005
                                        MPN: 104200
                                        PLATE
                                        Particolari modificati - Vale fino N. 10090
                                        from £19.61
                                        from £19.61
                                        This part replaces part number 523979
                                        # 006
                                        MPN: 147677
                                        GASKET
                                        from £51.79
                                        from £51.79
                                        This part replaces part number 104202
                                        # 007
                                        MPN: 102692
                                        DOWEL
                                        from £4.94
                                        from £4.94
                                        # 008
                                        MPN: 102705
                                        UNION
                                        from £79.26
                                        from £79.26
                                        # 009
                                        MPN: 103021
                                        ANETLO DI TENUTA
                                        from £0.76
                                        from £0.76
                                        # 010
                                        MPN: 103775
                                        SEALING RING
                                        from £1.63
                                        from £1.63
                                        # 011
                                        MPN: 104214
                                        SEALING RING
                                        from £2.35
                                        from £2.35
                                        # 012
                                        MPN: 10977621
                                        SCREW
                                        from £1.07
                                        from £1.07
                                        # 013
                                        MPN: 11195473
                                        WASHER
                                        Supersession
                                        Supersession
                                        # 014
                                        MPN: 104217
                                        LONG THREADED STUD
                                        from £15.39
                                        from £15.39
                                        # 015
                                        MPN: 13518521
                                        SHORT THREADED STUD
                                        # 016
                                        MPN: 11198074
                                        WASHER
                                        from £0.47
                                        from £0.47
                                        This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                        # 017
                                        MPN: 16100824
                                        NUT
                                        from £0.53
                                        from £0.53
                                        This part replaces part number 16100814 - and 1 more. Click to view details
                                        # 018
                                        MPN: 11500121
                                        THREADED STUD
                                        Particolari modificati - Vale fino N. 10090
                                        Supersession
                                        Supersession
                                        This part replaces part number 13540820
                                        # 019
                                        MPN: 10516471
                                        WASHER
                                        Particolari modificati - Vale fino N. 10090
                                        Supersession
                                        Supersession
                                        # 020
                                        MPN: 15896211
                                        NUT
                                        Particolari modificati - Vale fino N. 10090
                                        Supersession
                                        Supersession
                                        This part replaces part number 15896210
                                        # 021
                                        MPN: 103877
                                        PILOT BEARING
                                        from £15.20
                                        from £15.20
                                        This part replaces part number 24940440

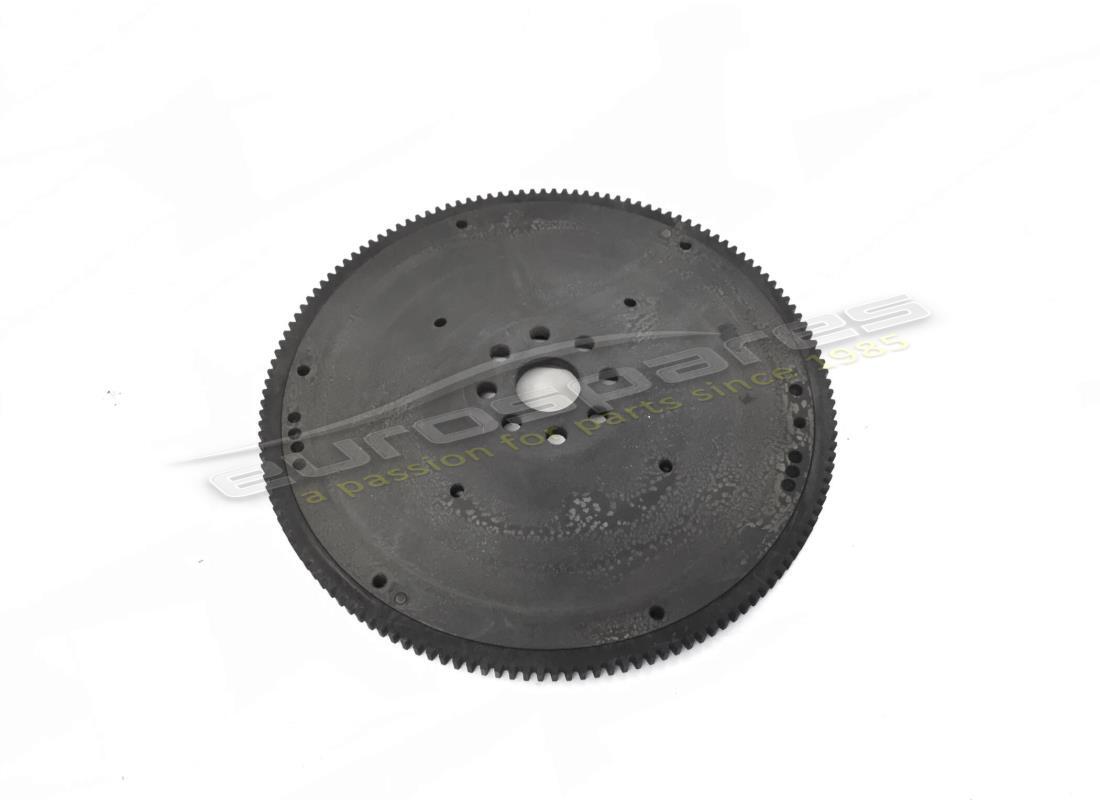

                                        # 022
                                        MPN: 103858
                                        VOLANO MOTORE
                                        Particolari modificati - Motore a 2 distributori
                                        from £1,044.75
                                        from £1,044.75
                                        # 022
                                        MPN: 108248
                                        FLYWHEEL
                                        Valid for AUS & USA

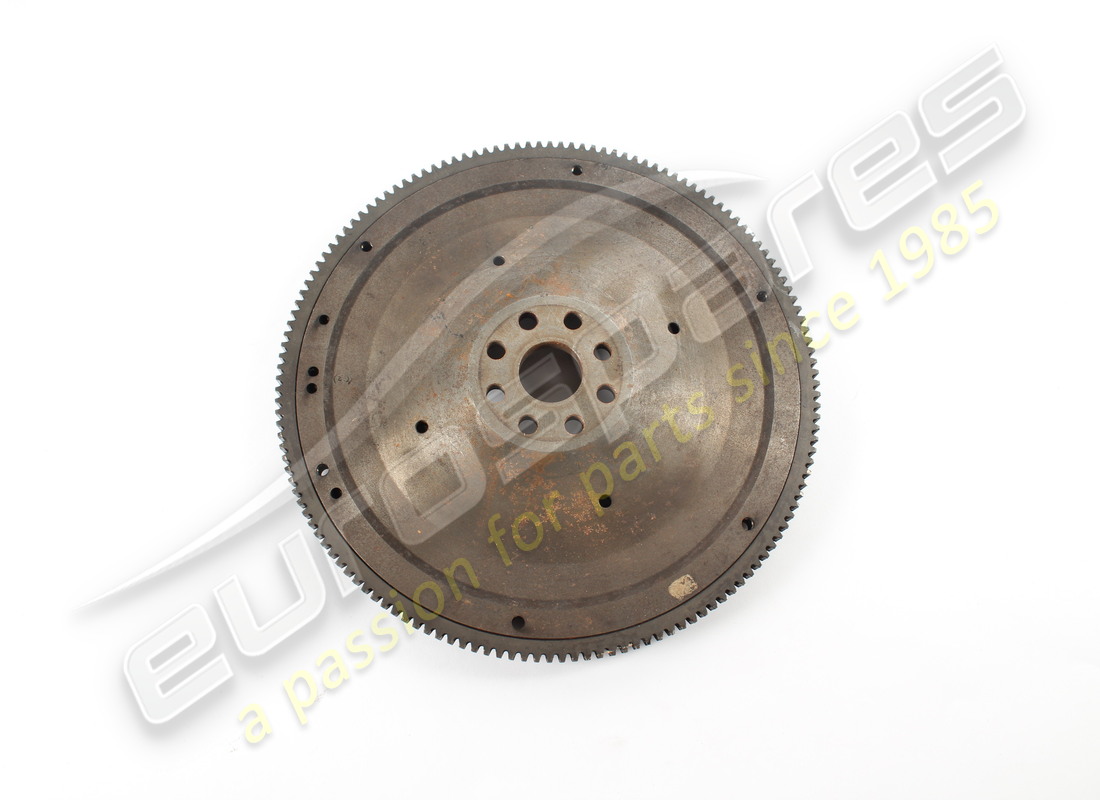

                                        # 022
                                        MPN: 108890
                                        FLYWHEEL
                                        Not valid for AUS & USA
                                        from £1,140.50
                                        from £1,140.50
                                        This part replaces part number 111971 which we have in stock - and 1 more. Click to view details
                                        # 023
                                        MPN: 201755
                                        BOLT
                                        from £1.16
                                        from £1.16
                                        This part replaces part number 103875
                                        # 024
                                        MPN: 103876
                                        WASHER
                                        from £2.75
                                        from £2.75
                                        This part replaces part number 12833 - and 1 more. Click to view details
                                        # 025
                                        MPN: 101535
                                        DOWEL
                                        from £22.69
                                        from £22.69
                                        This part replaces part number 94892 - and 1 more. Click to view details
                                        # 026
                                        MPN: 200323
                                        REAR MAIN OIL SEAL
                                        from £20.59
                                        from £20.59
                                        This part replaces part number 163989 - and 1 more. Click to view details
                                        # 027
                                        MPN: 108040
                                        SCREW
                                        Particolari modificati - Vale dal N. 10092
                                        Supersession
                                        Supersession
                                        # 028
                                        MPN: 108041
                                        WASHER
                                        Particolari modificati - Vale dal N. 10092
                                        from £0.49
                                        from £0.49
                                        # 029
                                        MPN: 108039
                                        WASHER
                                        Particolari modificati - Vale dal N. 10092
                                        from £2.99
                                        from £2.99
                                        # 030
                                        MPN: 107872
                                        CORPO INTERMEDIO COMPLETO
                                        Particolari modificati - Vale fino N. 10090
                                        from £1,198.55
                                        from £1,198.55
                                        This part replaces part number 107680
