ferrari 308 (1981) gtbi/gtsi fuel injection system - fuel distributors, lines parts diagram

010 - fuel injection system - fuel distributors, lines

Ferrari 308 (1981) GTBi/GTSi Fuel Injection System - Fuel Distributors, Lines Parts Diagram

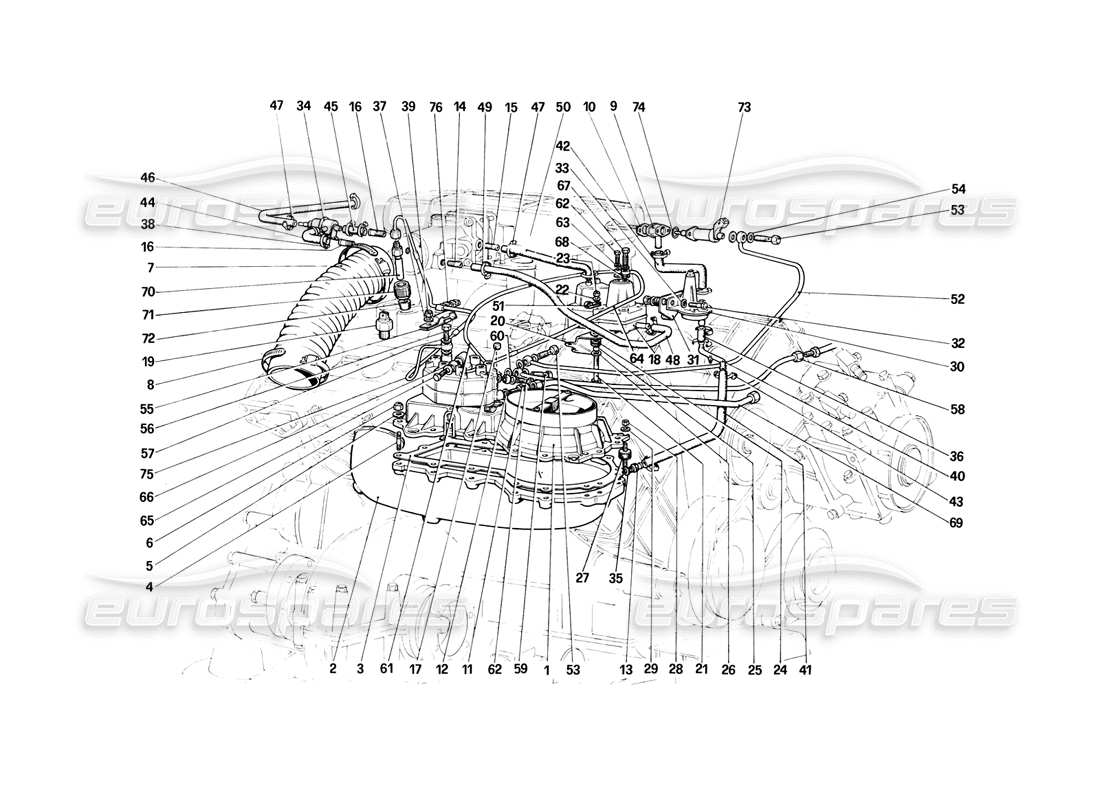

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                      #
                                                                                                                                                      Part number
                                                                                                                                                      Description
                                                                                                                                                      Price
                                                                                                                                                      # 001
                                                                                                                                                      MPN: 70000650
                                                                                                                                                      DOSATORE
                                                                                                                                                      from £1,934.34
                                                                                                                                                      from £1,934.34
                                                                                                                                                      This part replaces part number 115329 - and 3 more. Click to view details
                                                                                                                                                      # 002
                                                                                                                                                      MPN: 116588
                                                                                                                                                      SUPPORT
                                                                                                                                                      Col complessivo n. 117356
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 002
                                                                                                                                                      MPN: 117356
                                                                                                                                                      SUPPORT
                                                                                                                                                      from £342.60
                                                                                                                                                      from £342.60
                                                                                                                                                      This part replaces part number 116588
                                                                                                                                                      # 003
                                                                                                                                                      MPN: 135096
                                                                                                                                                      GASKET
                                                                                                                                                      from £22.42
                                                                                                                                                      from £22.42
                                                                                                                                                      This part replaces part number 115011 - and 1 more. Click to view details
                                                                                                                                                      # 004
                                                                                                                                                      MPN: 13541124
                                                                                                                                                      THREADED STUD
                                                                                                                                                      from £11.33
                                                                                                                                                      from £11.33
                                                                                                                                                      This part replaces part number 13541121
                                                                                                                                                      # 005
                                                                                                                                                      MPN: 12601271
                                                                                                                                                      WASHER
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                                                                      # 006
                                                                                                                                                      MPN: 12574221
                                                                                                                                                      NUT
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
                                                                                                                                                      # 007
                                                                                                                                                      MPN: 114850
                                                                                                                                                      TUBO DAL SUPPORTO AL CORPO FARFALLA
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 008
                                                                                                                                                      MPN: 12174990
                                                                                                                                                      JUBILEE CLIP
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 009
                                                                                                                                                      MPN: 115004
                                                                                                                                                      UNION
                                                                                                                                                      from £2.88
                                                                                                                                                      from £2.88
                                                                                                                                                      # 010
                                                                                                                                                      MPN: 147720
                                                                                                                                                      GASKET
                                                                                                                                                      from £2.04
                                                                                                                                                      from £2.04
                                                                                                                                                      This part replaces part number 115005 which we have in stock - and 2 more. Click to view details
                                                                                                                                                      # 011
                                                                                                                                                      MPN: 115498
                                                                                                                                                      UNION
                                                                                                                                                      from £189.93
                                                                                                                                                      from £189.93
                                                                                                                                                      # 012
                                                                                                                                                      MPN: 11270160
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.91
                                                                                                                                                      from £0.91
                                                                                                                                                      # 013
                                                                                                                                                      MPN: 116860
                                                                                                                                                      UNION
                                                                                                                                                      from £19.56
                                                                                                                                                      from £19.56
                                                                                                                                                      # 014
                                                                                                                                                      MPN: 113637
                                                                                                                                                      UNION
                                                                                                                                                      from £5.79
                                                                                                                                                      from £5.79
                                                                                                                                                      # 015
                                                                                                                                                      MPN: 113652
                                                                                                                                                      UNION
                                                                                                                                                      from £2.90
                                                                                                                                                      from £2.90
                                                                                                                                                      # 016
                                                                                                                                                      MPN: 112030
                                                                                                                                                      UNION
                                                                                                                                                      from £6.55
                                                                                                                                                      from £6.55
                                                                                                                                                      # 017
                                                                                                                                                      MPN: 115650
                                                                                                                                                      CAPPUCCIO INVIOLABILITA
                                                                                                                                                      from £4.75
                                                                                                                                                      from £4.75
                                                                                                                                                      # 018
                                                                                                                                                      MPN: 113973
                                                                                                                                                      REGOLATORE FASE RISCALDAMENTO
                                                                                                                                                      from £1,368.52
                                                                                                                                                      from £1,368.52
                                                                                                                                                      # 019
                                                                                                                                                      MPN: 113980
                                                                                                                                                      INTERRUTTORE TERMICO A TEMPO
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 020
                                                                                                                                                      MPN: 115731
                                                                                                                                                      SUPPORT
                                                                                                                                                      from £13.03
                                                                                                                                                      from £13.03
                                                                                                                                                      # 021
                                                                                                                                                      MPN: 10903821
                                                                                                                                                      SCREW
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 022
                                                                                                                                                      MPN: 12604274
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 12604271 - and 1 more. Click to view details
                                                                                                                                                      # 023
                                                                                                                                                      MPN: 12574221
                                                                                                                                                      NUT
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
                                                                                                                                                      # 024
                                                                                                                                                      MPN: 103549
                                                                                                                                                      RUBBER BUSH
                                                                                                                                                      from £0.68
                                                                                                                                                      from £0.68
                                                                                                                                                      # 025
                                                                                                                                                      MPN: 103550
                                                                                                                                                      SPACER
                                                                                                                                                      from £1.86
                                                                                                                                                      from £1.86
                                                                                                                                                      This part replaces part number 4130913
                                                                                                                                                      # 026
                                                                                                                                                      MPN: 12643721
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.92
                                                                                                                                                      from £0.92
                                                                                                                                                      # 027
                                                                                                                                                      MPN: 102947
                                                                                                                                                      SUPPORT
                                                                                                                                                      from £6.17
                                                                                                                                                      from £6.17
                                                                                                                                                      This part replaces part number 102007 - and 14 more. Click to view details
                                                                                                                                                      # 029
                                                                                                                                                      MPN: 12601271
                                                                                                                                                      WASHER
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                                                                      # 029
                                                                                                                                                      MPN: 12640624
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 12640601 - and 1 more. Click to view details
                                                                                                                                                      # 030
                                                                                                                                                      MPN: 115223
                                                                                                                                                      VALVOLA ARIA SUPPLEMENTARE
                                                                                                                                                      from £682.13
                                                                                                                                                      from £682.13
                                                                                                                                                      # 031
                                                                                                                                                      MPN: 115224
                                                                                                                                                      SUPPORT
                                                                                                                                                      from £7.75
                                                                                                                                                      from £7.75
                                                                                                                                                      # 032
                                                                                                                                                      MPN: 10902621
                                                                                                                                                      SCREW
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      This part replaces part number 10902611
                                                                                                                                                      # 033
                                                                                                                                                      MPN: 12601271
                                                                                                                                                      WASHER
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                                                                      # 034
                                                                                                                                                      MPN: 115741
                                                                                                                                                      VALVOLA PER BY - PASS
                                                                                                                                                      from £425.35
                                                                                                                                                      from £425.35
                                                                                                                                                      # 035
                                                                                                                                                      MPN: 10280060
                                                                                                                                                      GASKET
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 100501 - and 3 more. Click to view details
                                                                                                                                                      # 036
                                                                                                                                                      MPN: 125771
                                                                                                                                                      PIPE / TUBE / HOSE
                                                                                                                                                      from £18.38
                                                                                                                                                      from £18.38
                                                                                                                                                      This part replaces part number 115407 which we have in stock
                                                                                                                                                      # 037
                                                                                                                                                      MPN: 11197774
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.54
                                                                                                                                                      from £0.54
                                                                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                                                                      # 038
                                                                                                                                                      MPN: 13000390
                                                                                                                                                      JUBILEE CLIP
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                                                                                      # 040
                                                                                                                                                      MPN: 116307
                                                                                                                                                      PIPE / TUBE / HOSE
                                                                                                                                                      from £86.31
                                                                                                                                                      from £86.31
                                                                                                                                                      # 041
                                                                                                                                                      MPN: 116306
                                                                                                                                                      PIPE / TUBE / HOSE
                                                                                                                                                      from £10.95
                                                                                                                                                      from £10.95
                                                                                                                                                      This part replaces part number 123717
                                                                                                                                                      # 042
                                                                                                                                                      MPN: 115226
                                                                                                                                                      PIPE / TUBE / HOSE
                                                                                                                                                      from £42.50
                                                                                                                                                      from £42.50
                                                                                                                                                      # 043
                                                                                                                                                      MPN: 13000390
                                                                                                                                                      JUBILEE CLIP
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                                                                                      # 044
                                                                                                                                                      MPN: 115230
                                                                                                                                                      PIPE / TUBE / HOSE
                                                                                                                                                      from £15.93
                                                                                                                                                      from £15.93
                                                                                                                                                      # 045
                                                                                                                                                      MPN: 115227
                                                                                                                                                      PIPE / TUBE / HOSE
                                                                                                                                                      from £13.18
                                                                                                                                                      from £13.18
                                                                                                                                                      # 046
                                                                                                                                                      MPN: 115412
                                                                                                                                                      PIPE / TUBE / HOSE
                                                                                                                                                      from £1.33
                                                                                                                                                      from £1.33
                                                                                                                                                      This part replaces part number 169456
                                                                                                                                                      # 047
                                                                                                                                                      MPN: 102721
                                                                                                                                                      JUBILEE CLIP
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 048
                                                                                                                                                      MPN: 115228
                                                                                                                                                      PIPE / TUBE / HOSE
                                                                                                                                                      from £13.39
                                                                                                                                                      from £13.39
                                                                                                                                                      # 049
                                                                                                                                                      MPN: 102604
                                                                                                                                                      JUBILEE CLIP
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 050
                                                                                                                                                      MPN: 115676
                                                                                                                                                      PIPE / TUBE / HOSE
                                                                                                                                                      from £8.46
                                                                                                                                                      from £8.46
                                                                                                                                                      This part replaces part number 115229
                                                                                                                                                      # 051
                                                                                                                                                      MPN: 10418300
                                                                                                                                                      FASCETTA SOSTEGNO TUBO
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 052
                                                                                                                                                      MPN: 115735
                                                                                                                                                      TUBO DOSATORE - INIETTORE AVVIAMENTO
                                                                                                                                                      from £186.27
                                                                                                                                                      from £186.27
                                                                                                                                                      # 053
                                                                                                                                                      MPN: 113664
                                                                                                                                                      UNION
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 054
                                                                                                                                                      MPN: 14330260
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 055
                                                                                                                                                      MPN: 115417
                                                                                                                                                      BRACKET / SUPPORT
                                                                                                                                                      from £2.66
                                                                                                                                                      from £2.66
                                                                                                                                                      # 056
                                                                                                                                                      MPN: 113670
                                                                                                                                                      UNION
                                                                                                                                                      from £17.22
                                                                                                                                                      from £17.22
                                                                                                                                                      This part replaces part number 113664 which we have in stock - and 7 more. Click to view details
                                                                                                                                                      # 057
                                                                                                                                                      MPN: 10260160
                                                                                                                                                      GASKET
                                                                                                                                                      from £0.48
                                                                                                                                                      from £0.48
                                                                                                                                                      This part replaces part number 10260170
                                                                                                                                                      # 058
                                                                                                                                                      MPN: 115207
                                                                                                                                                      TUBO RIFLUSSO
                                                                                                                                                      # 059
                                                                                                                                                      MPN: 111644
                                                                                                                                                      BANJO BOLT
                                                                                                                                                      from £6.38
                                                                                                                                                      from £6.38
                                                                                                                                                      # 060
                                                                                                                                                      MPN: 11270160
                                                                                                                                                      GASKET
                                                                                                                                                      from £0.90
                                                                                                                                                      from £0.90
                                                                                                                                                      # 061
                                                                                                                                                      MPN: 115505
                                                                                                                                                      TUBO RIFLUSSO DAL REGOLATORE
                                                                                                                                                      from £195.97
                                                                                                                                                      from £195.97
                                                                                                                                                      # 062
                                                                                                                                                      MPN: 113664
                                                                                                                                                      UNION
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 063
                                                                                                                                                      MPN: 14330260
                                                                                                                                                      GASKET
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 064
                                                                                                                                                      MPN: 115507
                                                                                                                                                      TUBO MANDATA DAL REGOLATORE
                                                                                                                                                      from £84.94
                                                                                                                                                      from £84.94
                                                                                                                                                      # 065
                                                                                                                                                      MPN: 113664
                                                                                                                                                      UNION
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 066
                                                                                                                                                      MPN: 14330260
                                                                                                                                                      GASKET
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 067
                                                                                                                                                      MPN: 113670
                                                                                                                                                      UNION
                                                                                                                                                      from £17.22
                                                                                                                                                      from £17.22
                                                                                                                                                      This part replaces part number 113664 which we have in stock - and 7 more. Click to view details
                                                                                                                                                      # 068
                                                                                                                                                      MPN: 10260160
                                                                                                                                                      GASKET
                                                                                                                                                      from £0.53
                                                                                                                                                      from £0.53
                                                                                                                                                      This part replaces part number 10260170
                                                                                                                                                      # 069
                                                                                                                                                      MPN: 115205
                                                                                                                                                      TUBO ARRIVE CARBURANTE
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 070
                                                                                                                                                      MPN: 113975
                                                                                                                                                      INIETTORE
                                                                                                                                                      from £62.13
                                                                                                                                                      from £62.13
                                                                                                                                                      This part replaces part number 113975/OE - and 3 more. Click to view details
                                                                                                                                                      # 071
                                                                                                                                                      MPN: 114660
                                                                                                                                                      CENTERING DOWEL
                                                                                                                                                      from £59.28
                                                                                                                                                      from £59.28
                                                                                                                                                      # 072
                                                                                                                                                      MPN: 114661
                                                                                                                                                      RUBBER GROMMET
                                                                                                                                                      from £13.37
                                                                                                                                                      from £13.37
                                                                                                                                                      # 073
                                                                                                                                                      MPN: 115739
                                                                                                                                                      COLD STARTER
                                                                                                                                                      from £392.75
                                                                                                                                                      from £392.75
                                                                                                                                                      # 074
                                                                                                                                                      MPN: 103039
                                                                                                                                                      OIL SEAL
                                                                                                                                                      (minimum order quantity = 10)
                                                                                                                                                      from £1.62
                                                                                                                                                      from £1.62
                                                                                                                                                      This part replaces part number 95860041

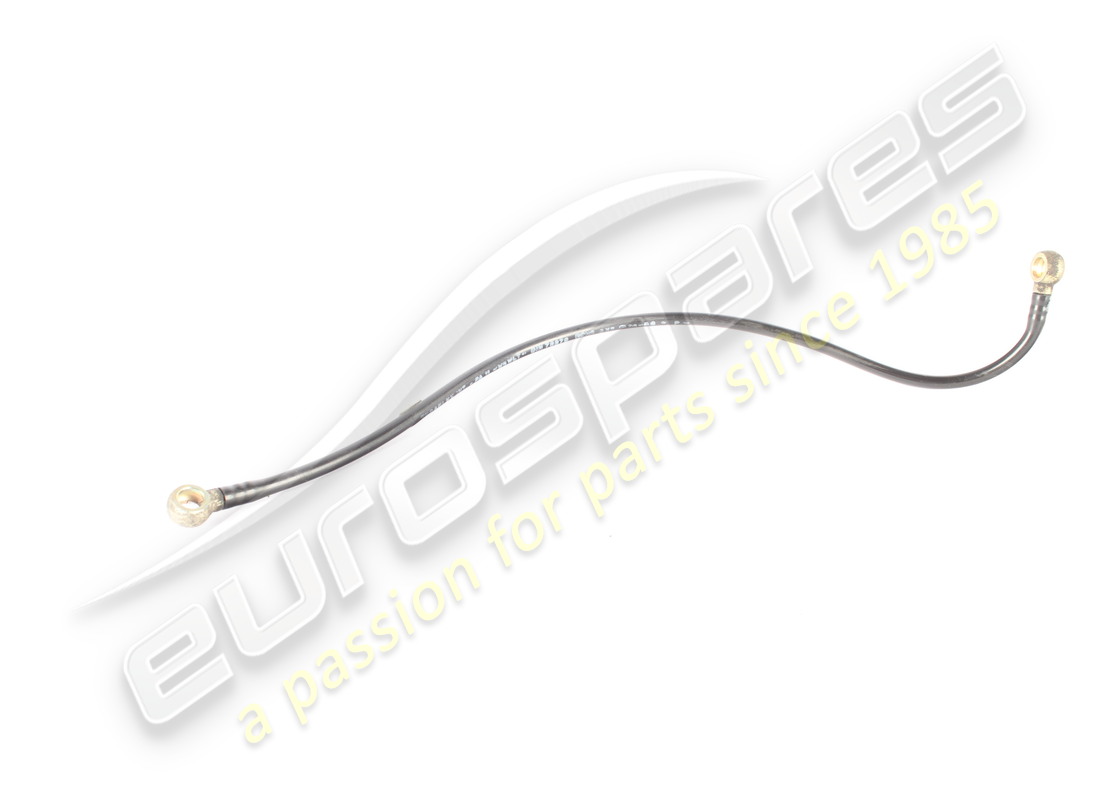

                                                                                                                                                      # 075
                                                                                                                                                      MPN: 115320
                                                                                                                                                      TUBO DAL DOSATORE AL CILINDRO N. 1
                                                                                                                                                      from £65.09
                                                                                                                                                      from £65.09
                                                                                                                                                      # 075
                                                                                                                                                      MPN: 115321
                                                                                                                                                      TUBO DAL DOSATORE AL CILINDRO N. 2
                                                                                                                                                      from £60.38
                                                                                                                                                      from £60.38
                                                                                                                                                      # 075
                                                                                                                                                      MPN: 115322
                                                                                                                                                      TUBO DAL DOSATORE AL CILINDRO N. 3
                                                                                                                                                      from £214.38
                                                                                                                                                      from £214.38
                                                                                                                                                      # 075
                                                                                                                                                      MPN: 115323
                                                                                                                                                      TUBO DAL DOSATORE AL CILINDRO N. 4
                                                                                                                                                      from £58.35
                                                                                                                                                      from £58.35
                                                                                                                                                      # 075
                                                                                                                                                      MPN: 115324
                                                                                                                                                      TUBO DAL DOSATORE AL CILINDRO N. 5
                                                                                                                                                      from £82.14
                                                                                                                                                      from £82.14
                                                                                                                                                      # 075
                                                                                                                                                      MPN: 115325
                                                                                                                                                      TUBO DAL DOSATORE AL CILINDRO N. 6
                                                                                                                                                      # 075
                                                                                                                                                      MPN: 115326
                                                                                                                                                      TUBO DAL DOSATORE AL CILINDRO N. 7
                                                                                                                                                      from £70.73
                                                                                                                                                      from £70.73
                                                                                                                                                      # 075
                                                                                                                                                      MPN: 115327
                                                                                                                                                      TUBO DAL DOSATORE AL CILINDRO N. 8
                                                                                                                                                      from £58.81
                                                                                                                                                      from £58.81
                                                                                                                                                      # 076
                                                                                                                                                      MPN: 113896
                                                                                                                                                      MORSETTO SOSTEGNO (3 Tubi)
                                                                                                                                                      from £3.83
                                                                                                                                                      from £3.83
                                                                                                                                                      This part replaces part number 117279
                                                                                                                                                      # 076
                                                                                                                                                      MPN: 115595
                                                                                                                                                      MORSETTO SOSTEGNO (4 Tubi)
                                                                                                                                                      from £4.65
                                                                                                                                                      from £4.65
                                                                                                                                                      # 076
                                                                                                                                                      MPN: 115595
                                                                                                                                                      MORSETTO SOSTEGNO (4 Tubi)
                                                                                                                                                      from £4.65
                                                                                                                                                      from £4.65
                                                                                                                                                      # 076
                                                                                                                                                      MPN: 117279
                                                                                                                                                      MORSETTO SOSTEGNO
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
