ferrari 308 (1981) gtbi/gtsi timing system - tappets parts diagram

007 - timing system - tappets

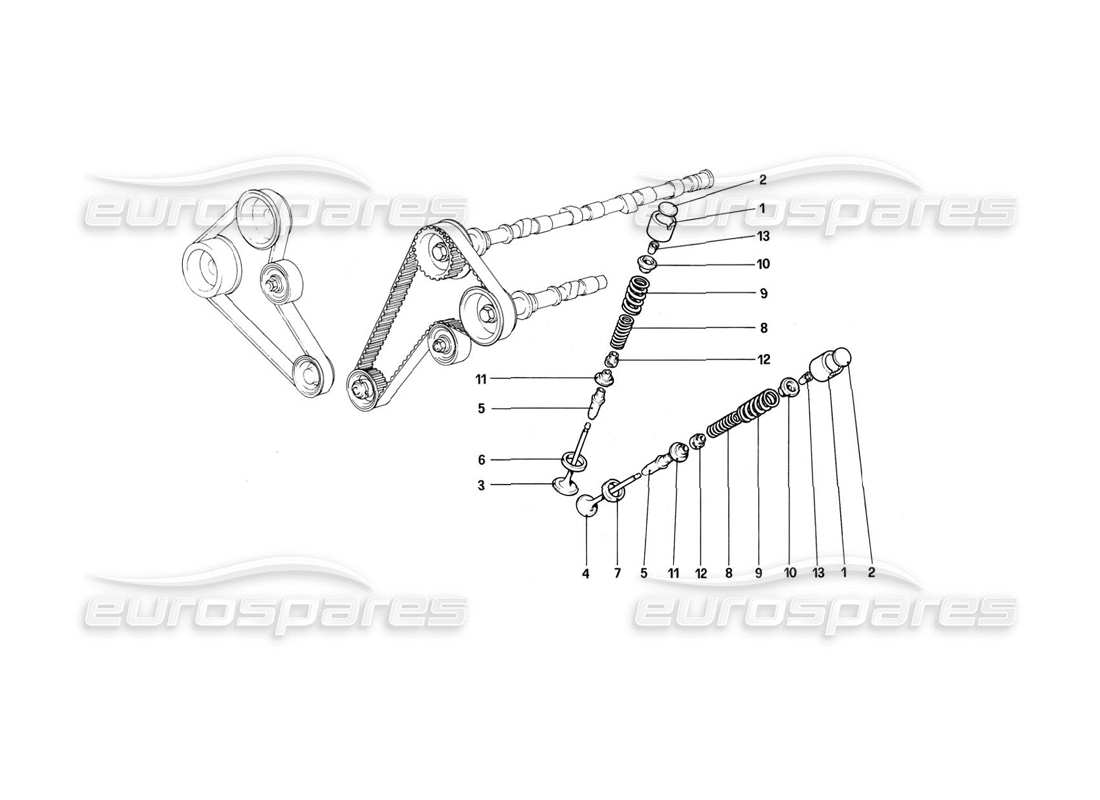

Ferrari 308 (1981) GTBi/GTSi Timing System - Tappets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 100232
                            TAPPET BUCKET
                            from £37.17
                            from £37.17
                            # 002
                            MPN: 102833
                            TAPPET PAD 3.50MM
                            from £8.95
                            from £8.95
                            This part replaces part number 108677 - and 1 more. Click to view details
                            # 002
                            MPN: 102834
                            TAPPET PAD 3.55MM
                            from £9.25
                            from £9.25
                            This part replaces part number 108678 - and 1 more. Click to view details
                            # 002
                            MPN: 102835
                            TAPPET PAD 3.60MM
                            from £7.69
                            from £7.69
                            This part replaces part number 108679 - and 1 more. Click to view details
                            # 002
                            MPN: 102836
                            TAPPET PAD 3.65MM
                            from £12.53
                            from £12.53
                            This part replaces part number 108680
                            # 002
                            MPN: 102837
                            TAPPET PAD 3.70MM
                            from £7.82
                            from £7.82
                            This part replaces part number 108681 - and 1 more. Click to view details
                            # 002
                            MPN: 102838
                            TAPPET PAD 3.75MM
                            from £7.69
                            from £7.69
                            This part replaces part number 108682 - and 1 more. Click to view details
                            # 002
                            MPN: 102839
                            TAPPET PAD 3.80MM
                            from £7.69
                            from £7.69
                            This part replaces part number 108683 - and 1 more. Click to view details
                            # 002
                            MPN: 102840
                            TAPPET PAD 3.85MM
                            from £8.35
                            from £8.35
                            This part replaces part number 108684 - and 1 more. Click to view details
                            # 002
                            MPN: 102841
                            TAPPET PAD 3.90MM
                            Supersession
                            Supersession
                            This part replaces part number 108685 - and 1 more. Click to view details
                            # 002
                            MPN: 102842
                            IDEM SPESSORE MM. 4,25
                            from £7.82
                            from £7.82
                            This part replaces part number 108692 - and 1 more. Click to view details
                            # 002
                            MPN: 102843
                            TAPPET PAD 4.00MM
                            from £9.25
                            from £9.25
                            This part replaces part number 108687 - and 2 more. Click to view details
                            # 002
                            MPN: 102844
                            TAPPET PAD 4.05MM
                            from £4.92
                            from £4.92
                            This part replaces part number 108688 - and 3 more. Click to view details
                            # 002
                            MPN: 102845
                            TAPPET PAD 4.10MM
                            from £8.08
                            from £8.08
                            This part replaces part number 108689 - and 1 more. Click to view details
                            # 002
                            MPN: 102846
                            TAPPET PAD 4.15MM
                            from £5.25
                            from £5.25
                            This part replaces part number 108690 - and 1 more. Click to view details
                            # 002
                            MPN: 102847
                            TAPPET PAD 4.20MM
                            from £4.44
                            from £4.44
                            This part replaces part number 108691 - and 3 more. Click to view details
                            # 002
                            MPN: 102848
                            TAPPET PAD 3.95MM
                            from £5.09
                            from £5.09
                            This part replaces part number 108686 - and 3 more. Click to view details
                            # 002
                            MPN: 102849
                            TAPPET PAD 4.30MM
                            from £9.16
                            from £9.16
                            This part replaces part number 108693 - and 1 more. Click to view details
                            # 002
                            MPN: 102850
                            TAPPET PAD 4.35MM
                            from £5.20
                            from £5.20
                            This part replaces part number 108694 - and 1 more. Click to view details
                            # 002
                            MPN: 102851
                            TAPPET PAD 4.40MM
                            from £8.96
                            from £8.96
                            This part replaces part number 108695 - and 1 more. Click to view details
                            # 002
                            MPN: 102852
                            TAPPET PAD 4.45MM
                            Supersession
                            Supersession
                            This part replaces part number 108696 - and 1 more. Click to view details
                            # 002
                            MPN: 102853
                            TAPPET PAD 4.50MM
                            from £8.08
                            from £8.08
                            This part replaces part number 108697 - and 1 more. Click to view details
                            # 002
                            MPN: 102854
                            TAPPET PAD 4.55MM
                            from £8.96
                            from £8.96
                            This part replaces part number 108698
                            # 002
                            MPN: 104347
                            TAPPET PAD 4.60MM
                            Supersession
                            Supersession
                            This part replaces part number 108699 - and 1 more. Click to view details
                            # 002
                            MPN: 108667
                            IDEM SPESSORE MM. 3,25
                            from £7.60
                            from £7.60
                            This part replaces part number 108672 - and 1 more. Click to view details
                            # 002
                            MPN: 108668
                            TAPPET PAD 3.30MM
                            Supersession
                            Supersession
                            This part replaces part number 108673
                            # 002
                            MPN: 108669
                            TAPPET PAD 3.35MM
                            Supersession
                            Supersession
                            This part replaces part number 108674
                            # 002
                            MPN: 108671
                            TAPPET PAD 3.45MM
                            from £7.82
                            from £7.82
                            This part replaces part number 108676
                            # 002
                            MPN: 116100
                            IDEM SPESSORE MM. 3,67
                            from £6.93
                            from £6.93
                            This part replaces part number 4181790
                            # 002
                            MPN: 116101
                            IDEM SPESSORE MM. 3,72
                            from £2.94
                            from £2.94
                            This part replaces part number 4181791
                            # 002
                            MPN: 116102
                            IDEM SPESSORE MM. 3,77
                            from £6.93
                            from £6.93
                            # 002
                            MPN: 116103
                            IDEM SPESSORE MM. 3,82
                            from £7.52
                            from £7.52
                            This part replaces part number 4181793
                            # 002
                            MPN: 116104
                            IDEM SPESSORE MM. 3,87
                            from £7.78
                            from £7.78
                            This part replaces part number 4181794
                            # 002
                            MPN: 116105
                            IDEM SPESSORE MM. 3,92
                            from £7.40
                            from £7.40
                            This part replaces part number 102841 - and 1 more. Click to view details
                            # 002
                            MPN: 116106
                            IDEM SPESSORE MM. 3,97
                            from £6.93
                            from £6.93
                            This part replaces part number 4181796
                            # 002
                            MPN: 116107
                            IDEM SPESSORE MM. 4,02
                            from £8.14
                            from £8.14
                            This part replaces part number 4181797
                            # 002
                            MPN: 116108
                            IDEM SPESSORE MM. 4,07
                            from £6.93
                            from £6.93
                            This part replaces part number 4181798
                            # 002
                            MPN: 116109
                            IDEM SPESSORE MM. 4,12
                            from £6.93
                            from £6.93
                            This part replaces part number 4181799
                            # 002
                            MPN: 116110
                            IDEM SPESSORE MM. 4,17
                            from £8.14
                            from £8.14
                            This part replaces part number 4181800
                            # 002
                            MPN: 4204144
                            TAPPET PAD 3.40MM
                            from £6.65
                            from £6.65
                            This part replaces part number 108670
                            # 003
                            MPN: 103575

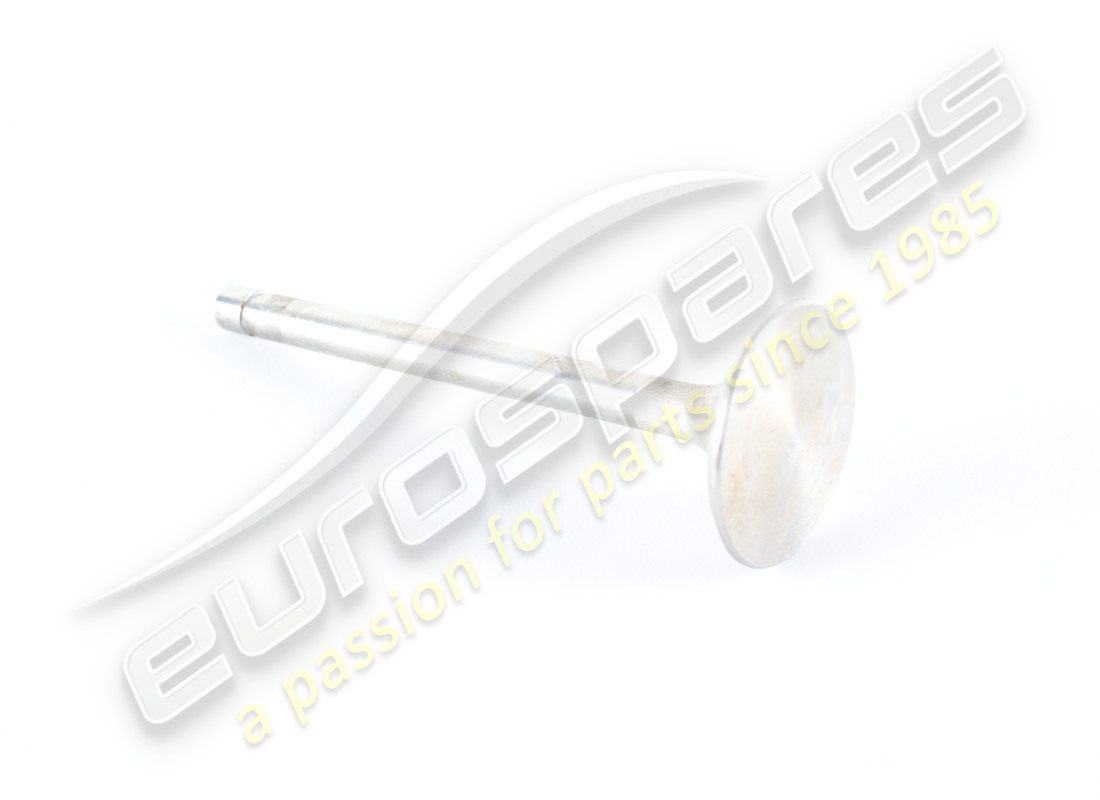

                            INLET VALVES
                            from £22.73
                            from £22.73
                            # 004
                            MPN: 106553

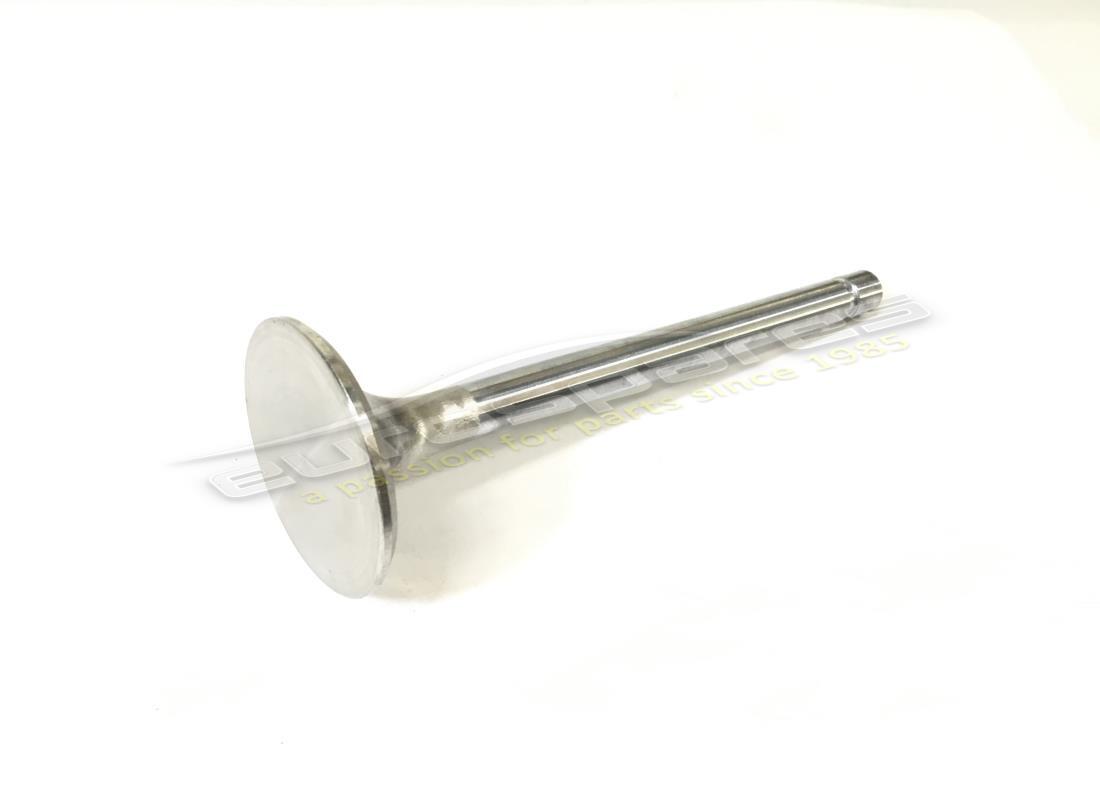

                            EXHAUST VALVE
                            from £44.63
                            from £44.63
                            # 005
                            MPN: 102857

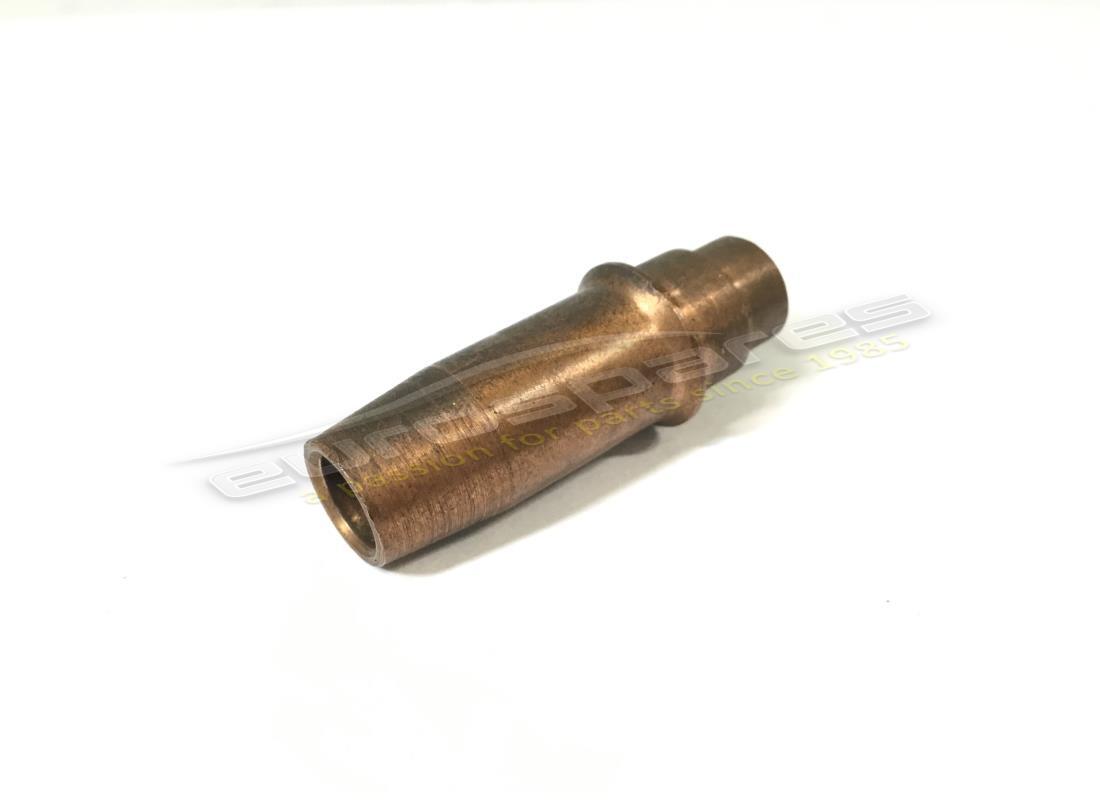

                            VALVE GUIDE STANDARD
                            from £35.90
                            from £35.90
                            # 005
                            MPN: 107026
                            VALVE GUIDE OVERSIZED 13.25
                            from £72.82
                            from £72.82
                            # 006
                            MPN: 105722
                            INTAKE VALVE SEAT
                            Supersession
                            Supersession
                            # 007
                            MPN: 102859
                            EXHAUST VALVE SEAT
                            from £63.51
                            from £63.51
                            # 008
                            MPN: 100239
                            SPRING
                            from £6.20
                            from £6.20
                            # 009
                            MPN: 100240
                            SPRING
                            from £7.36
                            from £7.36
                            This part replaces part number 4146799 - and 1 more. Click to view details
                            # 010
                            MPN: 106180

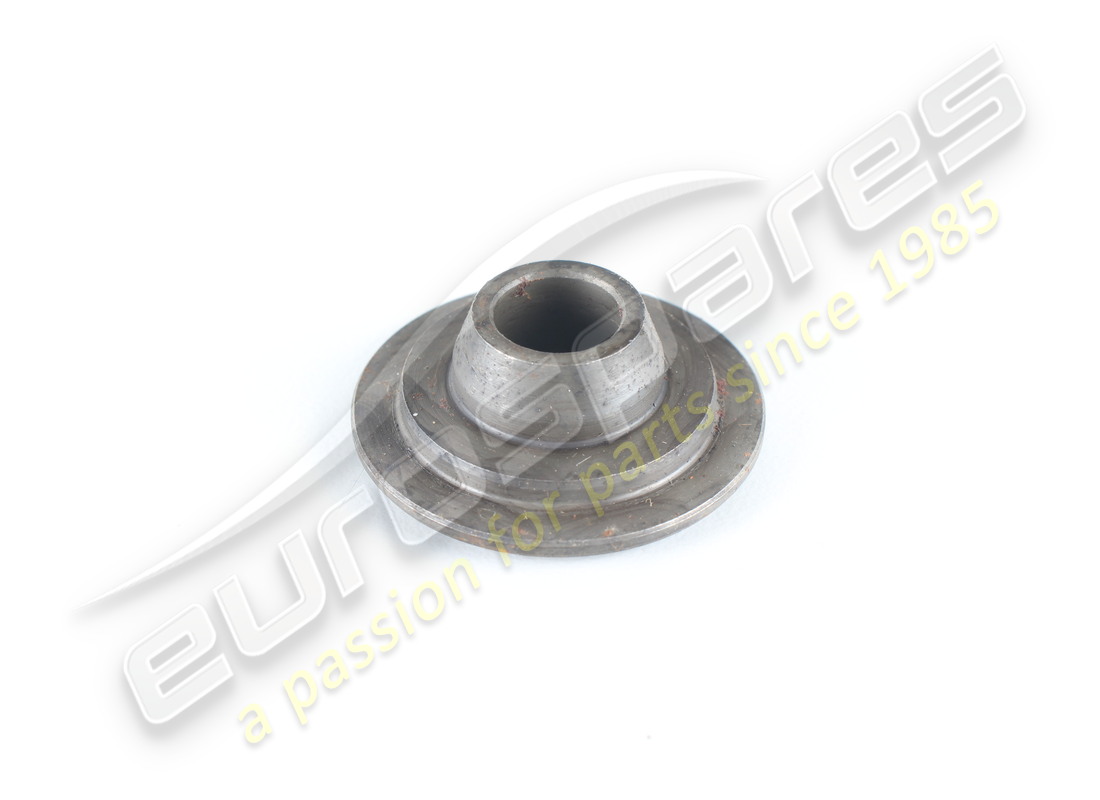

                            VALVE SPRING SEAT RETAINER
                            from £28.26
                            from £28.26
                            # 011
                            MPN: 106181
                            VALVE SPRING SEAT RETAINER
                            from £30.78
                            from £30.78
                            This part replaces part number 4178525
                            # 012
                            MPN: 119766
                            OIL STEAM SEAL
                            from £6.83
                            from £6.83
                            This part replaces part number 100243
                            # 013
                            MPN: 102862
                            VALVE COLLET
                            from £5.91
                            from £5.91
                            This part replaces part number 4149118 - and 1 more. Click to view details
