ferrari 250 gt (coachwork) cabriolet hood parts diagram

014 - Cabriolet Hood

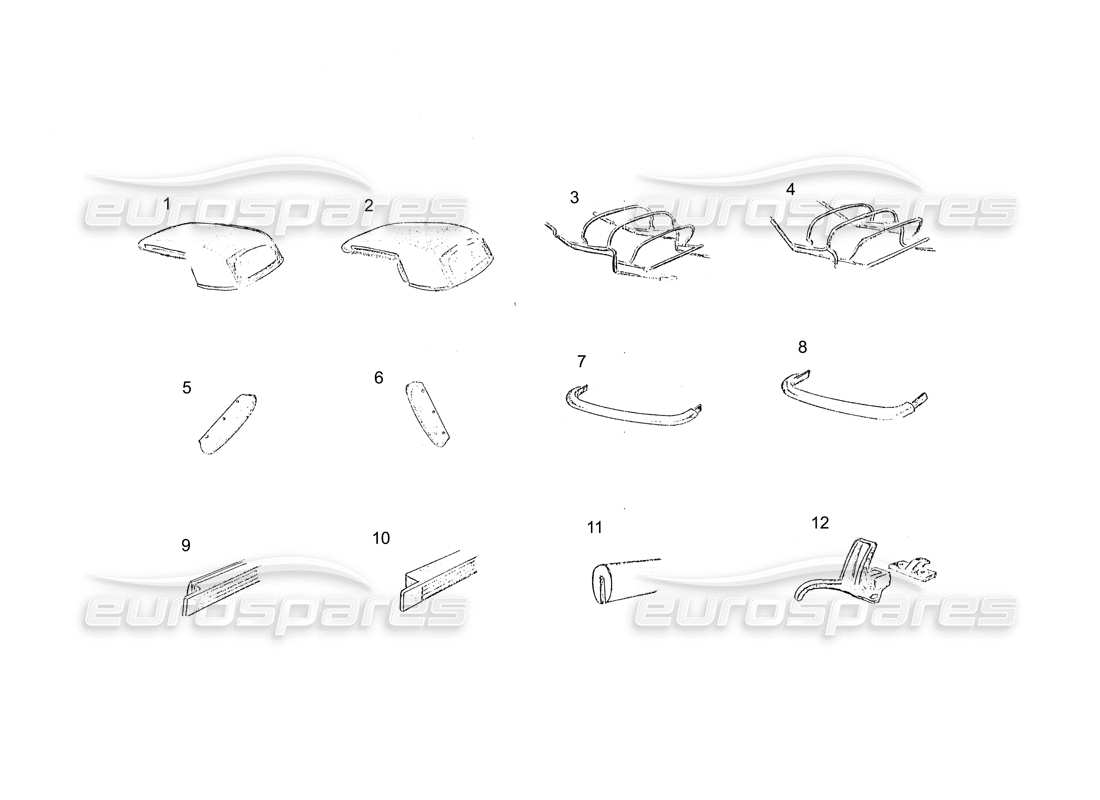

Ferrari 250 GT (Coachwork) Cabriolet Hood Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 239-60-000-00
      CAPOTE - COMPLESSIVO
      Fino alla 100ˆ vett.
      ROOF COMPLETE Genuine Ferrari Part - New (to order)
      # 002
      MPN: 239-60-000-00
      CAPOTE - COMPLESSIVO
      Dalla alla 101ˆ vett.
      ROOF COMPLETE Genuine Ferrari Part - New (to order)
      # 003
      MPN: 239-60-010-00
      TOP FRAME
      Fino alla 100ˆ vett.
      ROOF FRAME COMPLETE Genuine Ferrari Part - New (to order)
      # 004
      MPN: 239-60-010-00
      TOP FRAME
      Dalla alla 101ˆ vett.
      ROOF FRAME COMPLETE Genuine Ferrari Part - New (to order)
      # 005
      MPN: 239-60-108-00
      SOSTEGNO POSTER. D. TELA CAPOTE BATT. POST. CRIST. PORTA
      Dalla alla 101ˆ vett.
      RH ROOF COVER Genuine Ferrari Part - New (to order)
      # 006
      MPN: 239-60-109-00
      SOSTEGNO POSTER. S. TELA CAPOTE BATT. POST. CRIST. PORTA
      Dalla alla 101ˆ vett.
      LH ROOF COVER Genuine Ferrari Part - New (to order)
      # 007
      MPN: 239-60-280-00
      TRAVERSA ANT. CAPOTE
      Fino alla 100ˆ vett.
      ROOF SURROUND Genuine Ferrari Part - New (to order)
      # 008
      MPN: 239-60-280-00
      TRAVERSA ANT. CAPOTE
      Dalla alla 101ˆ vett.
      ROOF SURROUND Genuine Ferrari Part - New (to order)
      # 009
      MPN: 239-60-302-00
      PROFILATO GOMMA SPUGNA APPOGGIO TRAVERSA AL PARABREZZA - DIS. 70497
      Fino alla 100ˆ vett.
      SURROUND Genuine Ferrari Part - New (to order)
      # 010
      MPN: 239-60-302-00
      PROFILATO GOMMA SPUGNA APPOGGIO TRAVERSA AL PARABREZZA - DIS. 71291
      Dalla alla 101ˆ vett.
      SURROUND Genuine Ferrari Part - New (to order)
      # 011
      MPN: 239-60-304-00
      PROFILATO GOMMA BORDO ESTERNO TRAVERSA ANTER. - DIS. 69535
      RUBBER STRIP Genuine Ferrari Part - New (to order)
      # 012
      MPN: 239-60-360-00
      GANCIO LATER. CROM. COMPLETA DI GANCIO SUP. P. CHIUS. CAPOTE - DIS. 70346
      SIDE ROOF CATCH Genuine Ferrari Part - New (to order)
