113 - Interior Trims and Seats

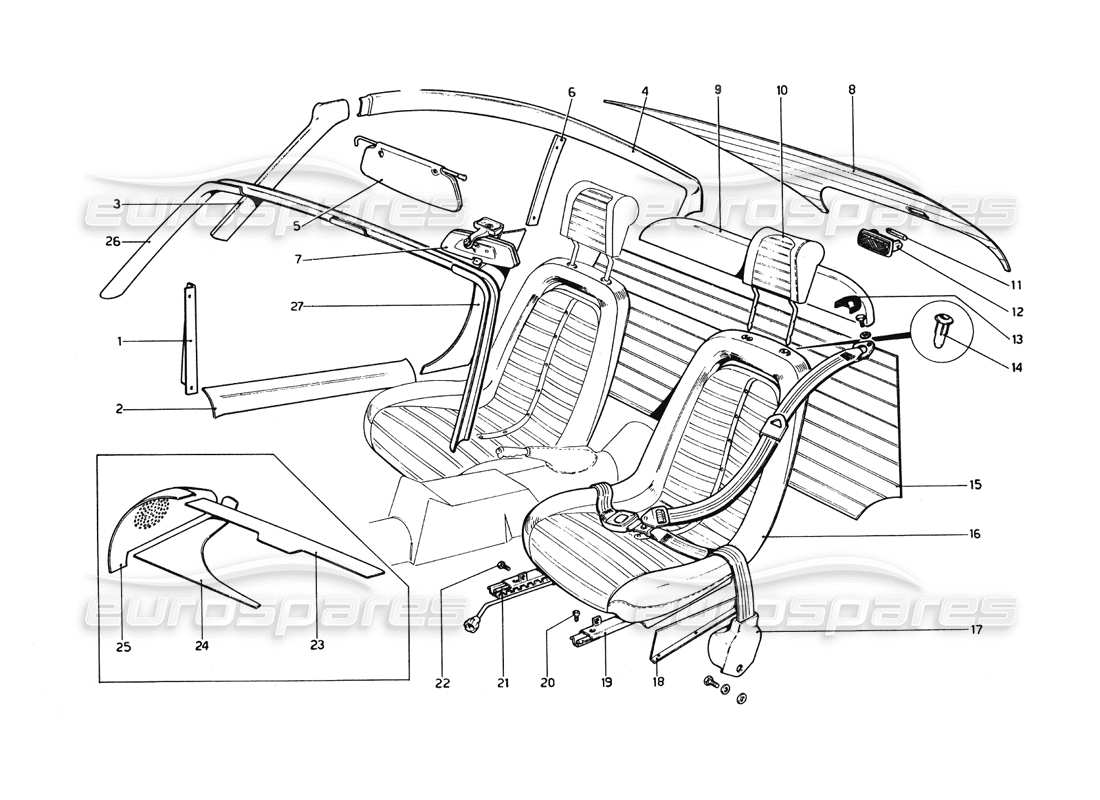

Ferrari 246 Dino (1975) Interior Trims and Seats Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: FINT001
COMPETE TRIMS SEATS
246GT Dino.
from £624.75
from £624.75
# 001
MPN: 20112504
MONTANTE INFERIORE FIANCATA DESTRA
Non vale per GTS
from £392.95
from £392.95
# 001
MPN: 20112603
MONTANTE INFERIORE FIANCATA SINISTRA
Non vale per GTS
from £392.95
from £392.95
# 001
MPN: 20123700
MONTANTE INFERIORE FIANCATA DESTRA
Vale per GTS
# 001
MPN: 20123800
MONTANTE INFERIORE FIANCATA SINISTRA
Vale per GTS
# 002
MPN: 20076105
RIVESTIMENTO SOTTOPORTA
from £153.70
from £153.70
# 003
MPN: 20079802
MODANATURA INTERNA LATERALE PARABREZZA (DESTRO)
Non vale per GTS
from £537.45
from £537.45
# 003
MPN: 20079901
MODANATURA INTERNA LATERALE PARABREZZA (SINISTRO)
Non vale per GTS
from £511.85
from £511.85
# 003
MPN: 20126900
MODANATURA INTERNA LATERAIE PARABREZ.
Vale per GTS
# 003
MPN: 20127000
MODANATURA INTERNA LATERAIE PARABREZ.
Vale per GTS
# 004
MPN: 20051000
OSSATURA LONGHERINA DESTRA
Non vale per GTS
from £519.10
from £519.10
# 004
MPN: 20051100
OSSATURA LONGHERINA SINISTRA
Non vale per GTS
from £519.10
from £519.10
# 005
MPN: 20040408
PARASOLE DESTRO
Non vale per GTS
Supersession
Supersession
# 005
MPN: 20040507
PARASOLE SINISTRO
Non vale per GTS
from £455.30
from £455.30
This part replaces part number 20040408
# 006
MPN: 20111800
COPRIMONTANTE FIANCATA
Non vale per GTS
from £258.10
from £258.10
# 007
MPN: 20040606
SPECCHIO RETROVISORE INTERNO
Supersession
Supersession
# 008
MPN: 20065603
RIVESTIMENTO INTERNO PADIGIIONE
Non vale per GTS
# 009
MPN: 0201625
MODANATURA SOTTOLUNOTTO
Vale per GTS fino alla 1210
# 009
MPN: 20078408
MODANATURA SOTTOLUNOTTO
Non vale per GTS
from £519.10
from £519.10
# 009
MPN: 20258700
MODANATURA SOTTOLUNOTTO
Vale per GTS dalla 1211
# 010
MPN: 20093506
APPOGGIATESTA
# 011
MPN: 020093506
LAMP
Per GTS Quantita 2
# 012
MPN: 0200684
PLAFONIERA ABITACOLO
Non vale per GTS
# 012
MPN: 0201443
PLAFONIERA ABITACOLO
Vale per GTS
# 013
MPN: 20107801
COVER
# 014
MPN: 0200589
BUSH
# 015
MPN: 0200653
RIVESTIMENTO PER PARETE POST, ABITAC.
# 016
MPN: 20078100
SEATS IN BLACK LEATHER (PAIRS)
(Daytona style)
from £9,444.75
from £9,444.75
# 017
MPN: 0201158
CINTURA DI SICUREZZA
Vale fino alia 1100 vett - Non vale per USA - S - DK - N-GB-F-CH- BENELUX
# 017
MPN: 0201343
CINTURE DI SICUREZZA
Vale per USA - N - DK - S - Per GTS USA vale fino alia 2800
# 017
MPN: 0202346
CINTURE DI SICUREZZA
Vale per GB fino alla 1870 vett.
# 017
MPN: 0202362
CINTURA DI SICUREZZA
Vale dalla 1101 vett. - Non vale per USA - S - DK - N - GB
# 017
MPN: 0202362
CINTURA DI SICUREZZA
Vale per F e BENELUX
# 017
MPN: 0202362
CINTURA DI SICUREZZA
Vale per CH dalla 1101 vett.
# 017
MPN: 0202363
CINTURA DI SICUREZZA
Vale per CH fino alla 1100 vett.
# 017
MPN: 0202635
CINTURE DI SICUREZZA
Vale per GB dalla 1871 vett.
# 017
MPN: 0202741
CINTURE DI SICUREZZA
Vale per GTS USA dalla 2801 vett.
# 018
MPN: 0201437
RIPARO PER GUIDE SEDILI DESTRO
# 018
MPN: 0201438
RIPARO PER GUIDE SEDILI SINISTRO
# 019
MPN: 20169801
GUIDA DI SCORRIMENTO SEDILI
Supersession
Supersession
# 020
MPN: 14306326
SCREW
from £1.11
from £1.11
# 021
MPN: 0201697
GUIDA CENTRALE DI SCORRIMENTO SEDILI SINISTRO
# 021
MPN: 20169603
GUIDA CENTRALE DI SCORRIMENTO SEDILI DESTRO
Supersession
Supersession
# 022
MPN: 0200924
SCREW
# 023
MPN: 0201254
RIVESTIMENTO SUPERIORE ROLL-BAR
Vale per GTS
# 024
MPN: 0202848
RIVESTIMENTO LATERAIE PIANETTO SOTTOLUNOTTO DESTRO
Vale per GTS
# 024
MPN: 0202849
RIVESTIMENTO LATERAIE PIANETTO SOTTOLUNOTTO SINISTRO
Vale per GTS
# 025
MPN: 0201262
RIVESTIMENTO LATERAIE INTERNO ROLL-BAR DESTRO
Vale per GTS
# 025
MPN: 0201263
RIVESTIMENTO LATERAIE INTERNO ROLL-BAR SINISTRO
Vale per GTS
# 026
MPN: 0201282
RIVESTIMENTO SUPERIORE TRAVERSA SOPRA PARABREZZA
Vale per GTS
# 027
MPN: 0201981
FIANCHETTO LATERAIE DESTRO
Vale per GTS
# 027
MPN: 0201982
FIANCHETTO LATERAIE SINISTRO
Vale per GTS
# 027
MPN: 20112207
FIANCHETTO LATERAIE DESTRO
Non vale per GTS
from £65.38
from £65.38
# 027
MPN: 20112306
FIANCHETTO LATERAIE SINISTRO
Vale per GTS
# 028
MPN: 20263208
VENTOSA FISS. PARASOLE
Solo per GTS
from £5.52
from £5.52
# 029
MPN: 20285706
RIVESTIMENTO CENTRALE SEDILE IN PELLE TIPO DAYTONA
Opzionale
